Home >> Mercury >> 2005 >> Grand Marquis V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test G: Incorrect/Erratic Direction of Air Flow From Outlet - Manual Climate Control

Test G: Incorrect/Erratic Direction of Air Flow From Outlet - Manual Climate Control

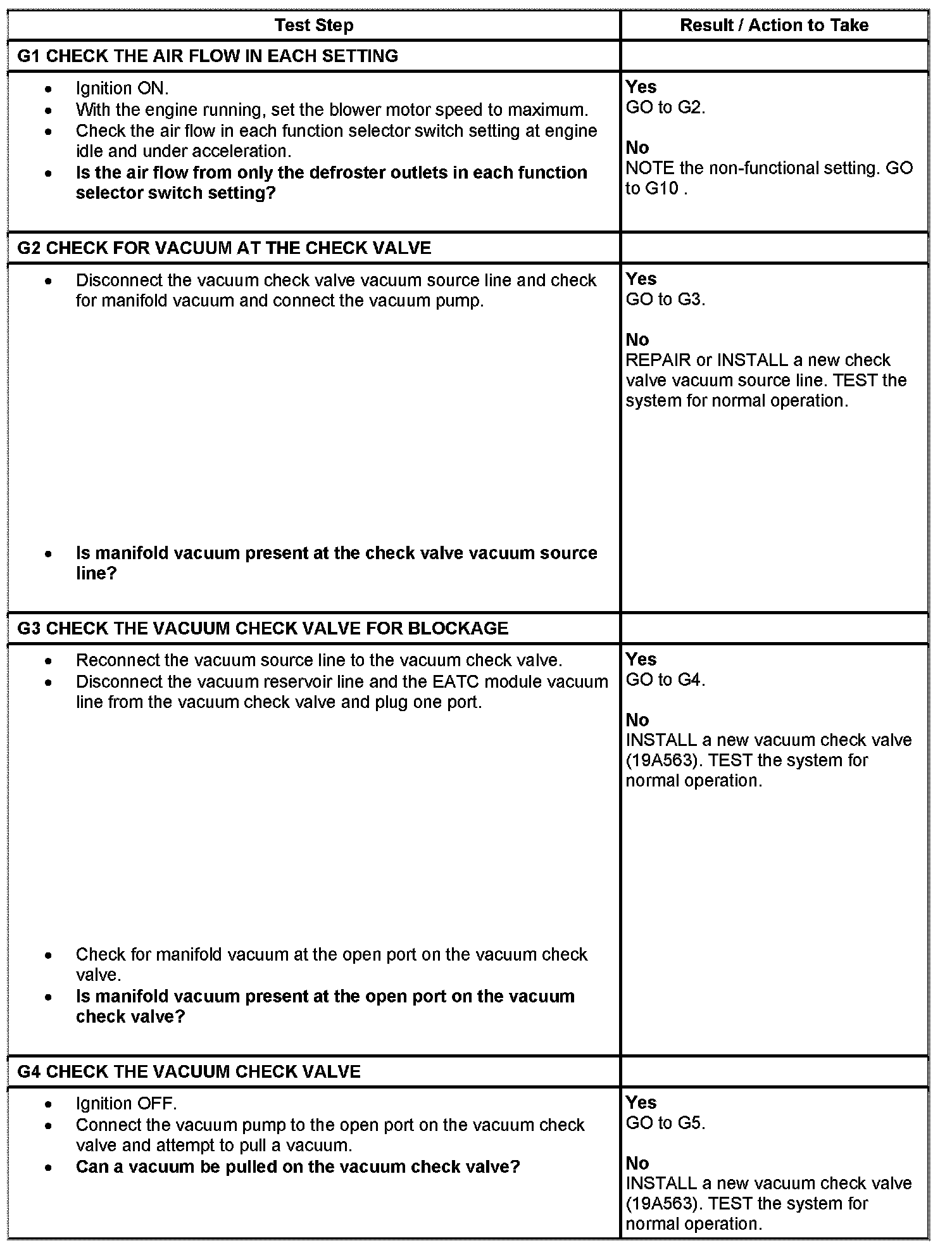

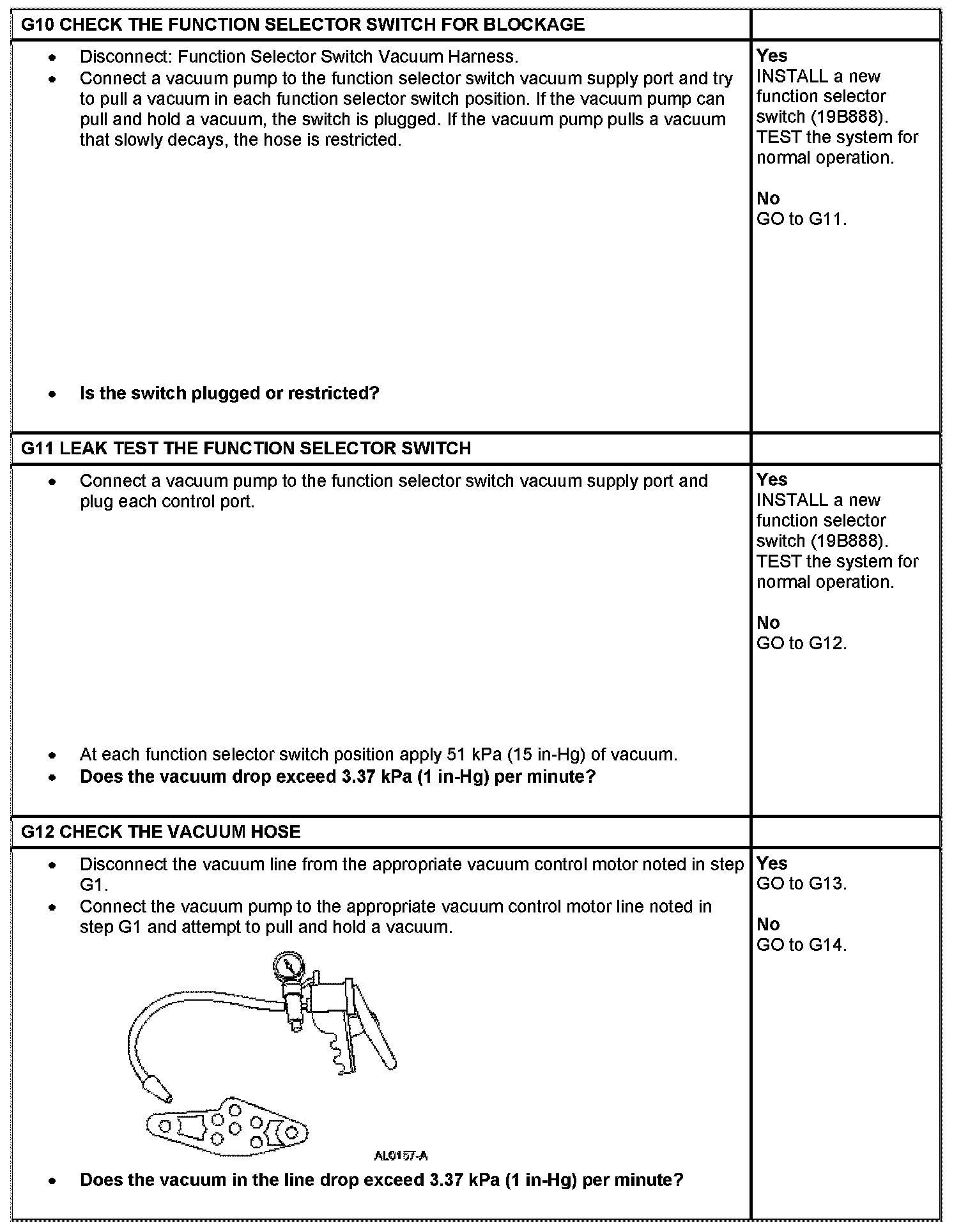

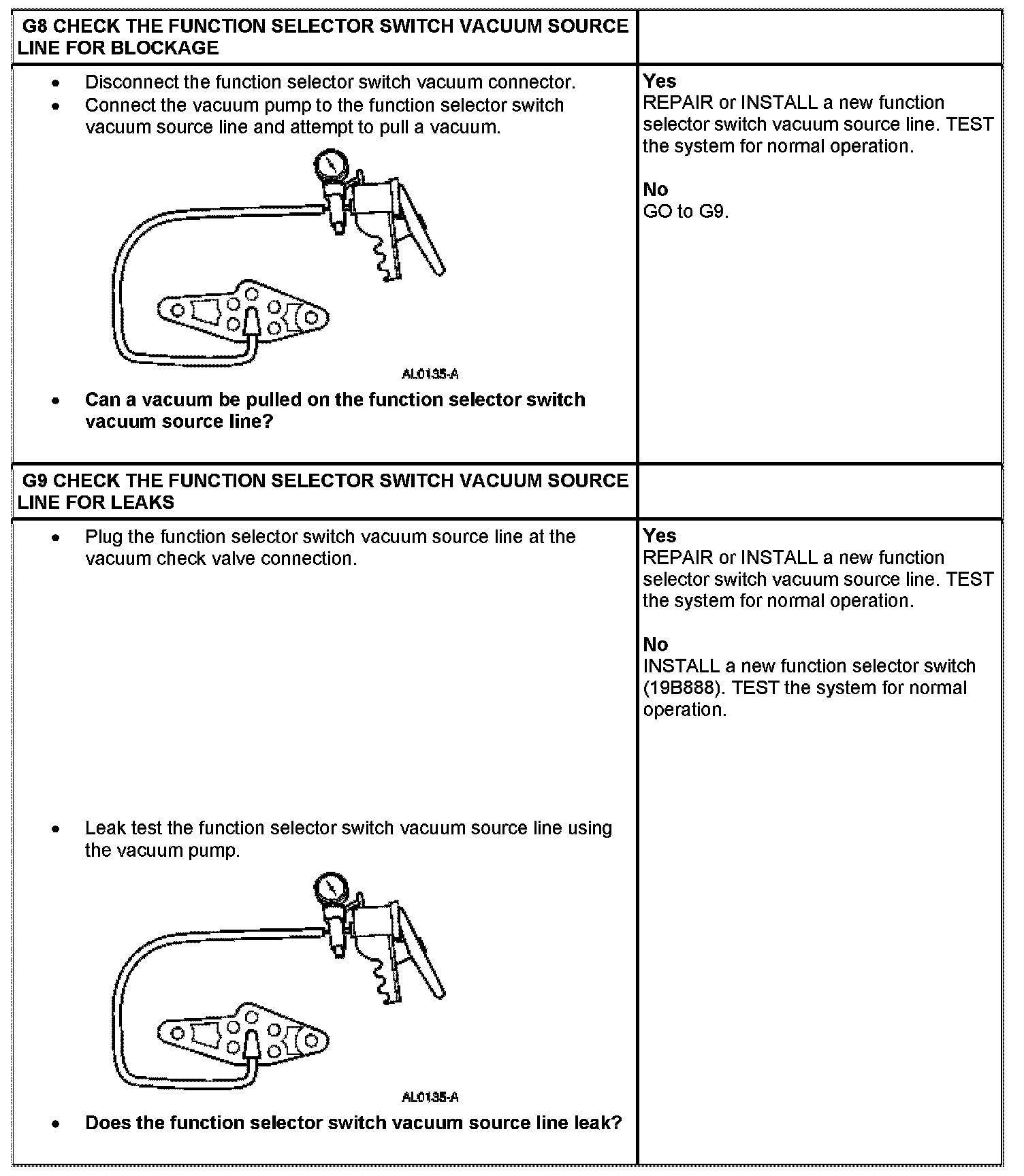

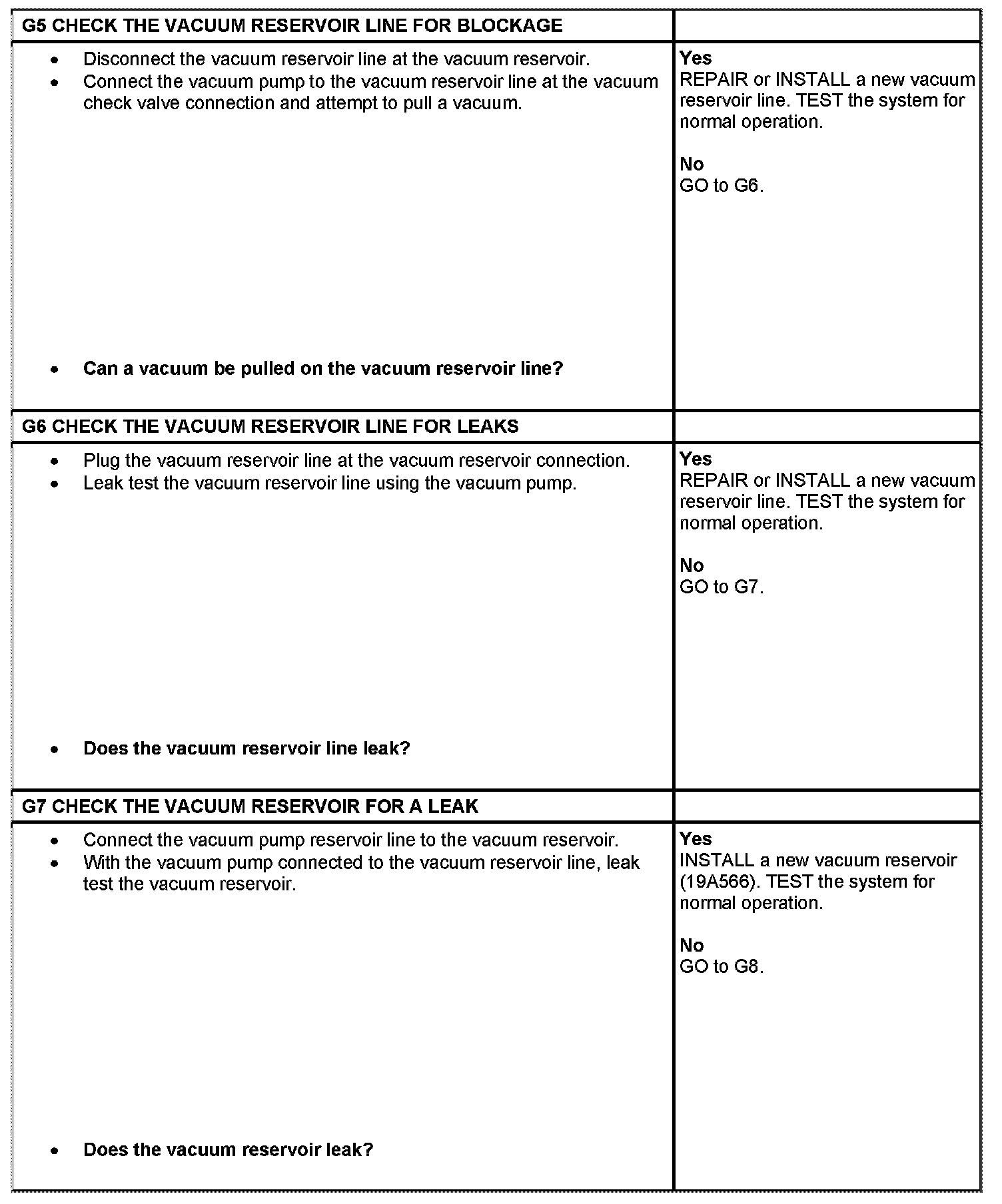

Pinpoint Test G: Incorrect/Erratic Direction of Air Flow From Outlet - Manual Climate Control
