Test B: DTC B1251 or DTC B1253 - A/C In-Car Temperature Sensor Open Circuit or Short to Ground
Test B: DTC B1251 or DTC B1253 - A/C In-Car Temperature Sensor Open Circuit or Short to Ground

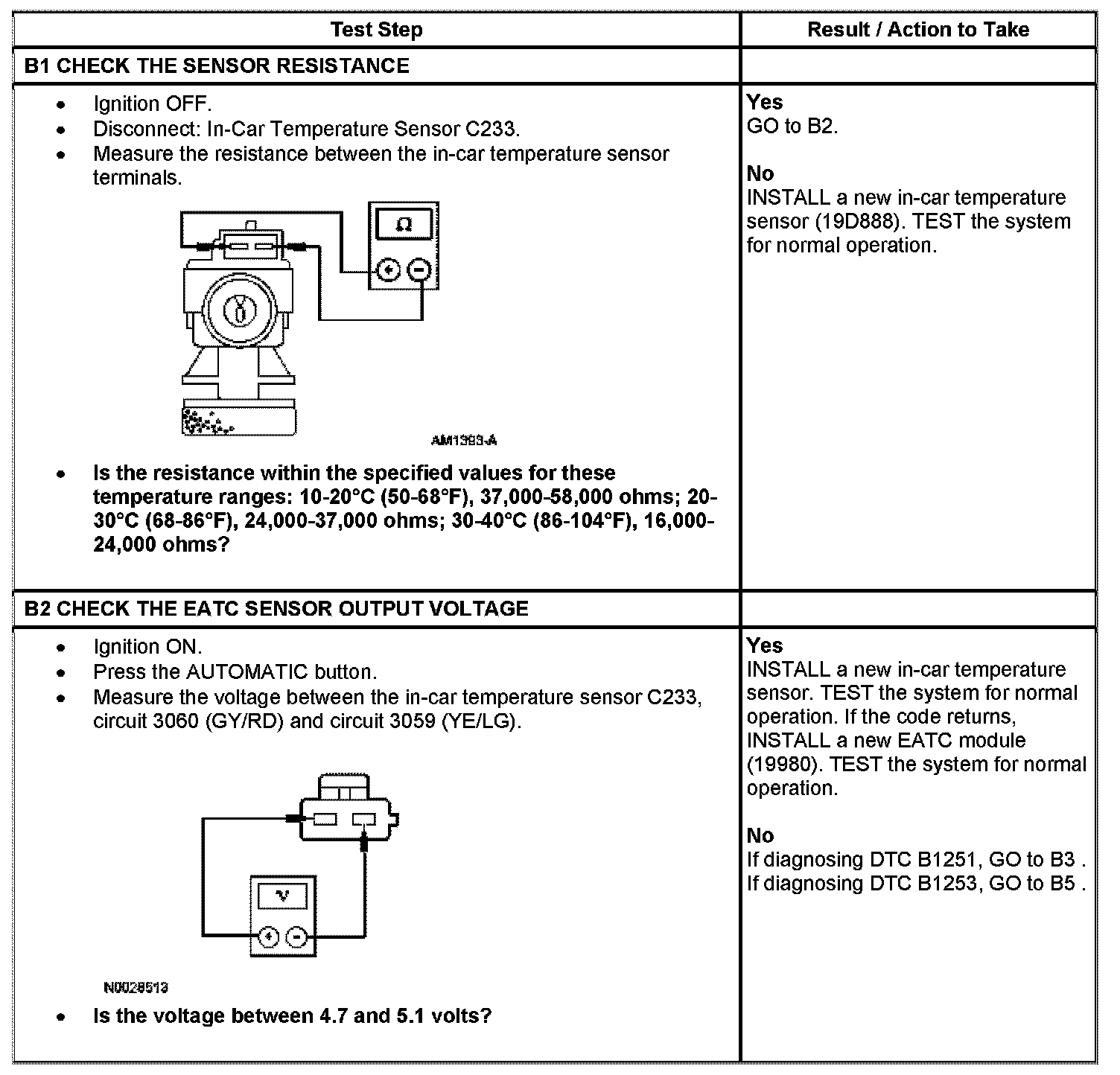

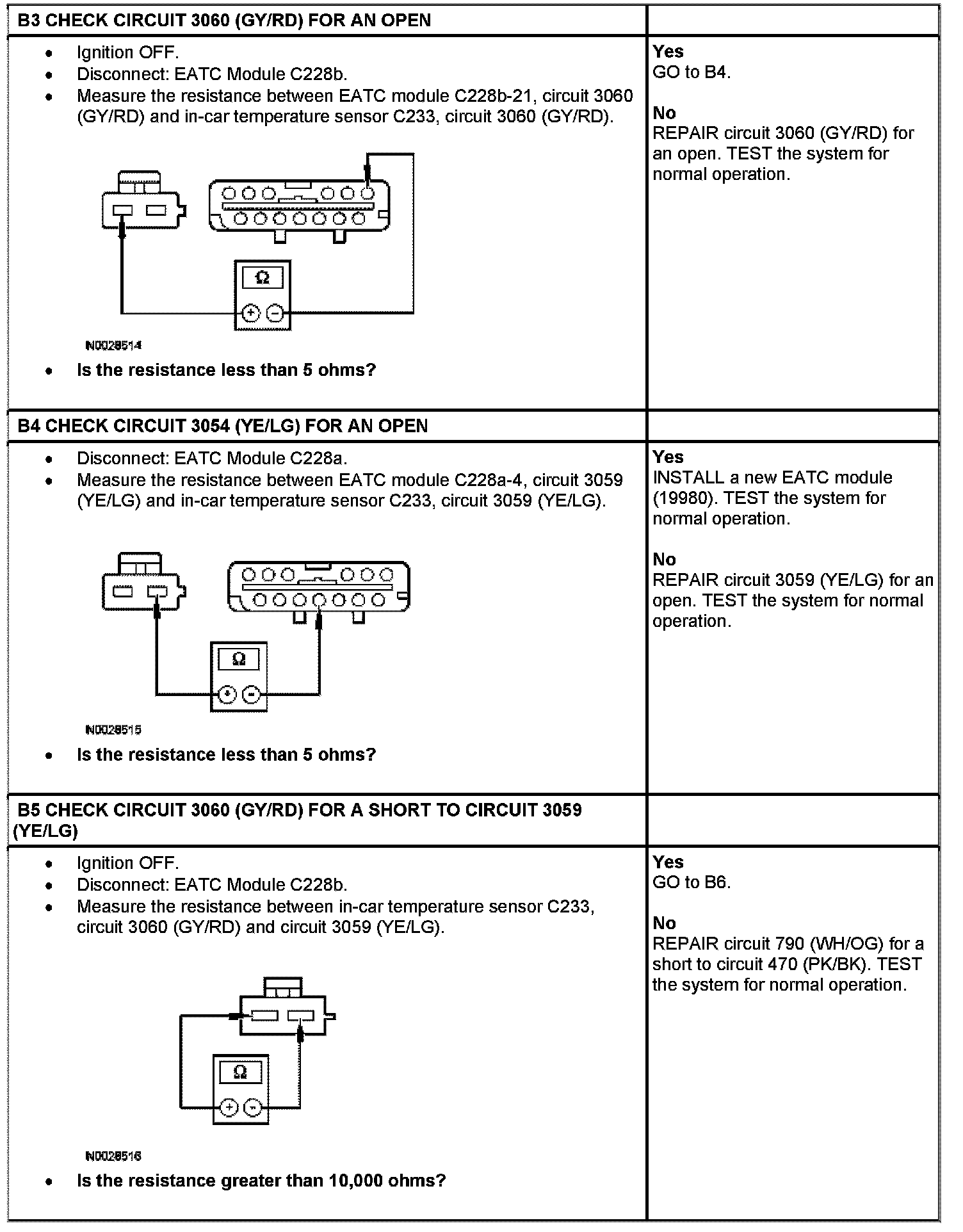

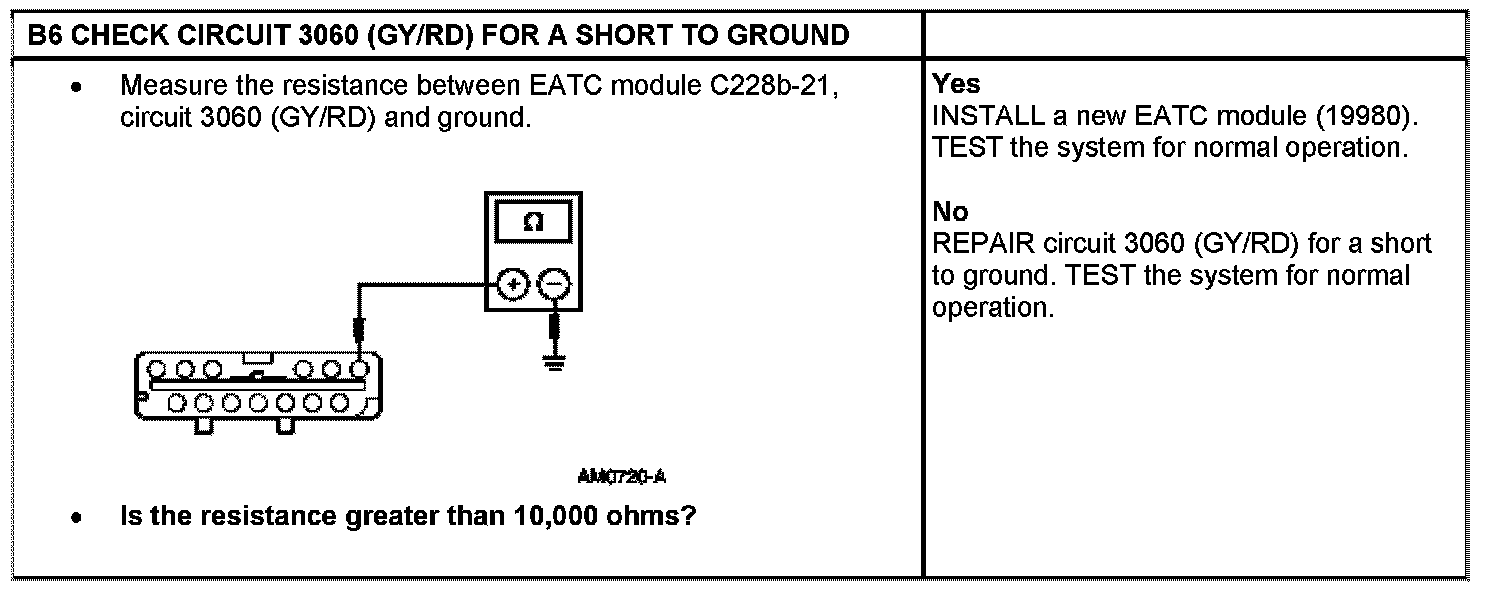

Pinpoint Test B: DTC: B1251 or DTC B1253 - A/C In-Car Temperature Sensor Open Circuit or Short to Ground
