Diagnostic Vacuum Diagrams - Manual A/C

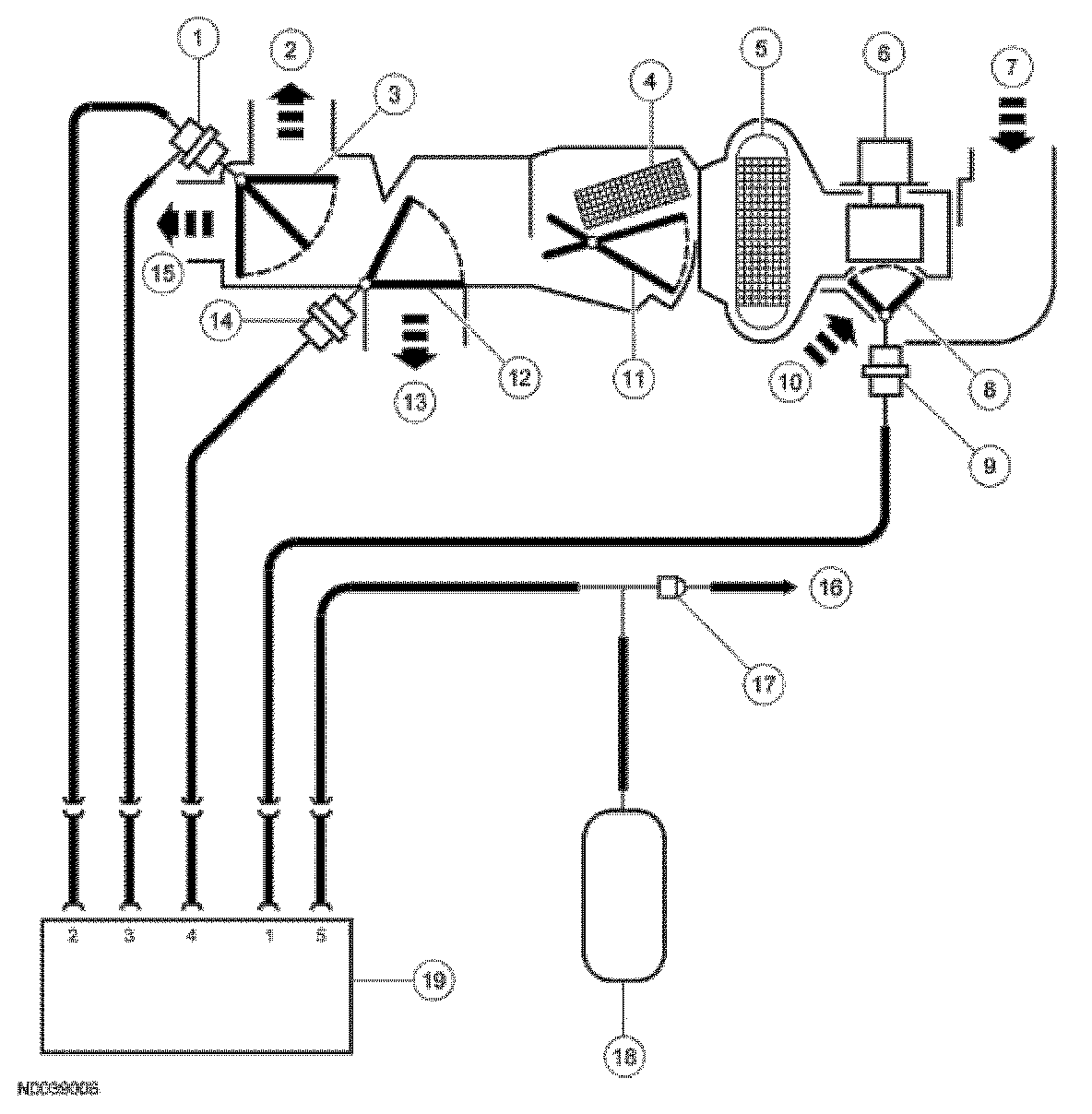

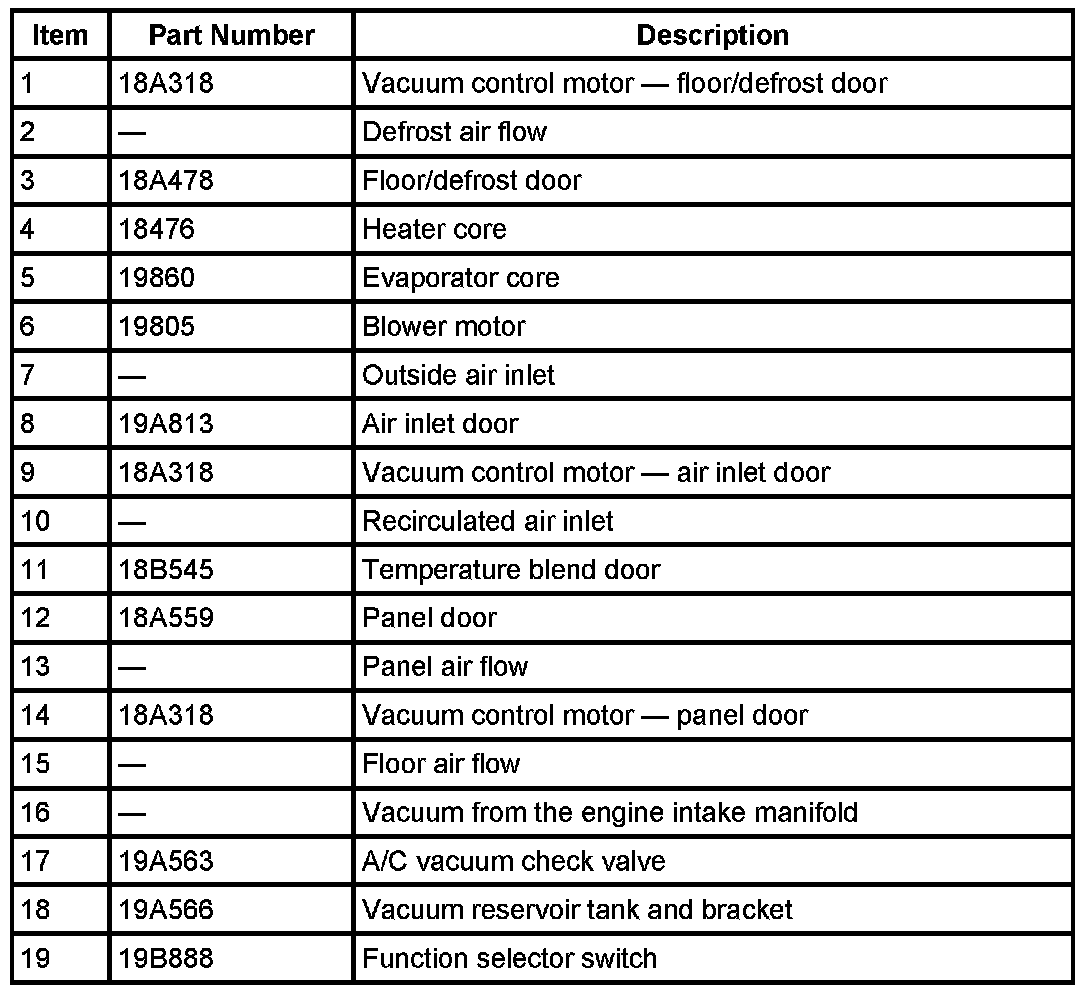

Vacuum Schematic - Manual A/C

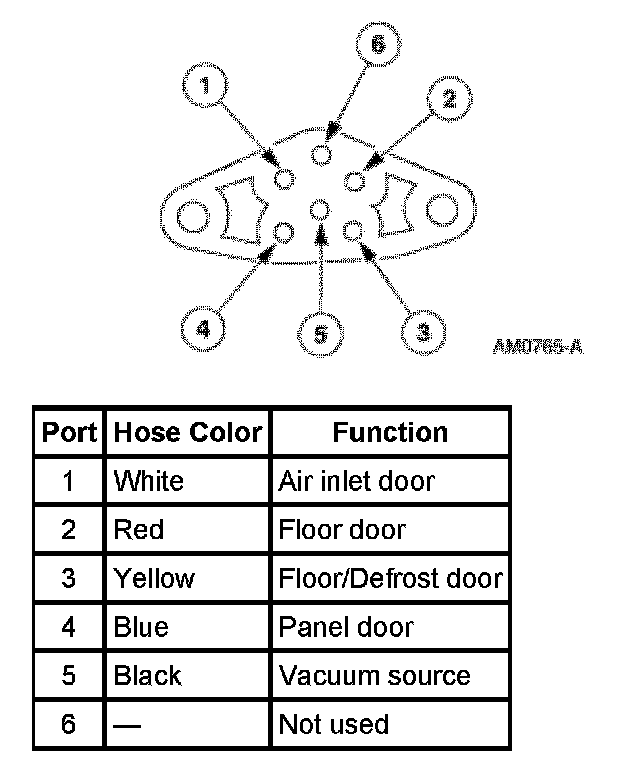

Vacuum Connector End View - Manual A/C

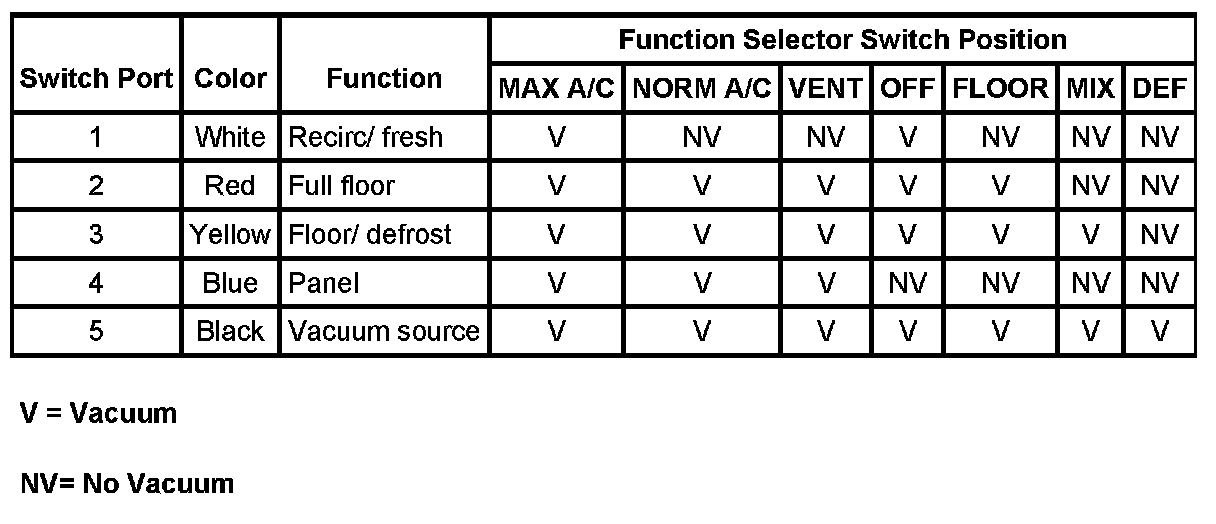

Vacuum Application Chart - Manual A/C
