Electronic Automatic Temperature Control

Climate Control Assembly - EATC

Removal and Installation

1. Depower the supplemental restraint system (SRS). Refer to Restraint Systems, Air Bag Systems, Air Bag(s) Arming and Disarming Air Bag Systems

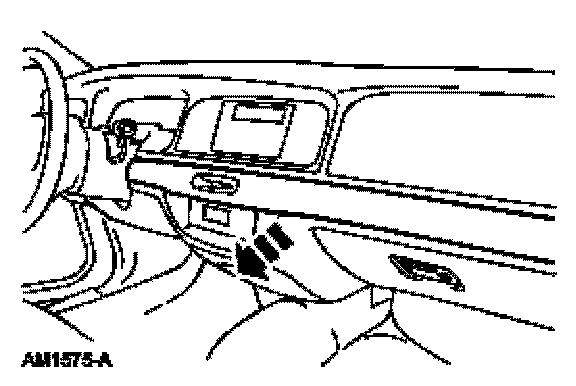

2. Remove the finish panel.

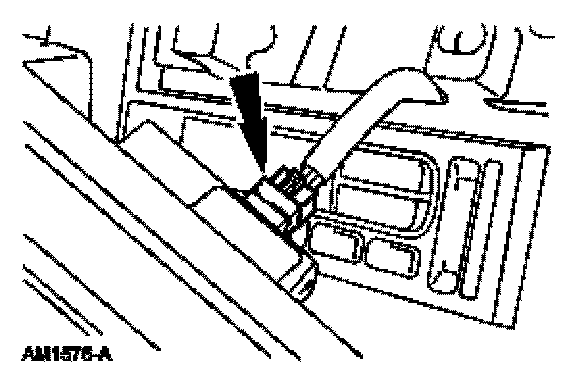

3. Disconnect the connector.

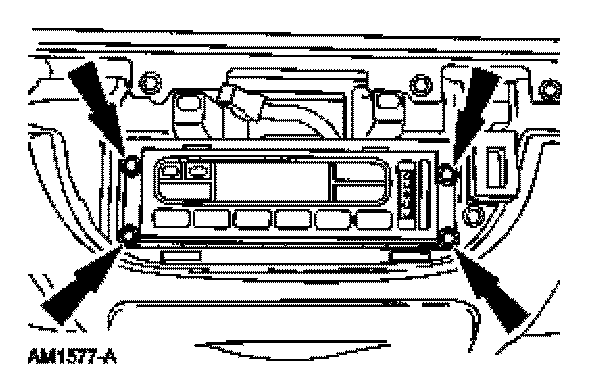

4. Remove the screws and pull the electronic automatic temperature control (EATC) module from the instrument panel.






5. Remove the climate control assembly.

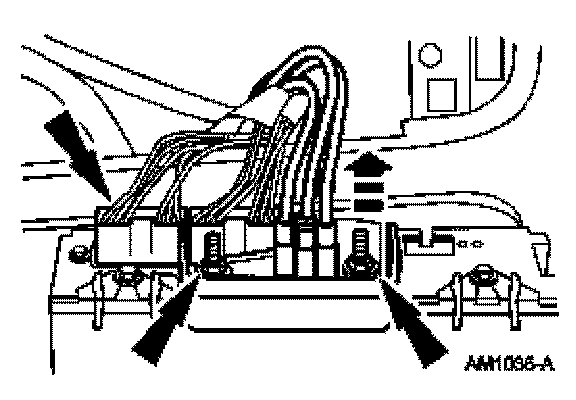

- Remove the nuts and the vacuum harness.
- Disconnect the wire harness connectors and remove the EATC module.
6. To install, reverse the removal procedure.
