Camshaft Roller Follower

Camshaft Roller Follower

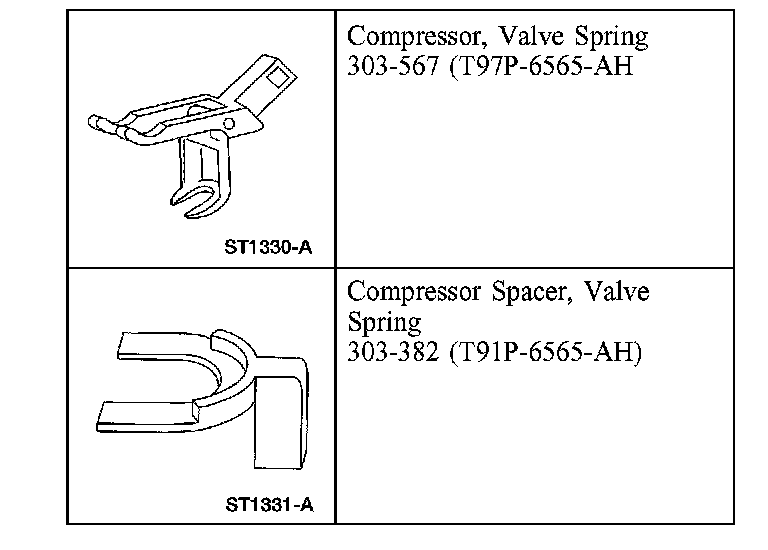

Special Tools

Removal
1. Remove the valve covers.
2. Position the piston of the cylinder being repaired at the bottom of the stroke.

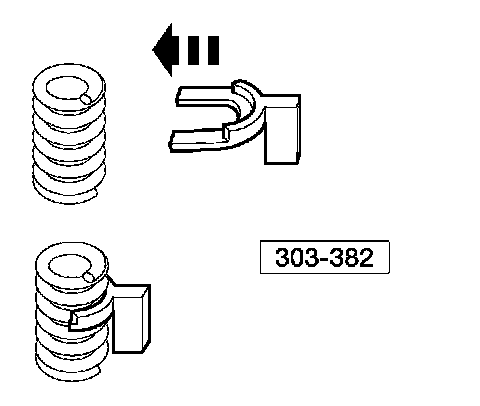

3. Install the special tool between the valve spring coils to prevent valve stem seal damage.

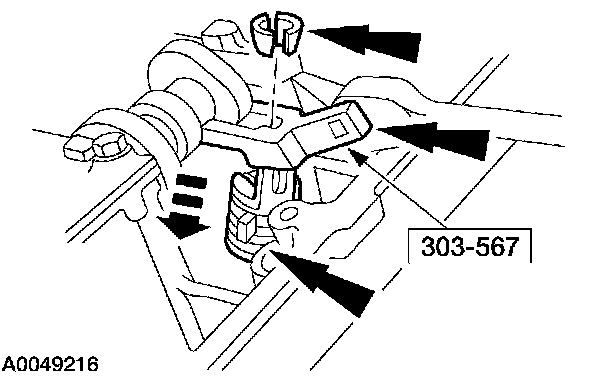

4. Use the special tool to compress the valve springs and remove the cam roller followers.

Installation

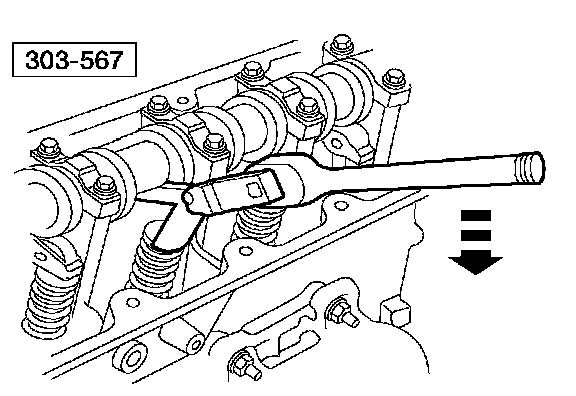

1. Use the special tool to compress the valve spring and install the camshaft roller followers.
2. Install the valve covers.
