Test C: DTC P0579 or DTC P0581 - Cruise Control Switch Circuit Failure
Test C: DTC P0579 or DTC P0581 - Cruise Control Switch Circuit Failure
PINPOINT TEST C: DTC P0579 OR DTC P0581 -
CRUISE CONTROL SWITCH
CIRCUIT FAILURE
C1-C2:

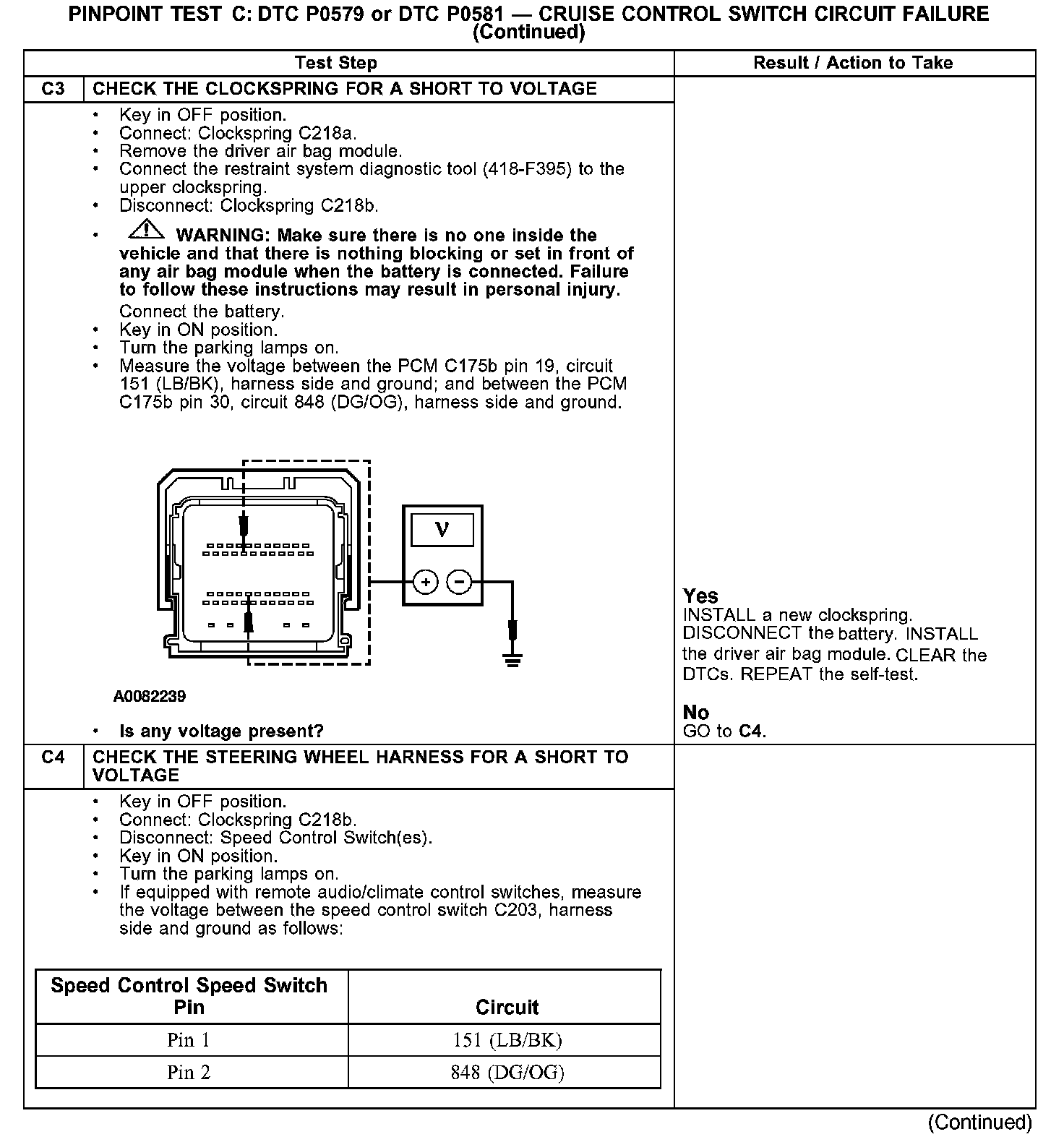

C3-C4:

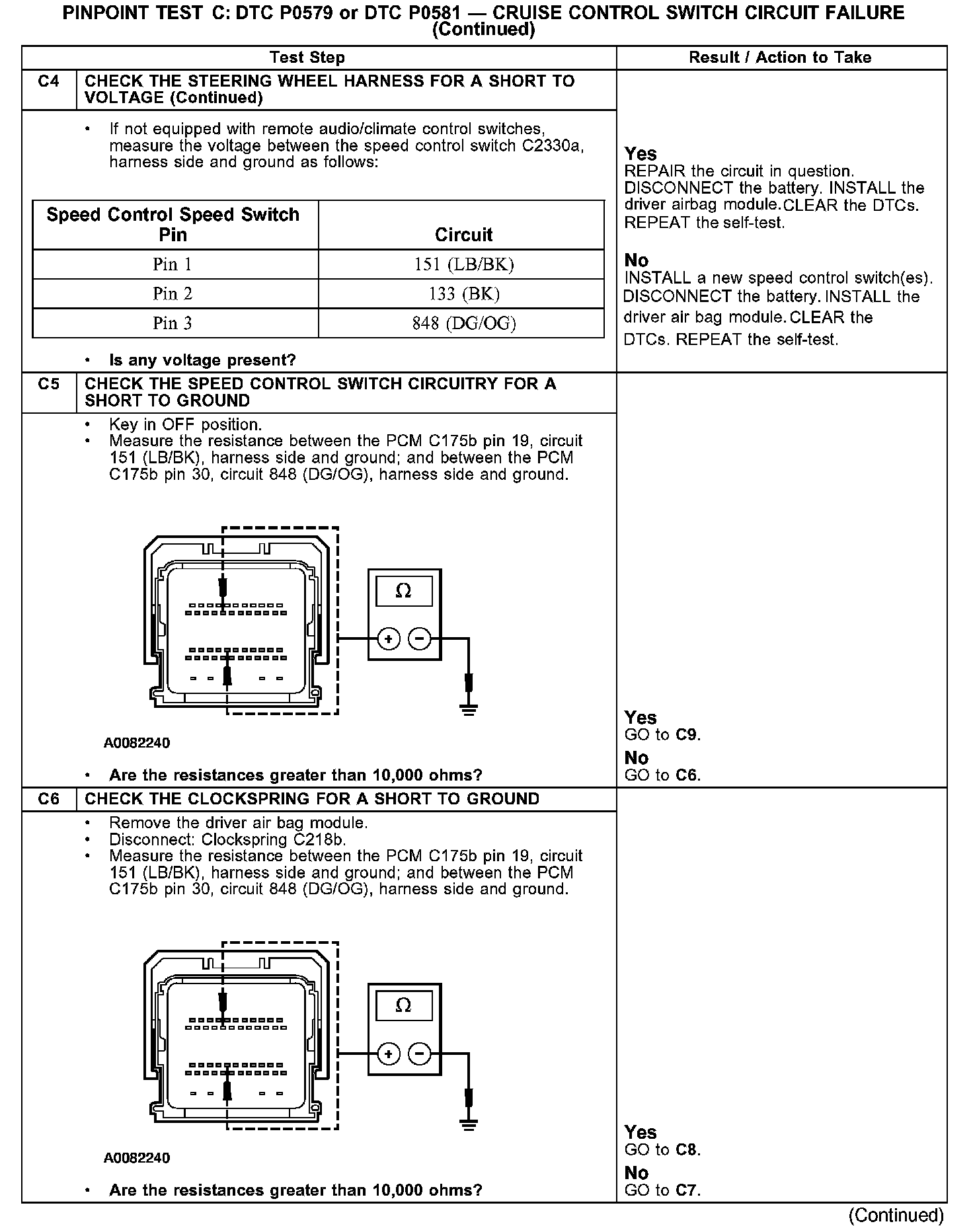

C4-C6:

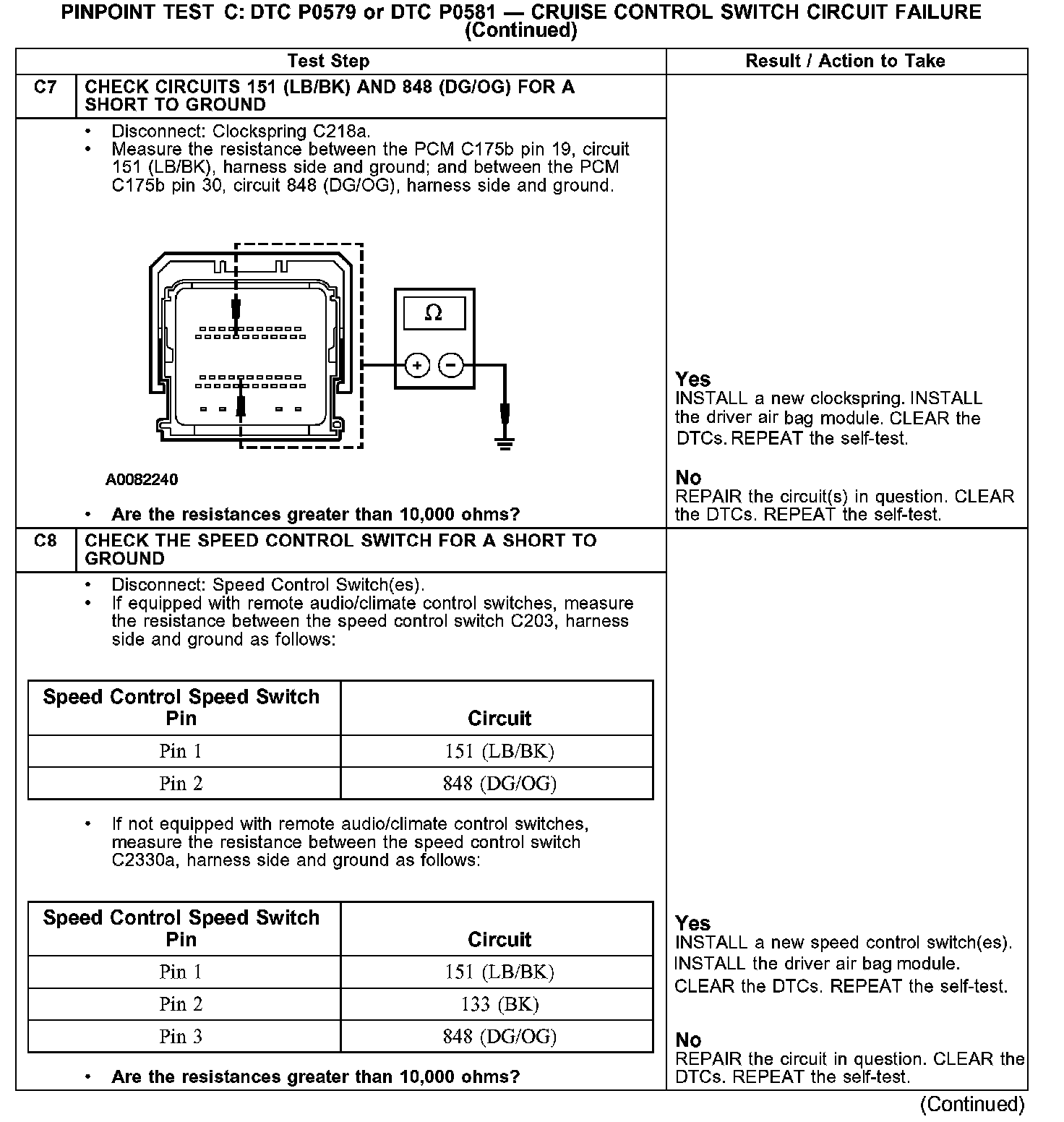

C7-C8:

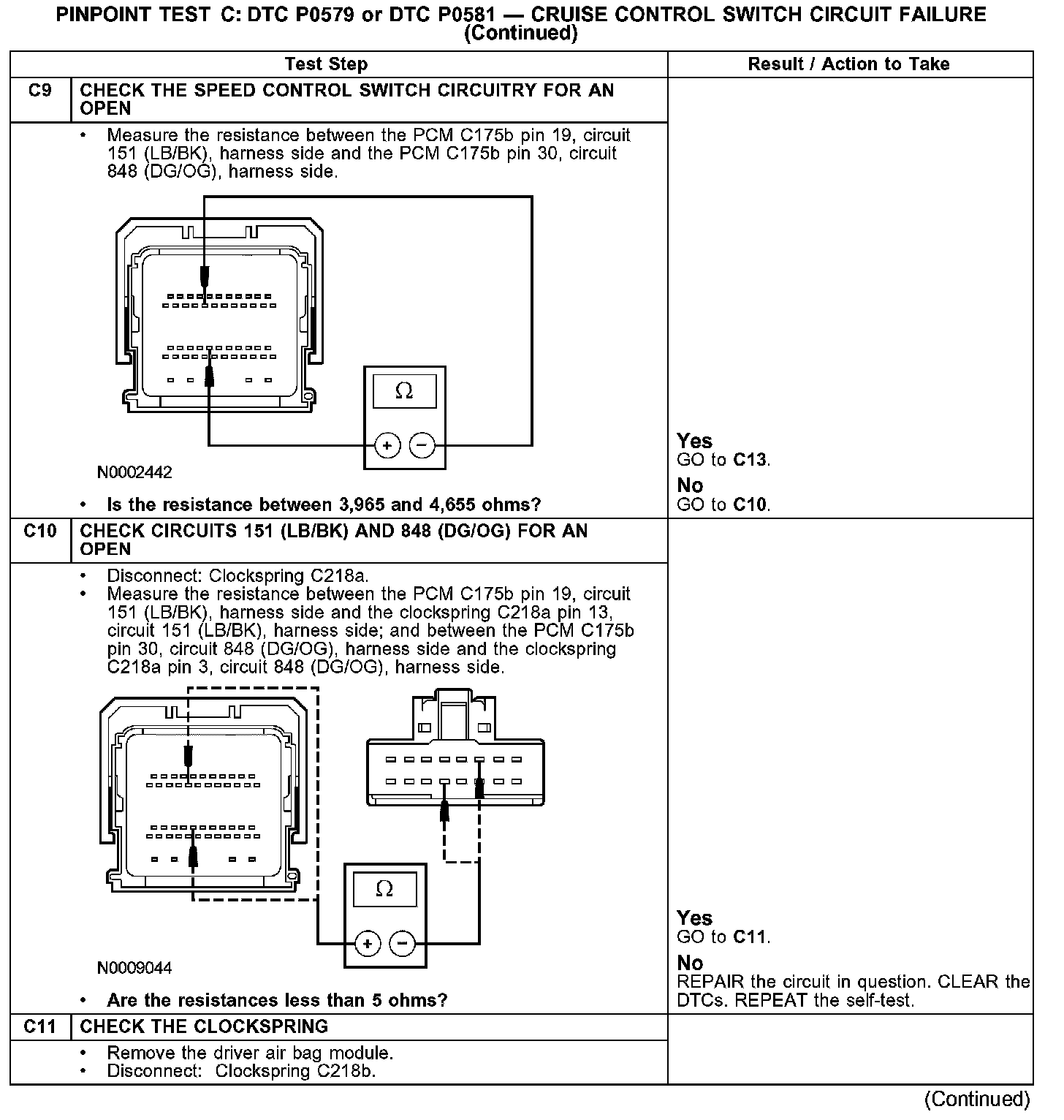

C9-C11:

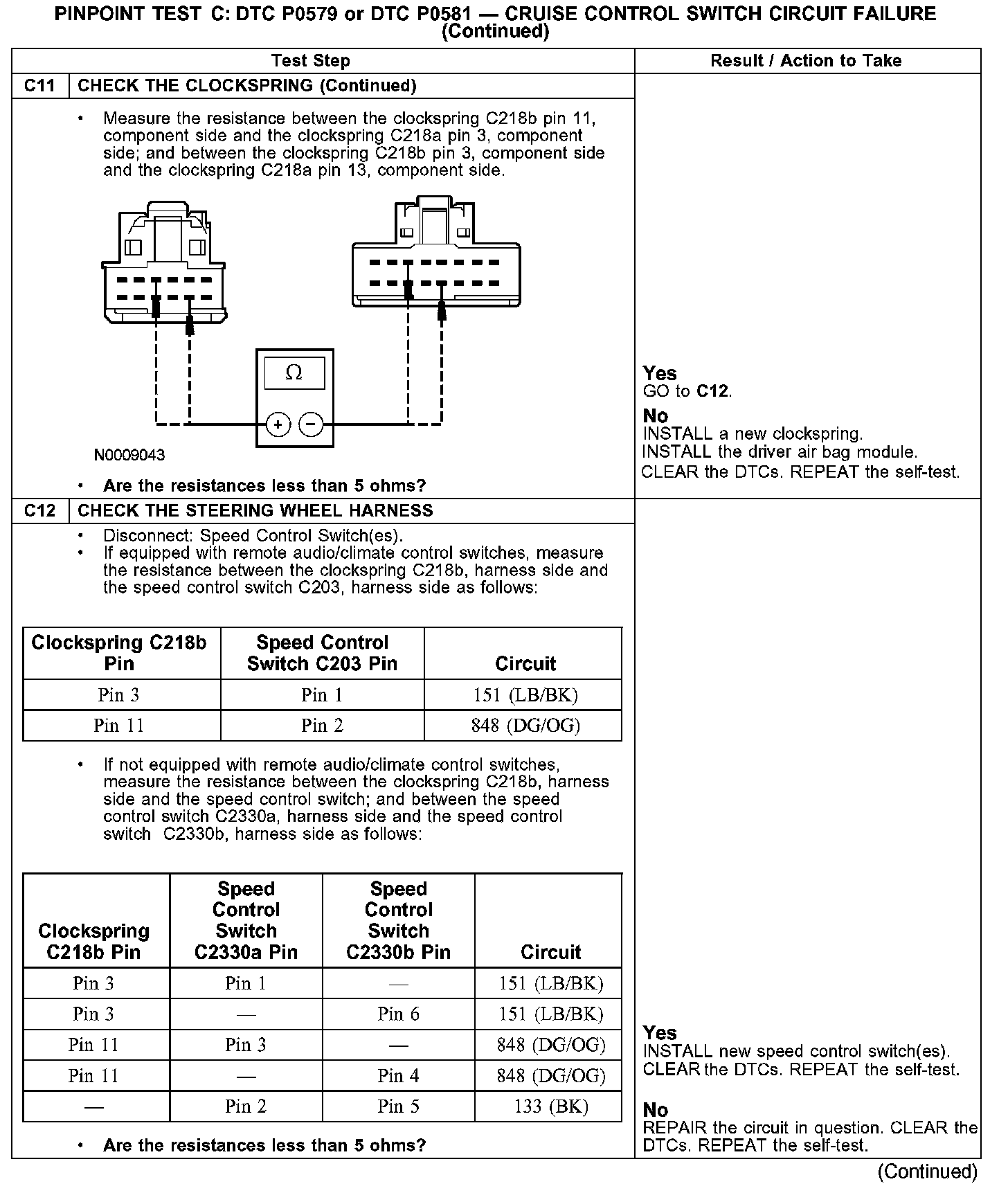

C11-C12:

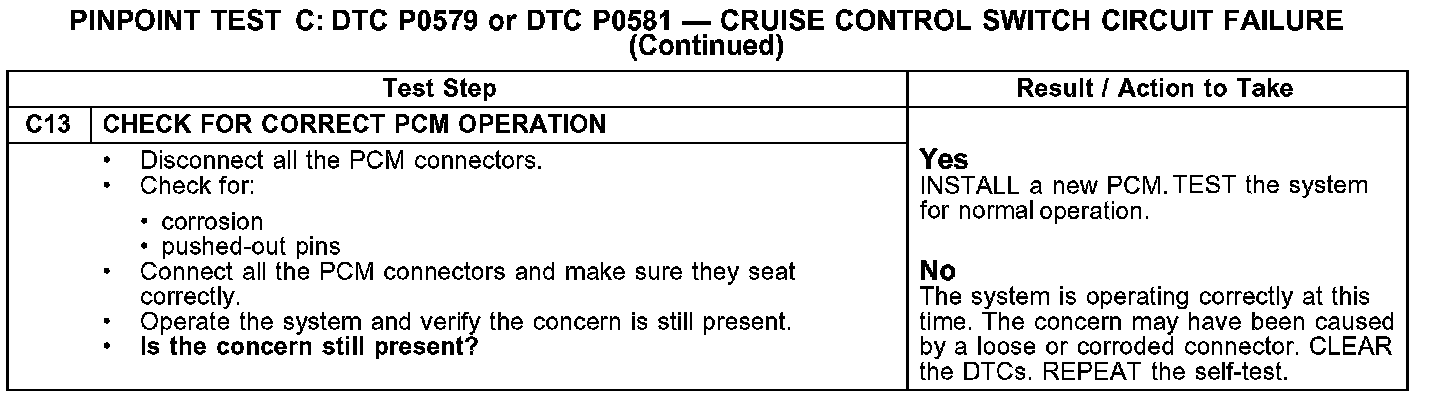

C13:
