Test B: DTC P1703 or DTC 1572 - Brake On/Off Circuit Failure
Test B: DTC P1703 or DTC 1572 - Brake On/Off Circuit Failure
PINPOINT TEST B: DTC P1703 OR DTC 1572 - BRAKE ON/OFF CIRCUIT FAILURE

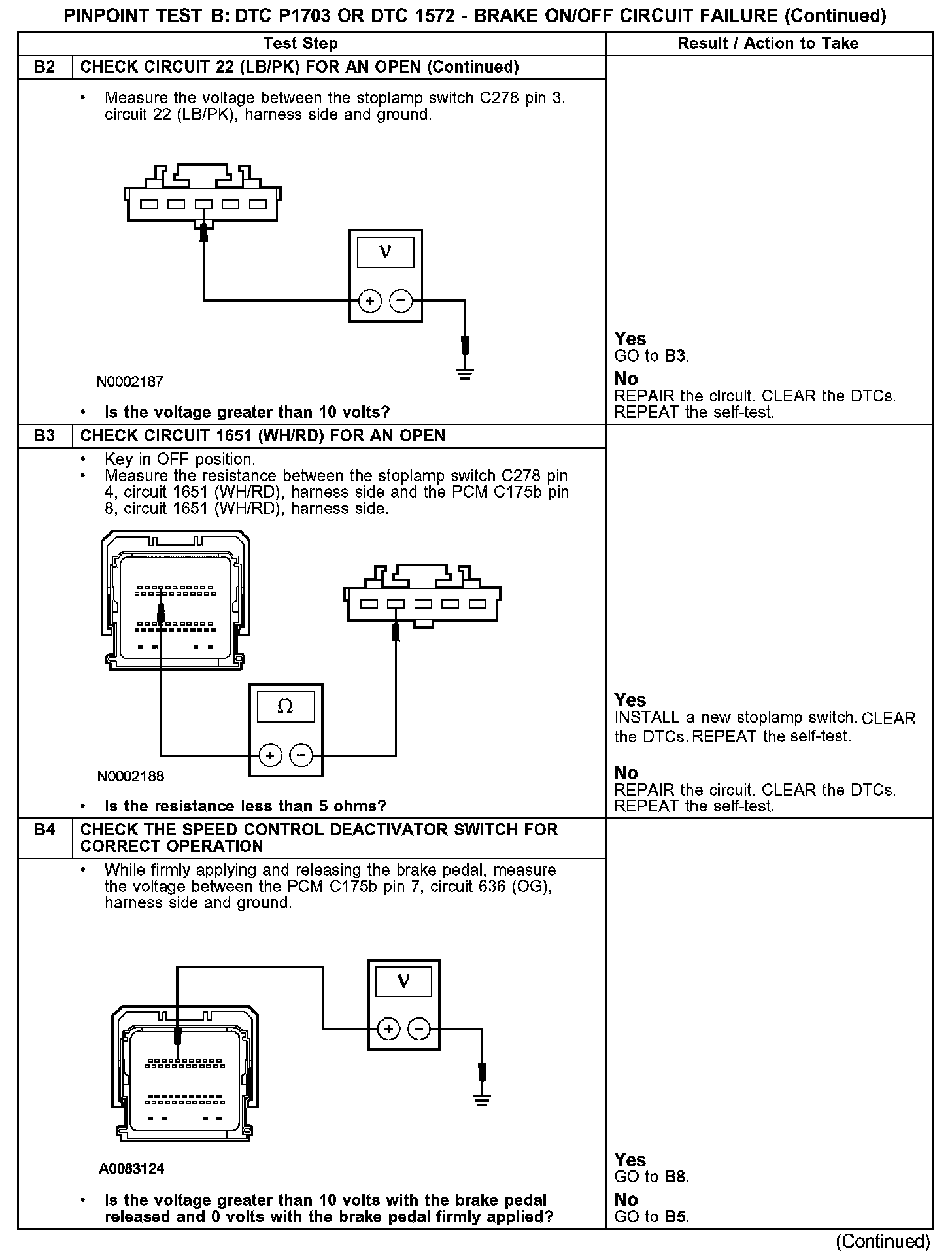

B1-B2:
B2-B4:

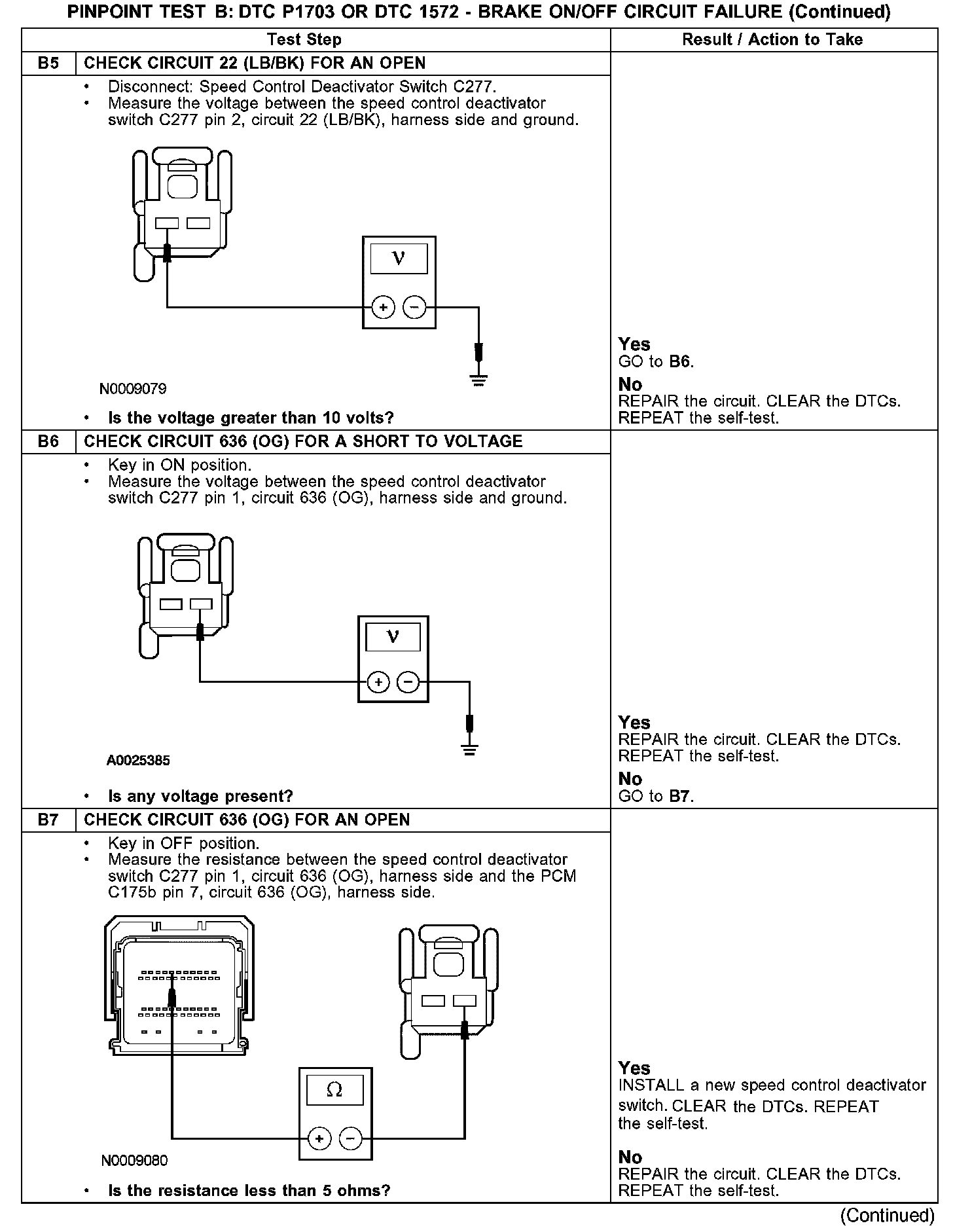

B5-B7:

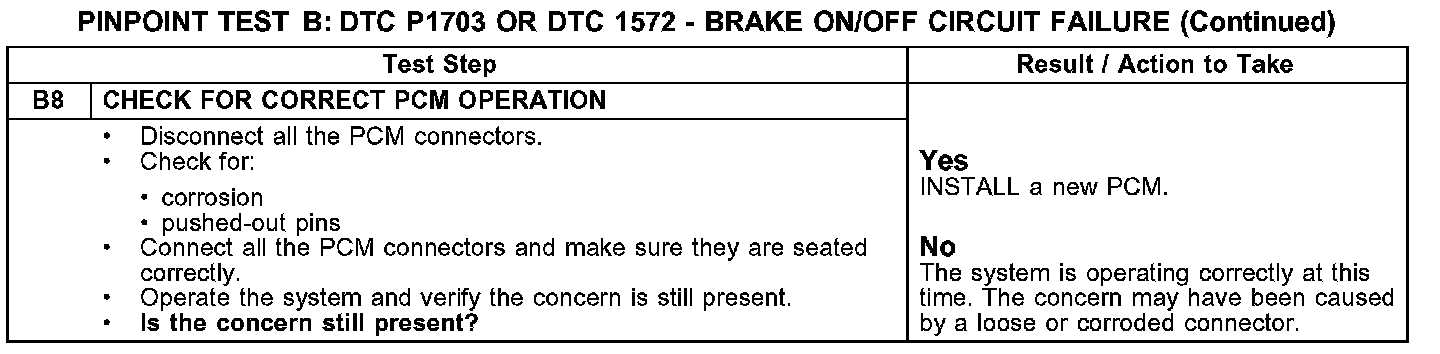

B8:
