Test B: Adjustable Brake Pedal Is Inoperative
Test B: Adjustable Brake Pedal Is Inoperative
PINPOINT TEST B: ADJUSTABLE BRAKE PEDAL IS INOPERATIVE

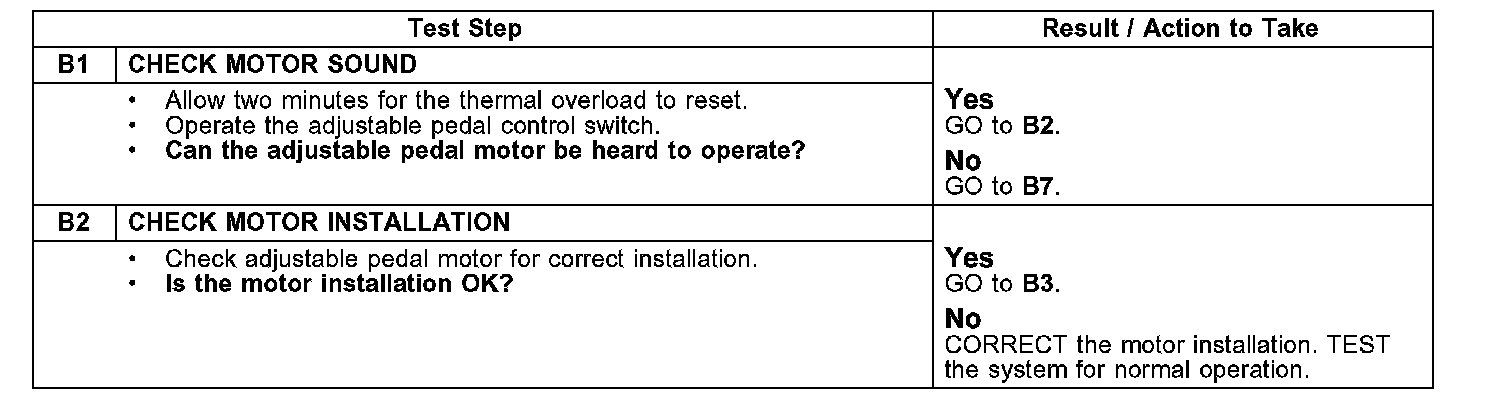

Tests B1-B2:

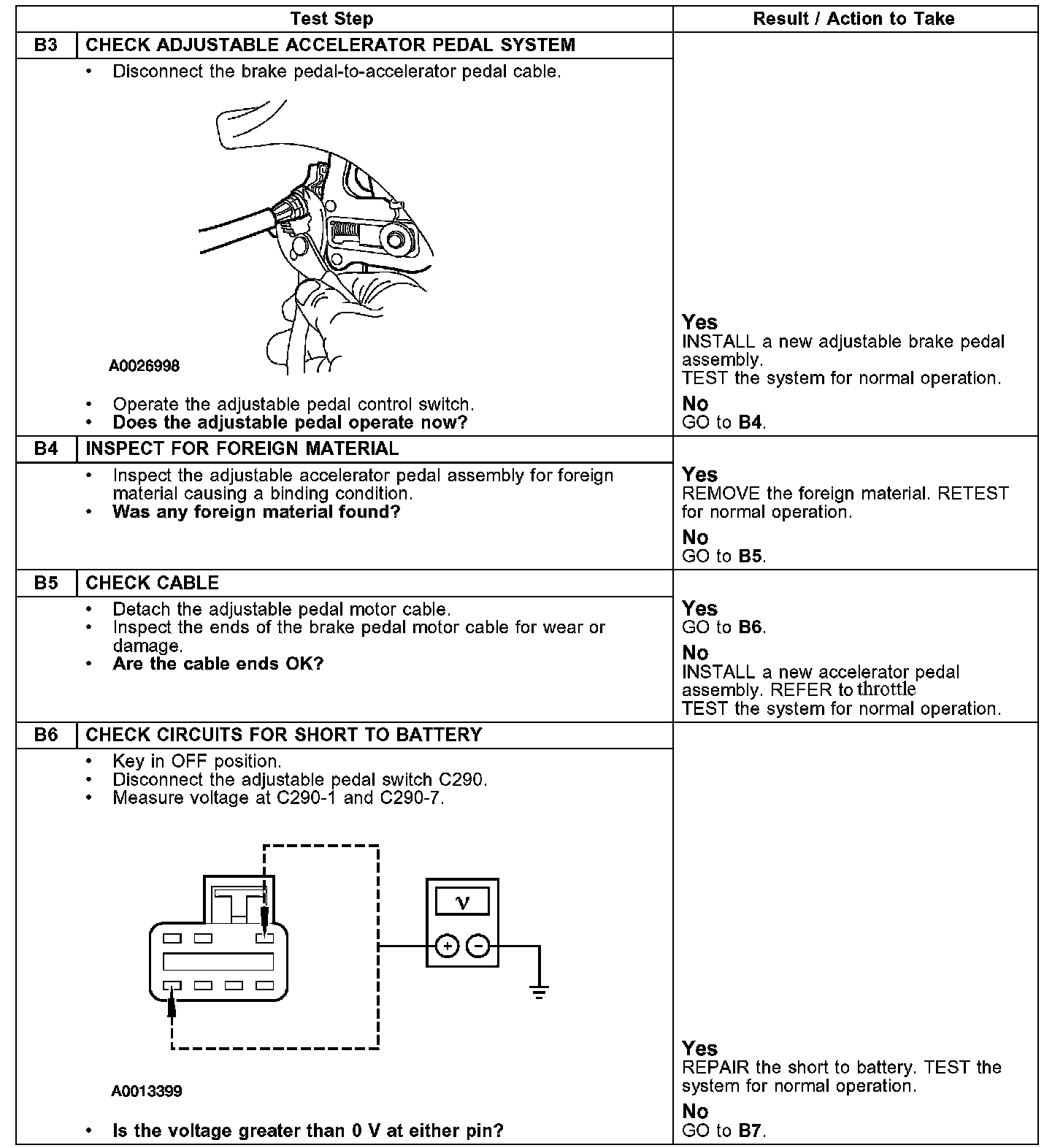

Tests B3-B6:

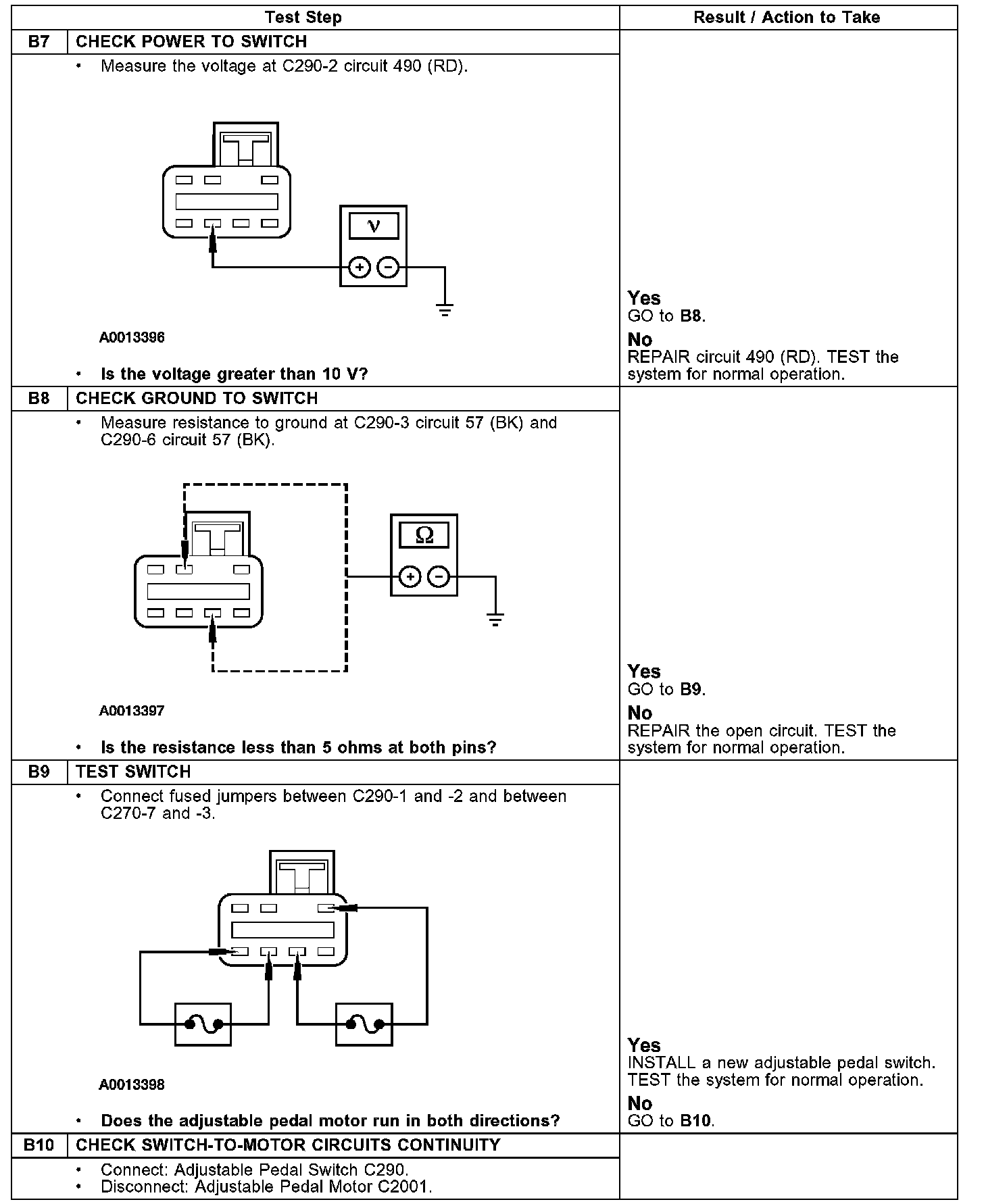

Tests B7-B10:

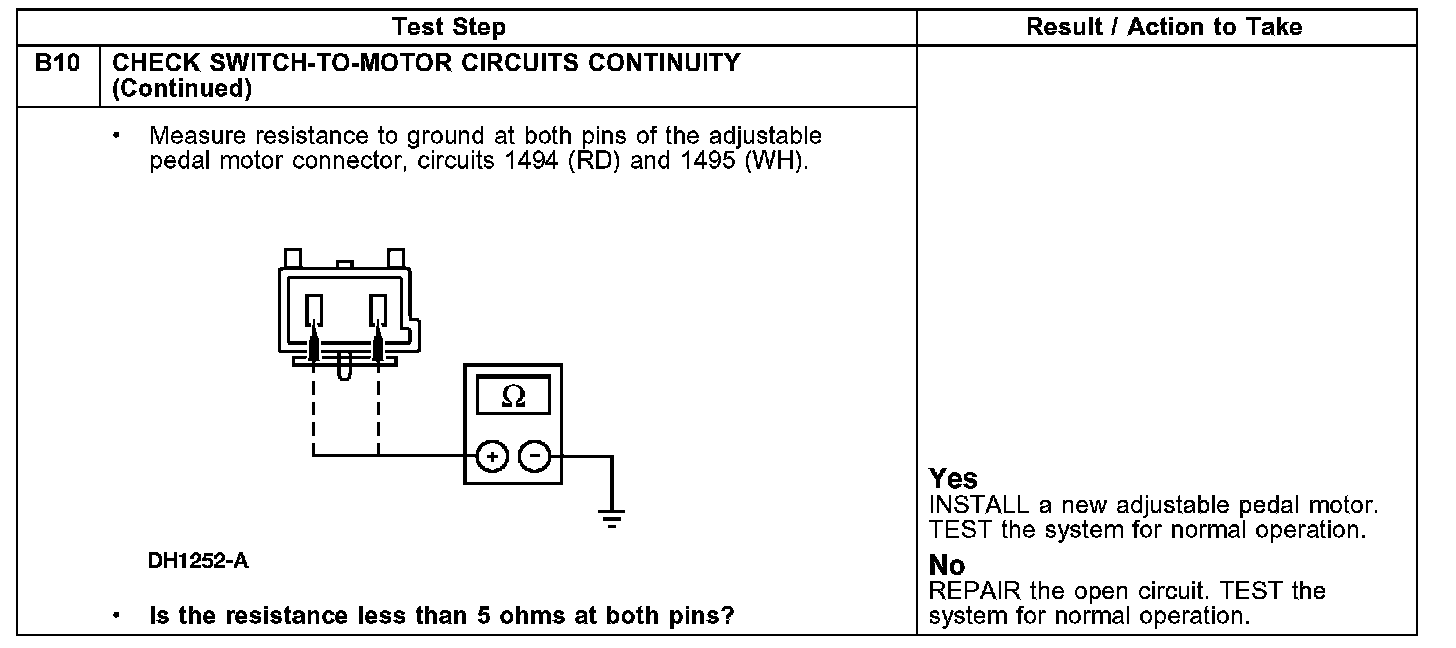

Test B10 Cont'd:
