Test M: The Traction Control Switch Indicator Is Never on
Test M: The Traction Control Switch Indicator Is Never on
PINPOINT TEST M: THE
TRACTION CONTROL SWITCH
INDICATOR IS NEVER ON

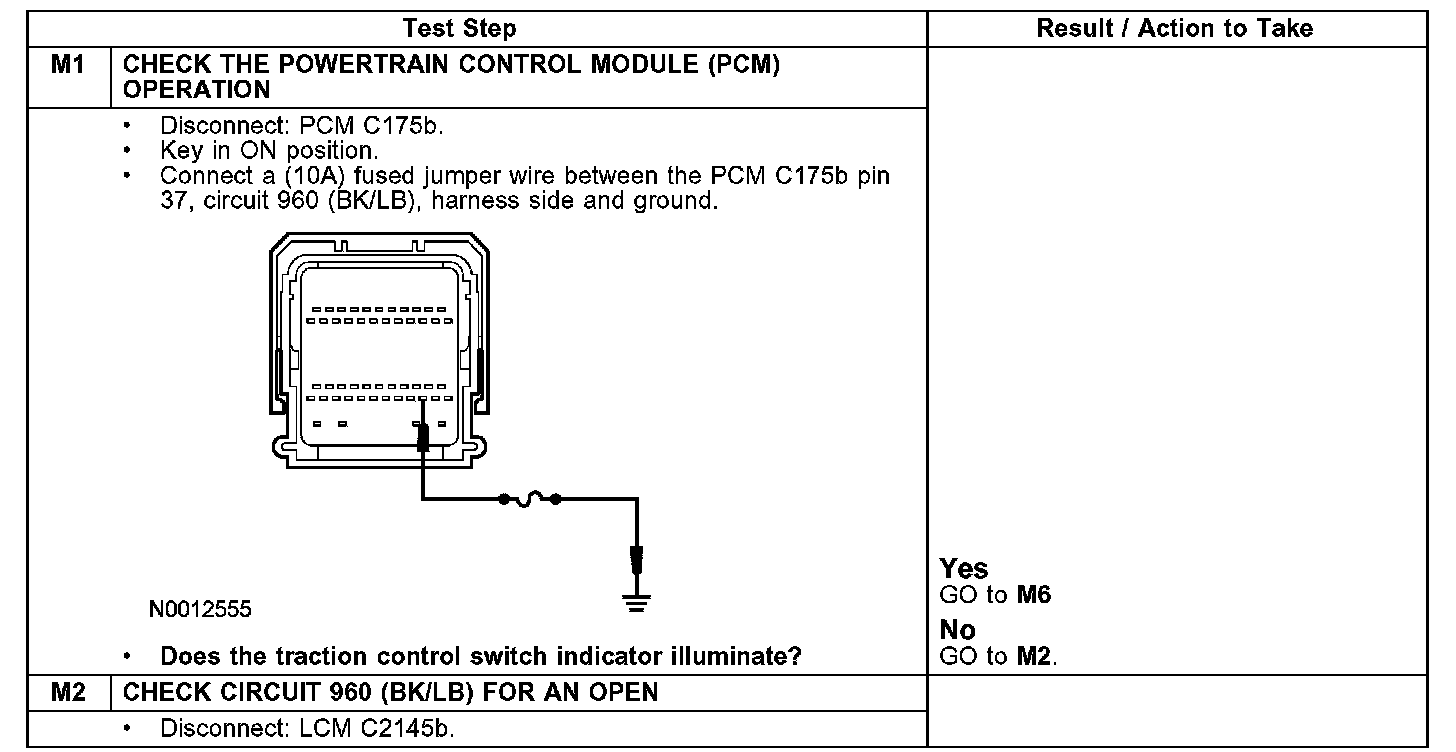

Tests M1-M2:
Tests M2-M4:

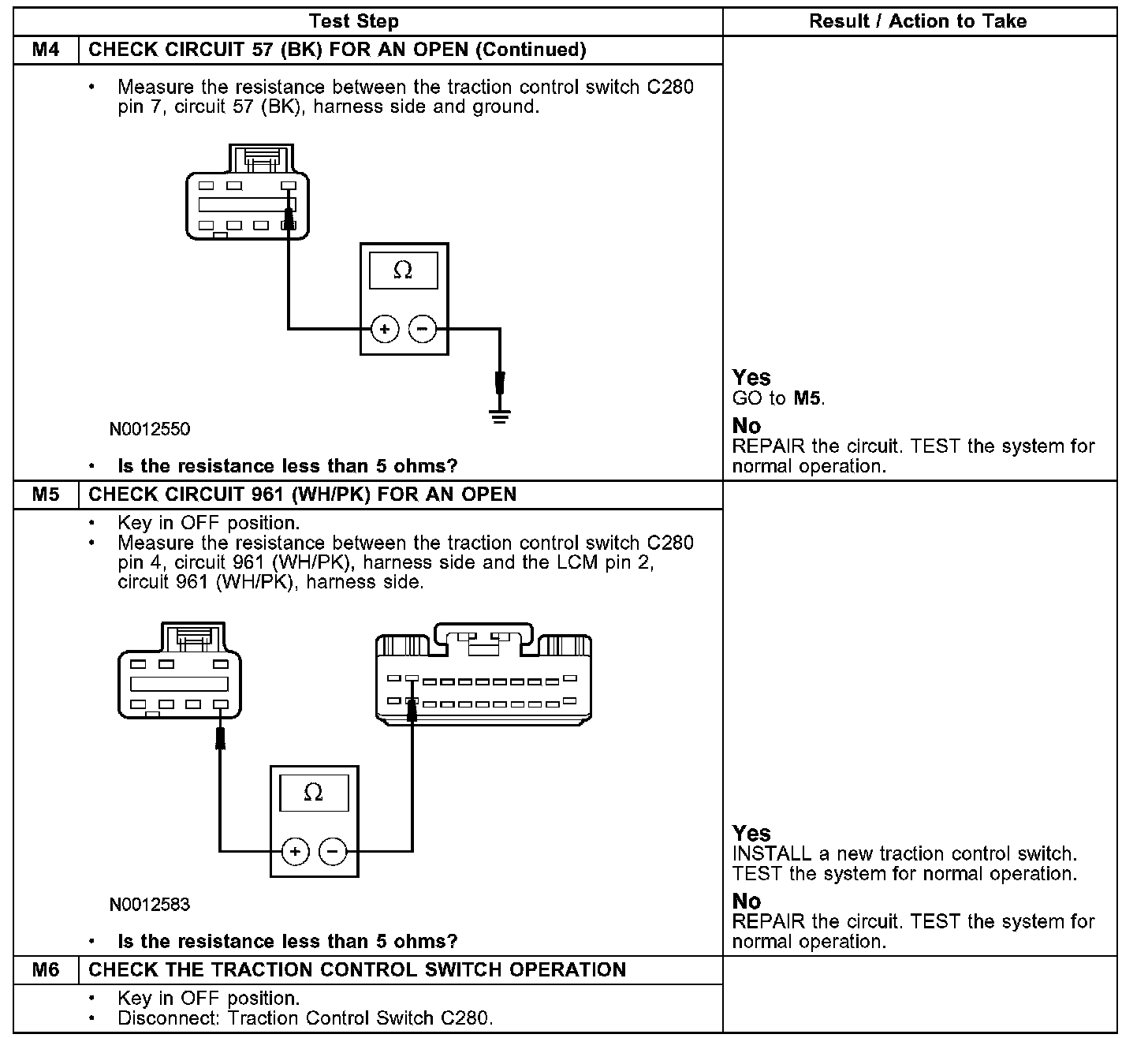

Tests M4-M6:

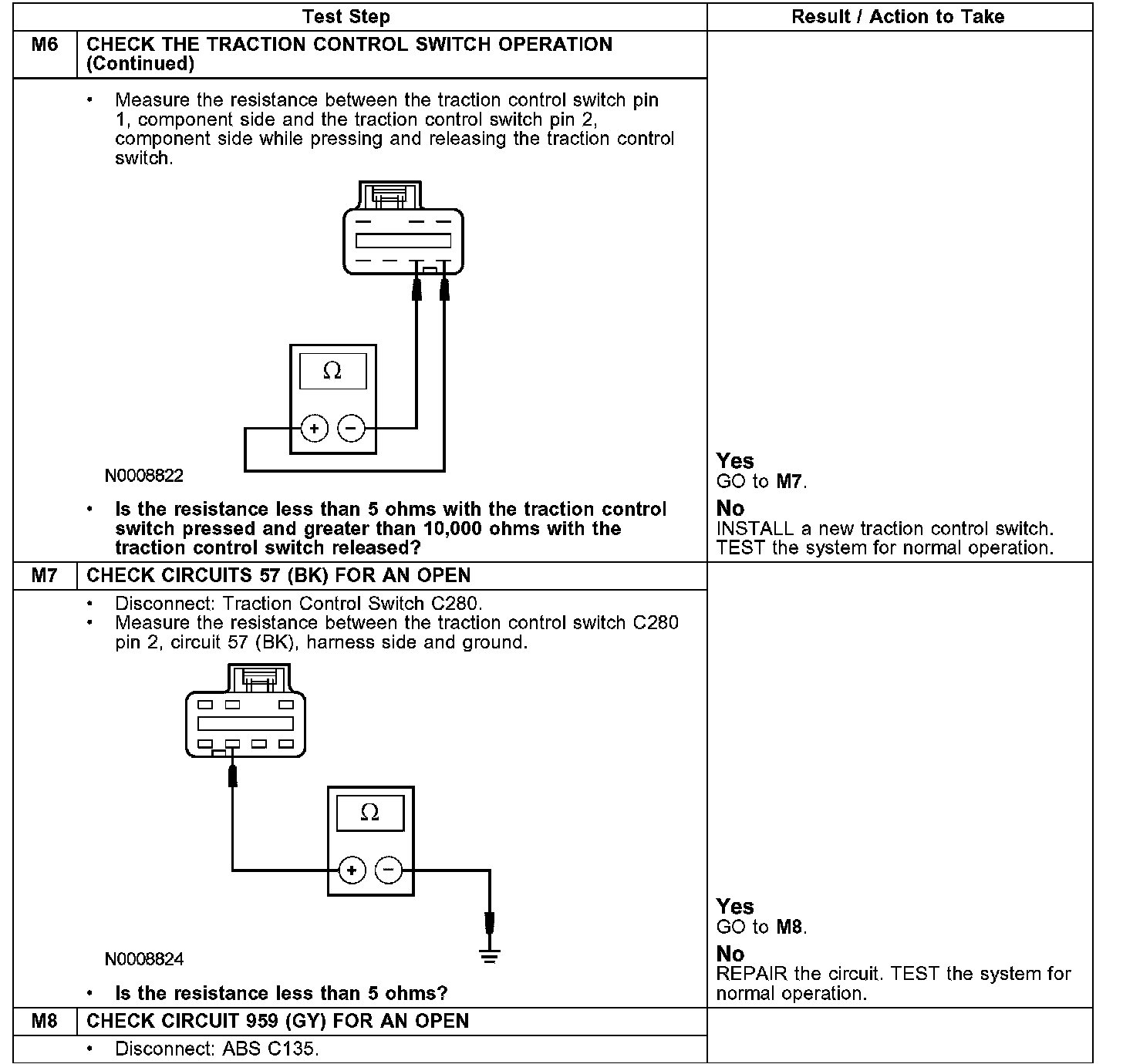

Tests M6-M8:

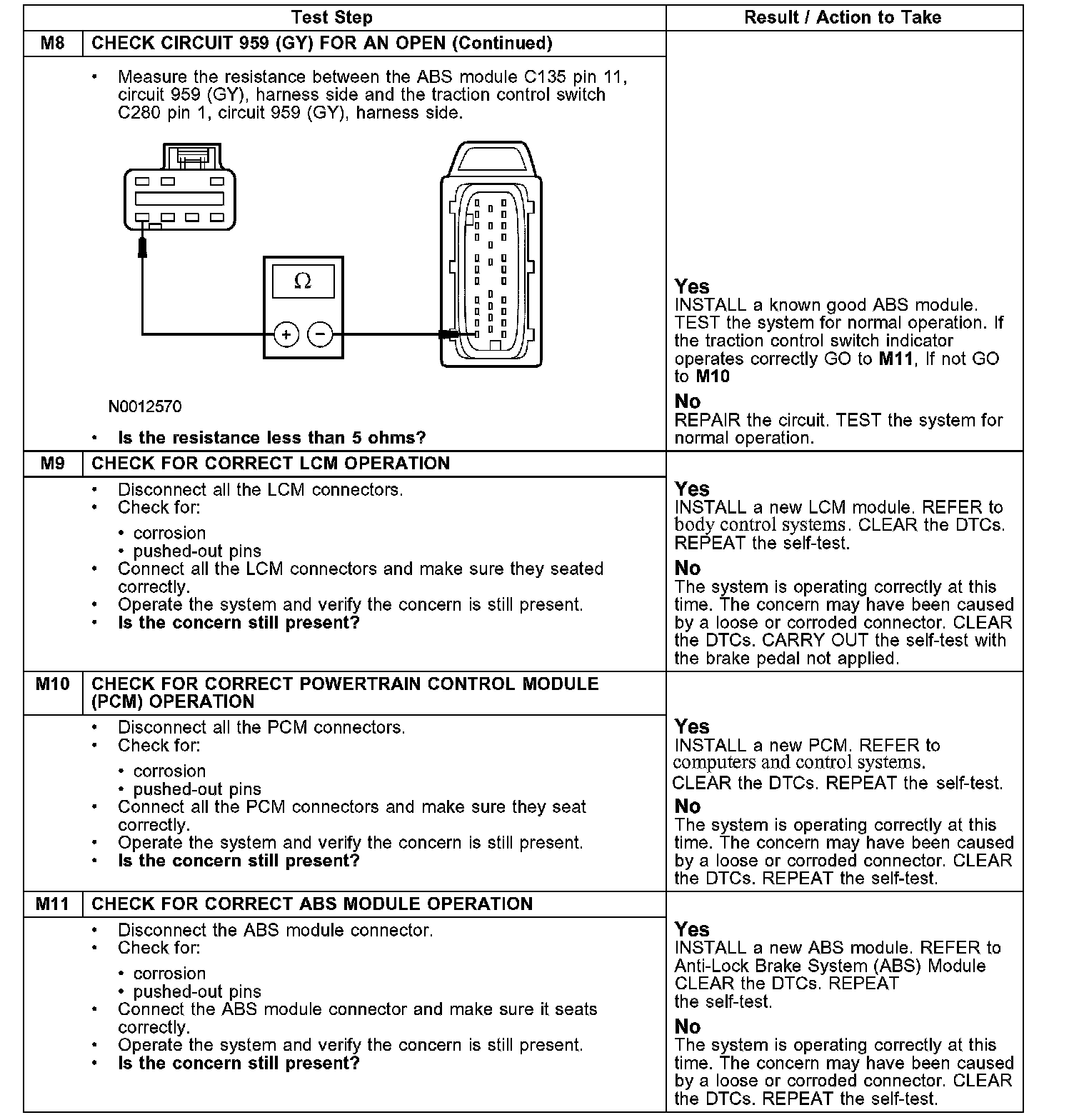

Tests M8-M11:
