Test L: The Traction Control Switch Indicator Is Always on
Test L: The Traction Control Switch Indicator Is Always on
PINPOINT TEST L: THE
TRACTION CONTROL SWITCH
INDICATOR IS ALWAYS ON

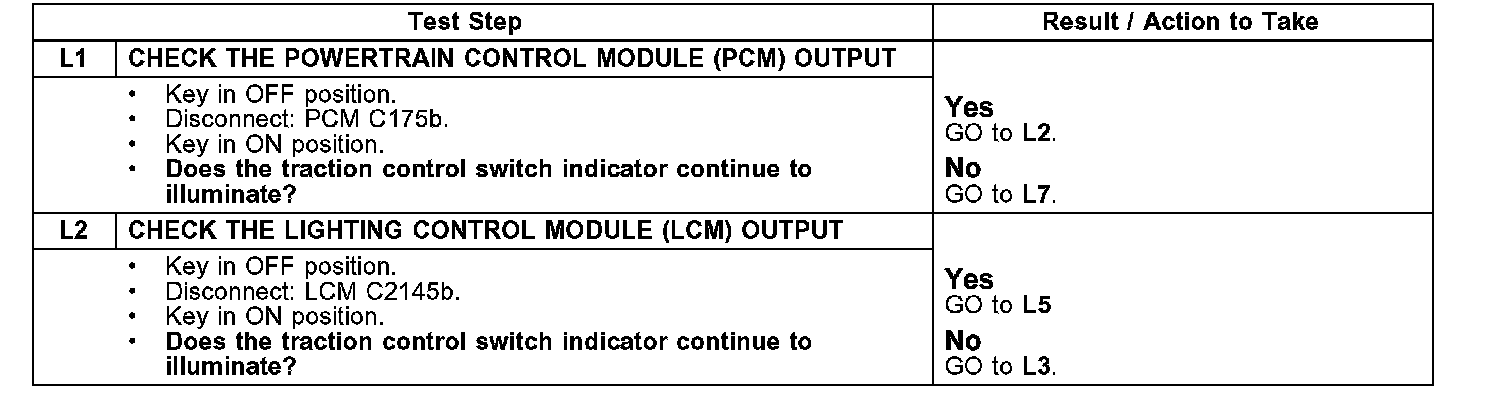

Tests L1-L2:

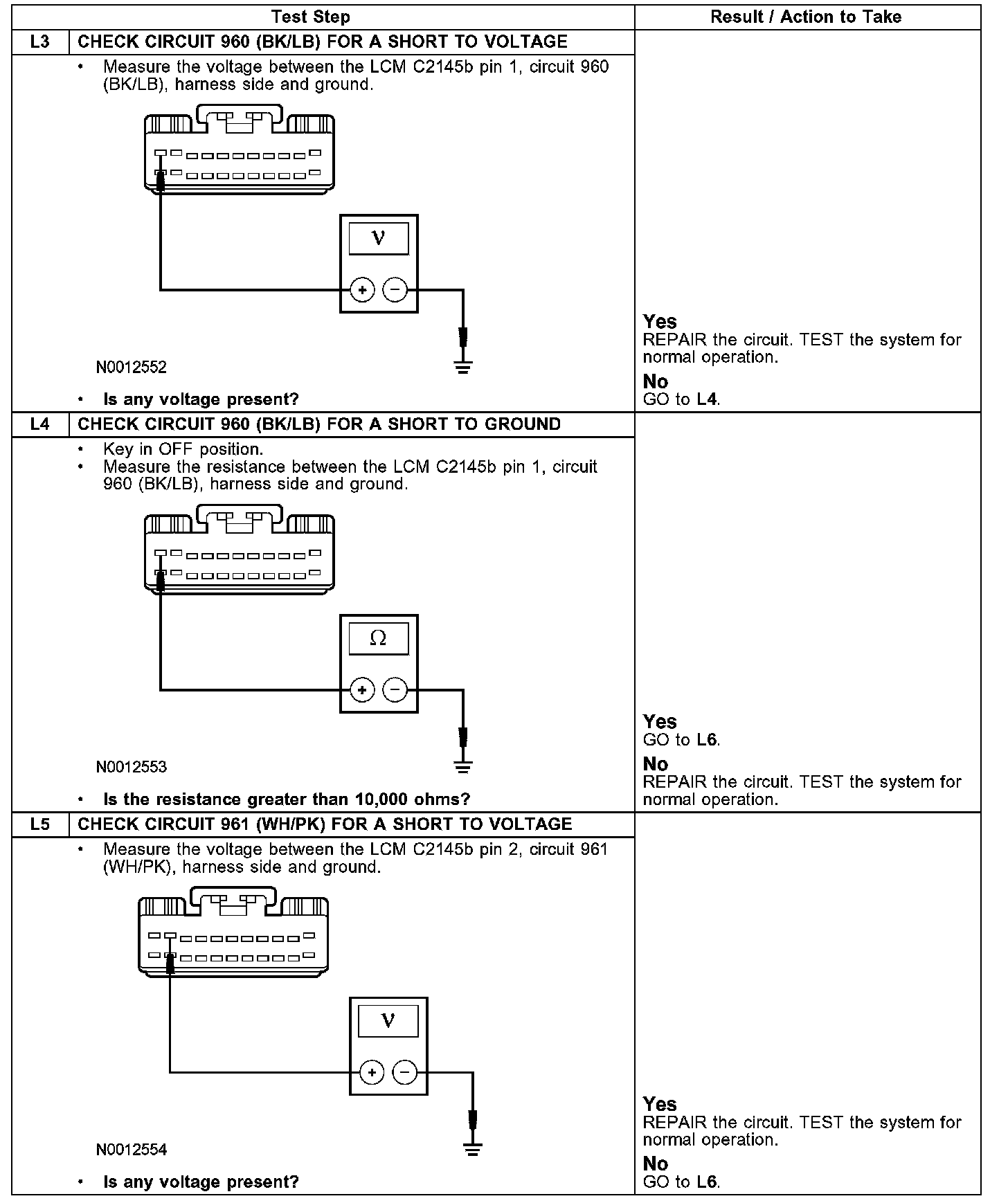

Tests L3-L5:

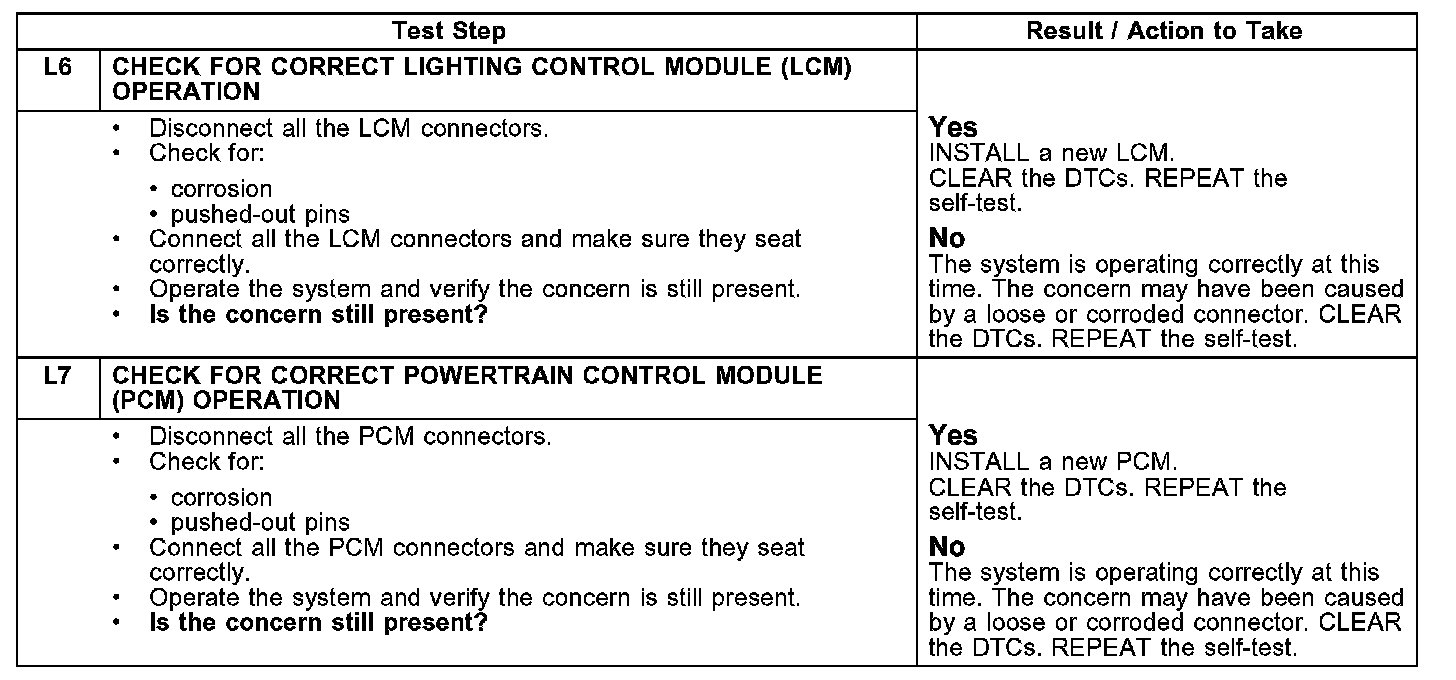

Test L6-L7:
