Test J: The Anti-Lock Brake System (ABS) Indicator Is Always on

PINPOINT TEST J: THE ANTI-LOCK BRAKE SYSTEM (ABS) INDICATOR IS ALWAYS ON

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

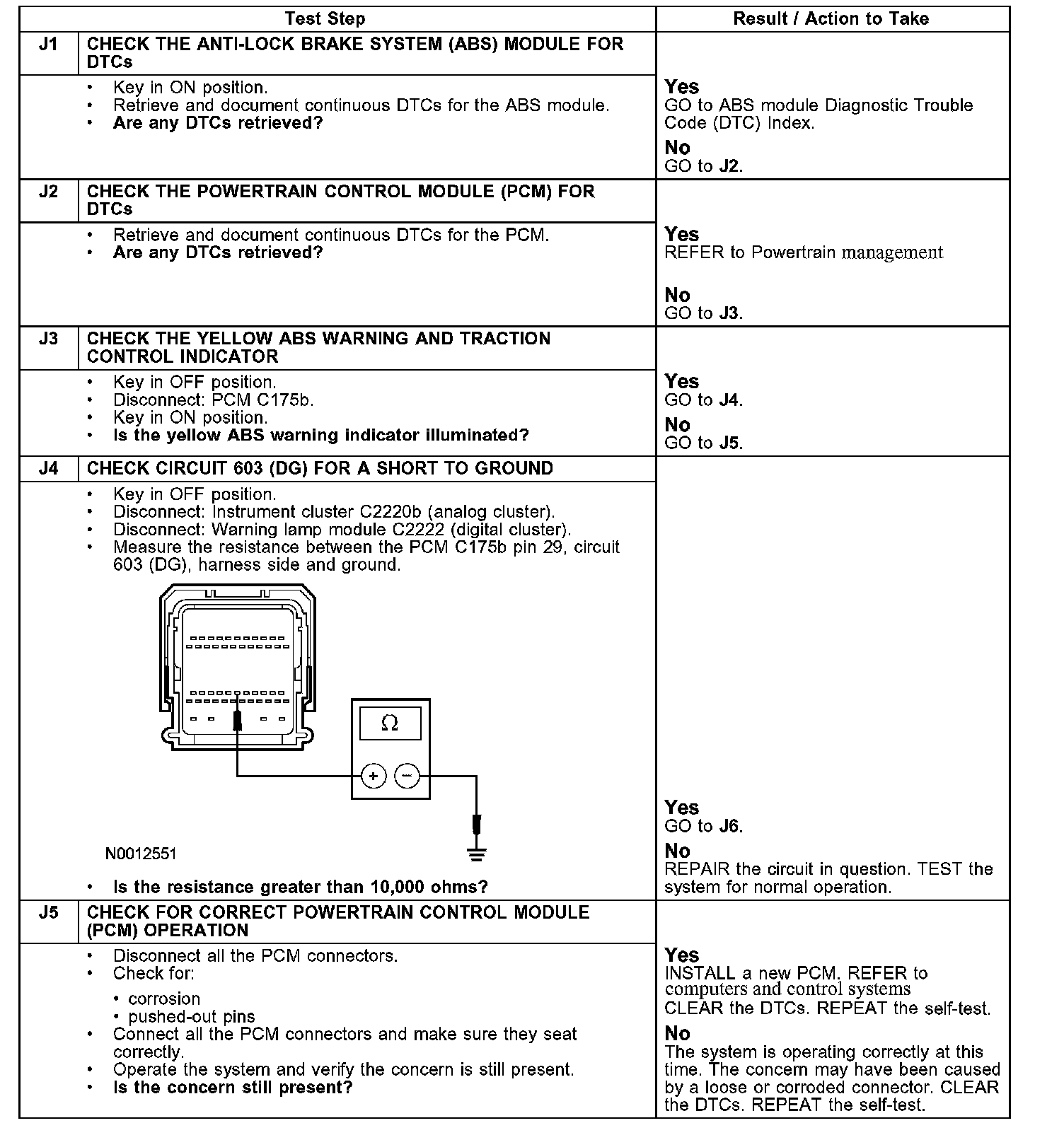

Tests J1-J5:

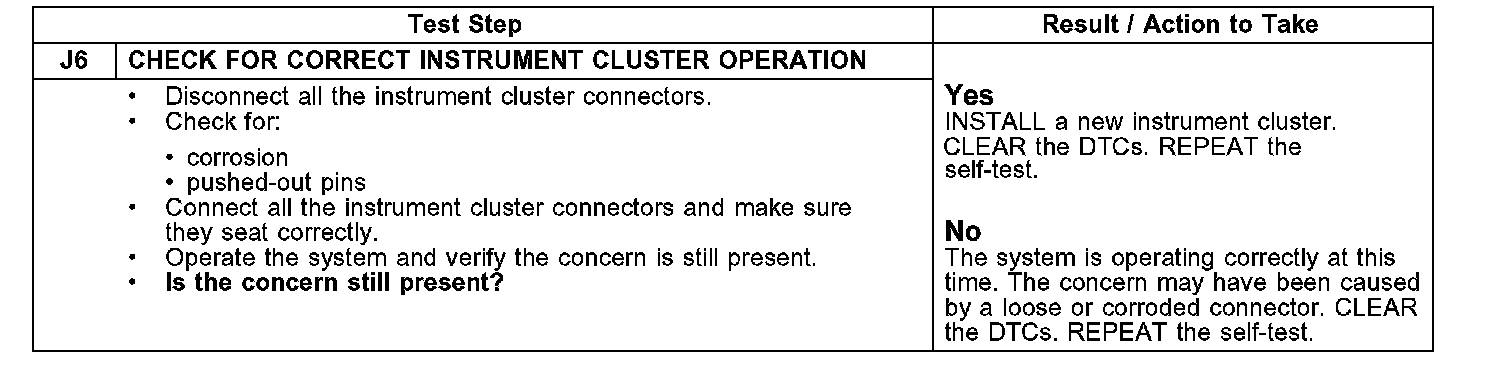

Test J6:
