Test H: The Traction Control Is Inoperative/Cannot Be Disabled

PINPOINT TEST H: THE TRACTION CONTROL IS INOPERATIVE/CANNOT BE DISABLED

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

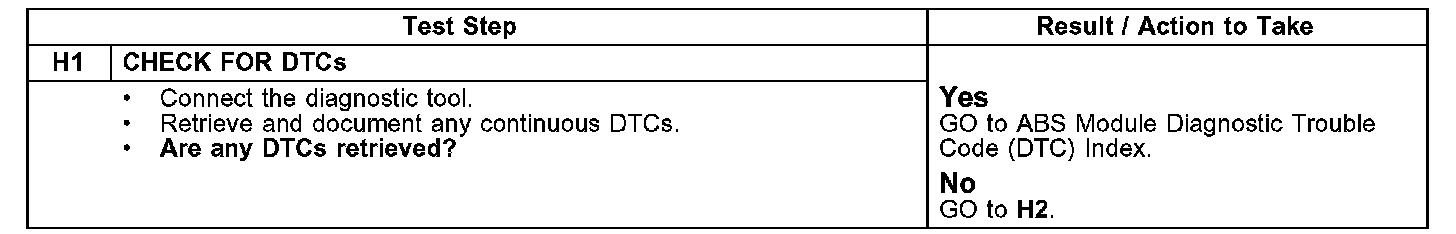

Test H1:

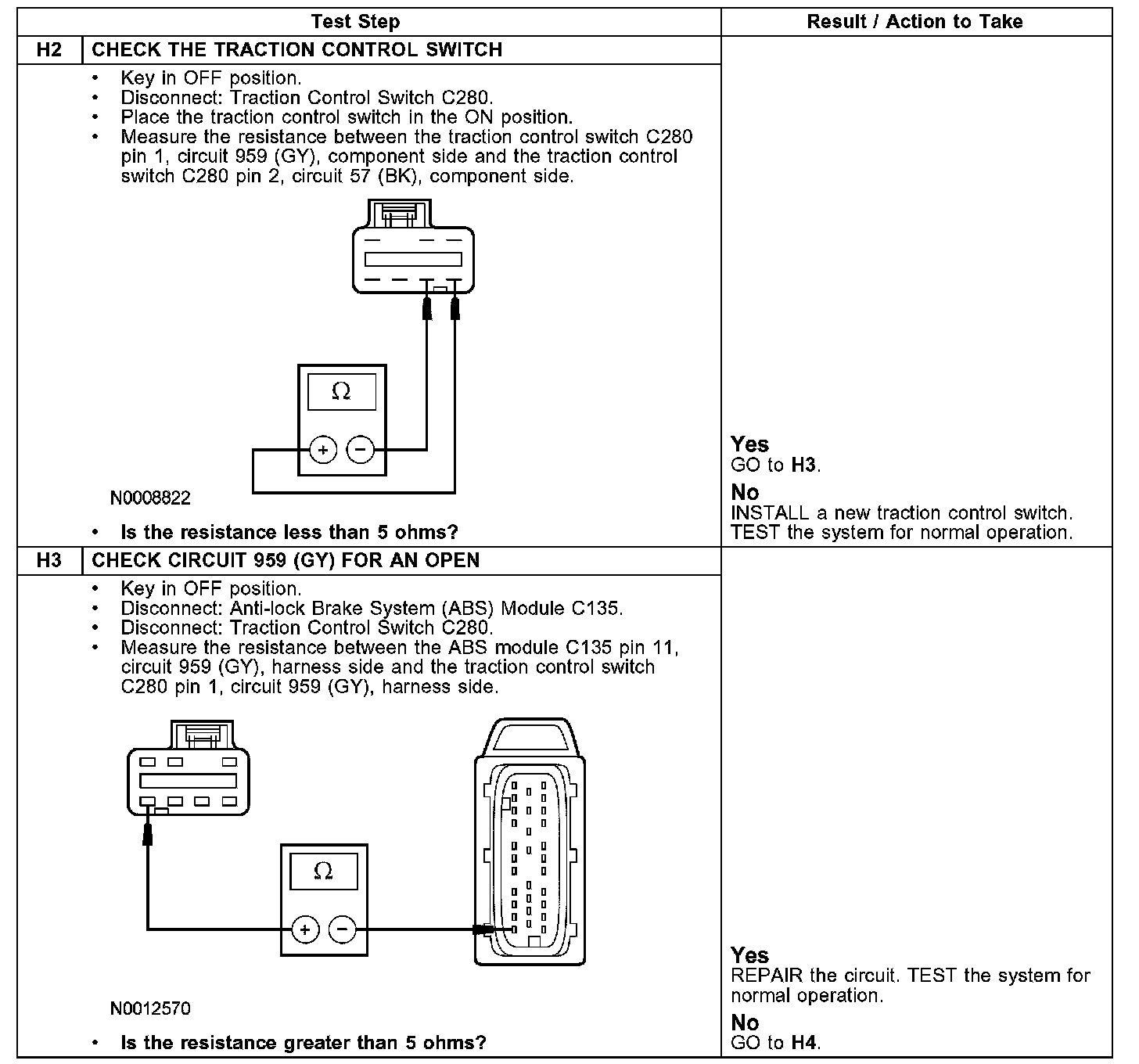

Tests H2-H3:

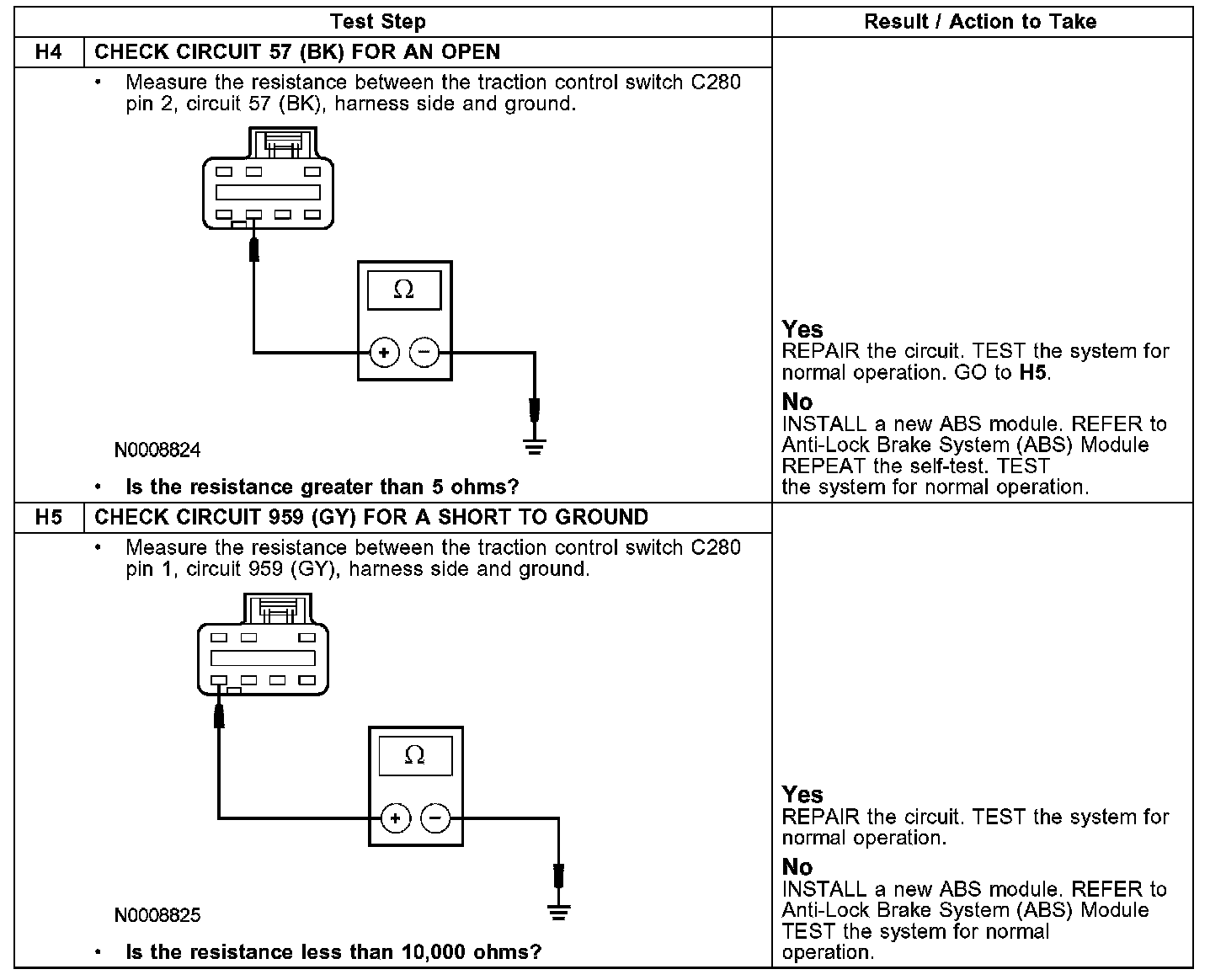

Tests H4-H5:
