Test F: No Communication With the Anti-Lock Brake System (ABS) Module

PINPOINT TEST F: NO COMMUNICATION WITH THE ANTI-LOCK BRAKE SYSTEM (ABS) MODULE

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

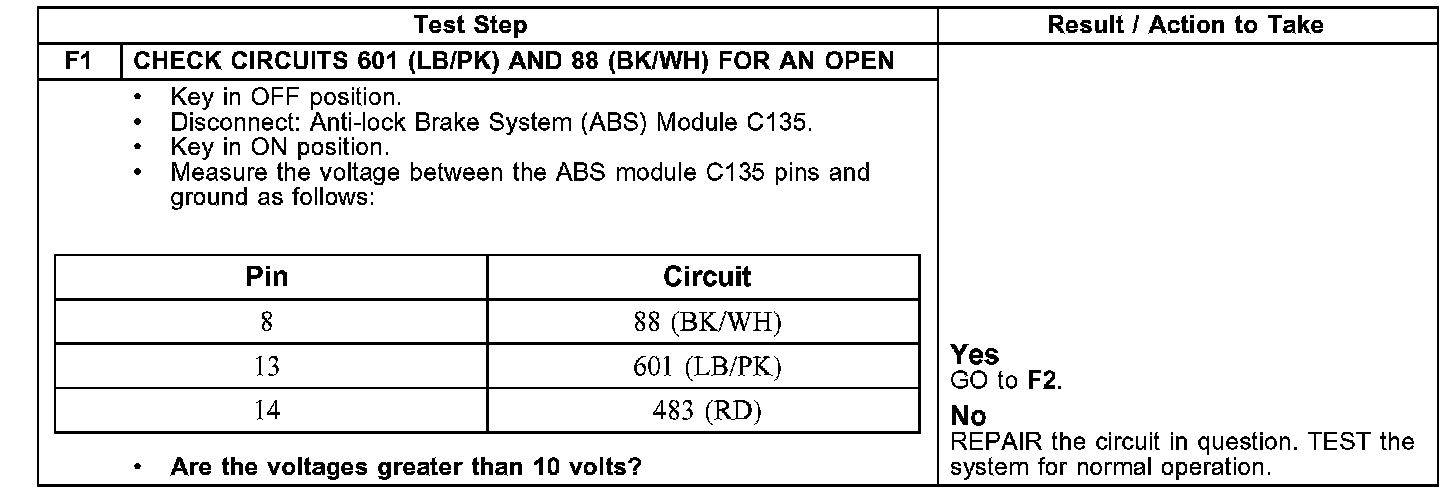

Test F1:

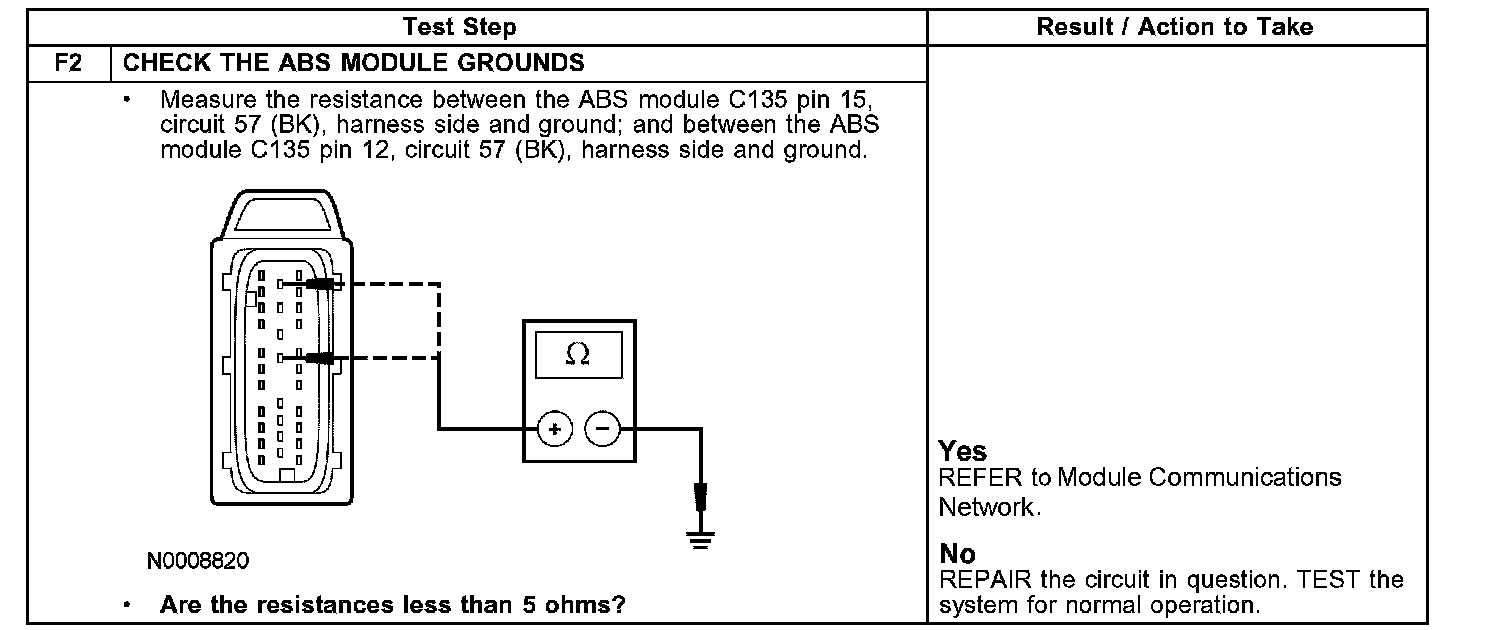

Test F2:
