Test M: The Passenger Heated Seat Is Inoperative - Does Not Operate In Low
Test M: The Passenger Heated Seat Is Inoperative - Does Not Operate In Low

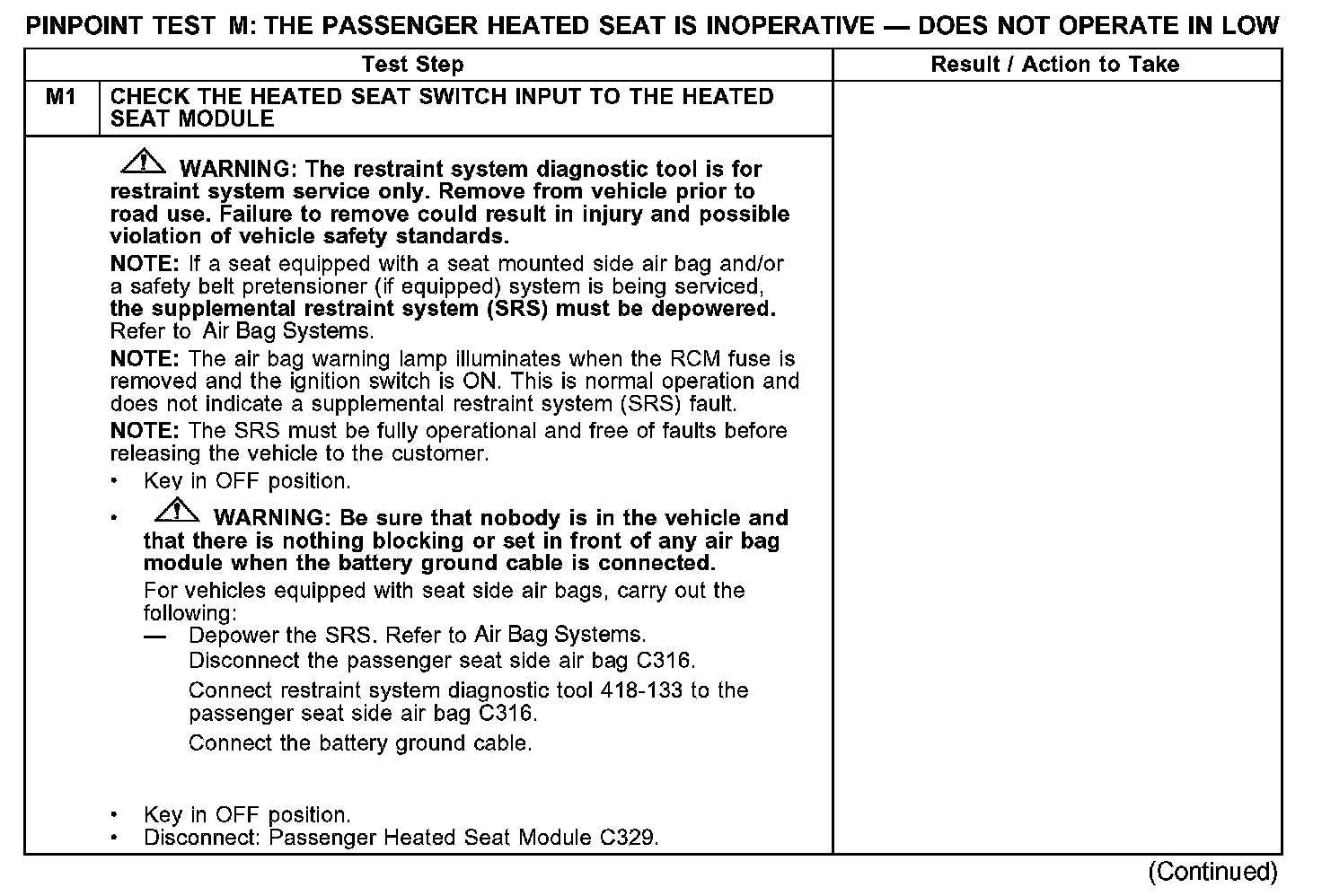

PINPOINT TEST M: THE PASSENGER HEATED SEAT IS INOPERATIVE - DOES NOT OPERATE IN LOW

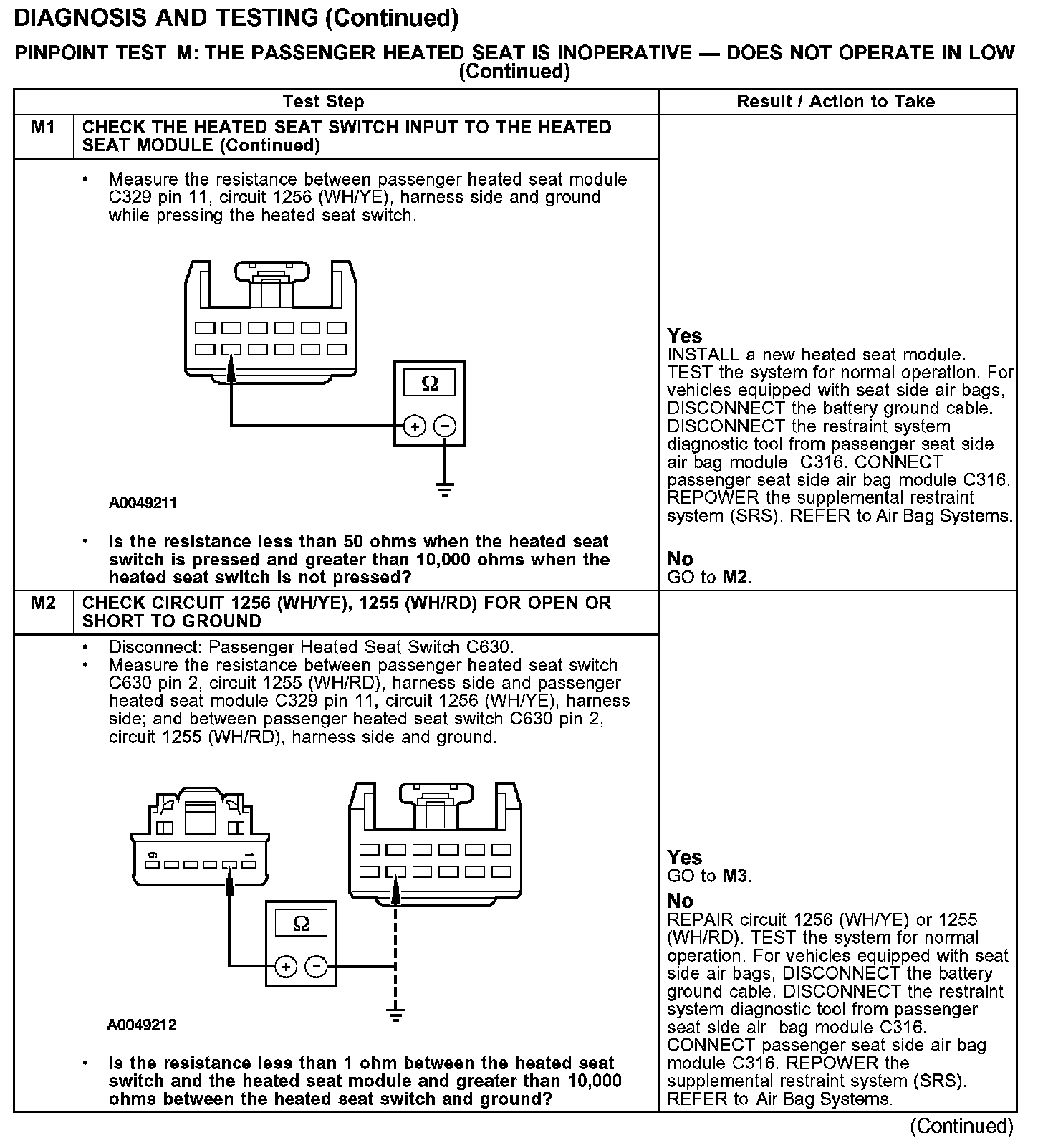

M1:
M1-M2:

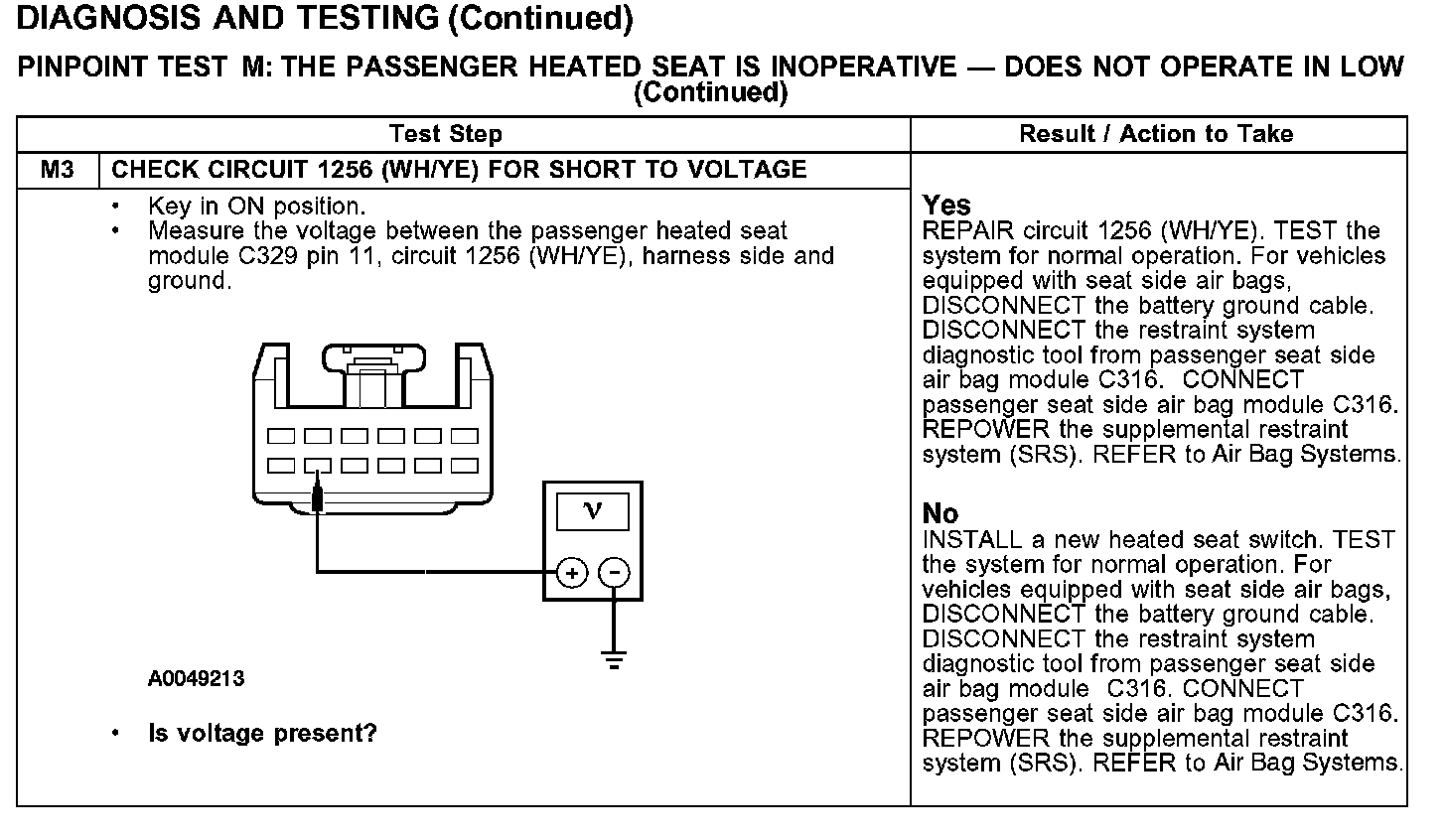

M3:
