Test K: The Driver Heated Seat Is Inoperative - Does Not Operate In Low
Test K: The Driver Heated Seat Is Inoperative - Does Not Operate In Low
PINPOINT TEST K: THE DRIVER HEATED SEAT IS INOPERATIVE - DOES NOT OPERATE IN LOW

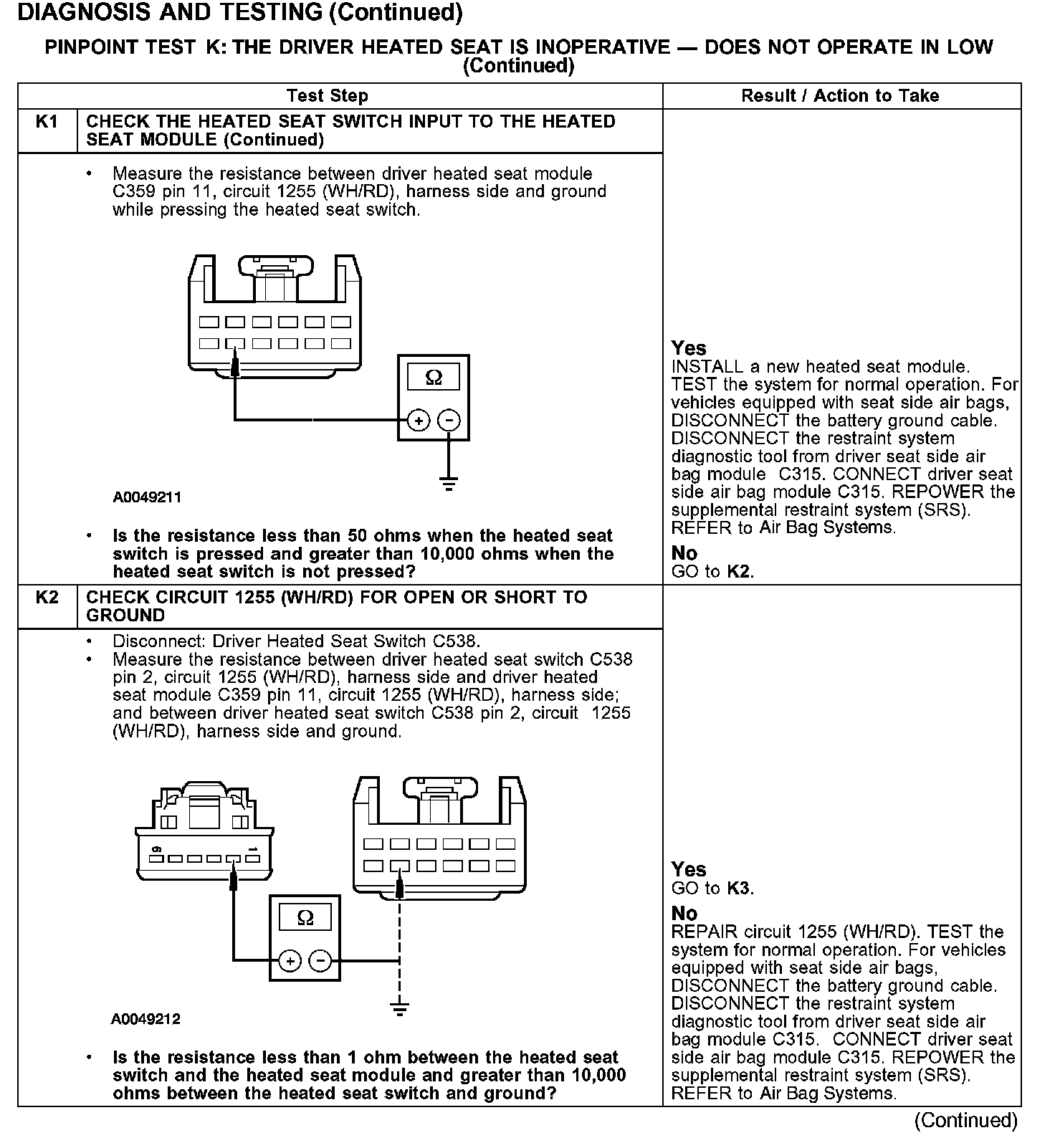

K1:
K1-K2:

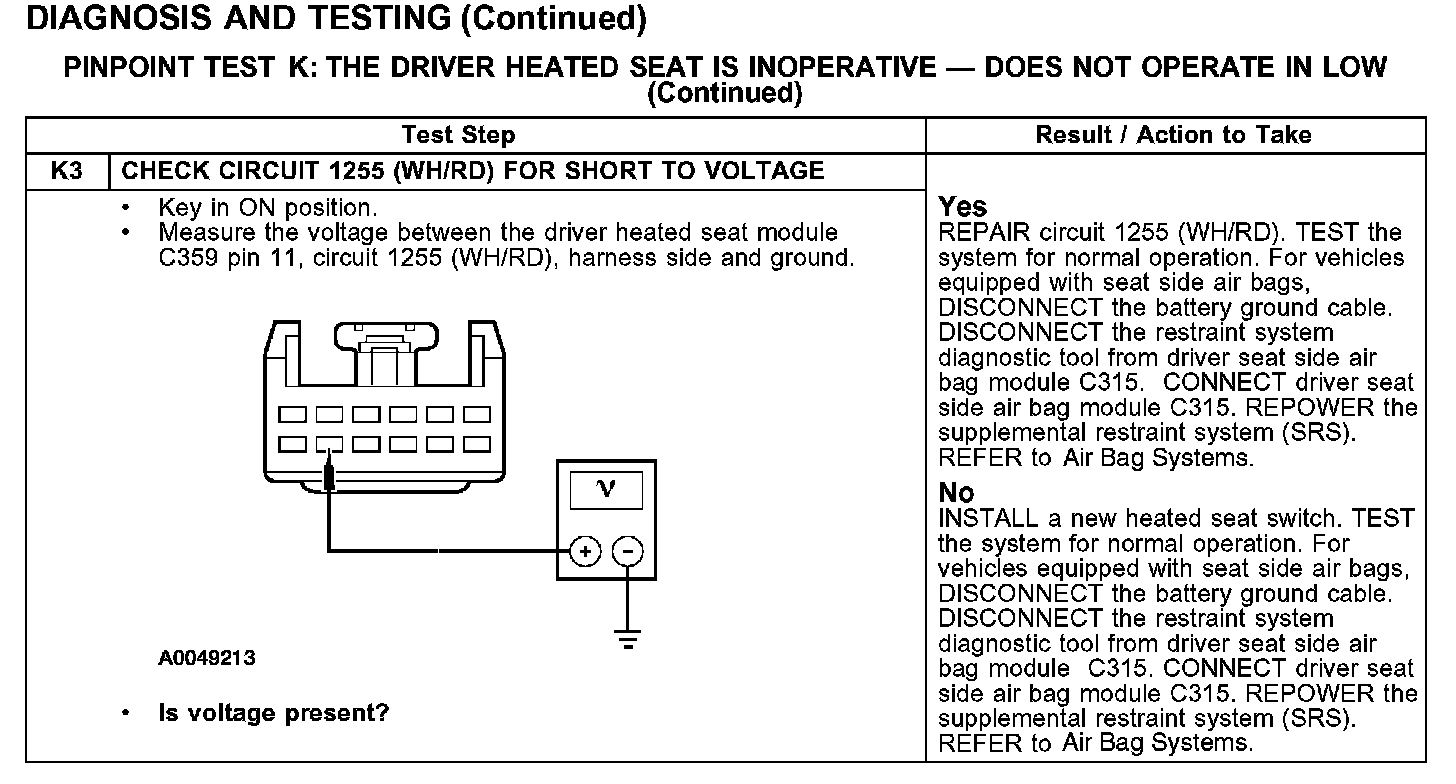

K3:
