Test D: The Power Seat Does Not Recline - Driver Seat
Test D: The Power Seat Does Not Recline - Driver Seat
PINPOINT TEST D: THE POWER SEAT DOES NOT RECLINE - DRIVER SEAT

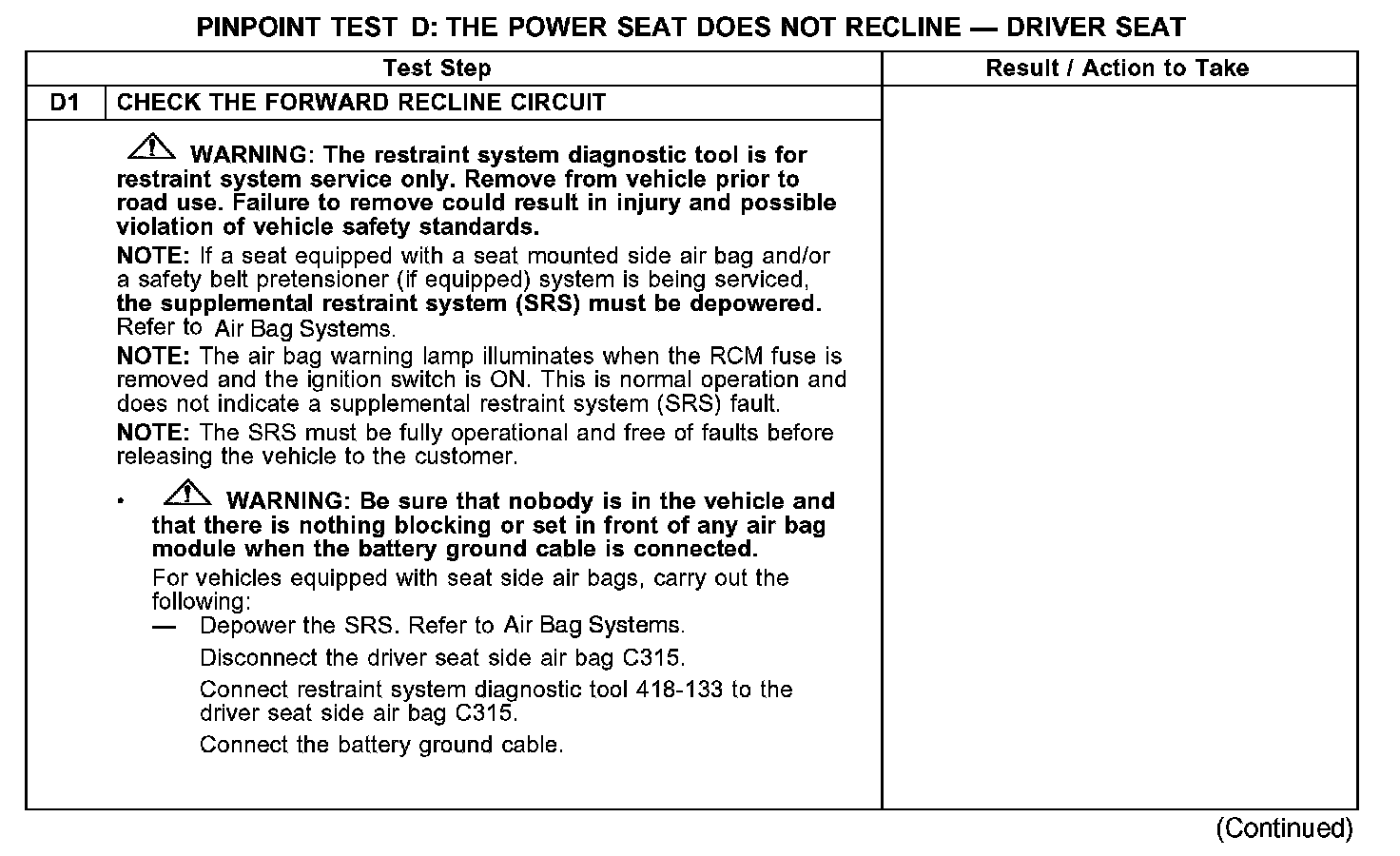

D1:

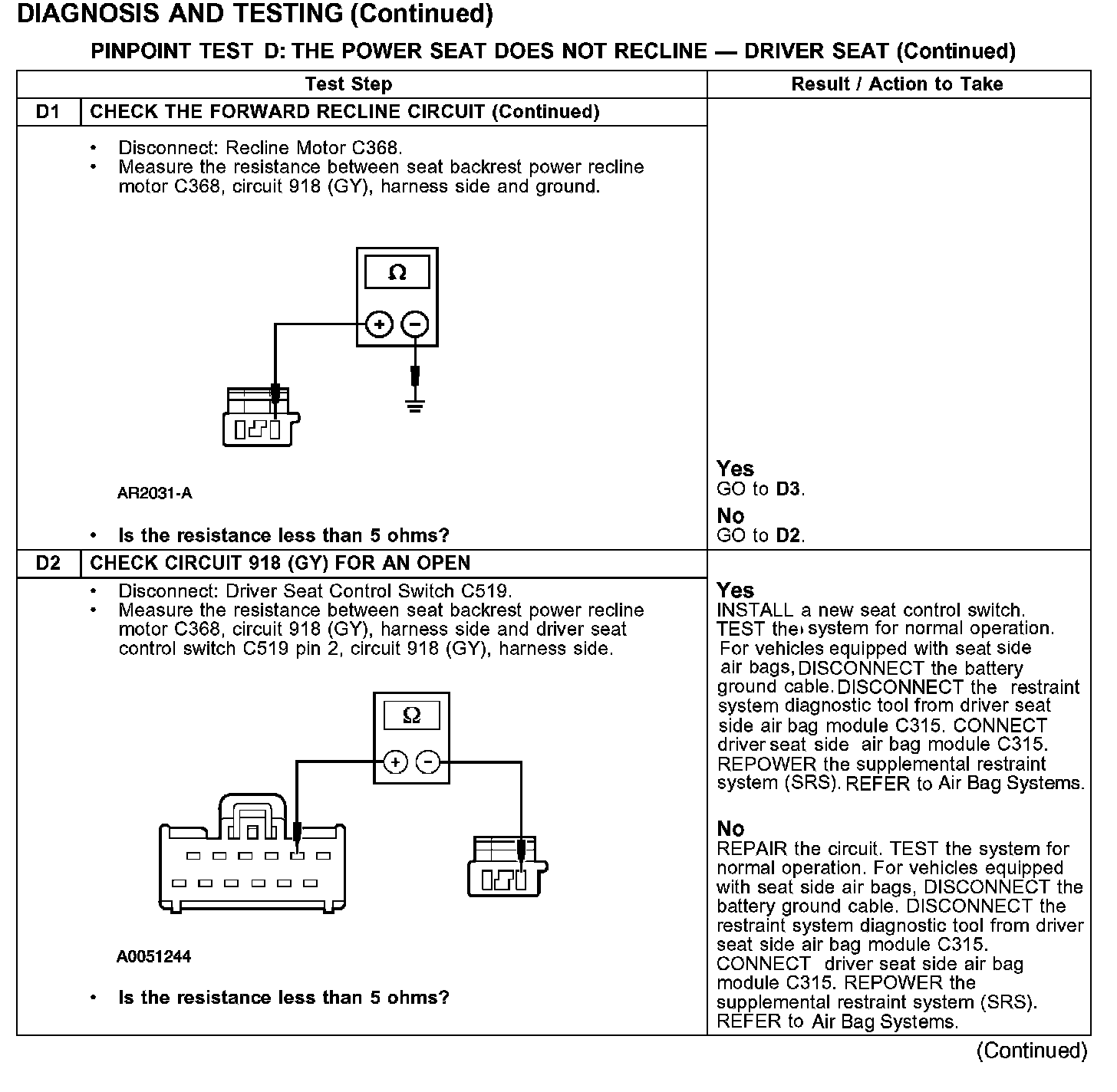

D1-D2:

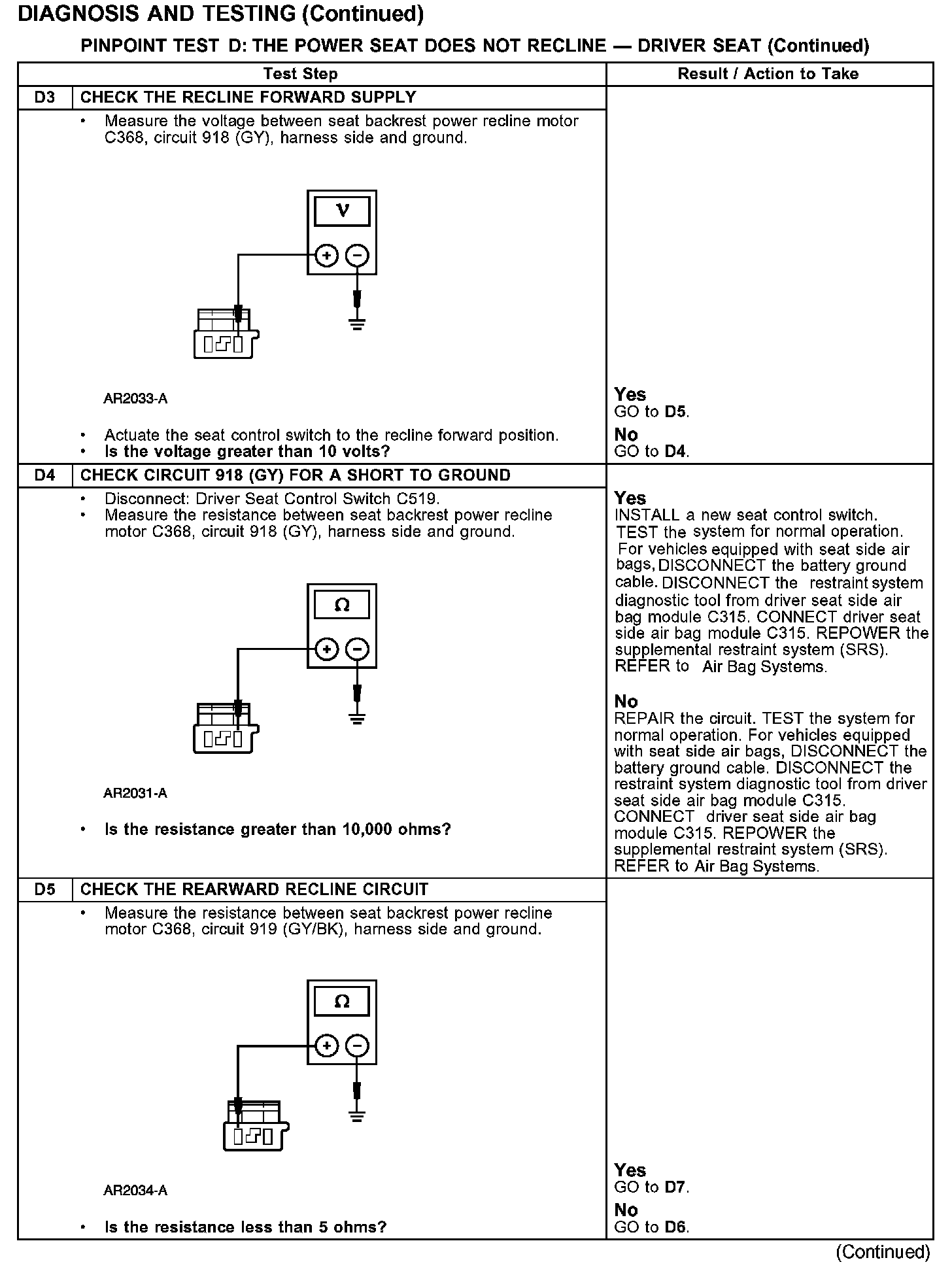

D3-D5:
D6-D7:

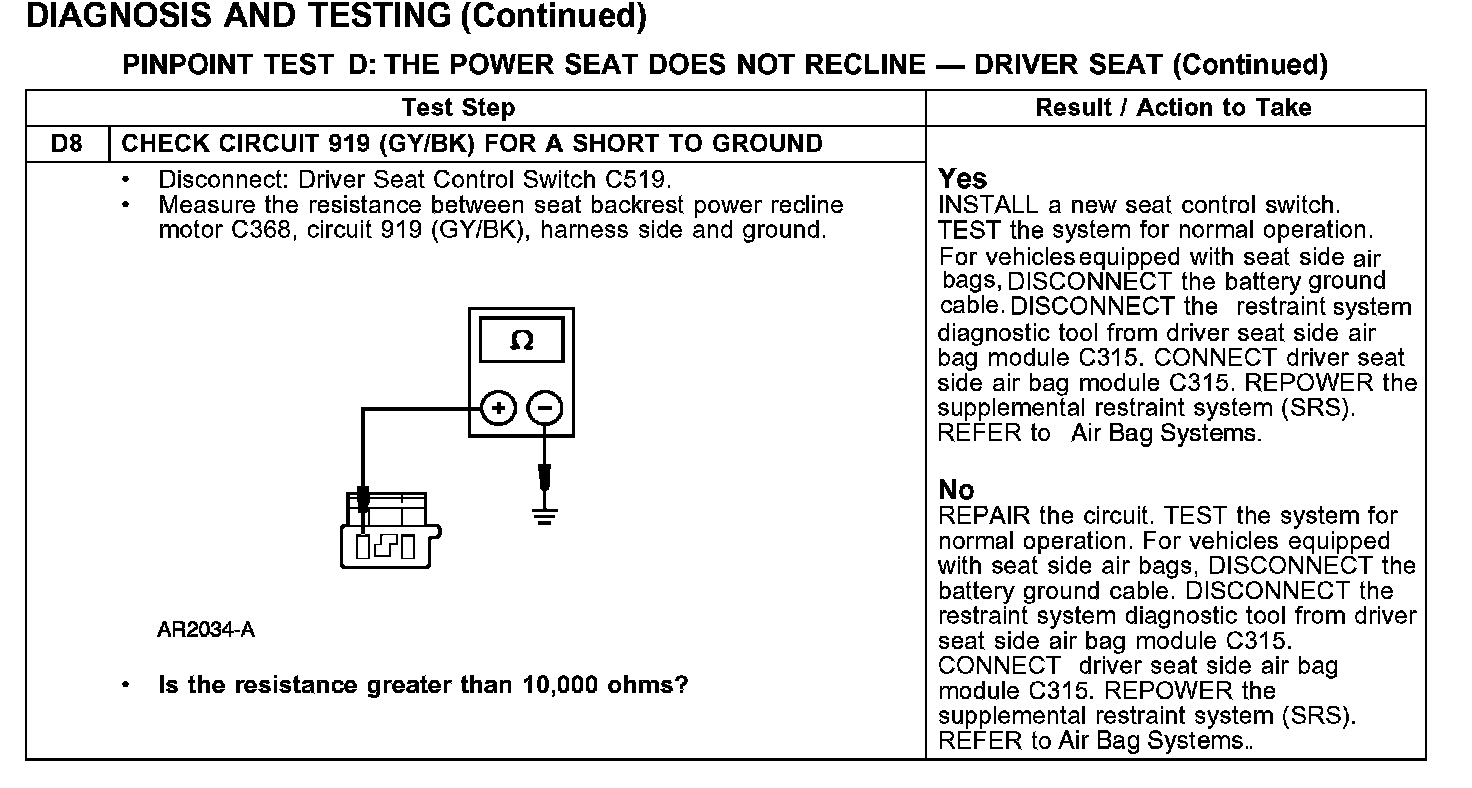

D8:
