Test C: The Power Seat Does Not Move Horizontally/Vertically - Passenger Seat

PINPOINT TEST C: THE POWER SEAT DOES NOT MOVE HORIZONTALLY/VERTICALLY - PASSENGER SEAT

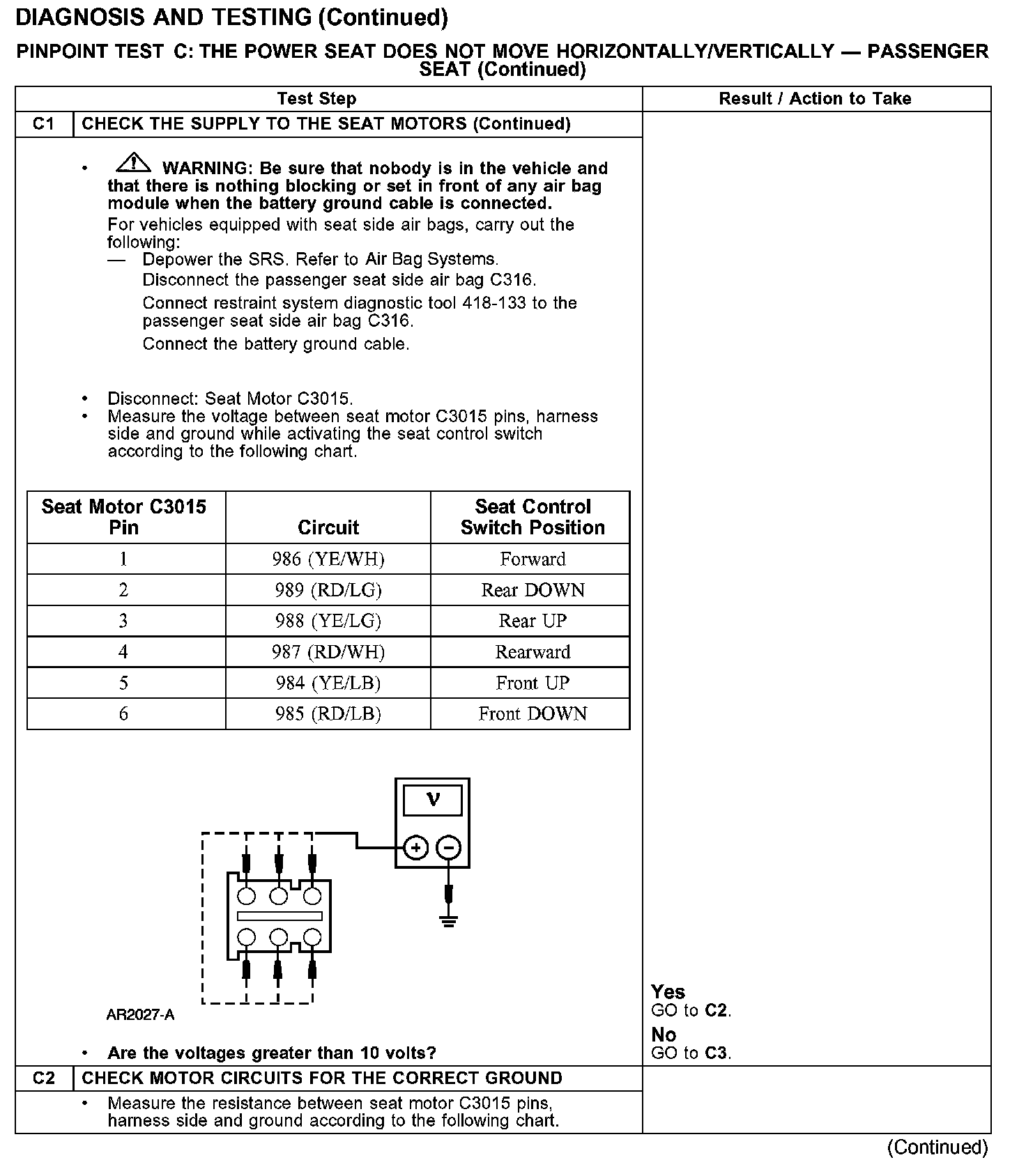

C1:

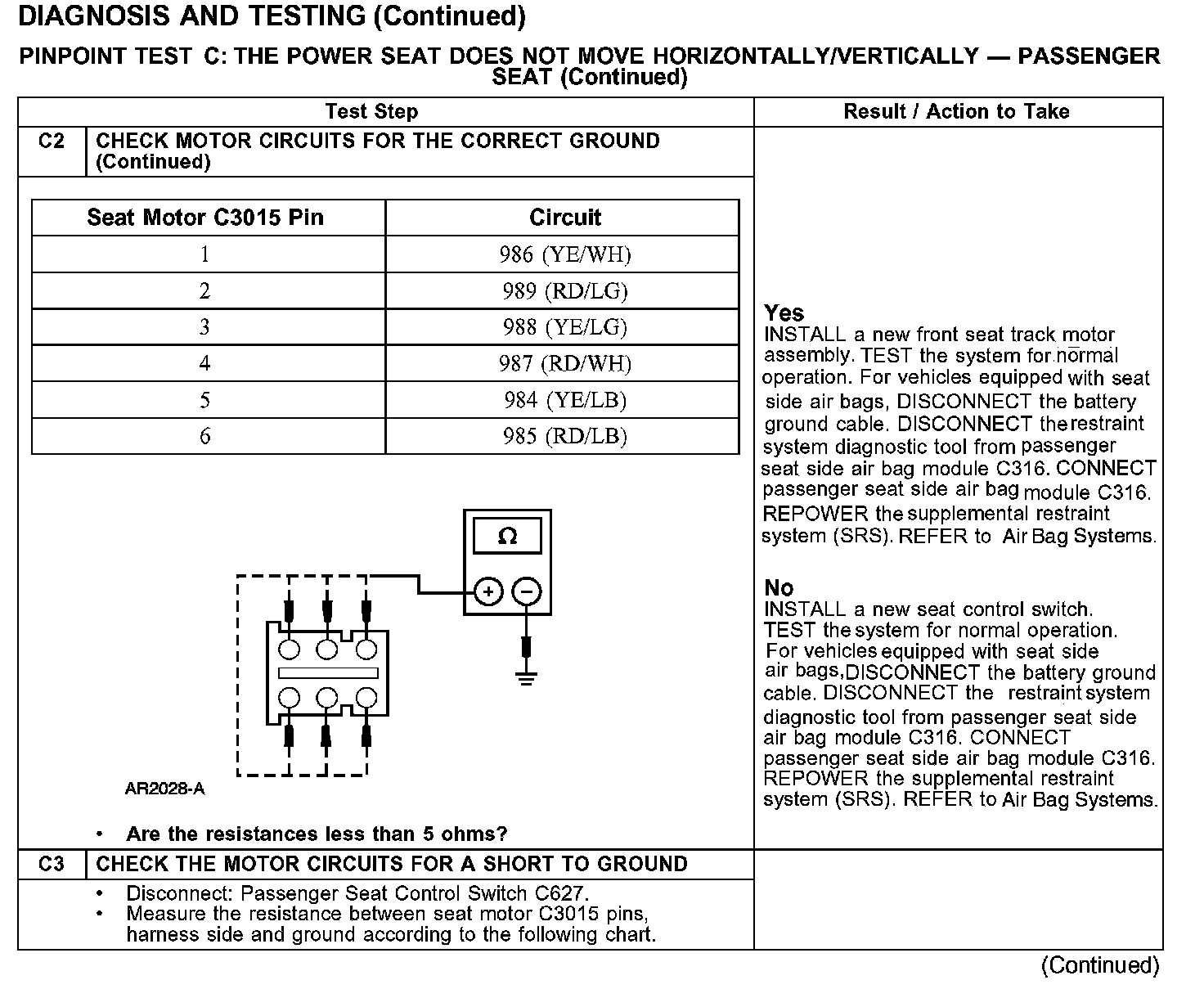

C1-C2:






C2-C3:

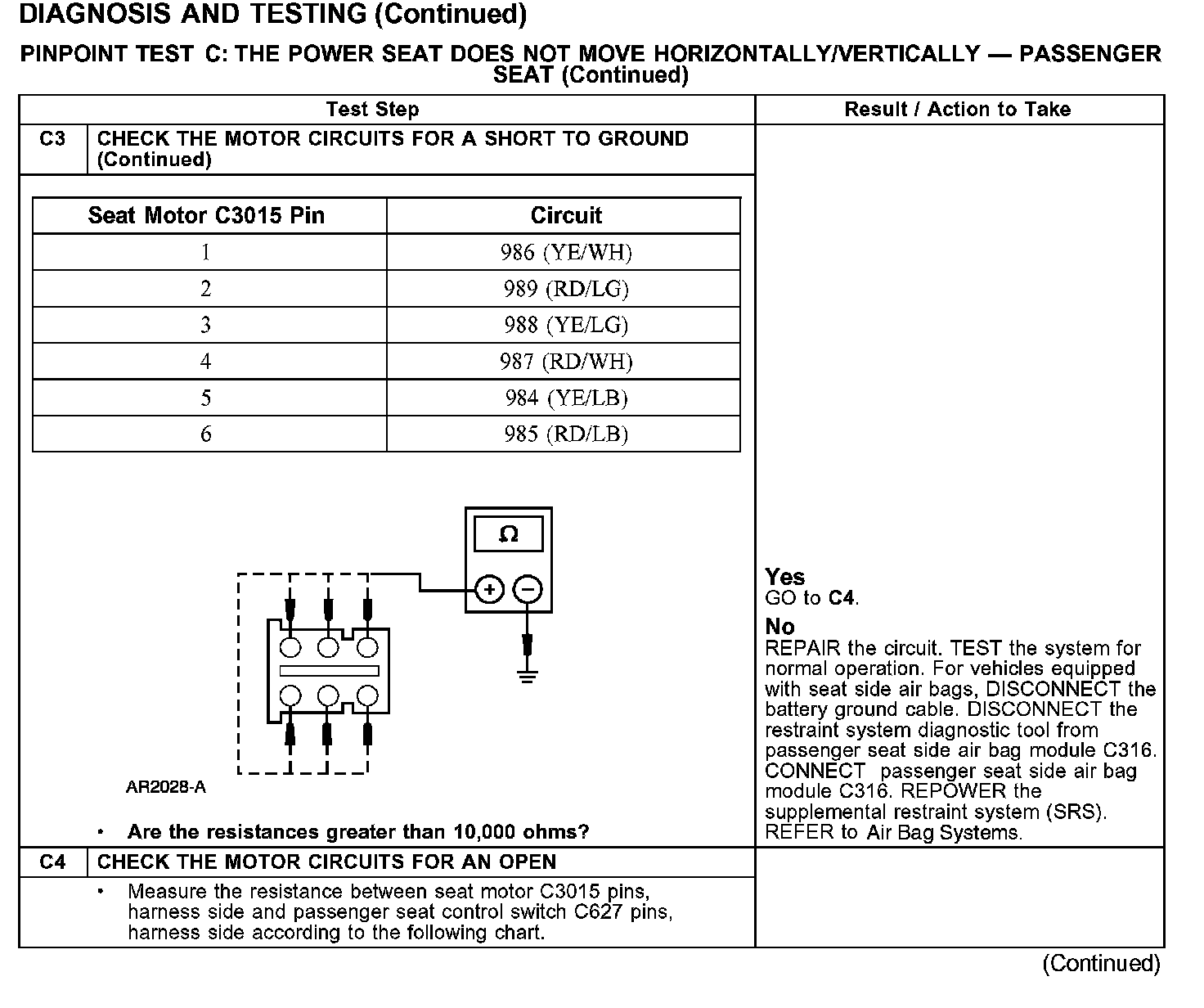

C3-C4:

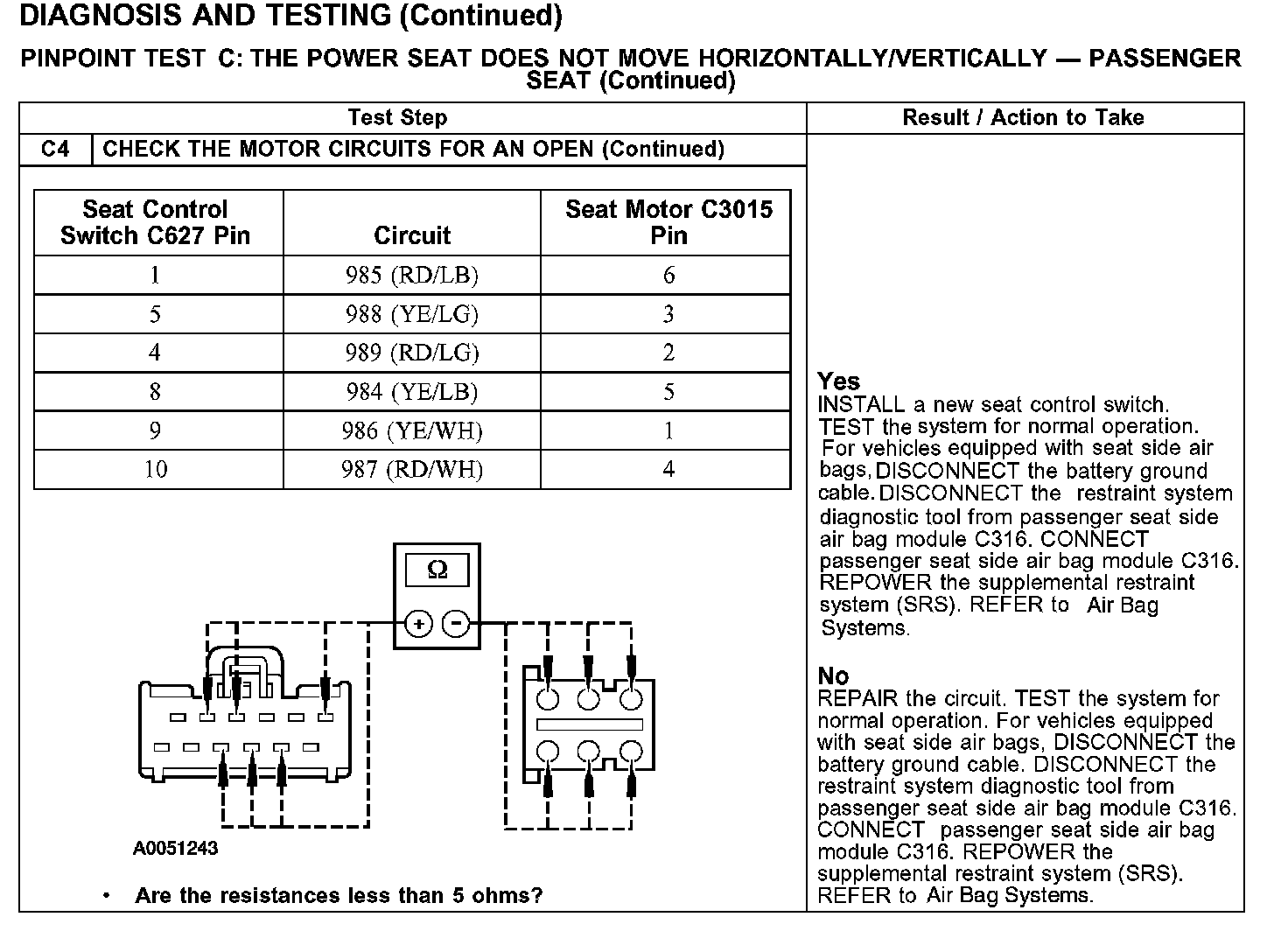

C4 Continued:
