FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2005
>>
Grand Marquis V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test B: The Power Seat Does Not Move Horizontally/Vertically - Driver Seat
Test B: The Power Seat Does Not Move Horizontally/Vertically - Driver Seat
PINPOINT TEST B: THE POWER SEAT DOES NOT MOVE HORIZONTALLY/VERTICALLY - DRIVER SEAT

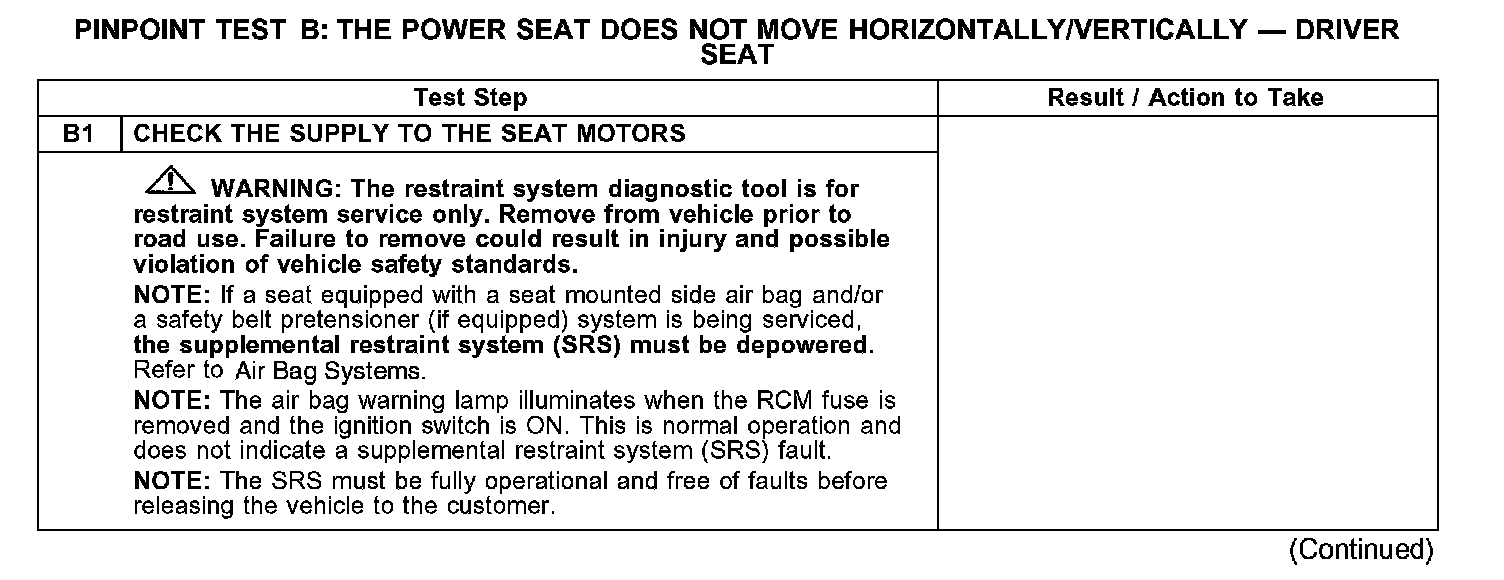

B1:

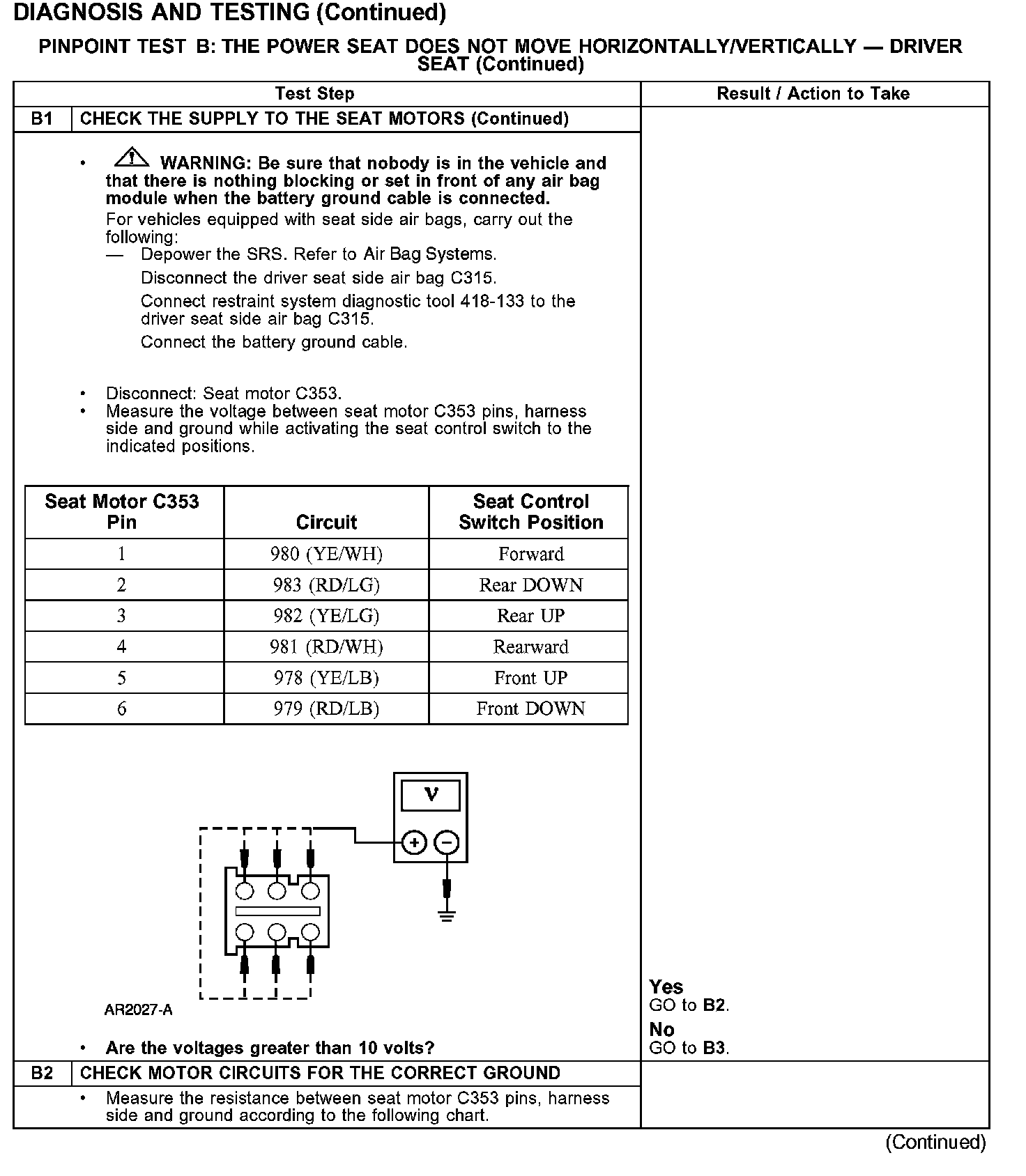

B1-B2:

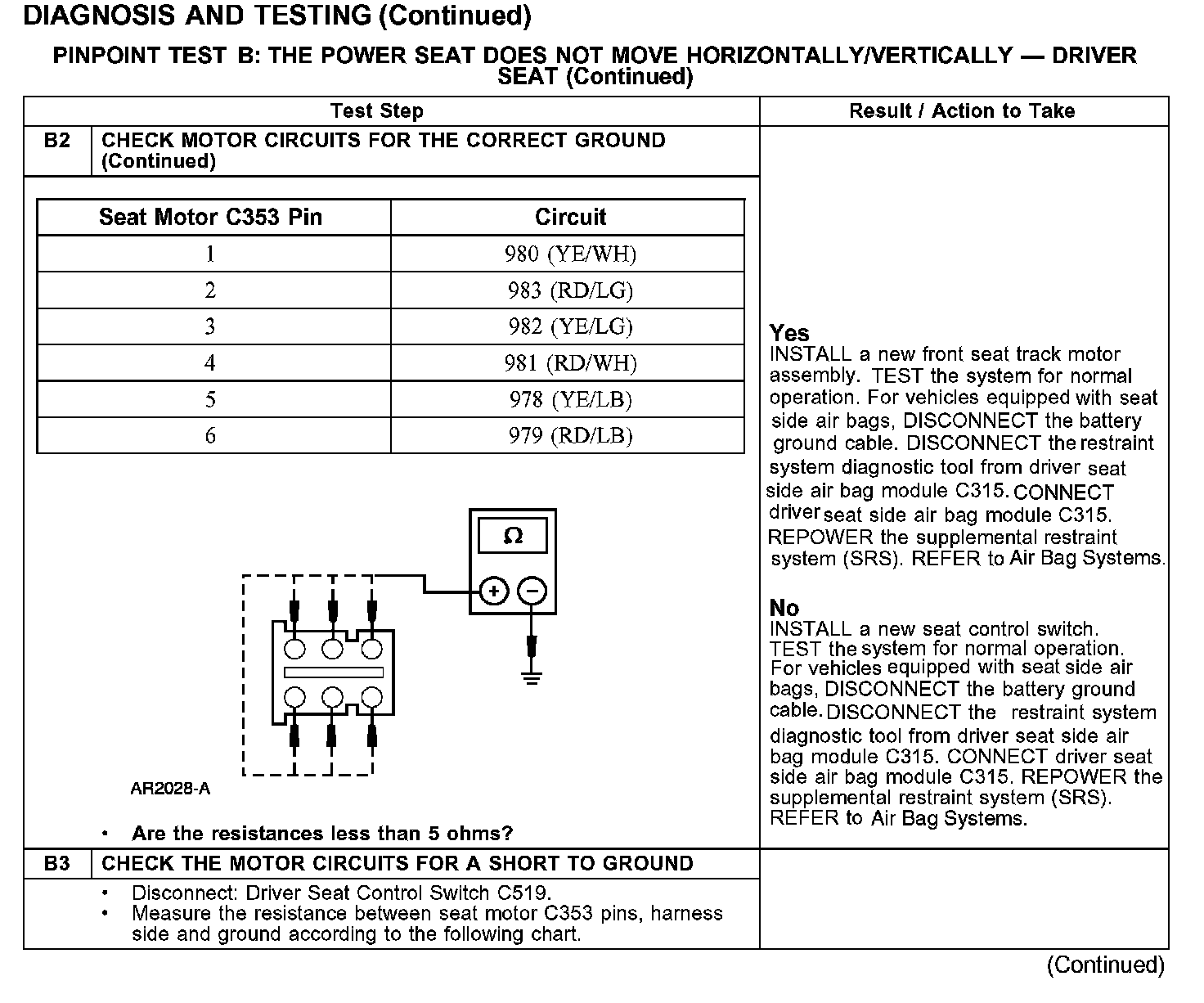

B2-B3:

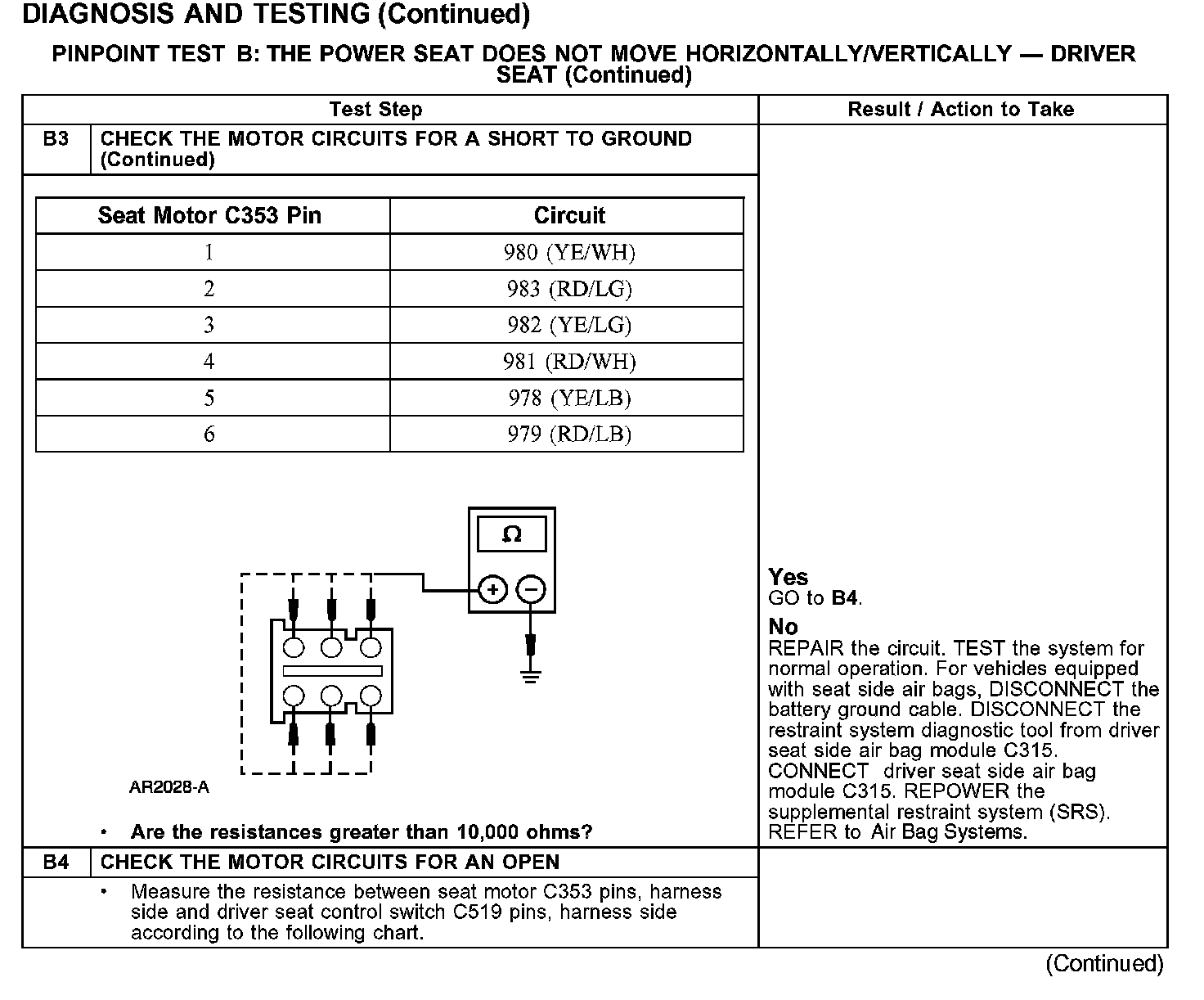

B3-B4:

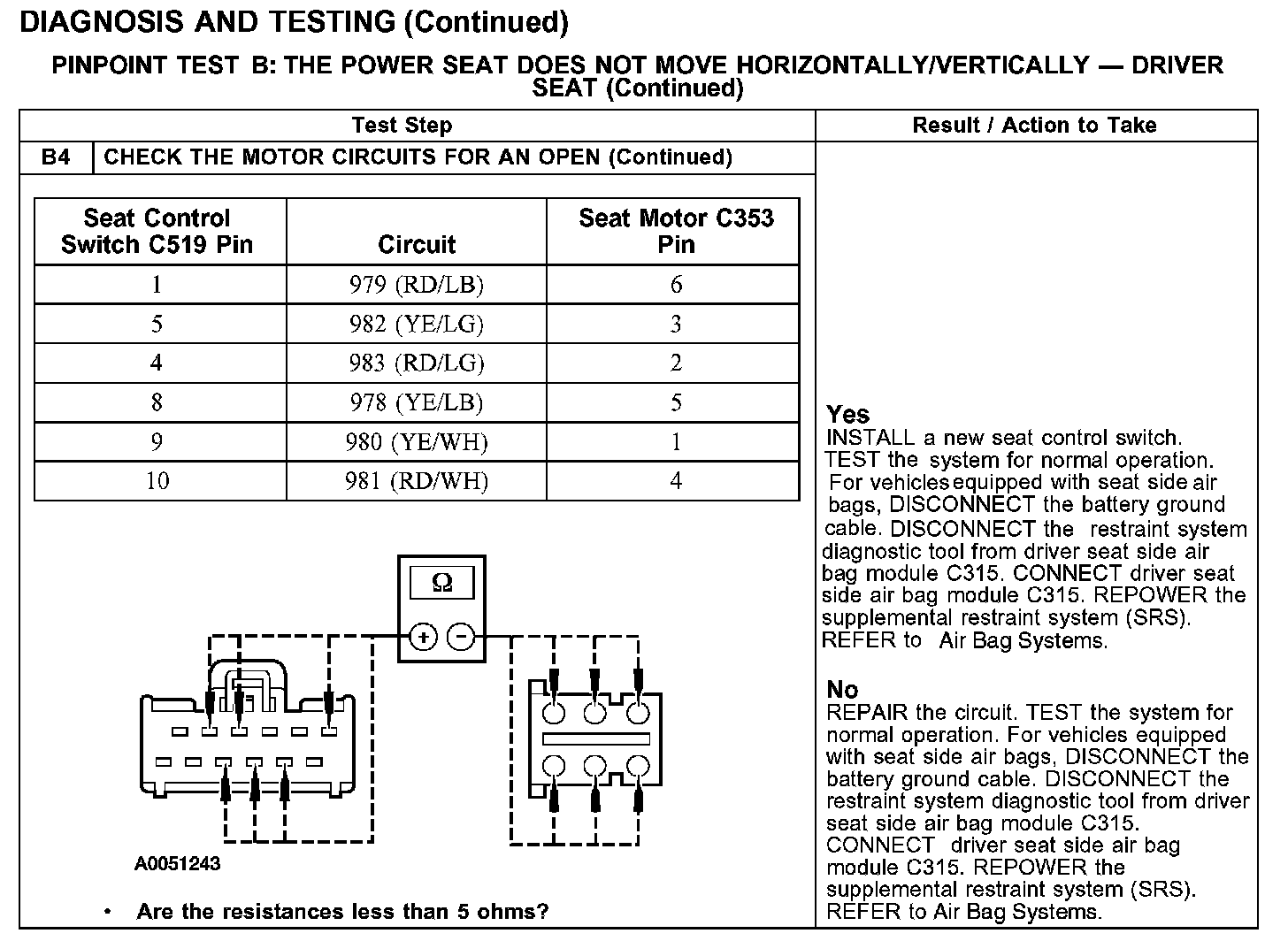

B4 Continued:
