Seat Track: Service and Repair

SEAT TRACK

Removal and Installation

WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
- To reduce the risk of personal injury, do not use any memory saver devices.

CAUTION: Use care when handling the seat and track assembly. Dropping the assembly or sitting on a seat not secured in the vehicle may result in damaged components.

NOTE:
- If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the SRS must be depowered.
- The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Driver side shown, passenger side similar (except where indicated).

All seat tracks
1. Position the seat to access the fasteners.
2. Depower the SRS.
3. Remove the affected seat.

Driver seat track only







4. Disconnect the buckle electrical connector.







5. NOTE: At installation, make sure the safety belt buckle is accessible to the occupant.

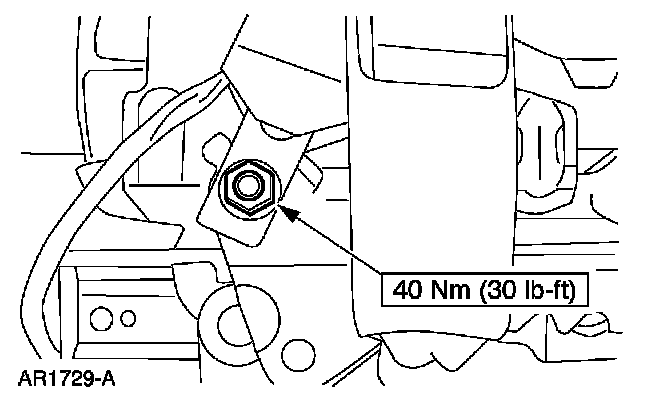

Remove the nut and the safety belt buckle.

Passenger seat track only







6. NOTE: At installation, make sure the safety belt buckle is accessible to the occupant.

Remove the safety belt buckle with belt tension sensor.

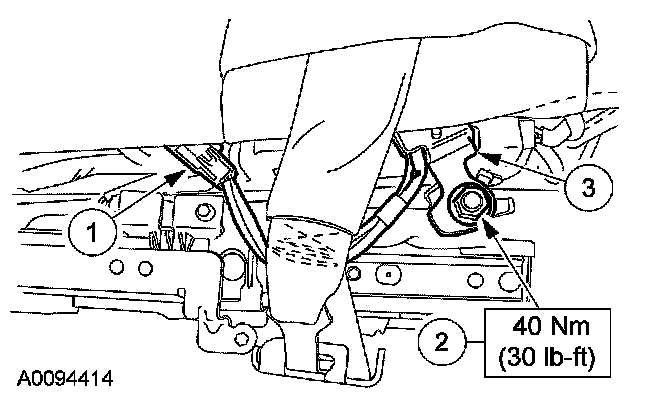

1 Disconnect the connector.
2 Remove the nut.
3 Remove the safety belt buckle with belt tension sensor.

All seats

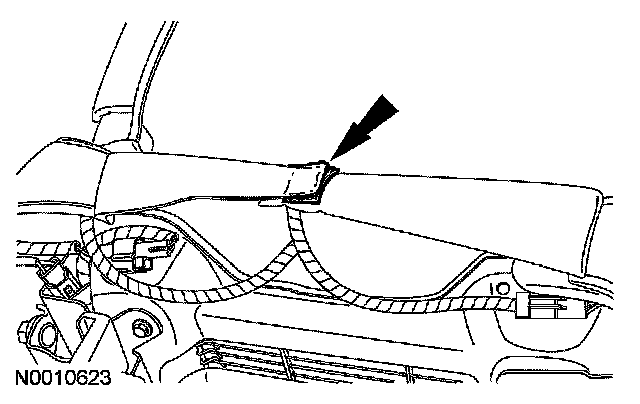

7. Release the cushion trim cover rear J-clip.







8. Release the cushion trim cover rear hook and loop strip.







9. Release the J-clip.

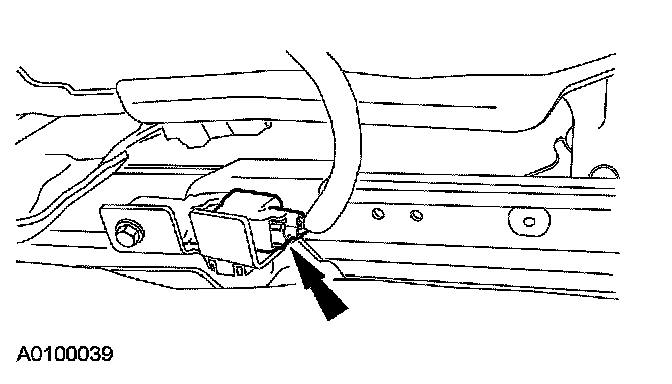

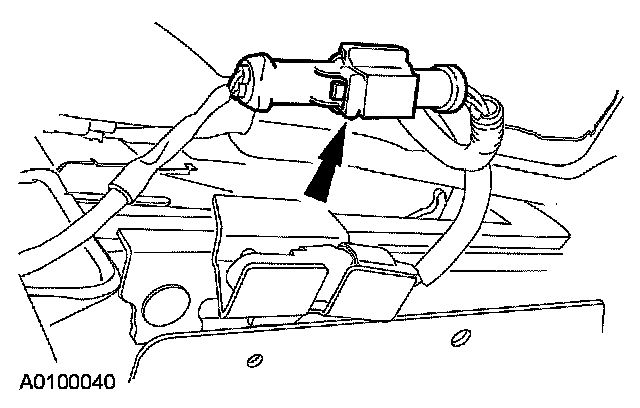

10. Detach the electrical connector.

Driver seat track

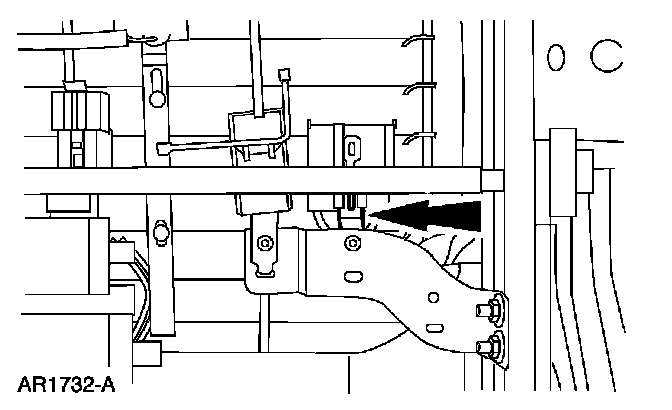

11. Disconnect the seat position sensor.

Power seat tracks

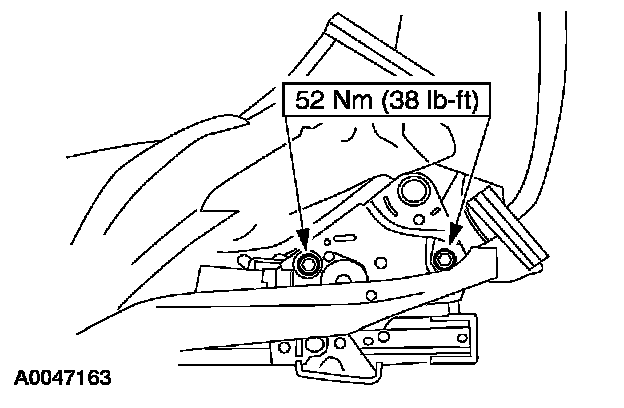

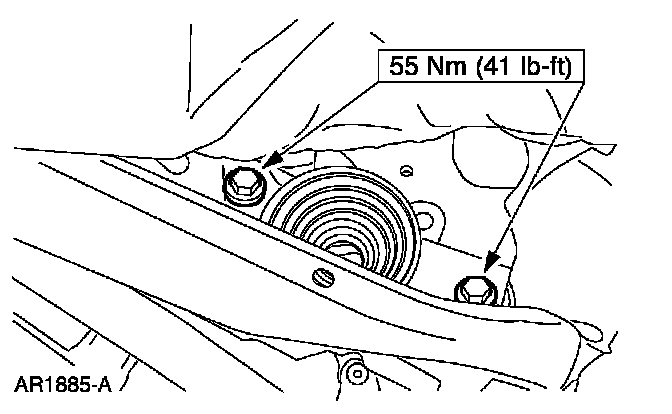

12. Remove the bolts.

Manual seat tracks

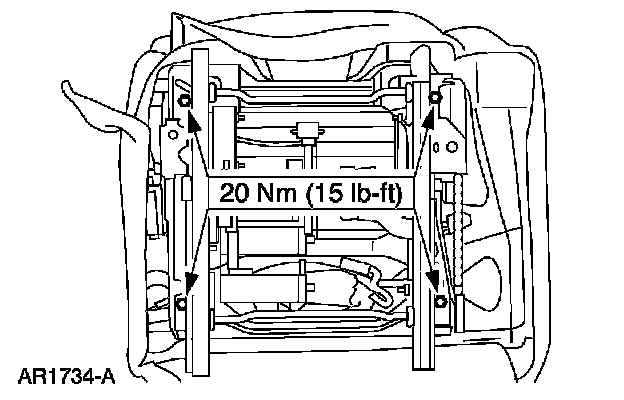

13. Remove the bolts.

All seat tracks

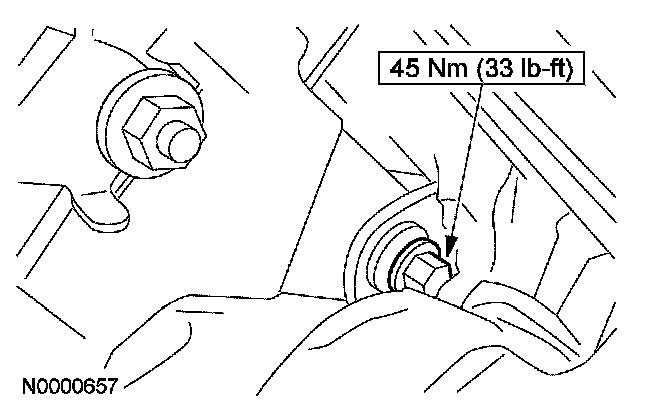

14. Remove the pivot bolt.







15. Remove the bolts and the seat track assembly.
- Disconnect any electrical connectors still attached.

16. To install, reverse the removal procedure.
17. Install the affected seat.
18. Repower the SRS.
19. Check the active restraints for correct operation.
