Test H: The Roof Opening Panel Will Not Slide Closed or Will Not Vent Up
Test H: The Roof Opening Panel Will Not Slide Closed or Will Not Vent Up
PINPOINT TEST H: THE ROOF OPENING PANEL WILL NOT SLIDE CLOSED OR WILL NOT VENT UP

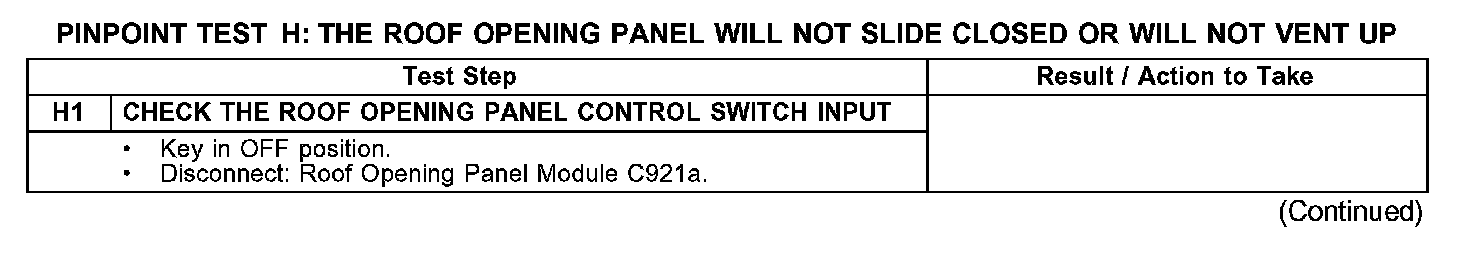

H1:

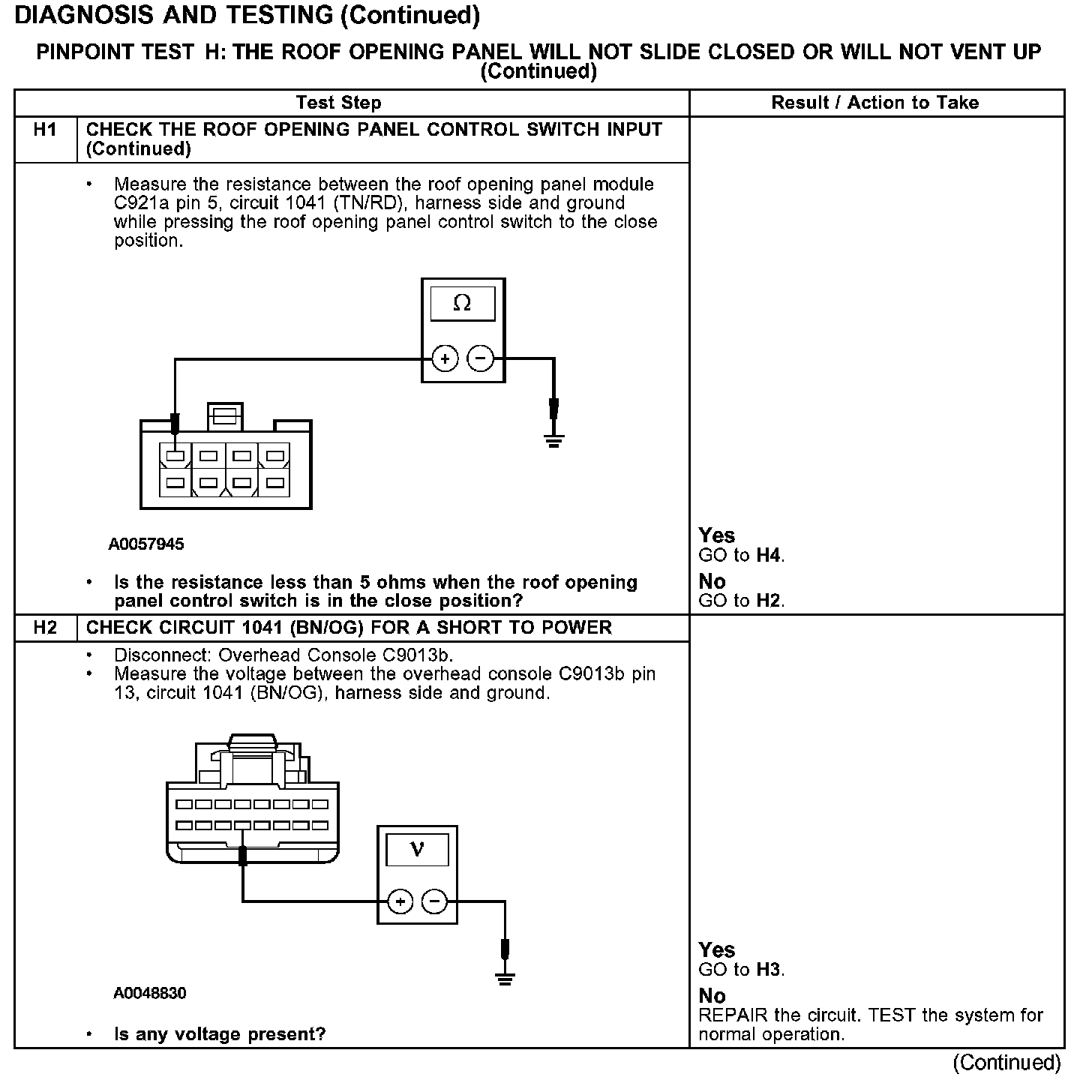

H1-H2:

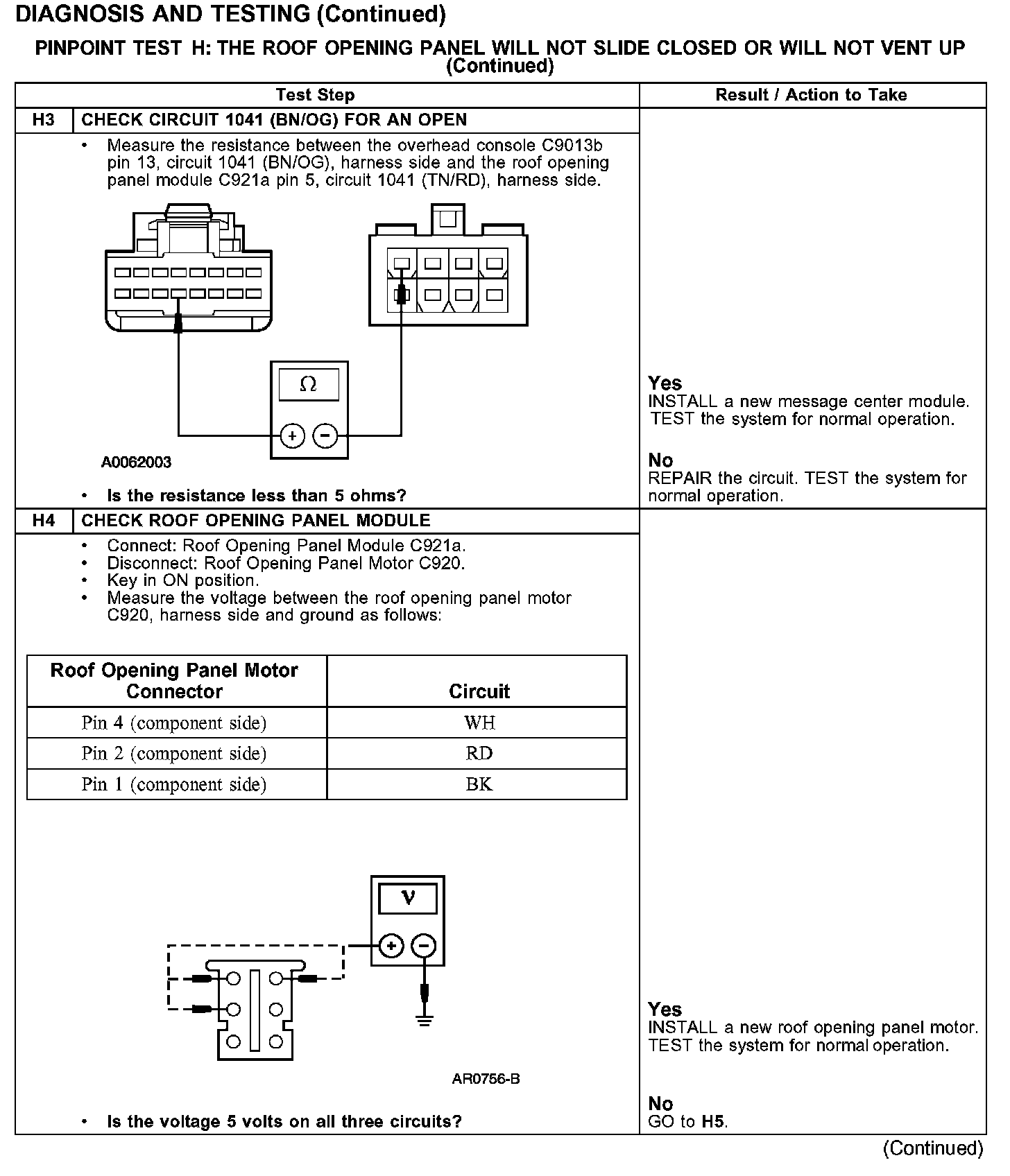

H3-H4:

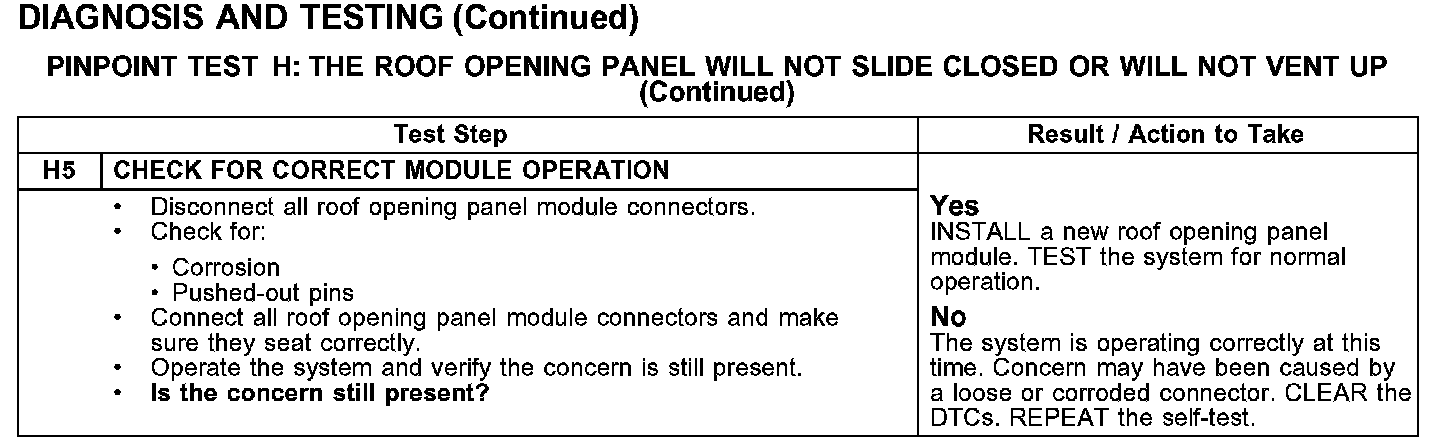

H5:
