Test G: The Express Open Is Inoperative

PINPOINT TEST G: THE EXPRESS OPEN IS INOPERATIVE

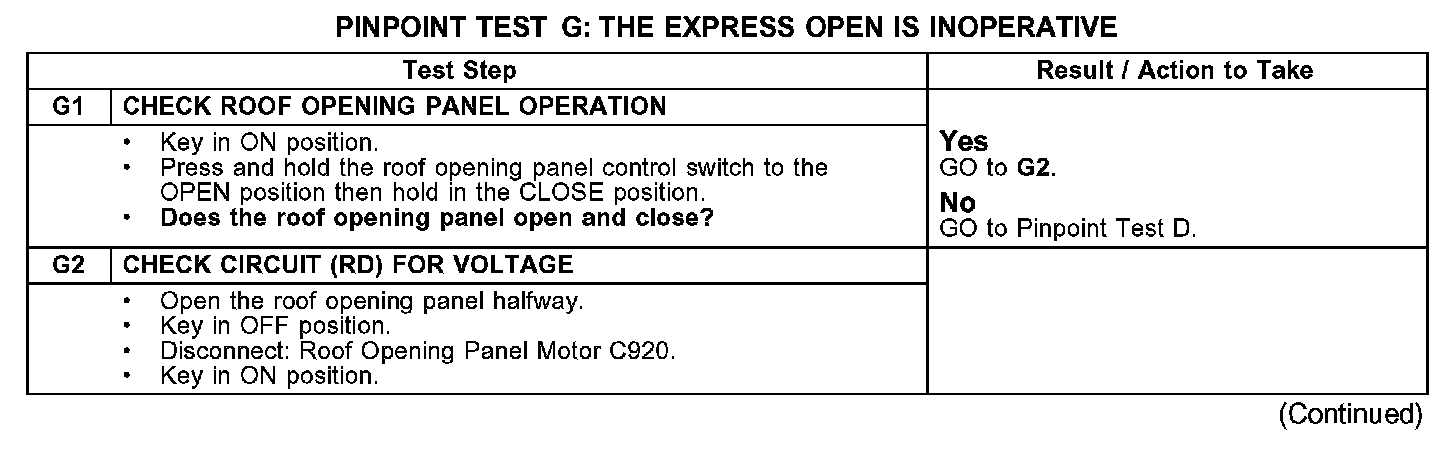

G1-G2:

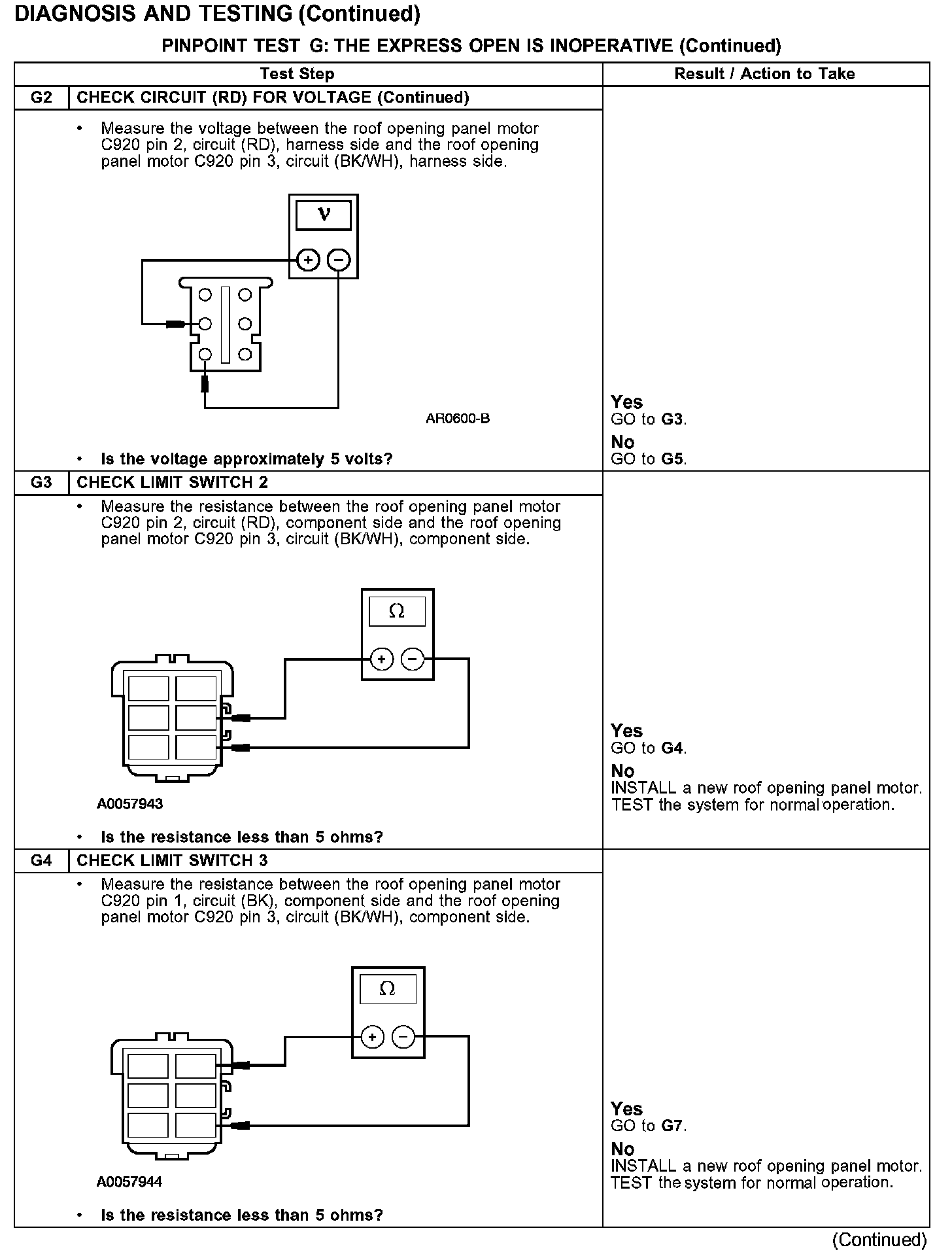

G2-G4:

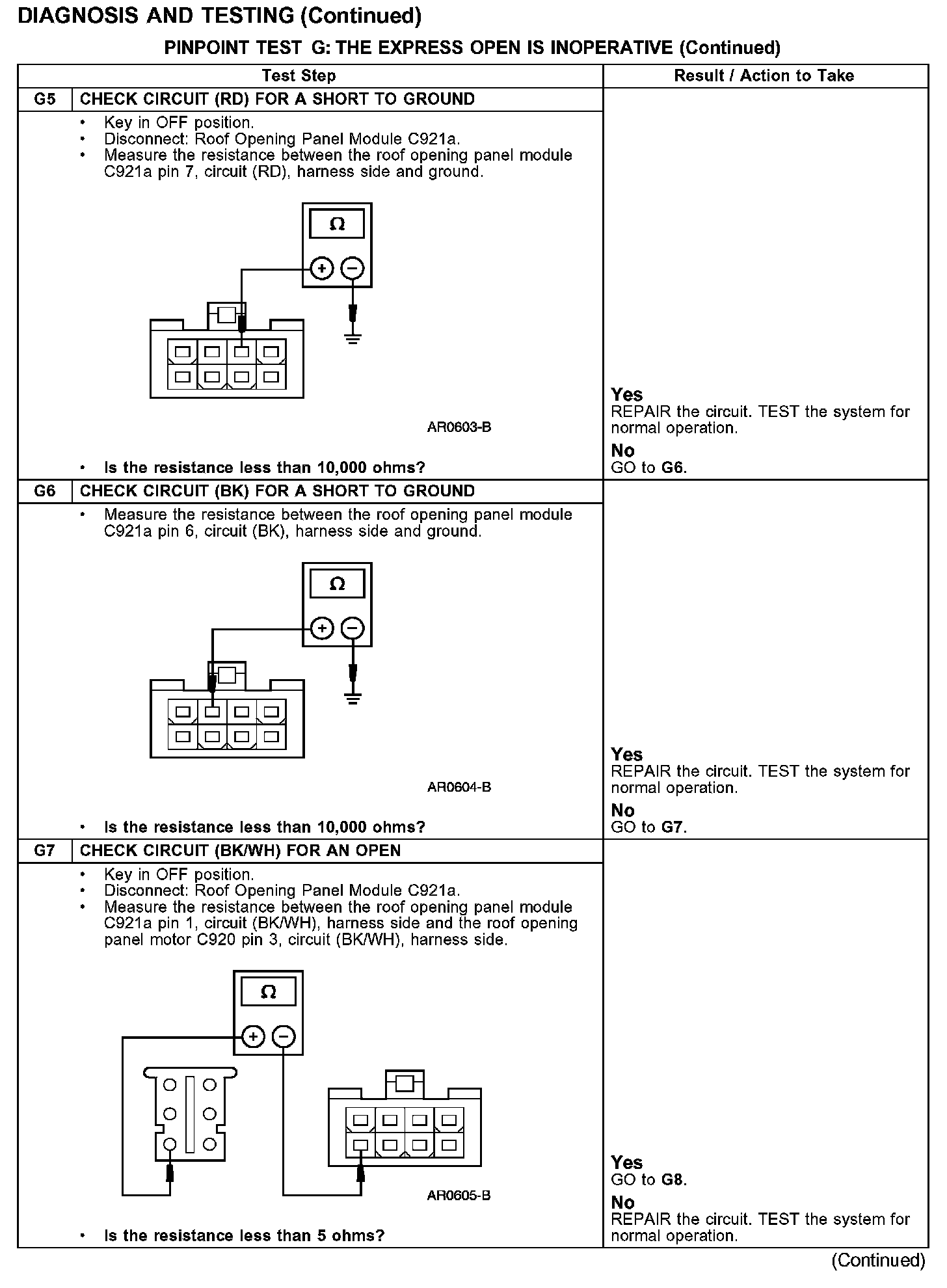

G5-G7:

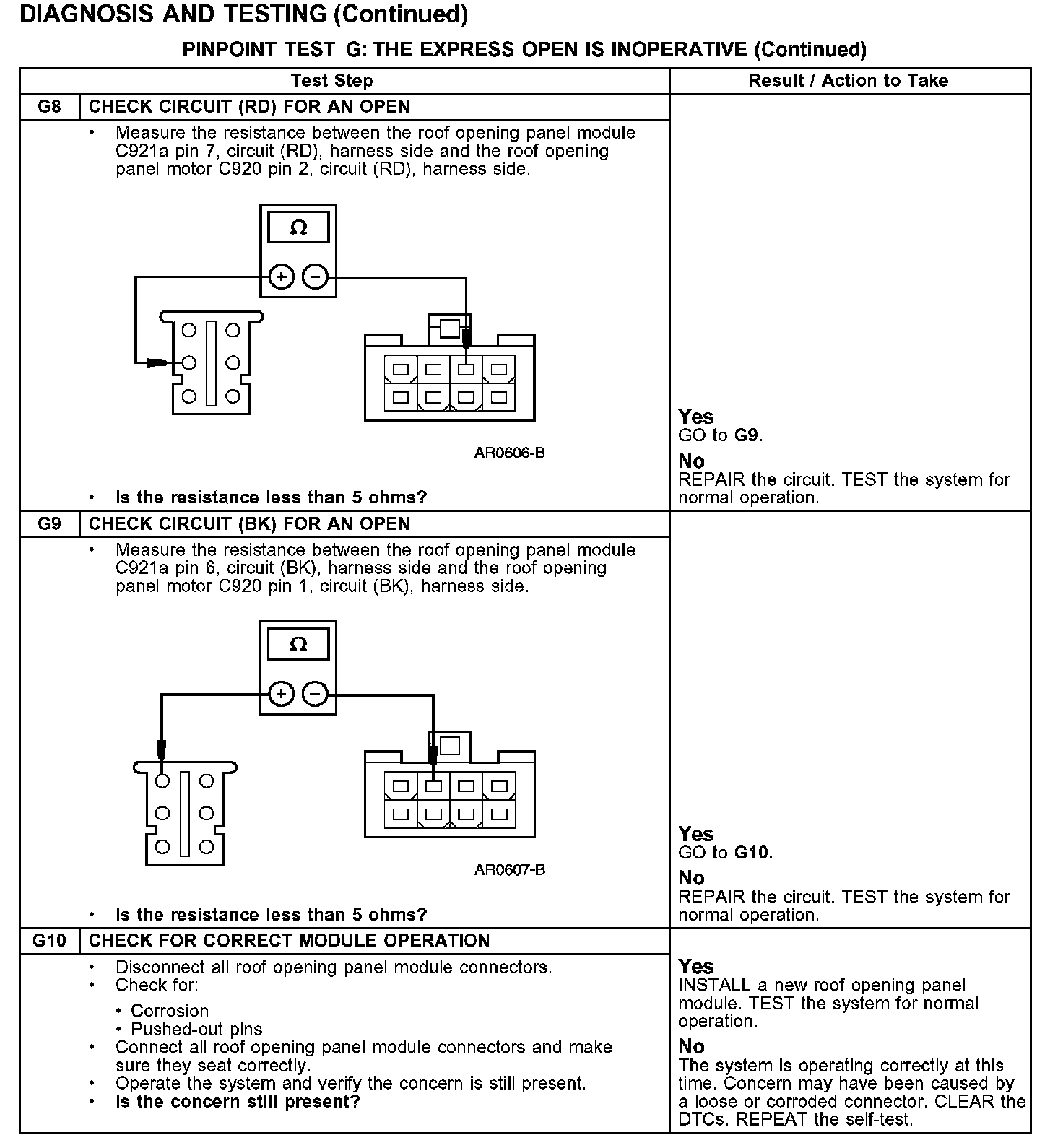

G8-G10:
