Test E: The Roof Opening Panel Does Not Open or Close In the Vent Position
Test E: The Roof Opening Panel Does Not Open or Close In the Vent Position
PINPOINT TEST E: THE ROOF OPENING PANEL DOES NOT OPEN OR CLOSE IN THE VENT POSITION

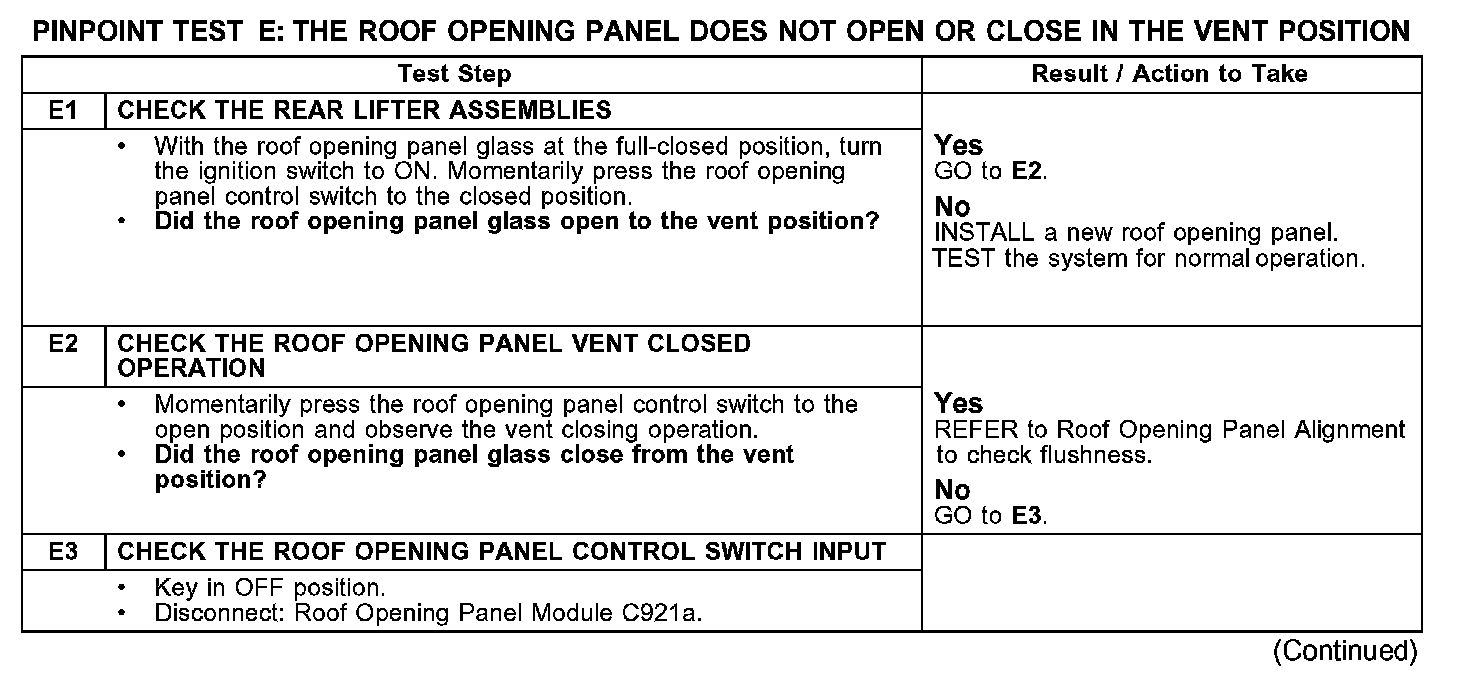

E1-E3:

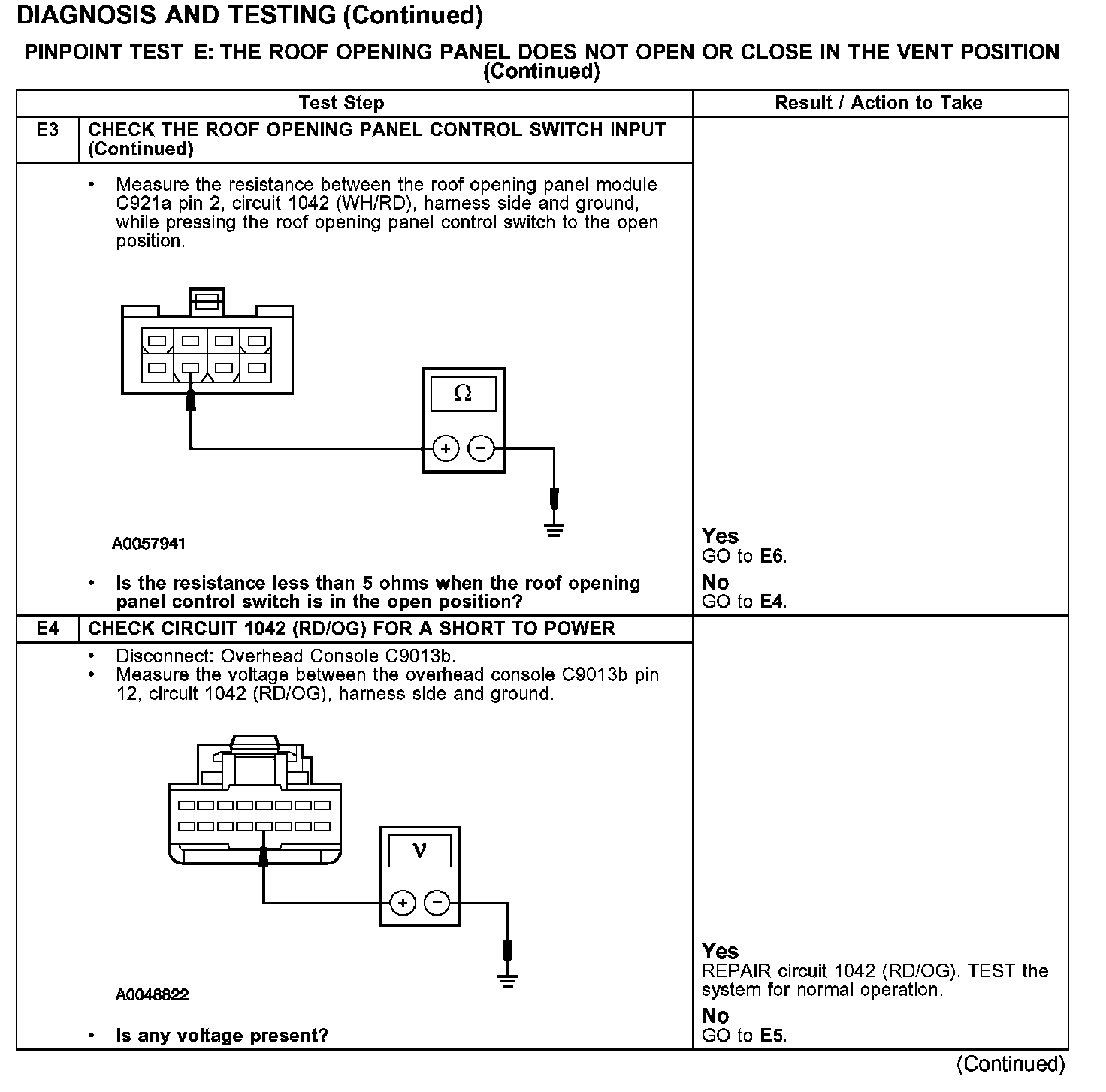

E3-E4:

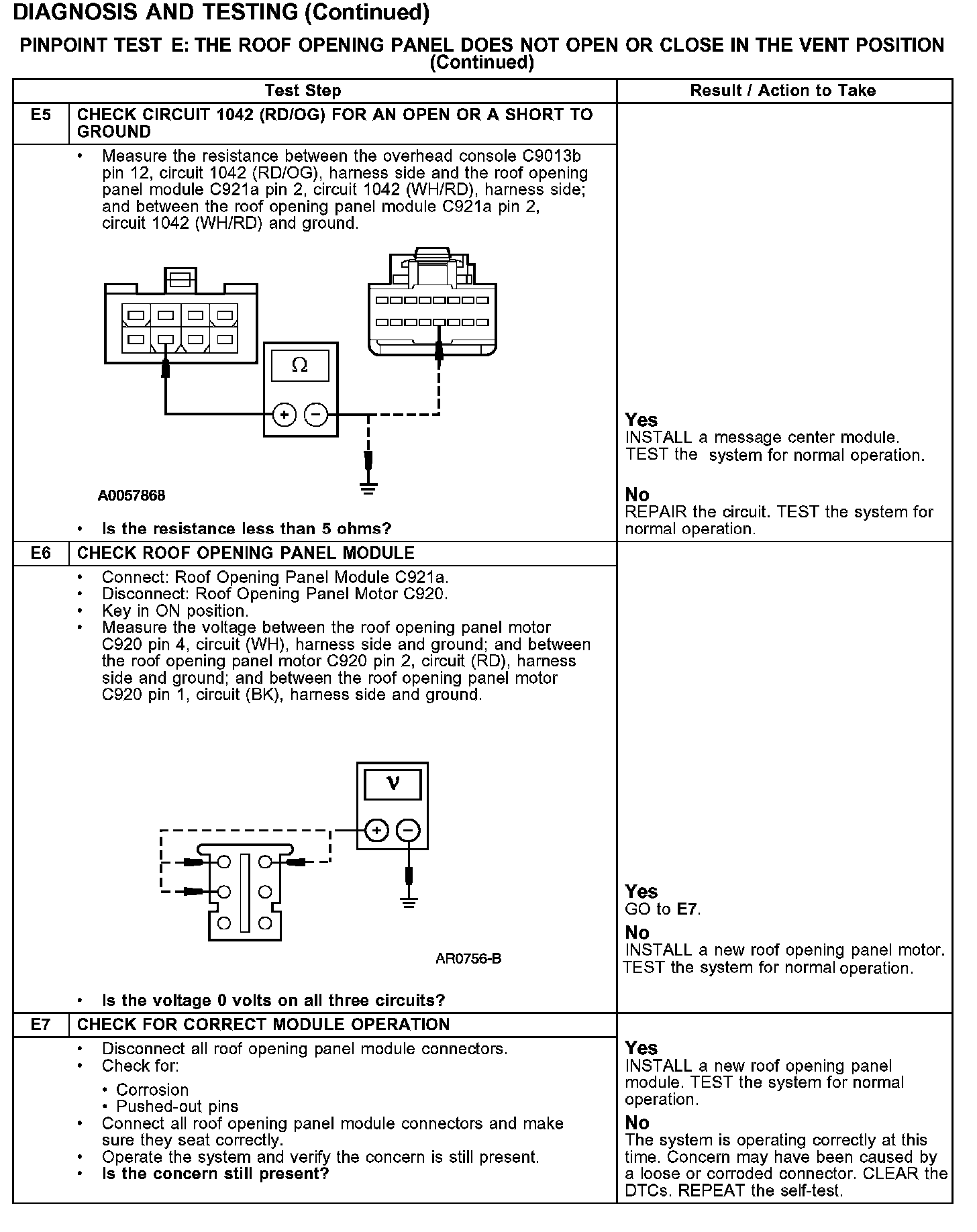

E5-E7:
