Test D: The Roof Opening Panel Does Not Open or Close
Test D: The Roof Opening Panel Does Not Open or Close
PINPOINT TEST D: THE ROOF OPENING PANEL DOES NOT OPEN OR CLOSE

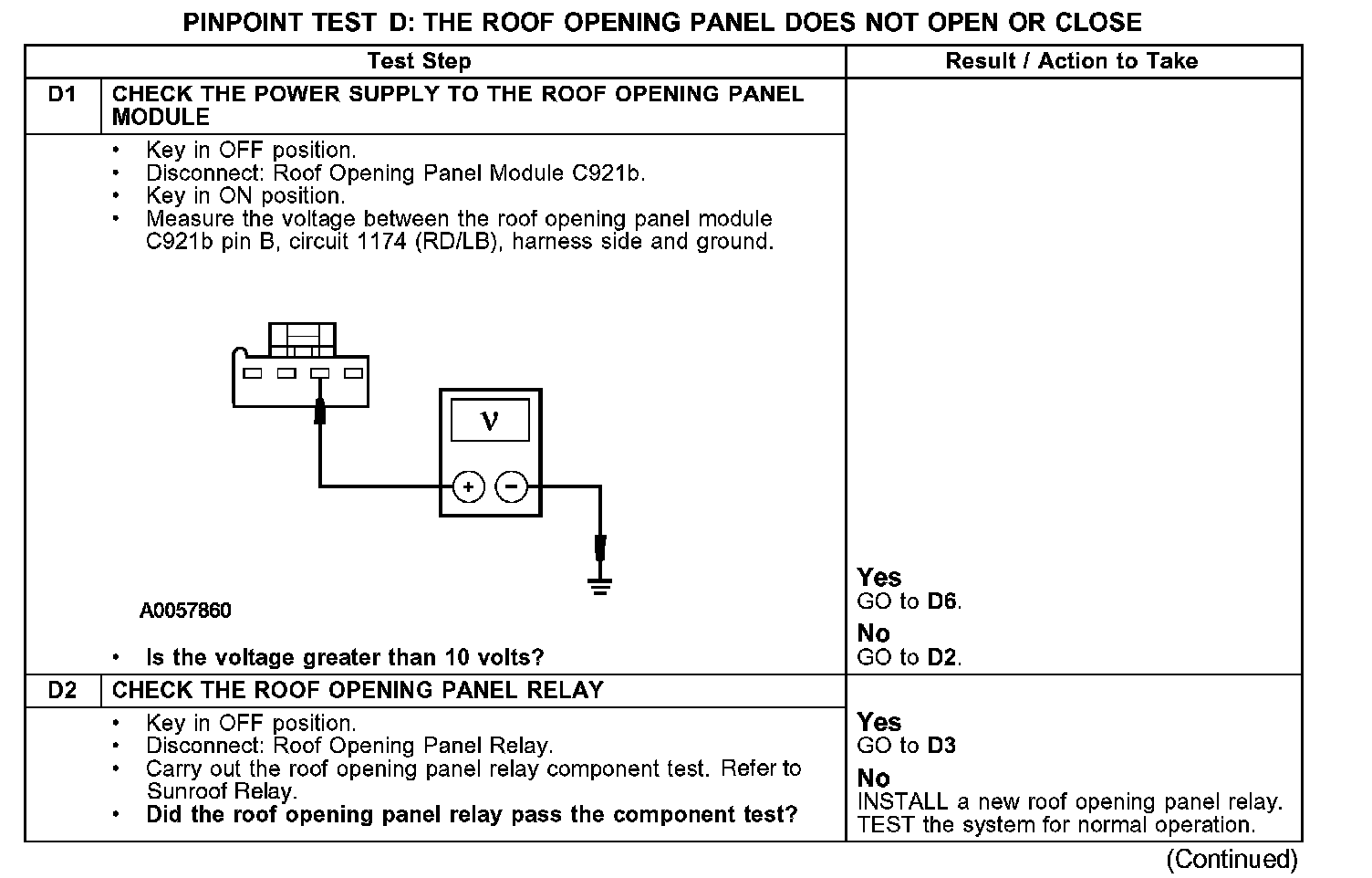

D1-D2:

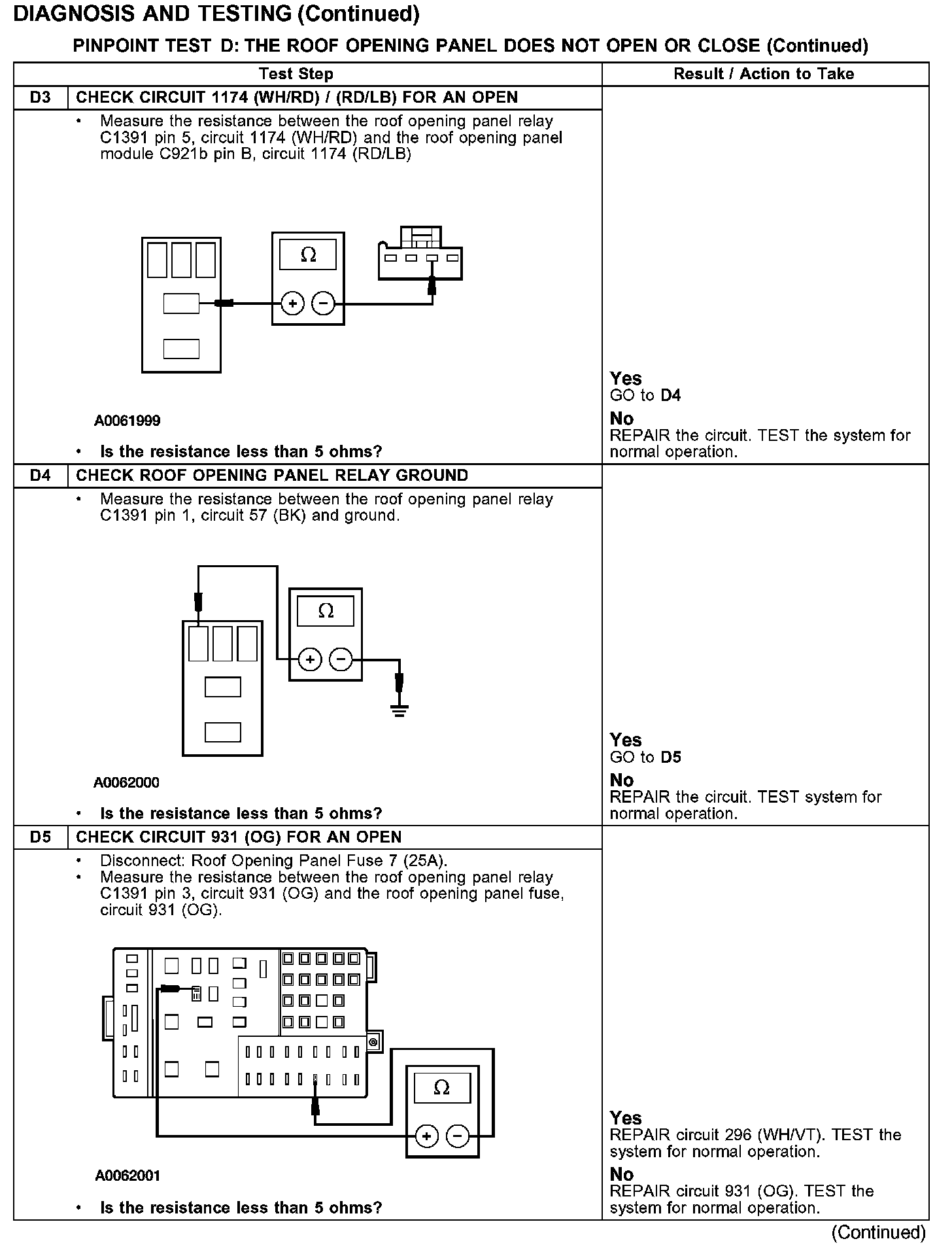

D3-D5:

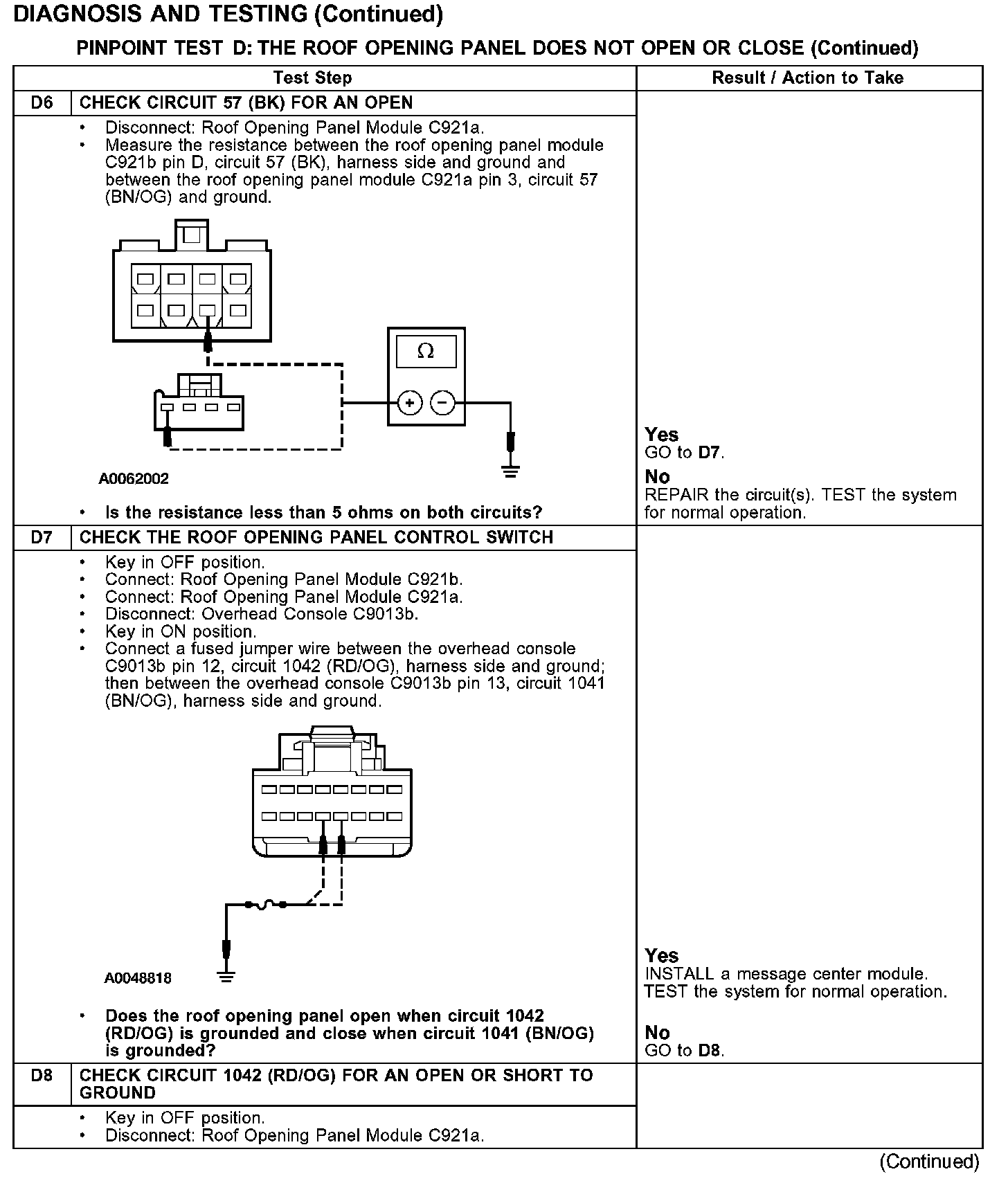

D6-D8:

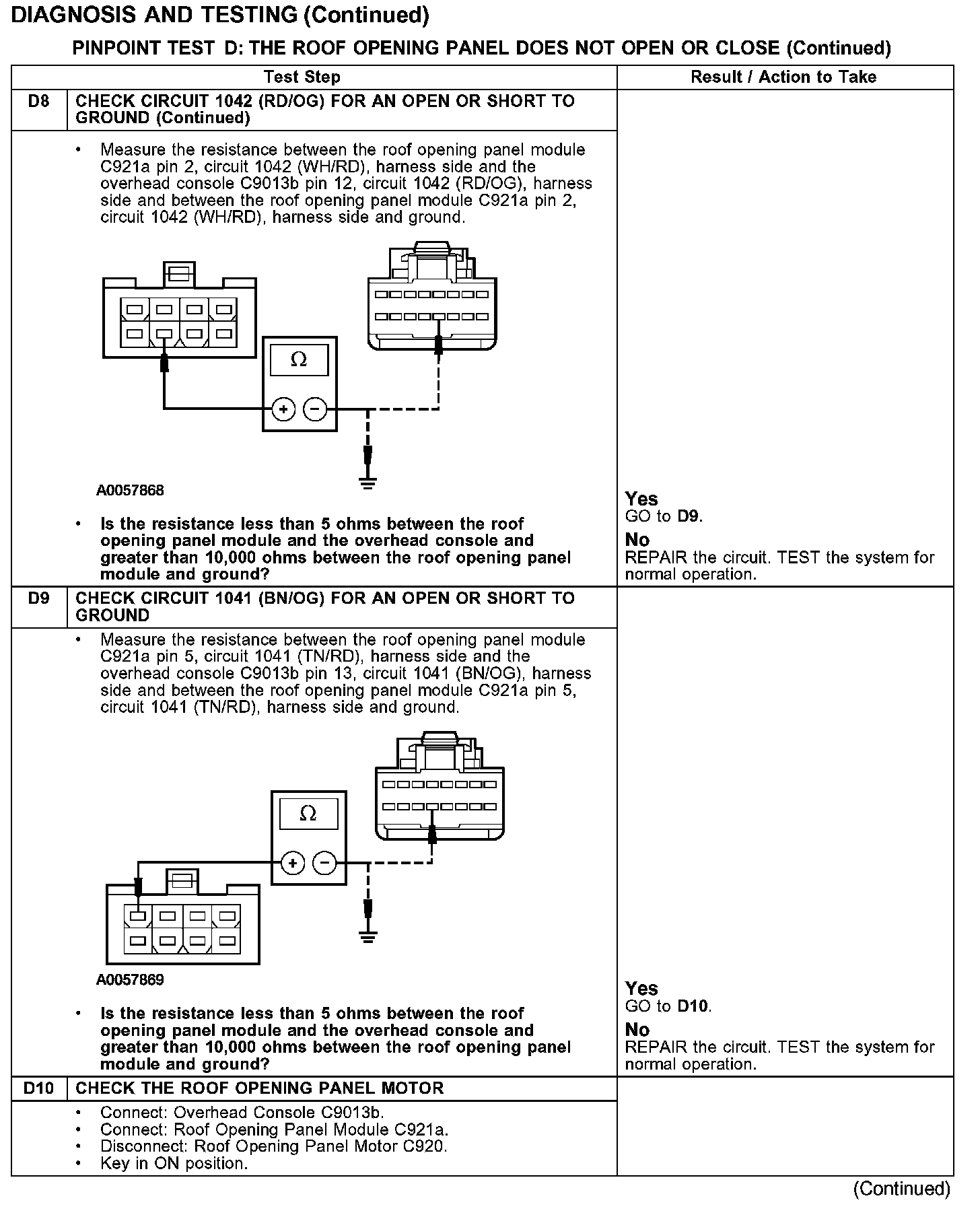

D8-D10:

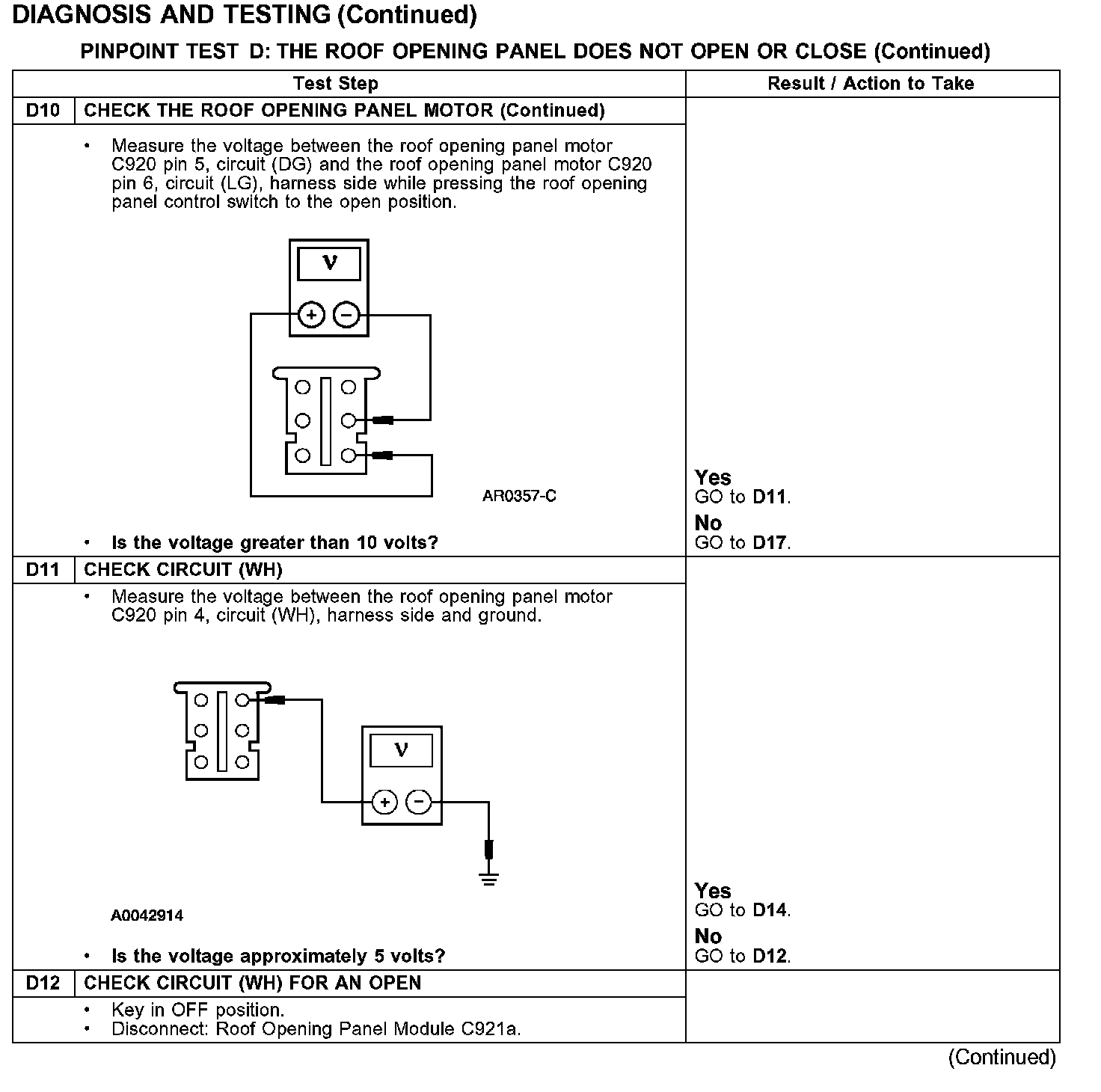

D10-D12:
D12-D15:

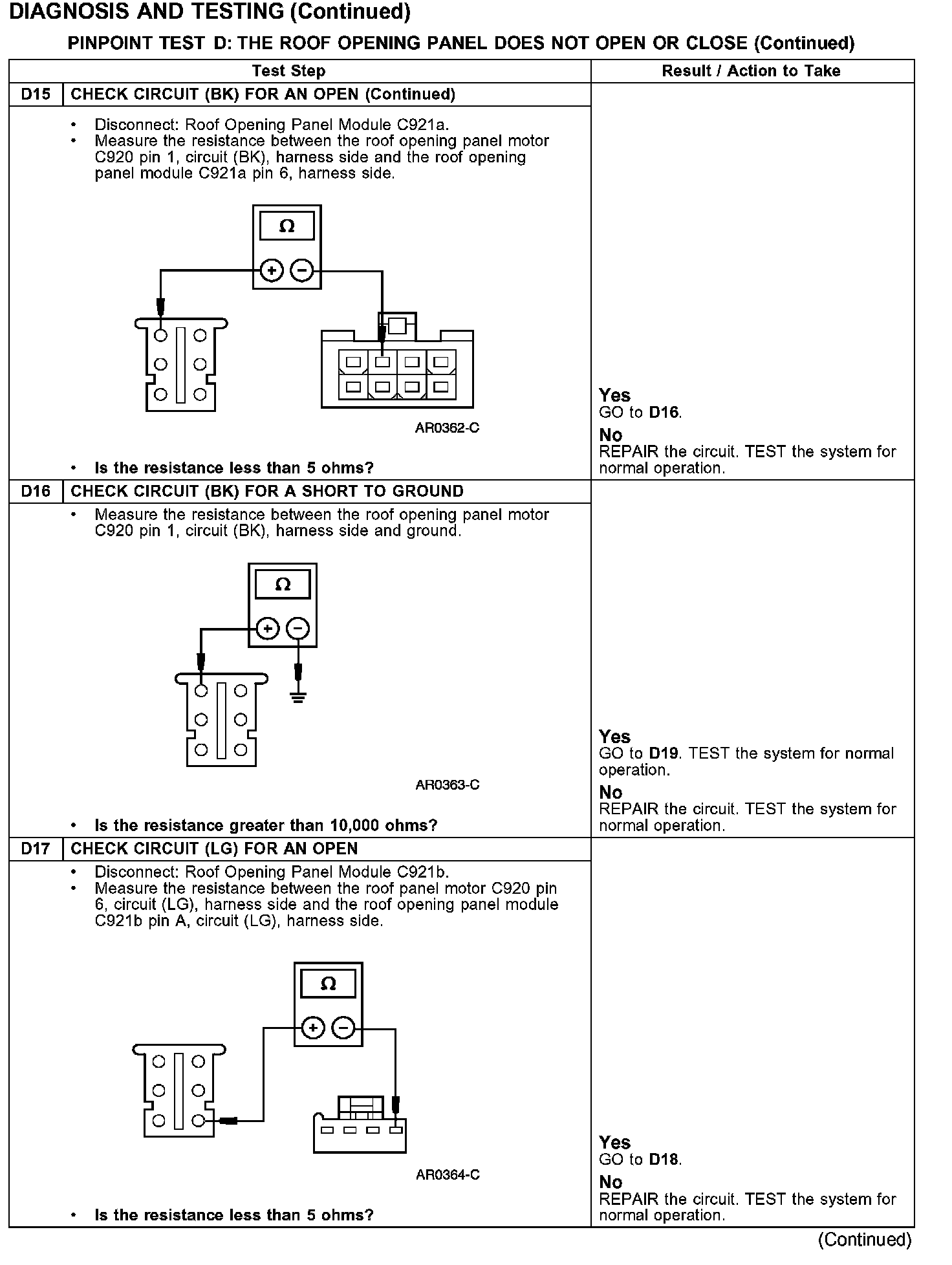

D15-D17:

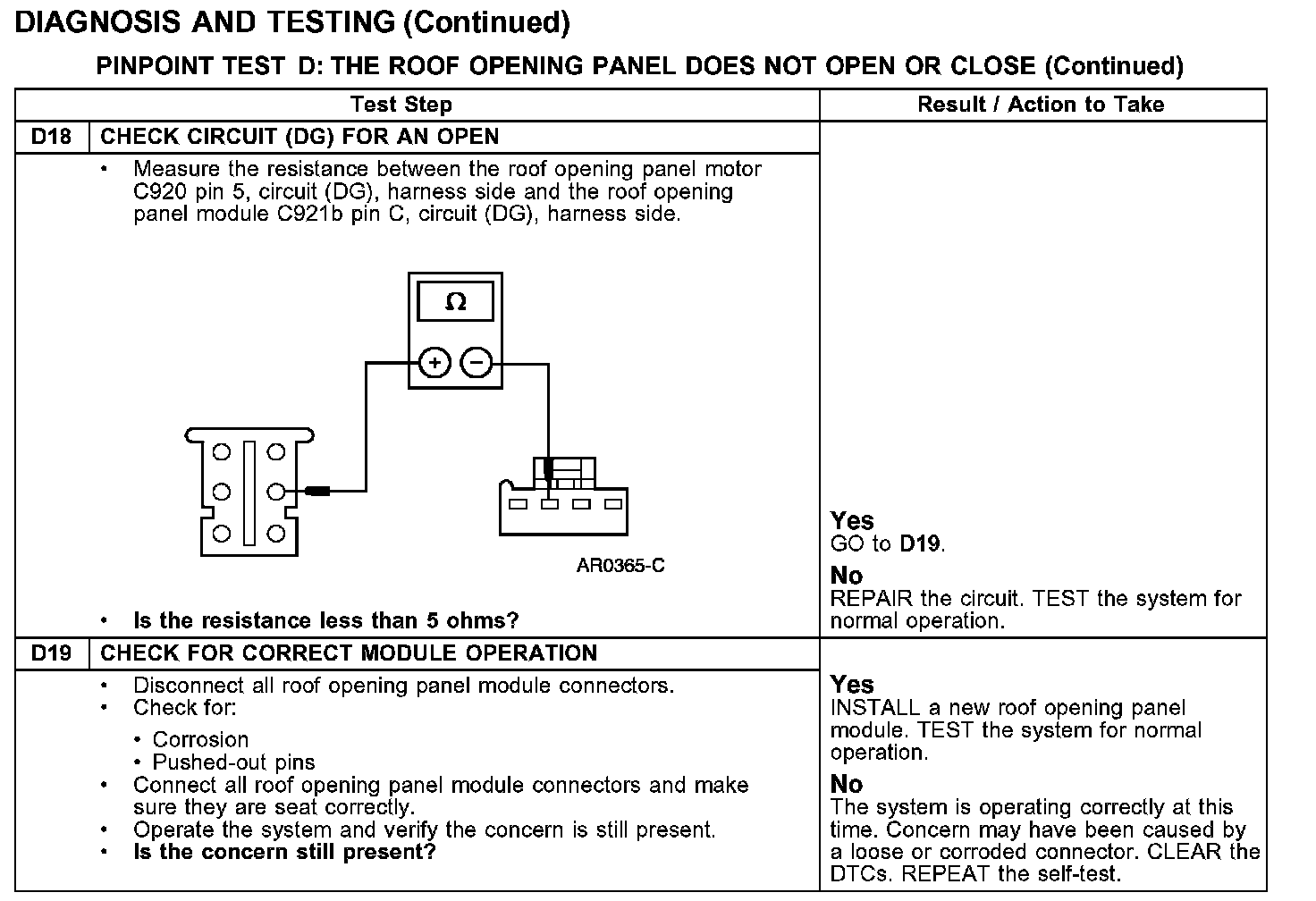

D18-D19:
