Test D: The Auto Dimming Mirror Does Not Operate Correctly
Test D: The Auto Dimming Mirror Does Not Operate Correctly
PINPOINT TEST D: THE AUTO DIMMING MIRROR DOES NOT OPERATE CORRECTLY

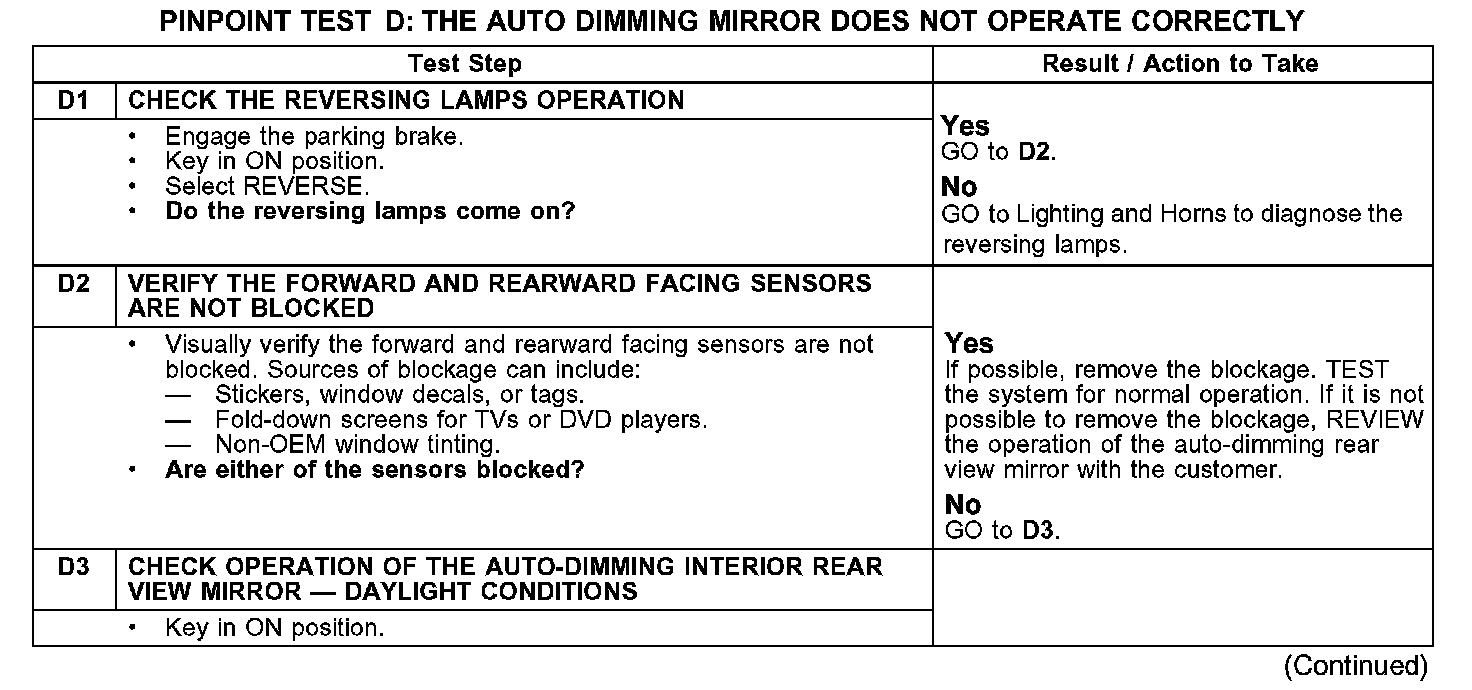

D1-D3:

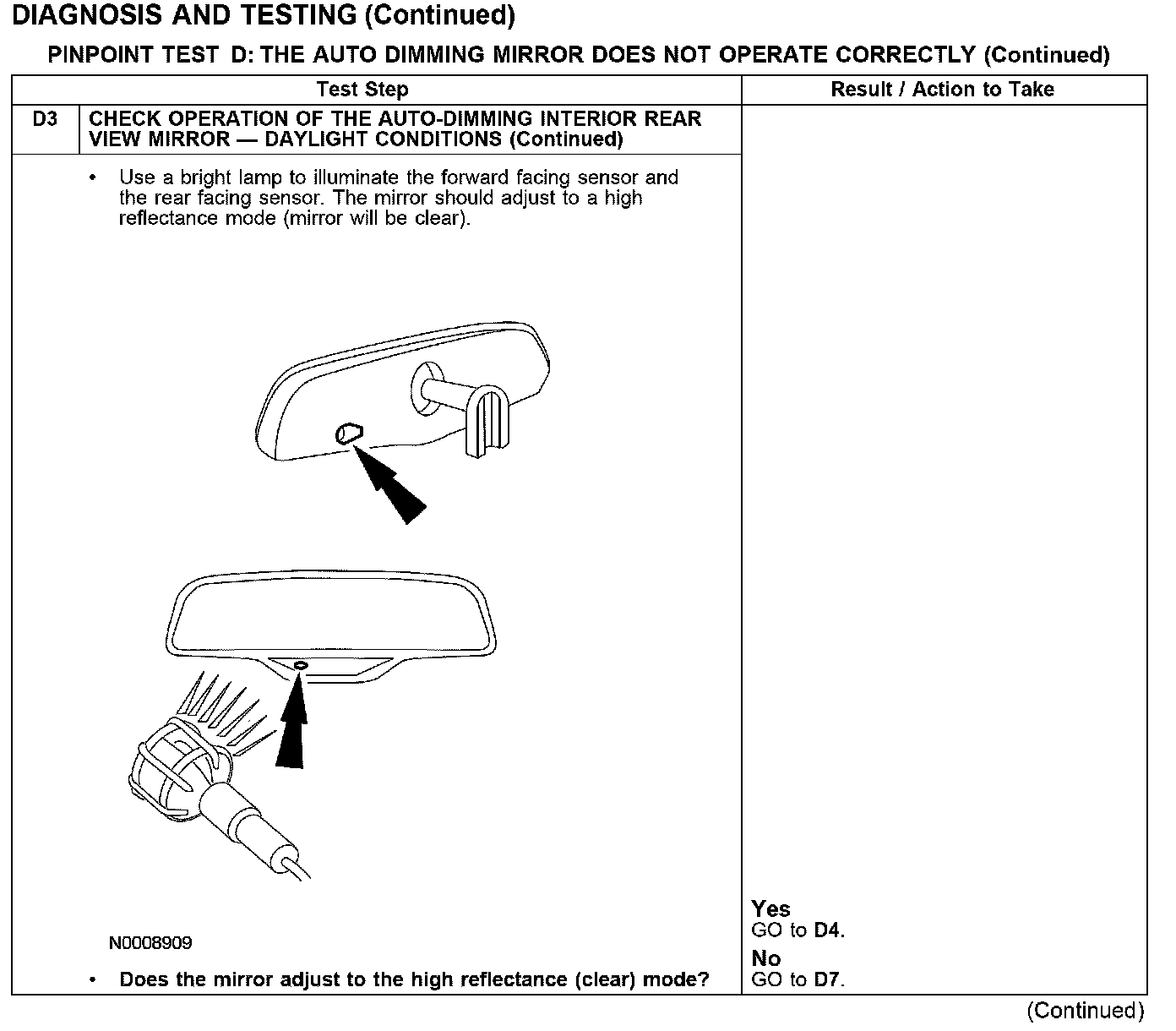

D3 Continued:

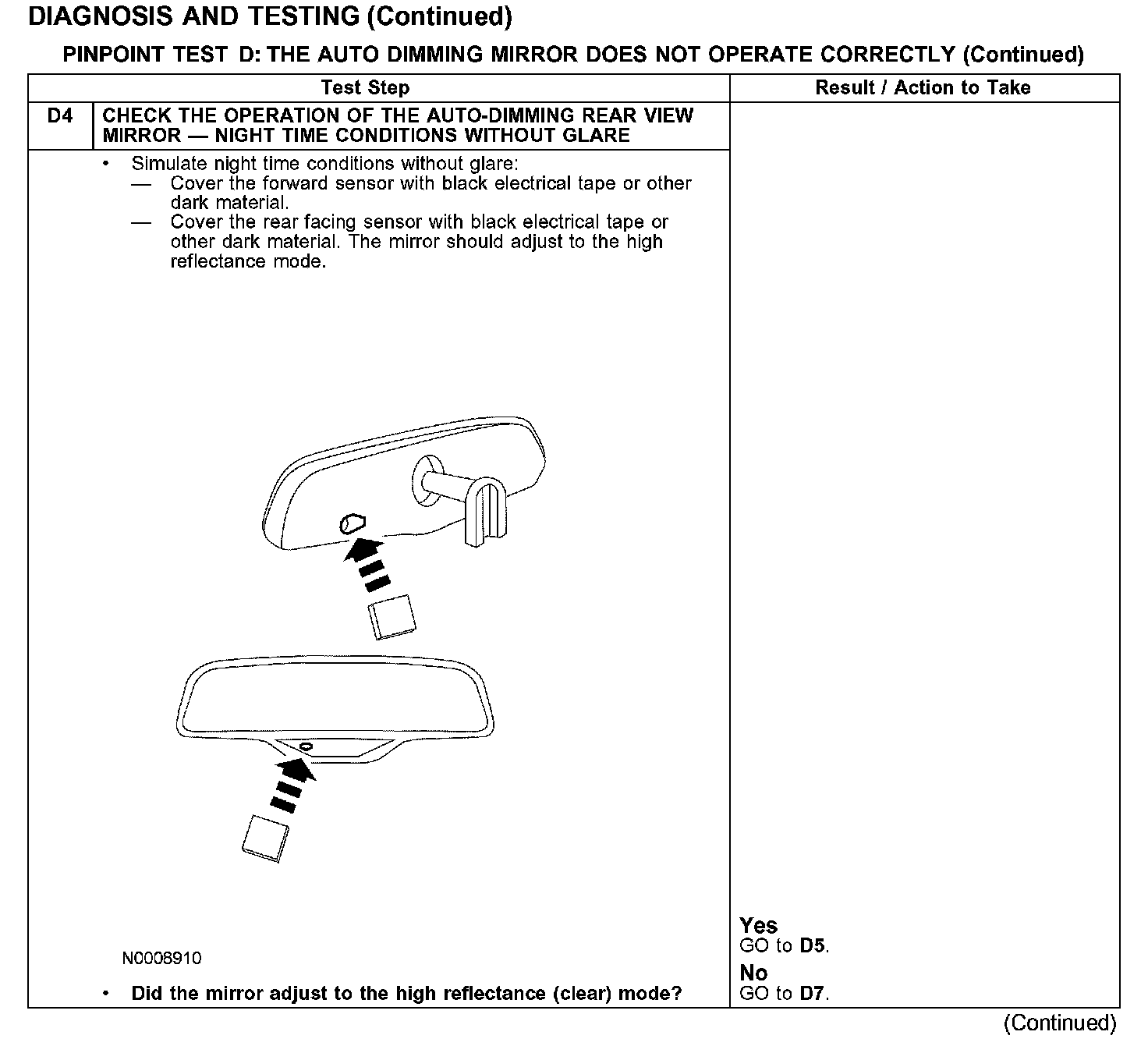

D4:

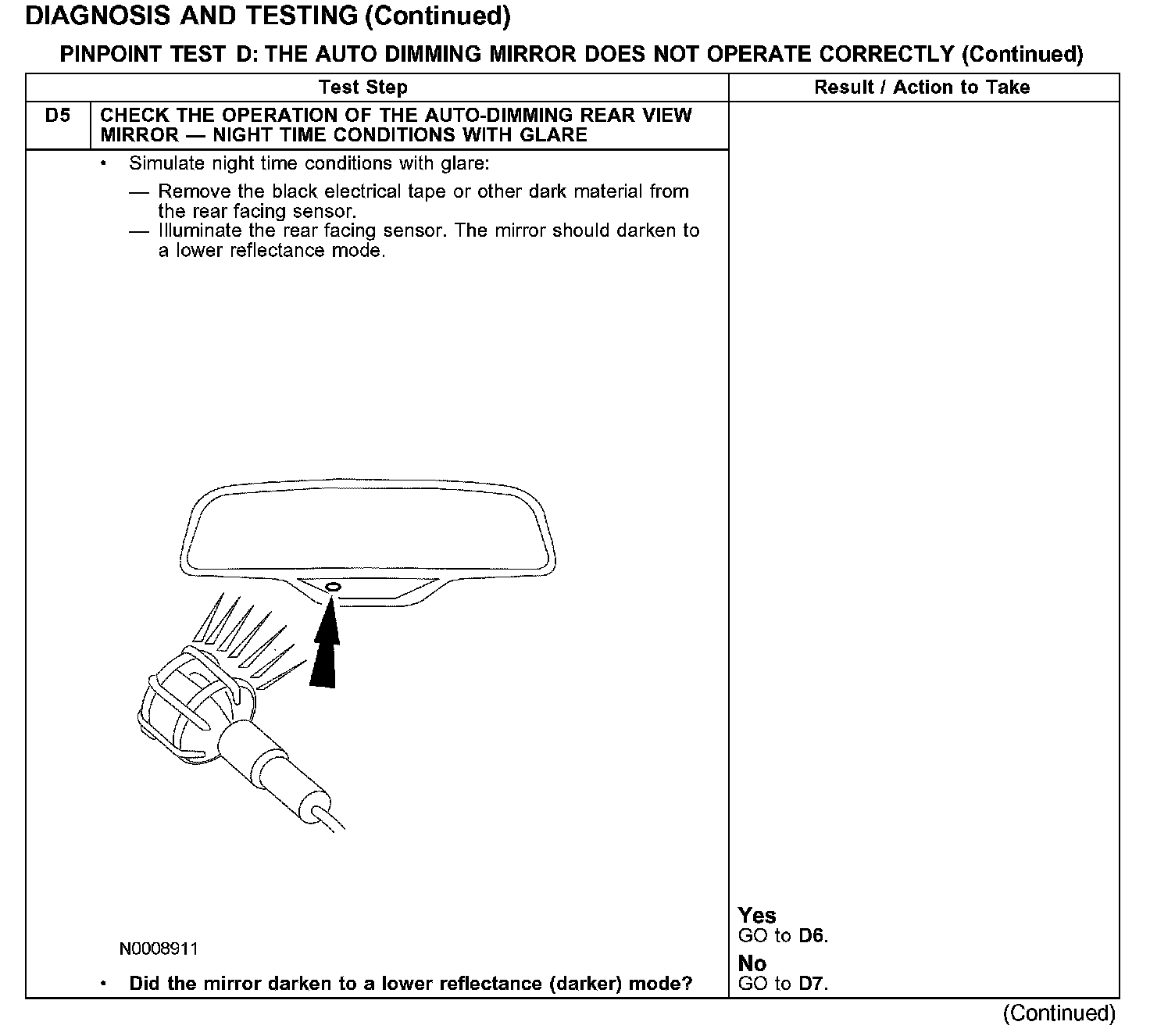

D5:

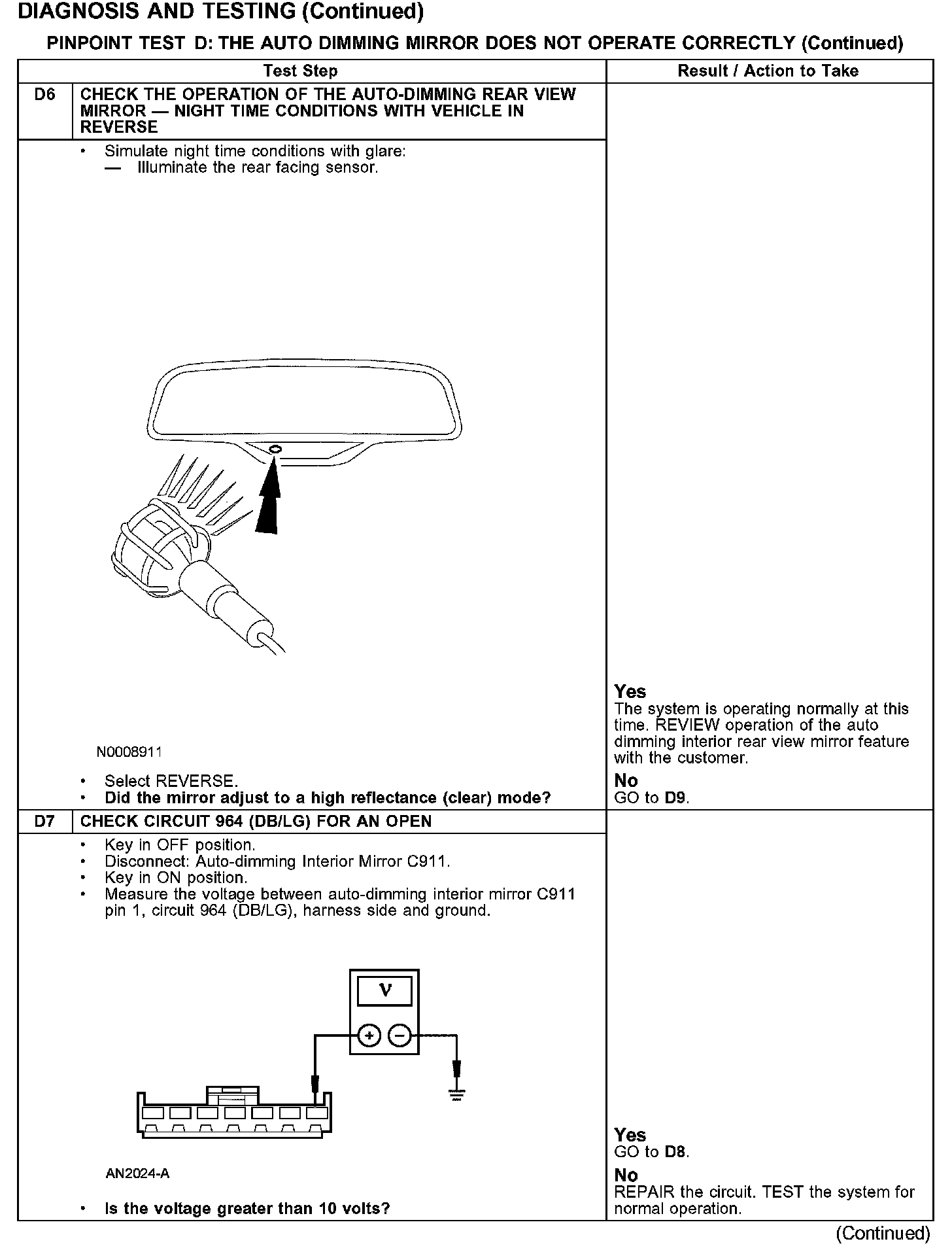

D6-D7:
D8-D9:
