Home >> Mercury >> 2005 >> Grand Marquis V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Non Module Controlled >> Test T: A Single Door Lock Is Inoperative

Test T: A Single Door Lock Is Inoperative

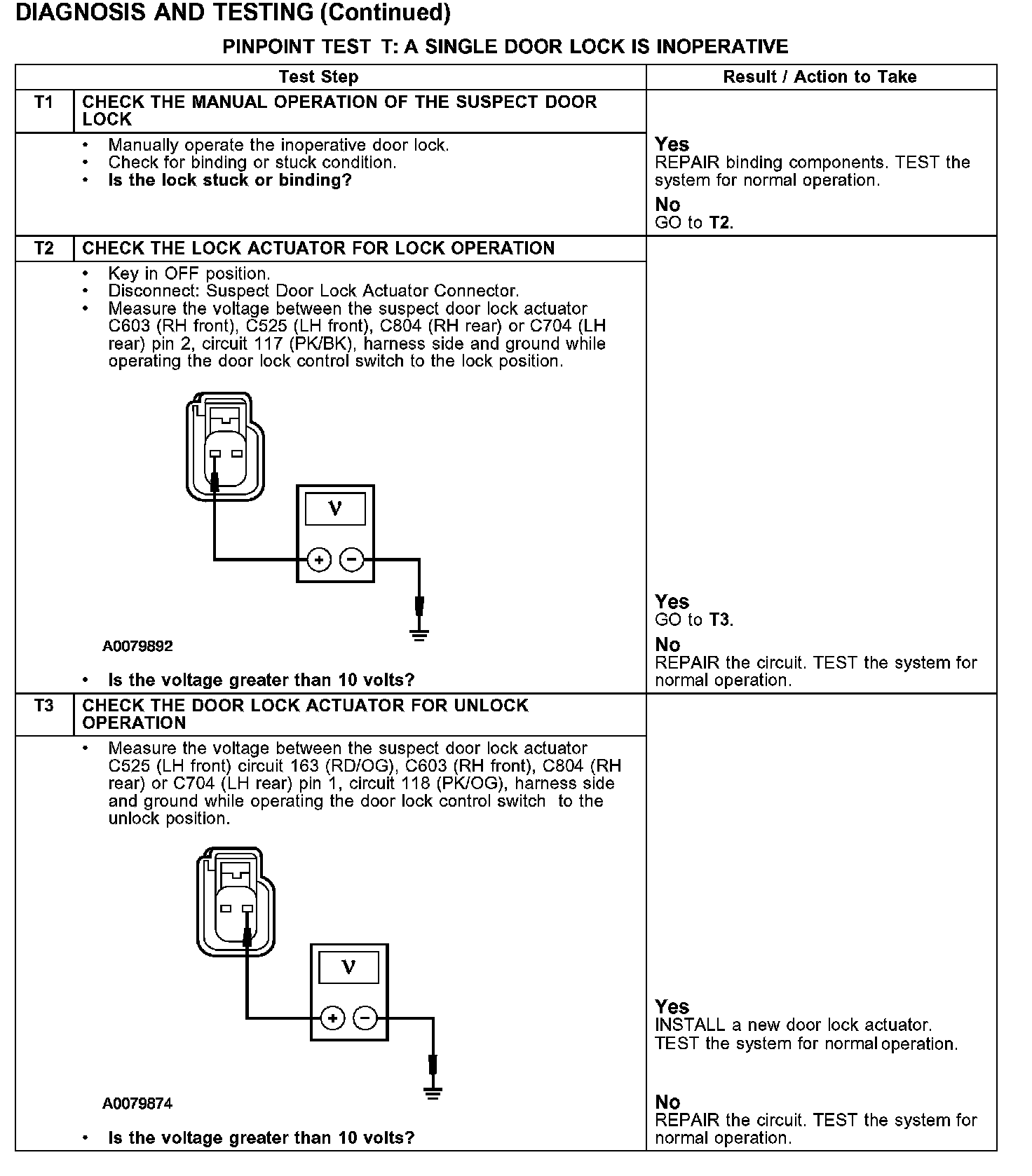

PINPOINT TEST T: A SINGLE DOOR LOCK IS INOPERATIVE


T1-T3:
