Test S: All Door Locks Are Inoperative

PINPOINT TEST S: ALL DOOR LOCKS ARE INOPERATIVE

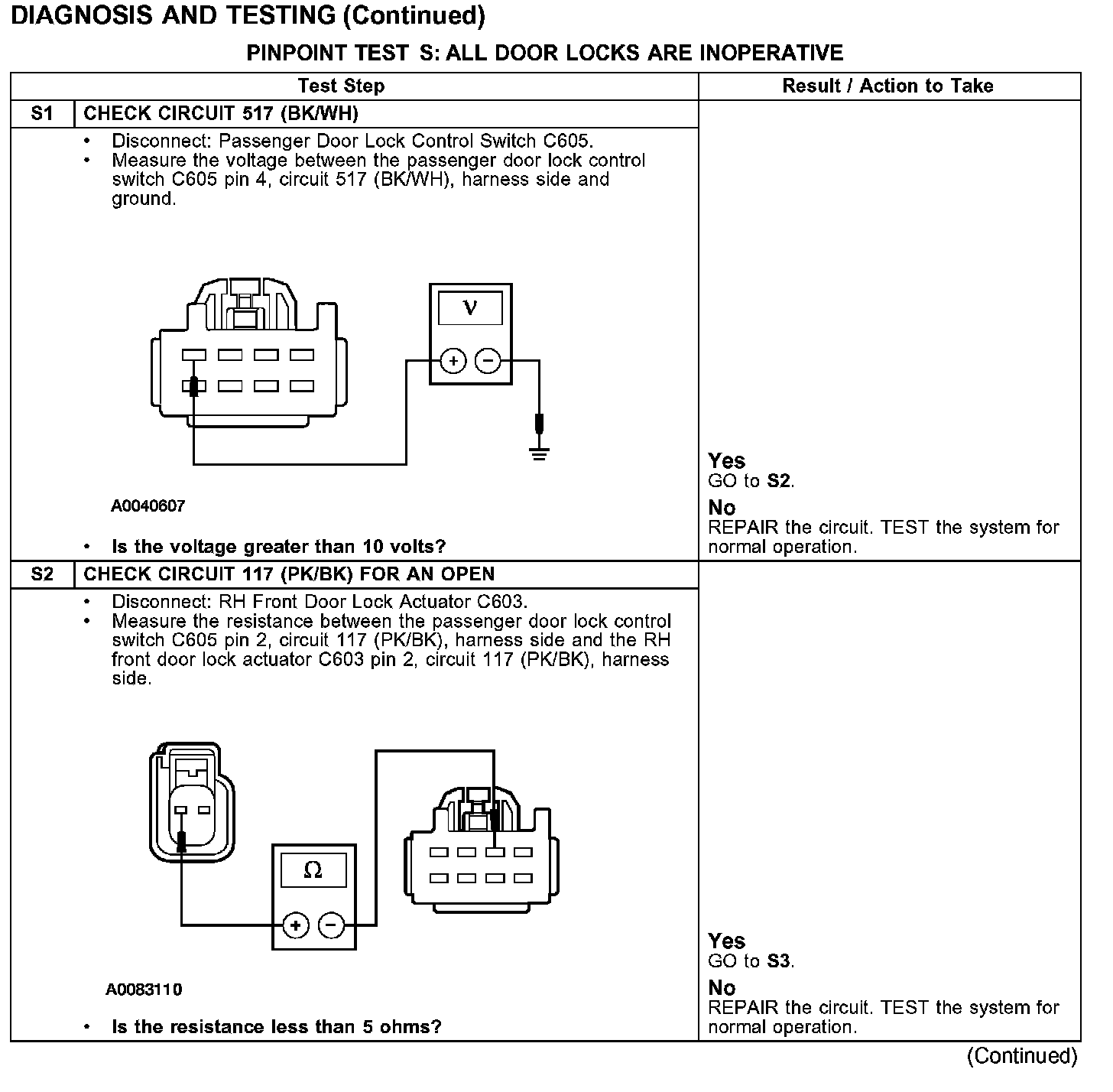

S1-S2:

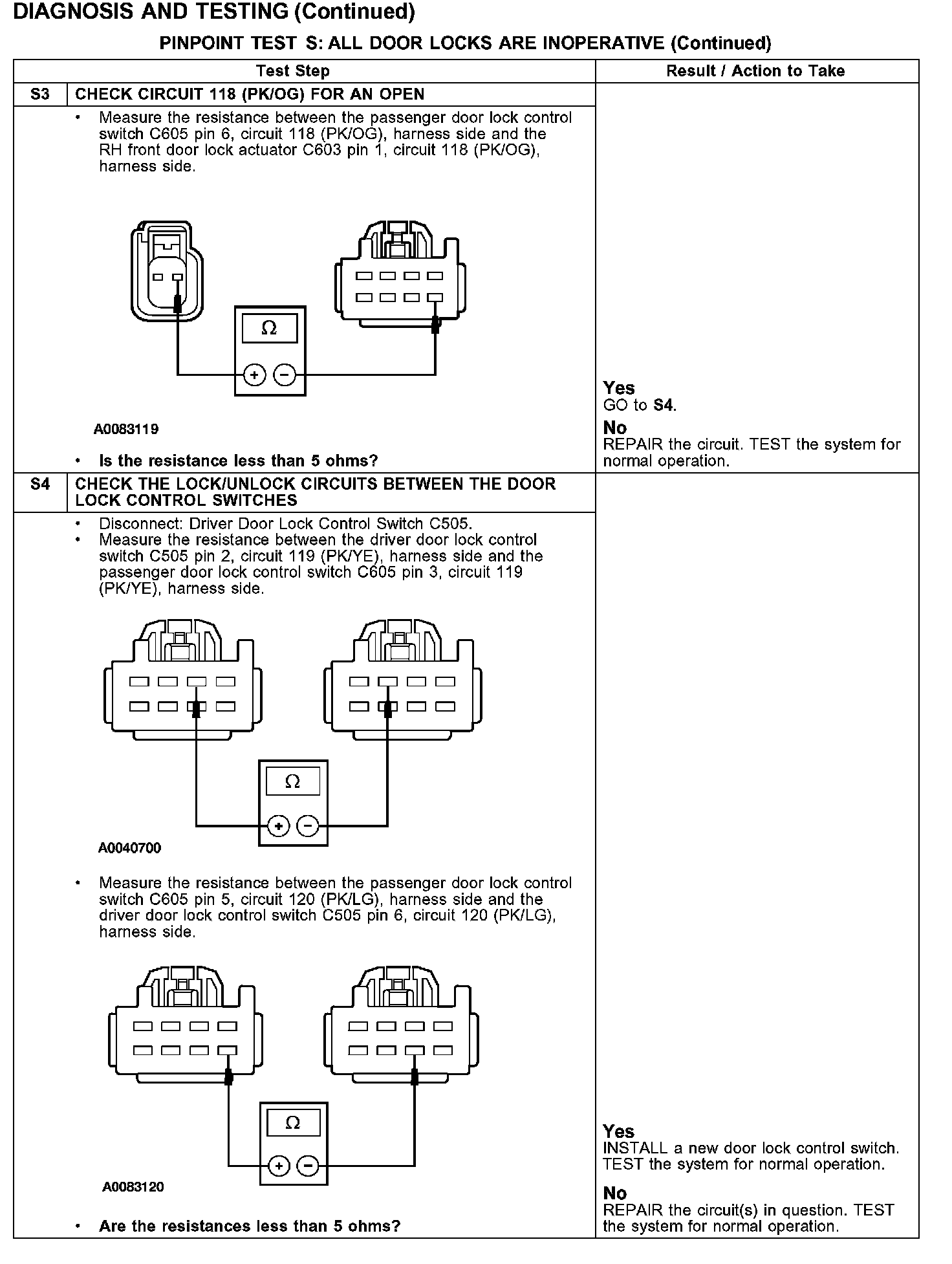

S3-S4:
