Test R: The Luggage Compartment Lid Is Inoperative
Test R: The Luggage Compartment Lid Is Inoperative
PINPOINT TEST R: THE LUGGAGE COMPARTMENT LID IS INOPERATIVE

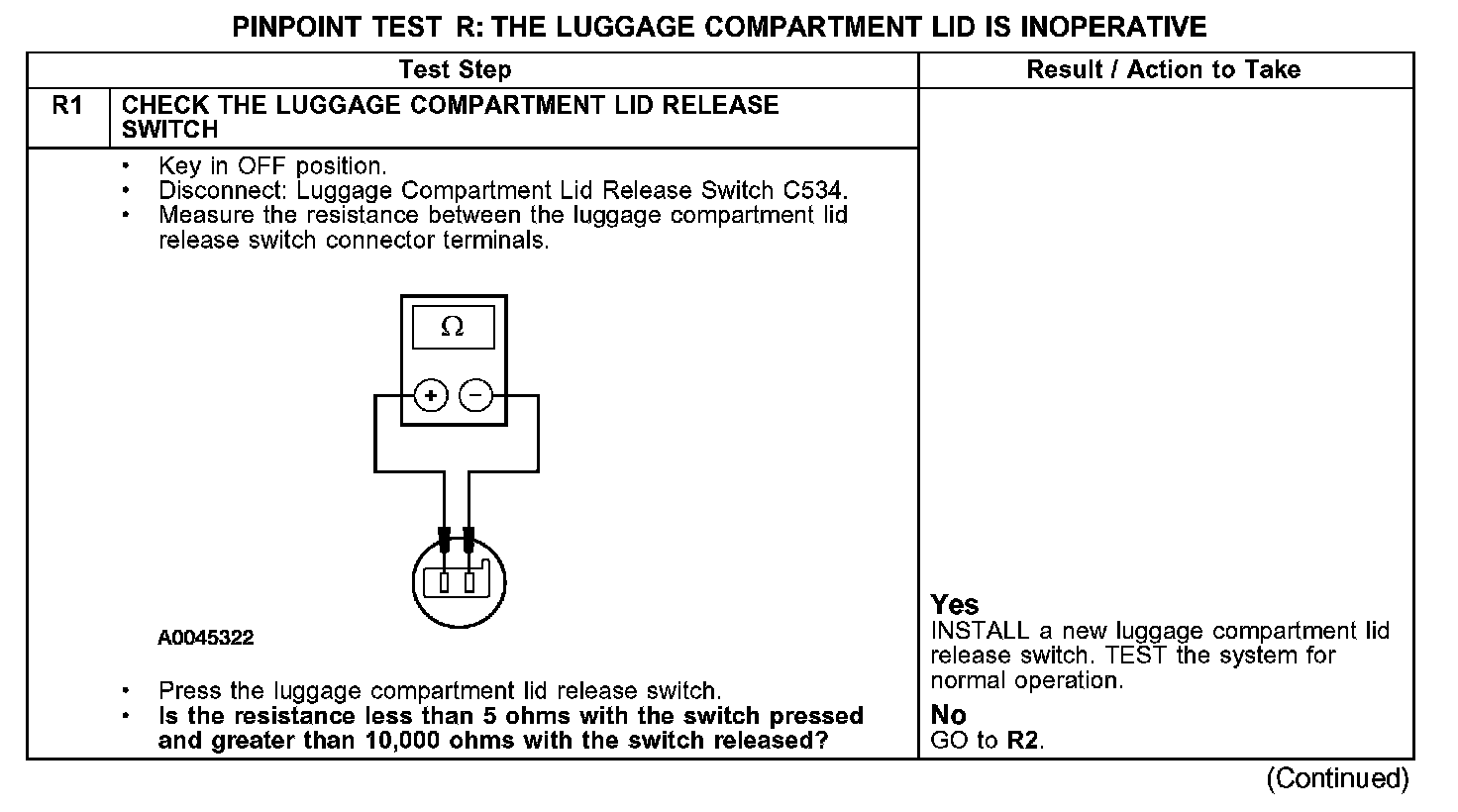

R1:

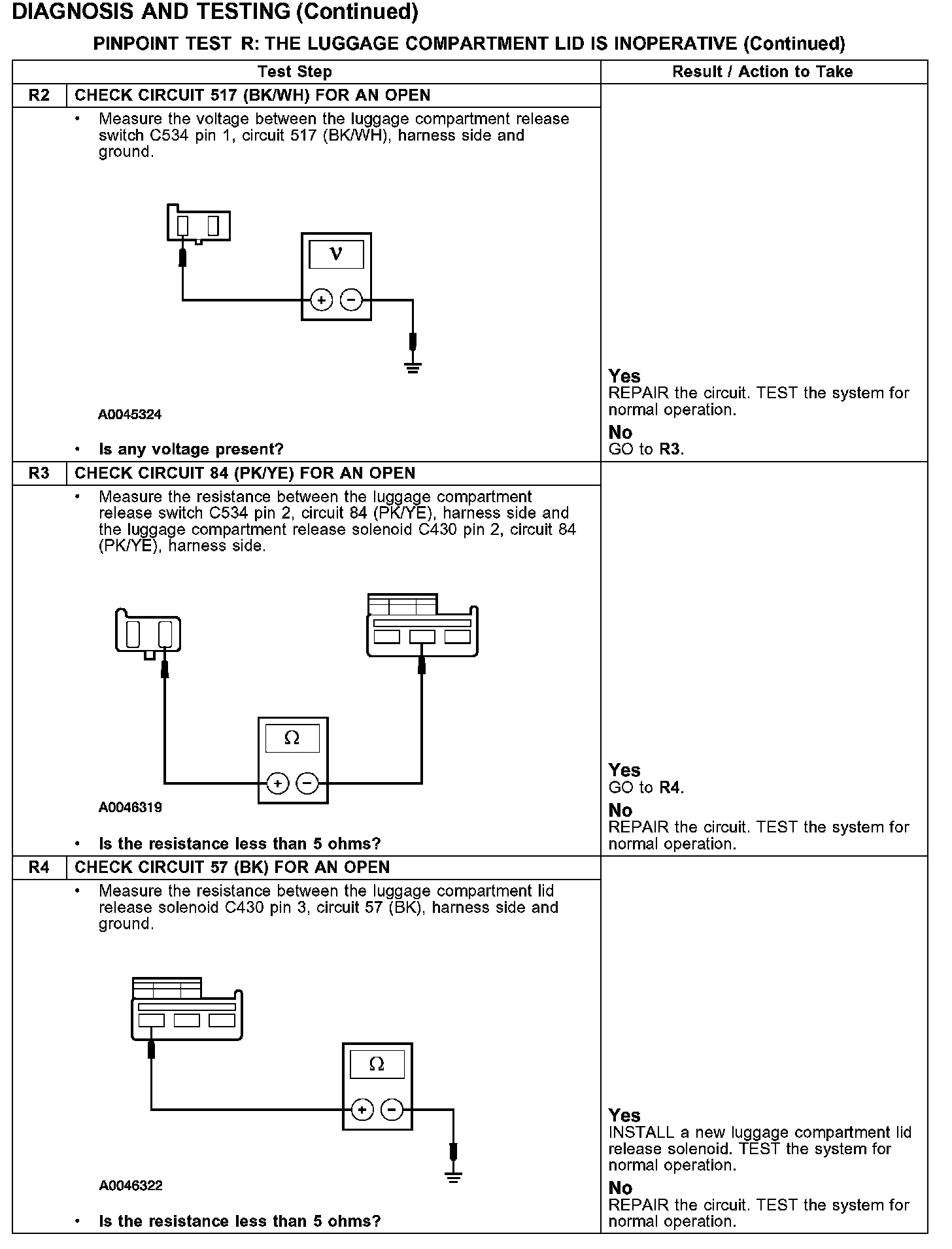

R2-R4:
