Test Q: The Door Locks Operate Only One Way
Test Q: The Door Locks Operate Only One Way
PINPOINT TEST Q: THE DOOR LOCKS OPERATE ONLY ONE WAY

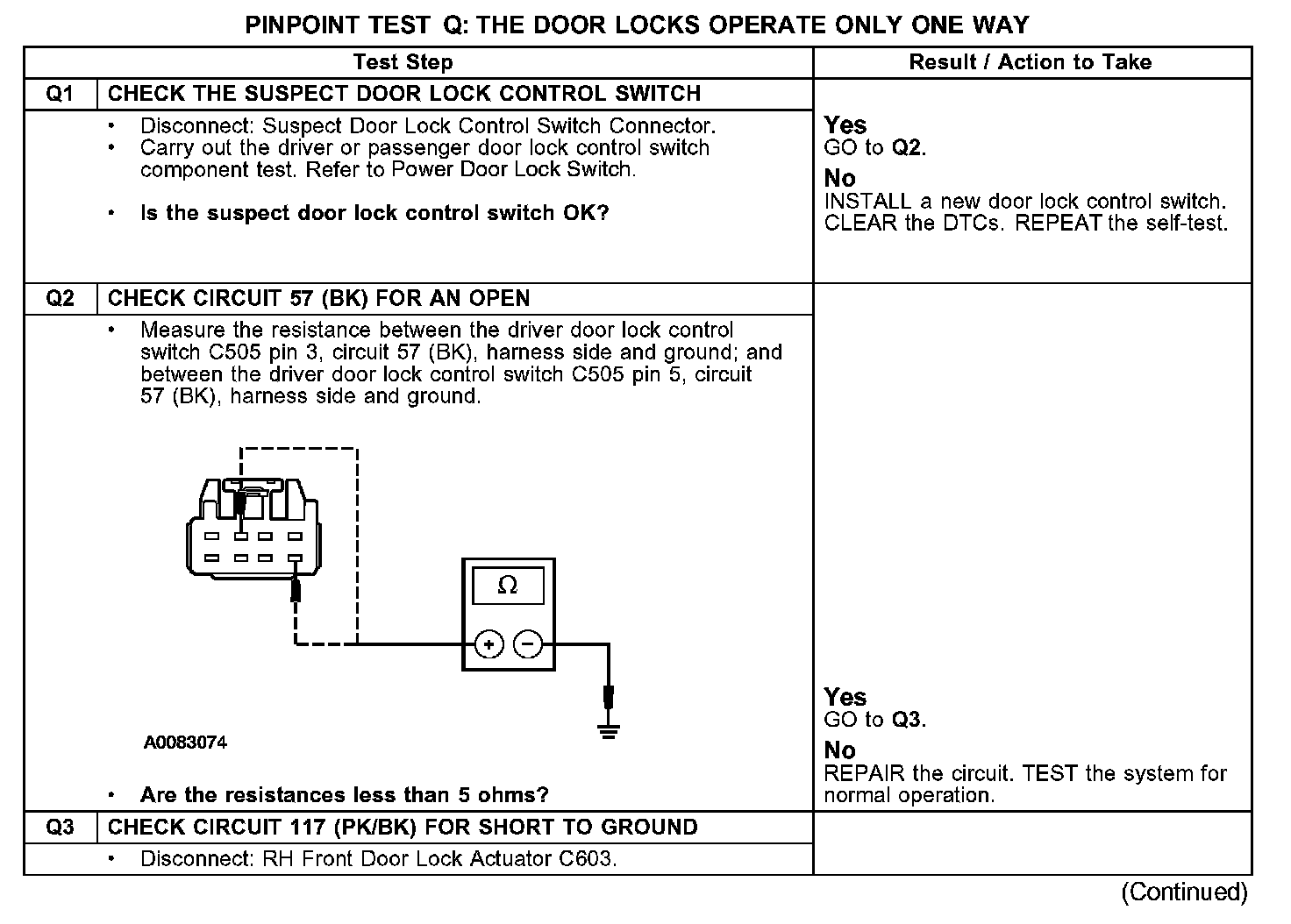

Q1-Q3:

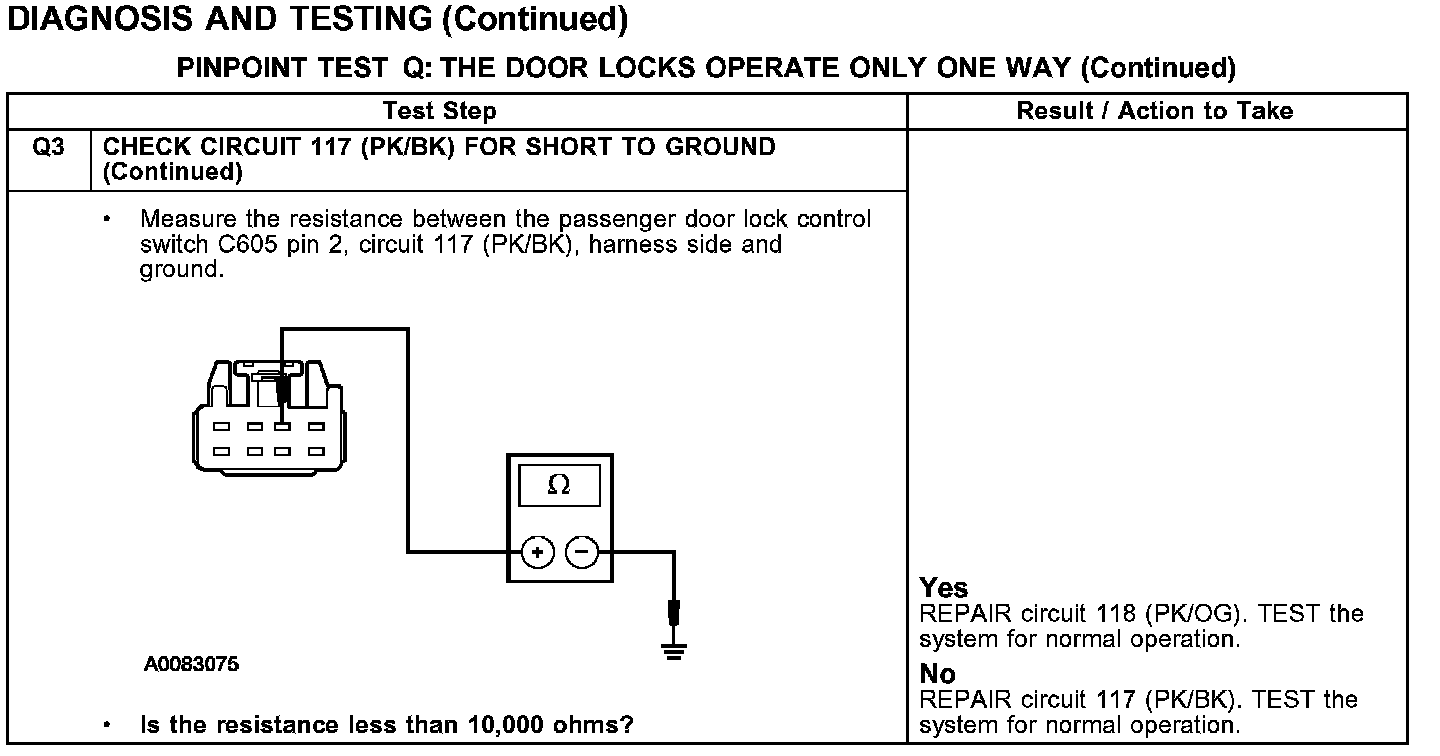

Q3 Continued:
