Test N: DTC B1300, DTC B1310, DTC B1396, DTC B1397 Door Unlock Circuit Failure
Test N: DTC B1300, DTC B1310, DTC B1396, DTC B1397 Door Unlock Circuit Failure
PINPOINT TEST N: DTC B1300, DTC B1310, DTC B1396, DTC B1397 DOOR UNLOCK CIRCUIT FAILURE

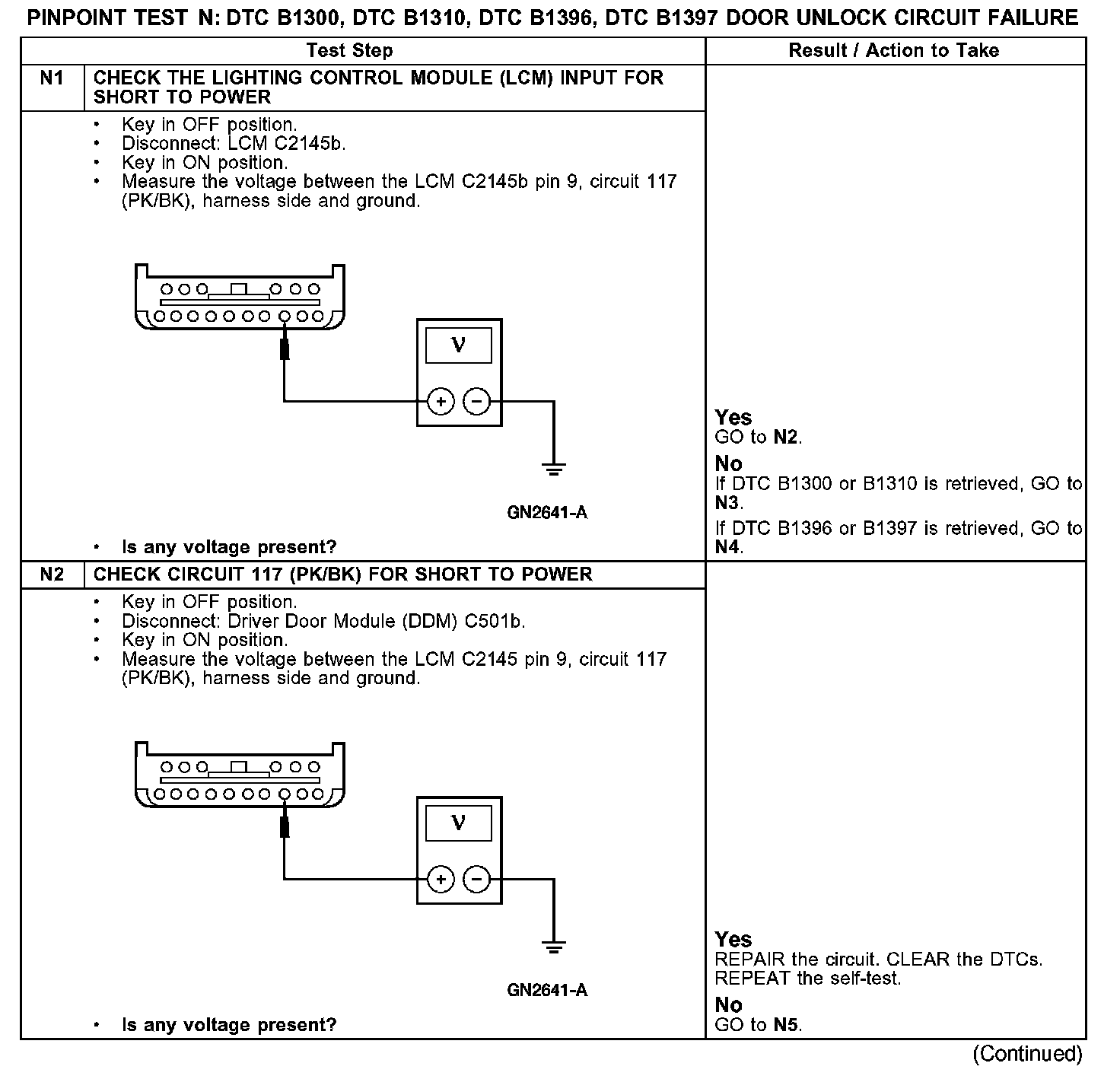

N1-N2:

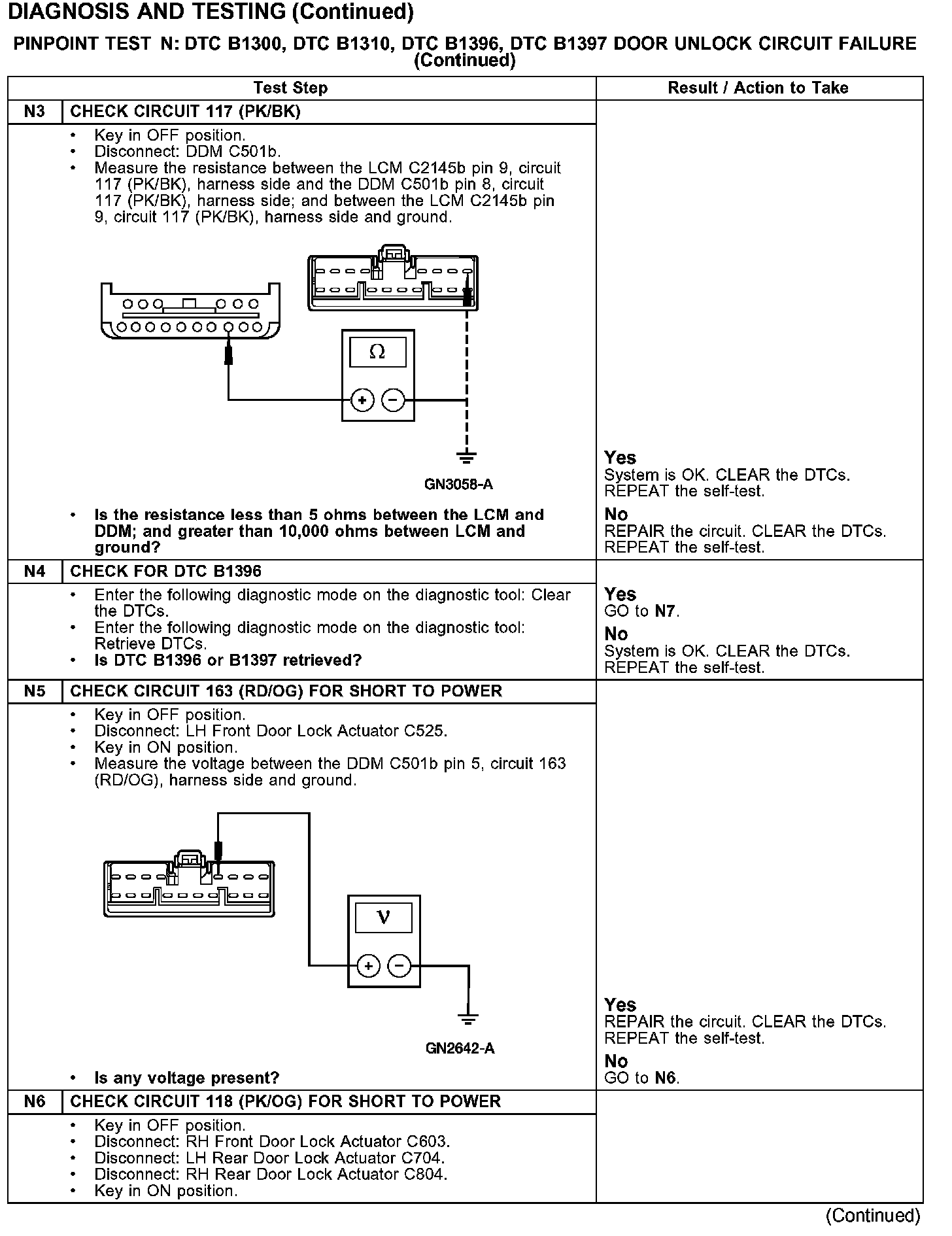

N3-N6:

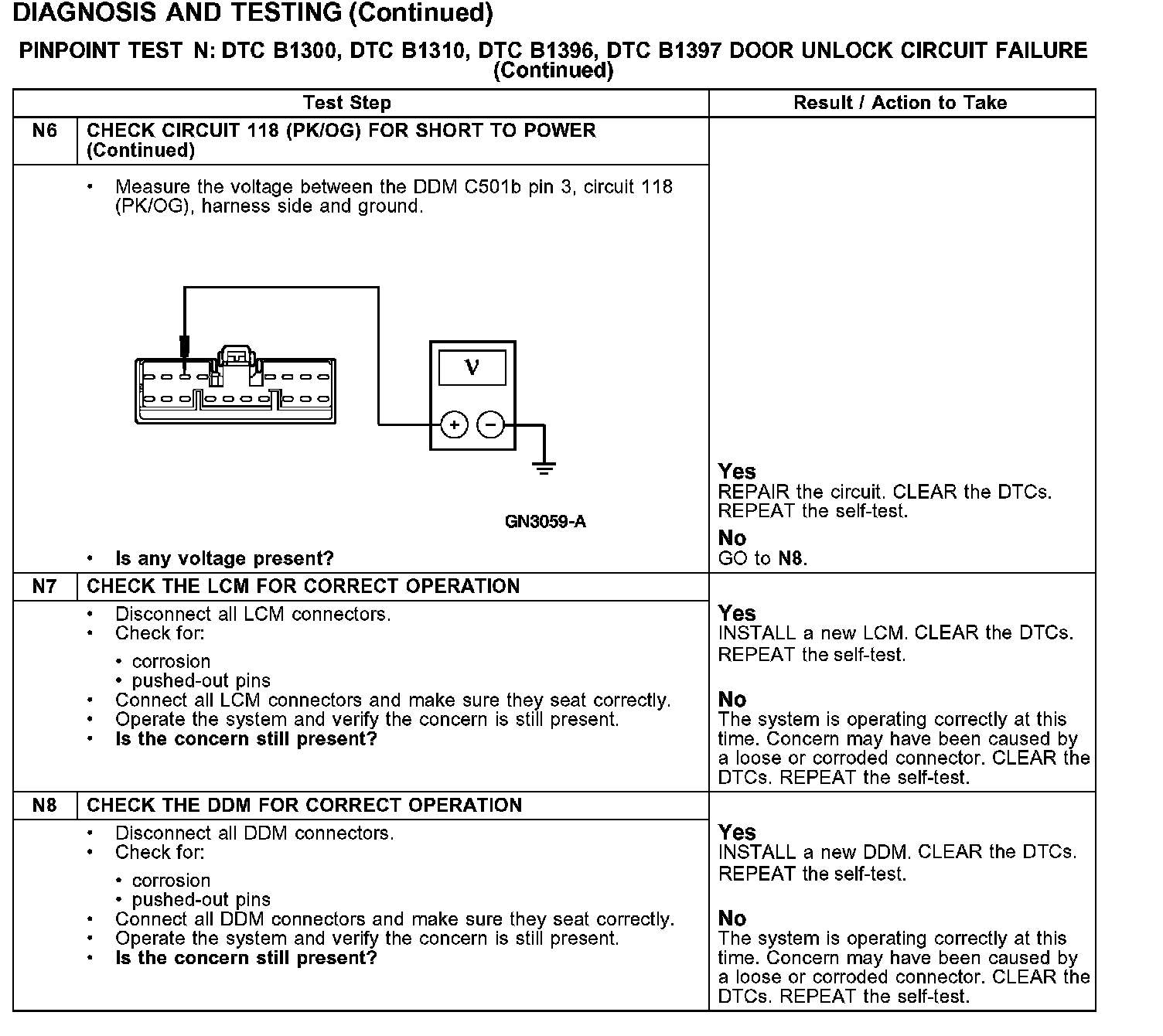

N6-N8:
