Test M: The Remote Keyless Entry Transmitter Is Out of Synchronization
Test M: The Remote Keyless Entry Transmitter Is Out of Synchronization

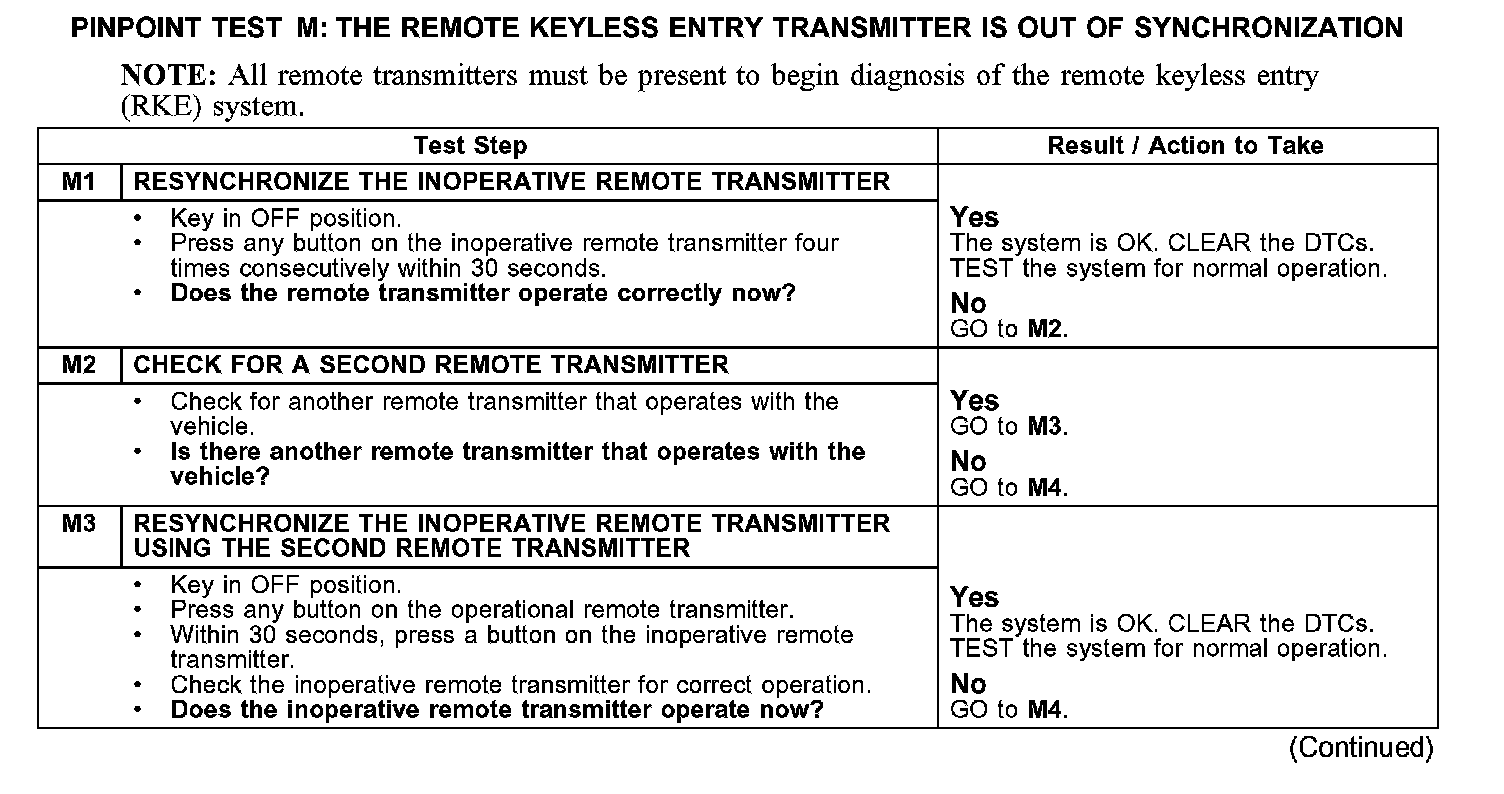

PINPOINT TEST M: THE REMOTE KEYLESS ENTRY TRANSMITTER IS OUT OF SYNCHRONIZATION
M1-M3:

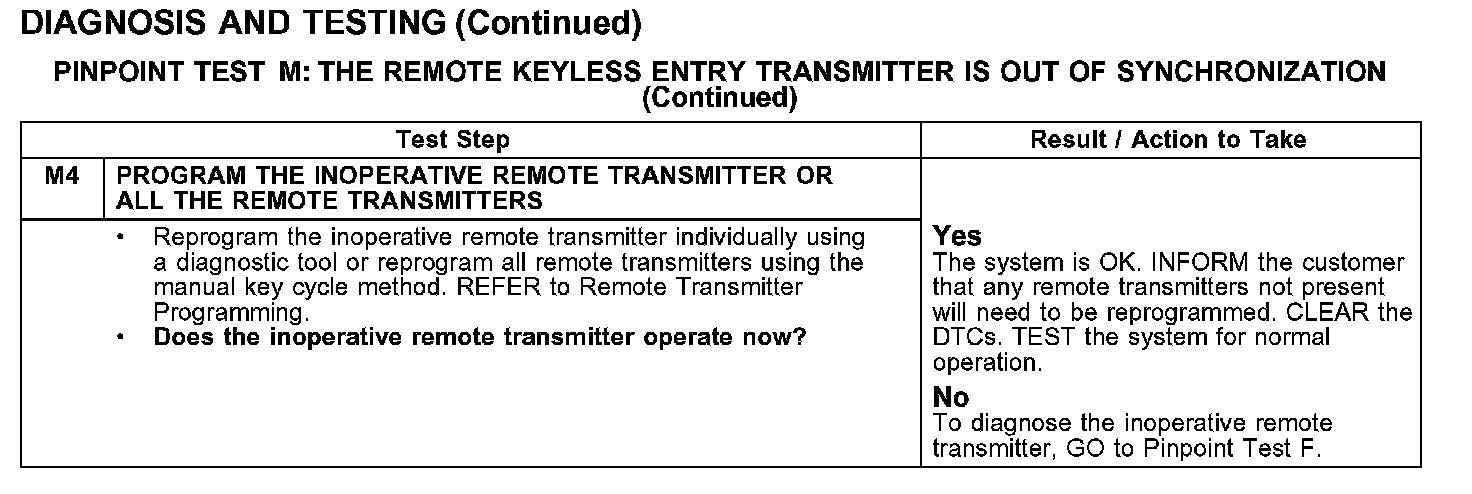

M4:
