Test L: DTC B1751 - Park/Neutral Switch Circuit Short to Battery (Driver Door Module [DDM])
Test L: DTC B1751 - Park/Neutral Switch Circuit Short to Battery (Driver Door Module [DDM])
PINPOINT TEST L: DTC B1751 - PARK/NEUTRAL SWITCH CIRCUIT SHORT TO BATTERY (DRIVER DOOR MODULE [DDM])

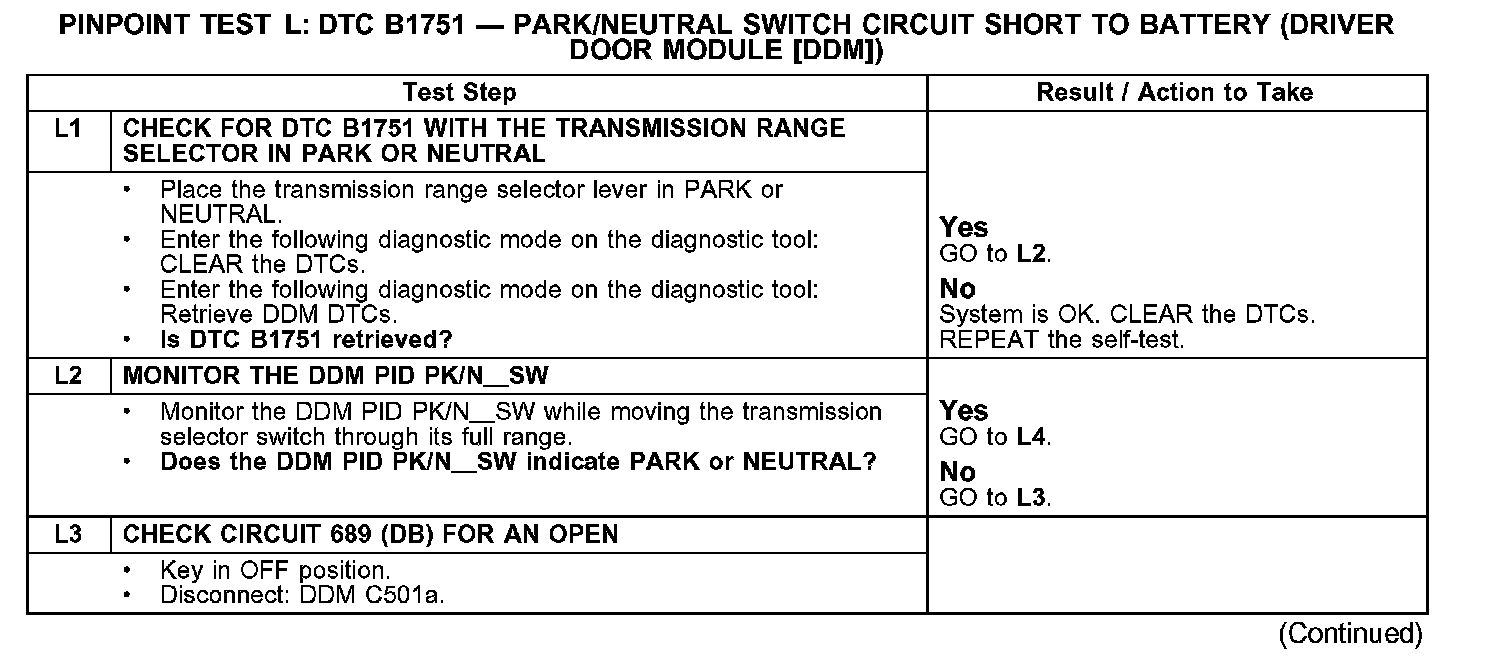

L1-L3:

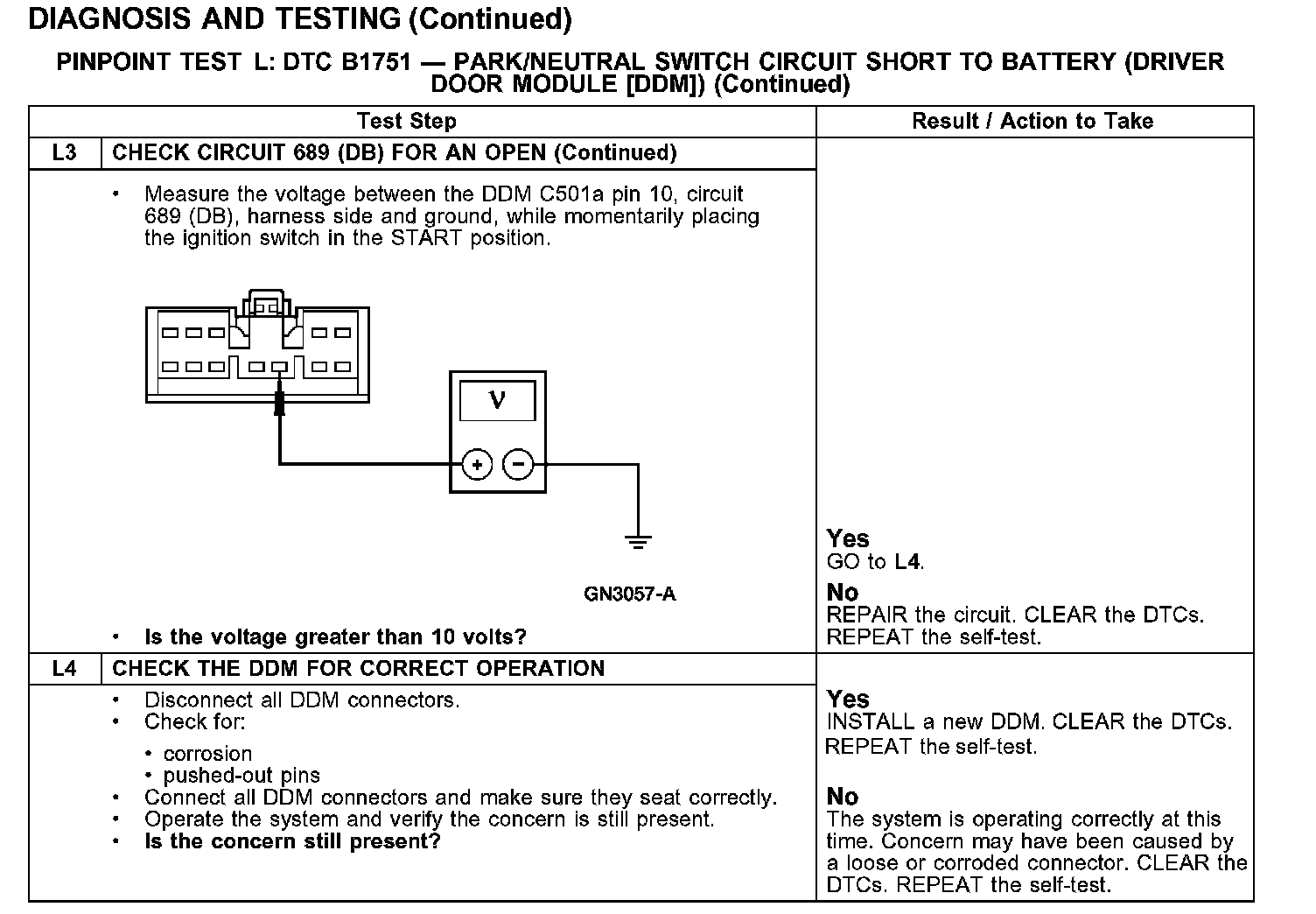

L3-L4:
