Test K: The Keyless Entry Keypad Illumination Is Inoperative

PINPOINT TEST K: THE KEYLESS ENTRY KEYPAD ILLUMINATION IS INOPERATIVE

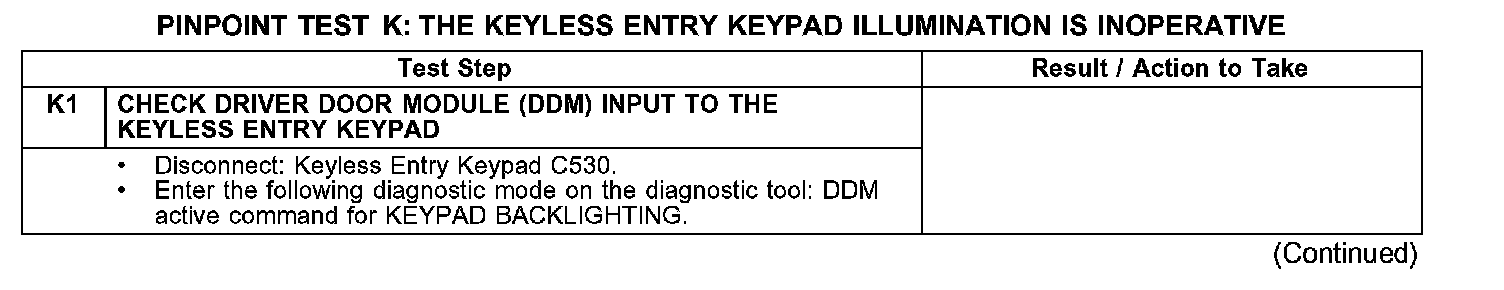

K1:

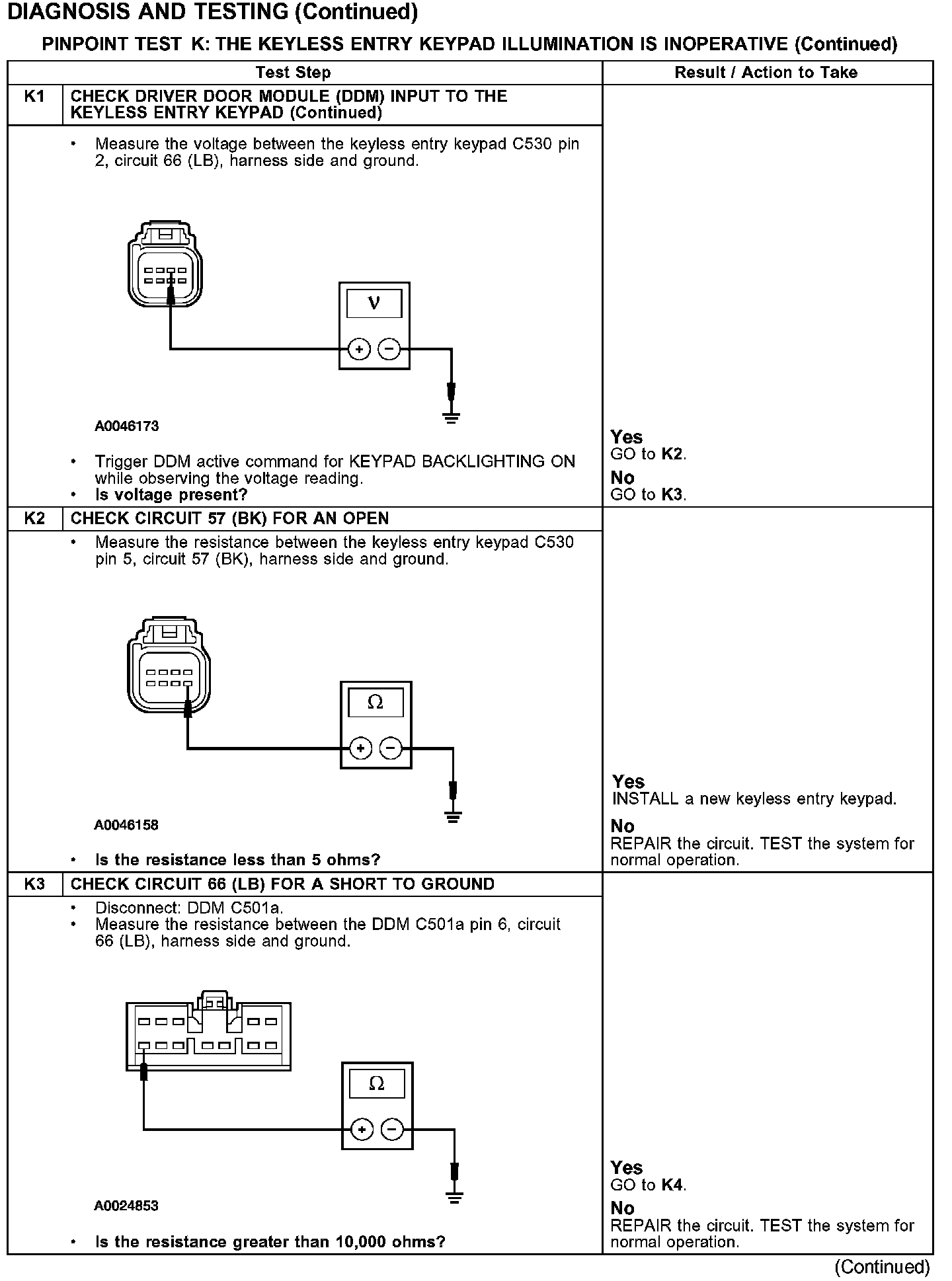

K1-K3:

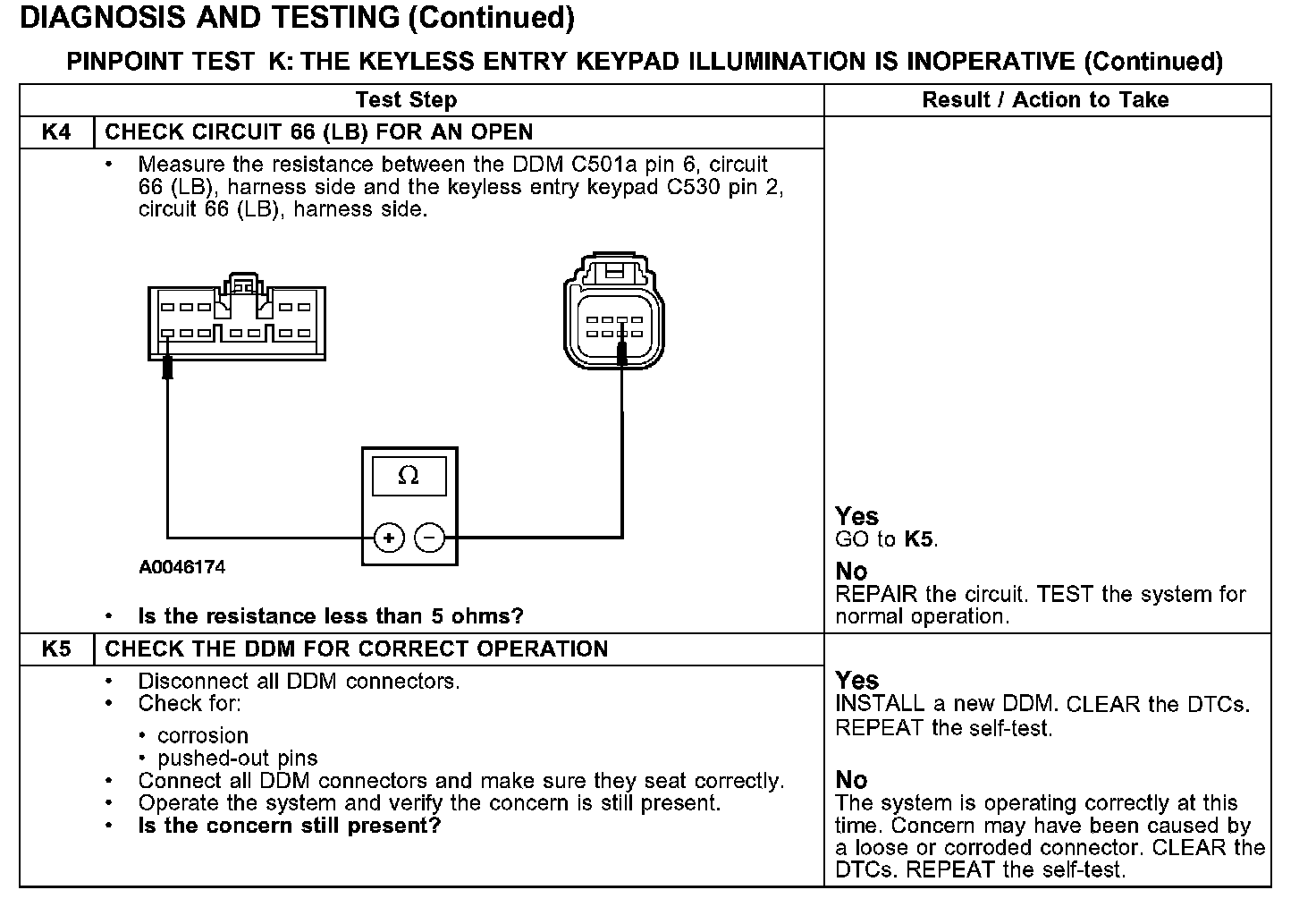

K4-K5:
