Test H: The Smartlock Does Not Operate Correctly
Test H: The Smartlock Does Not Operate Correctly

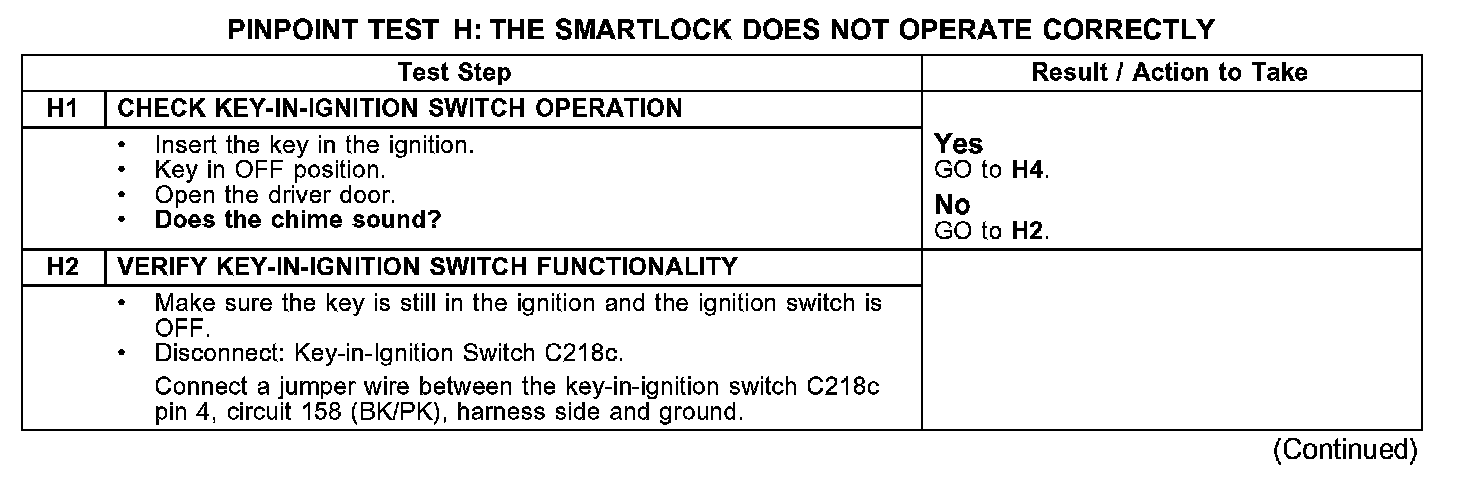

PINPOINT TEST H: THE SMARTLOCK DOES NOT OPERATE CORRECTLY

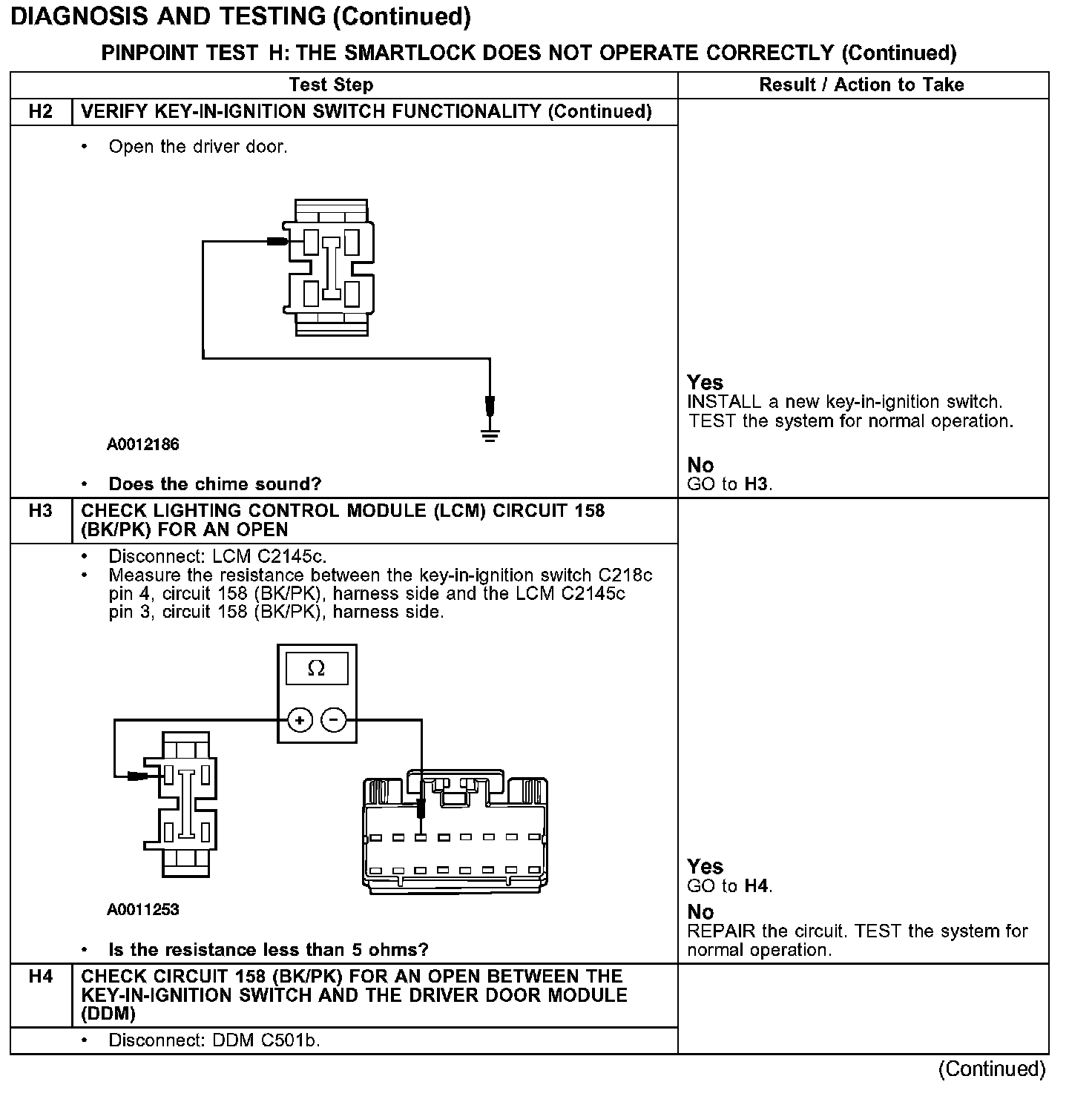

H1-H2:

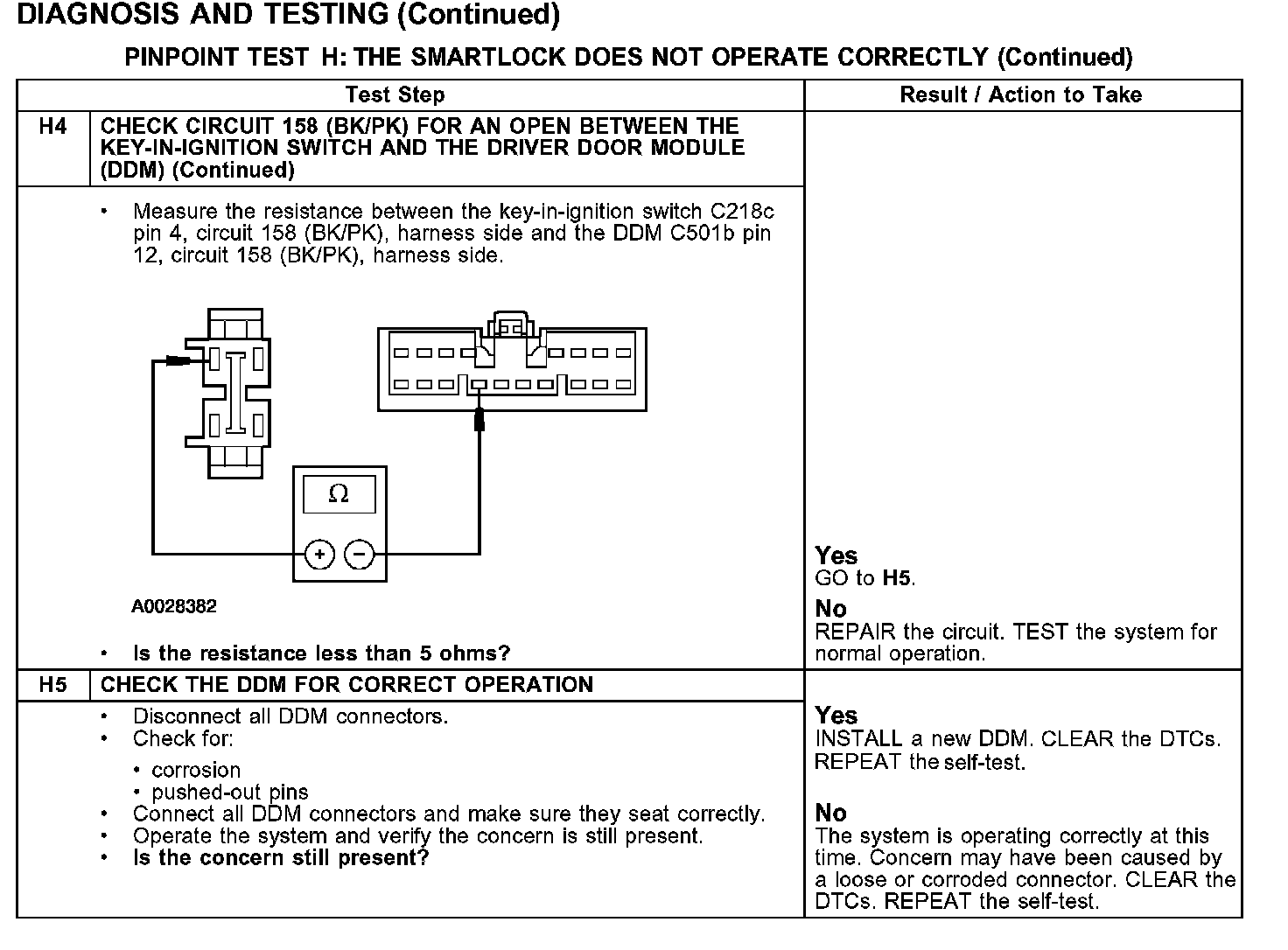

H2-H4:
H4-H5:
