Test G: The Auto-Lock Does Not Operate Correctly
Test G: The Auto-Lock Does Not Operate Correctly
PINPOINT TEST G: THE AUTO-LOCK DOES NOT OPERATE CORRECTLY

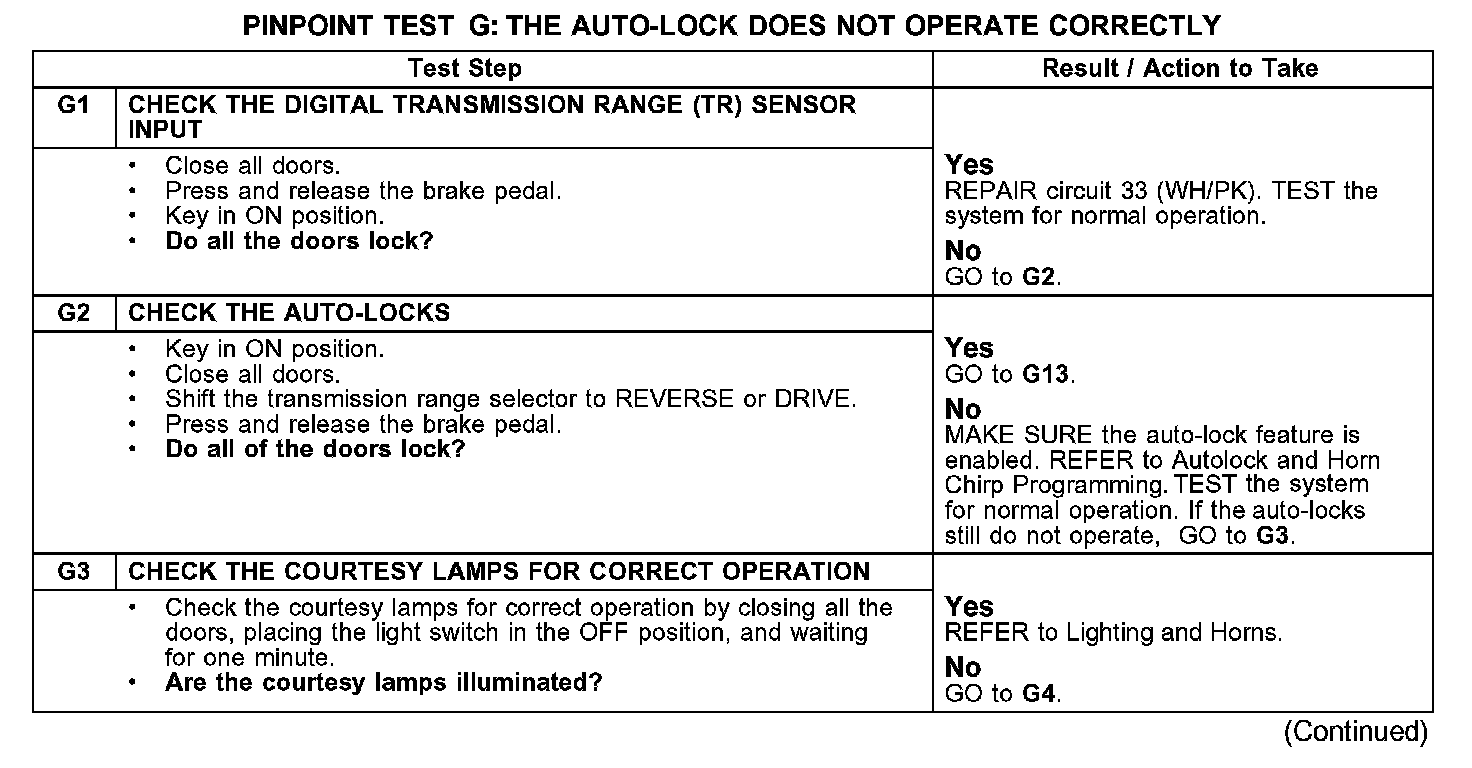

G1-G3:

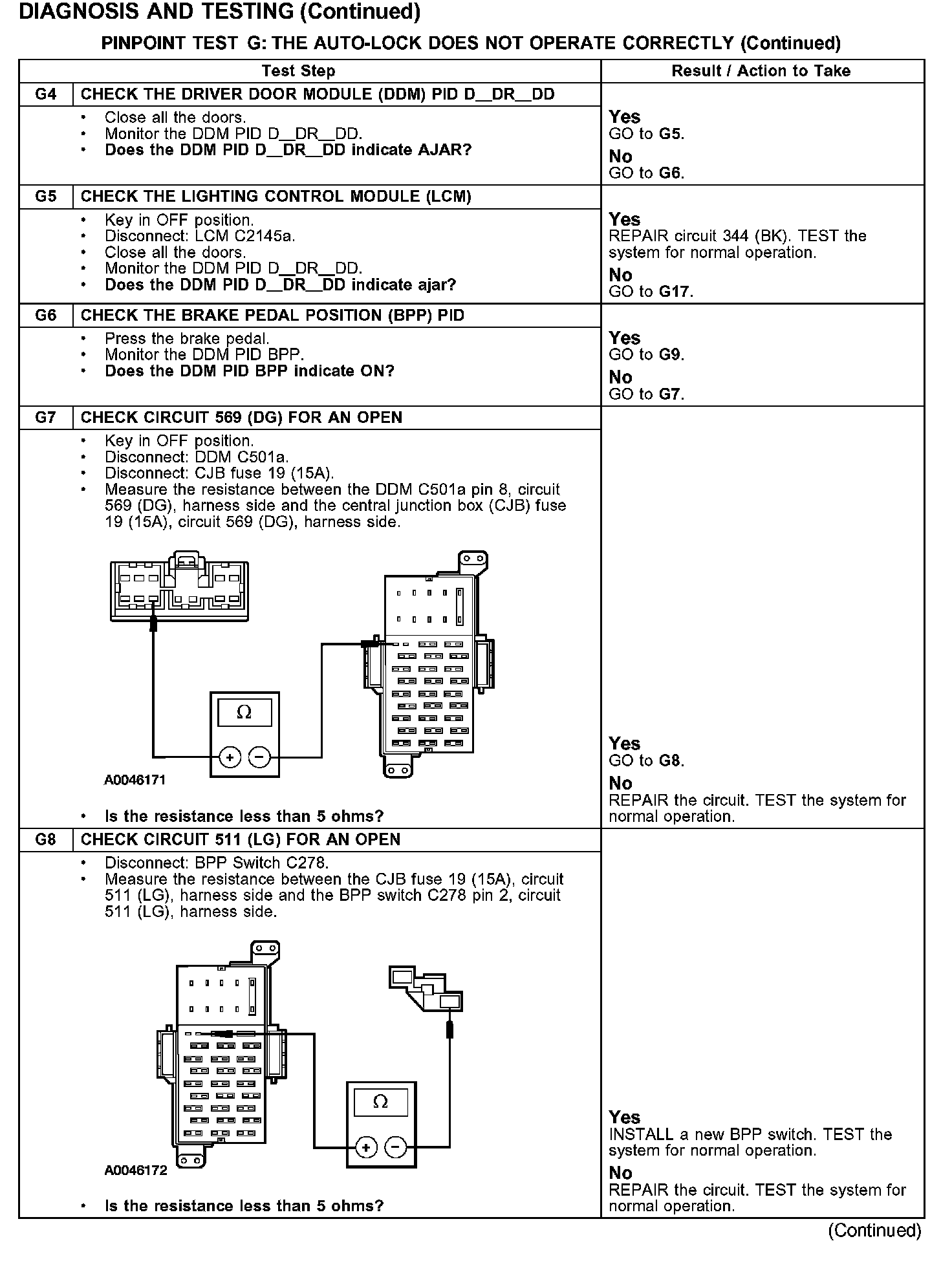

G4-G8:

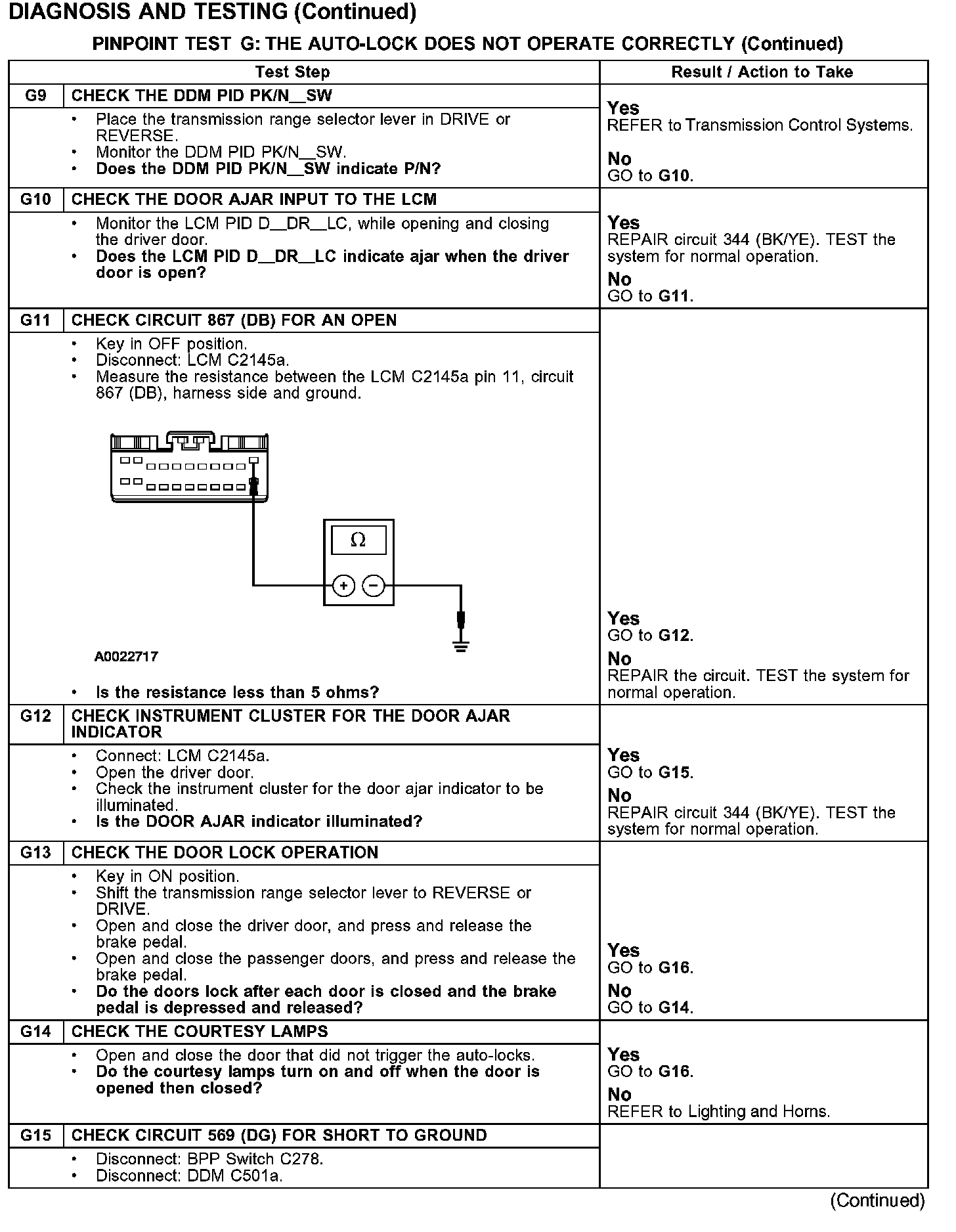

G9-G15:

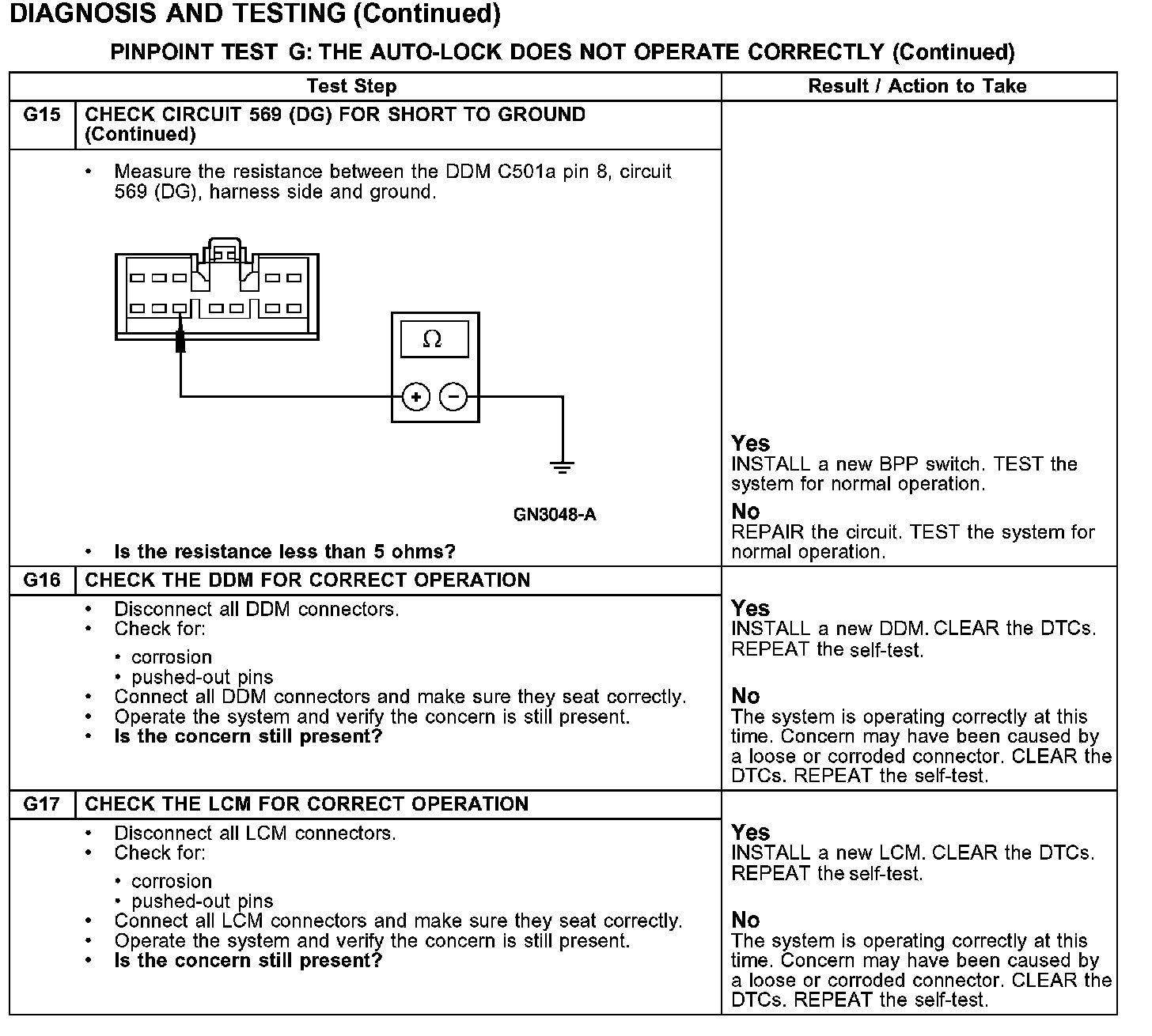

G15-G17:
