Test F: The Doors Do Not Lock/Unlock Using the Remote Transmitter
Test F: The Doors Do Not Lock/Unlock Using the Remote Transmitter
PINPOINT TEST F: THE DOORS DO NOT LOCK/UNLOCK USING THE REMOTE TRANSMITTER

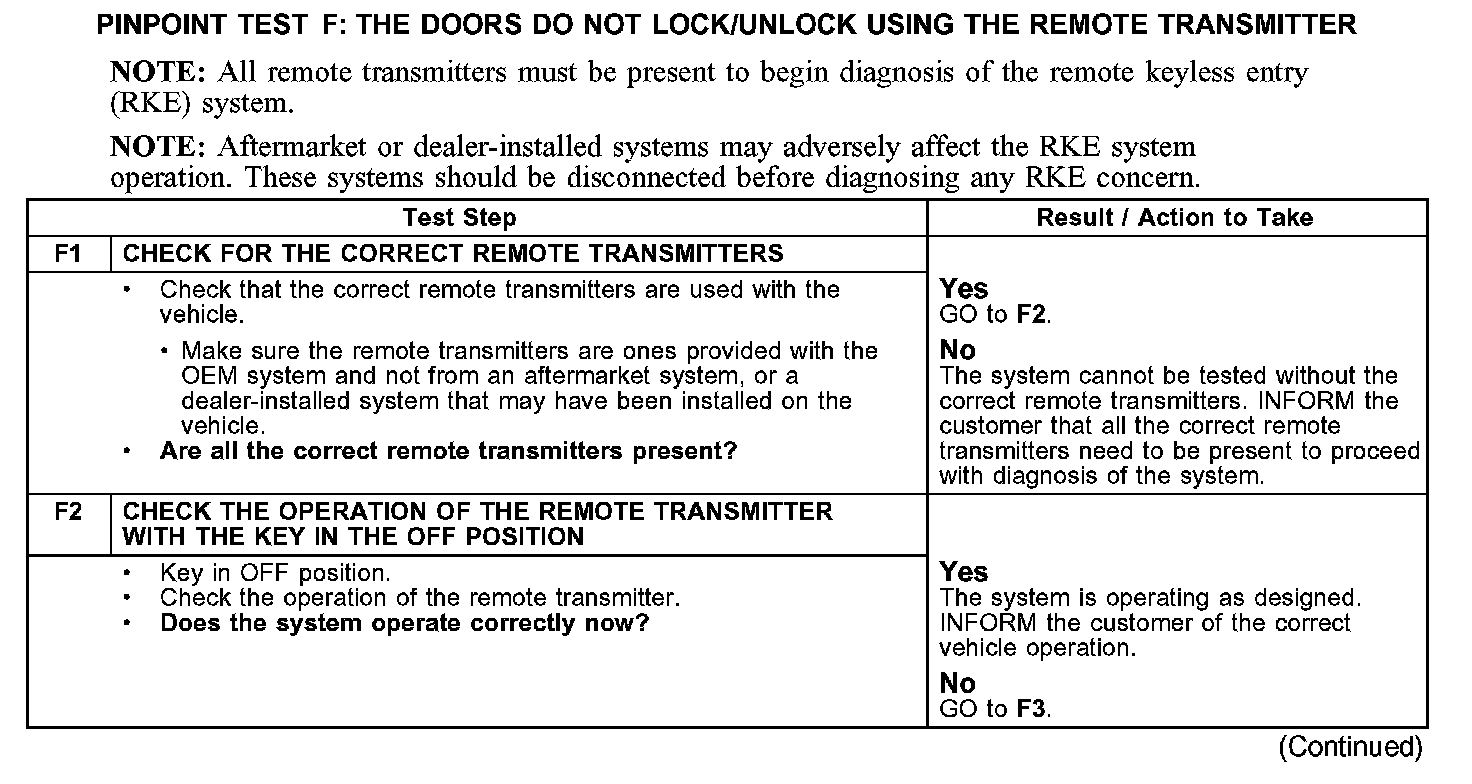

F1-F2:

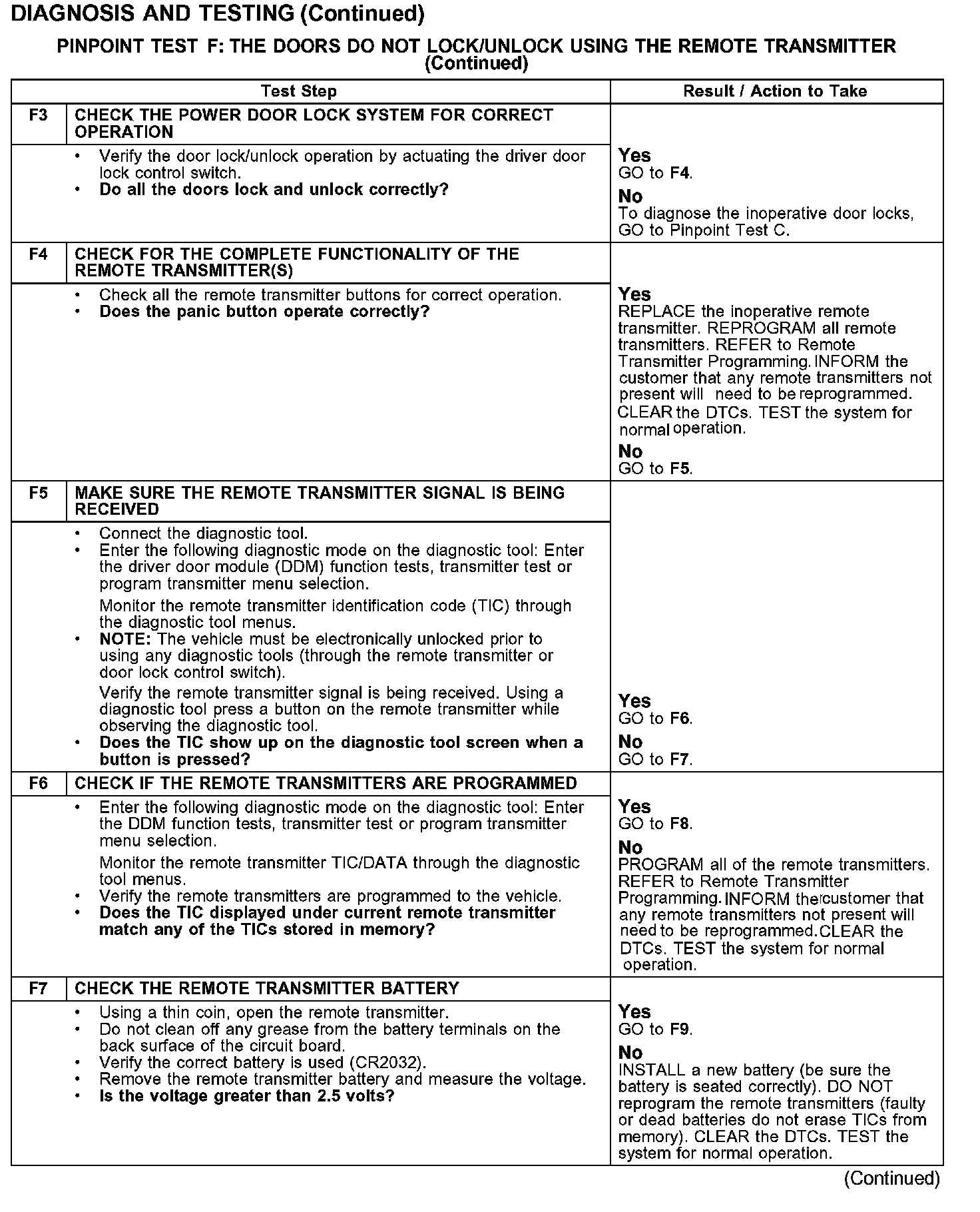

F3-F7:

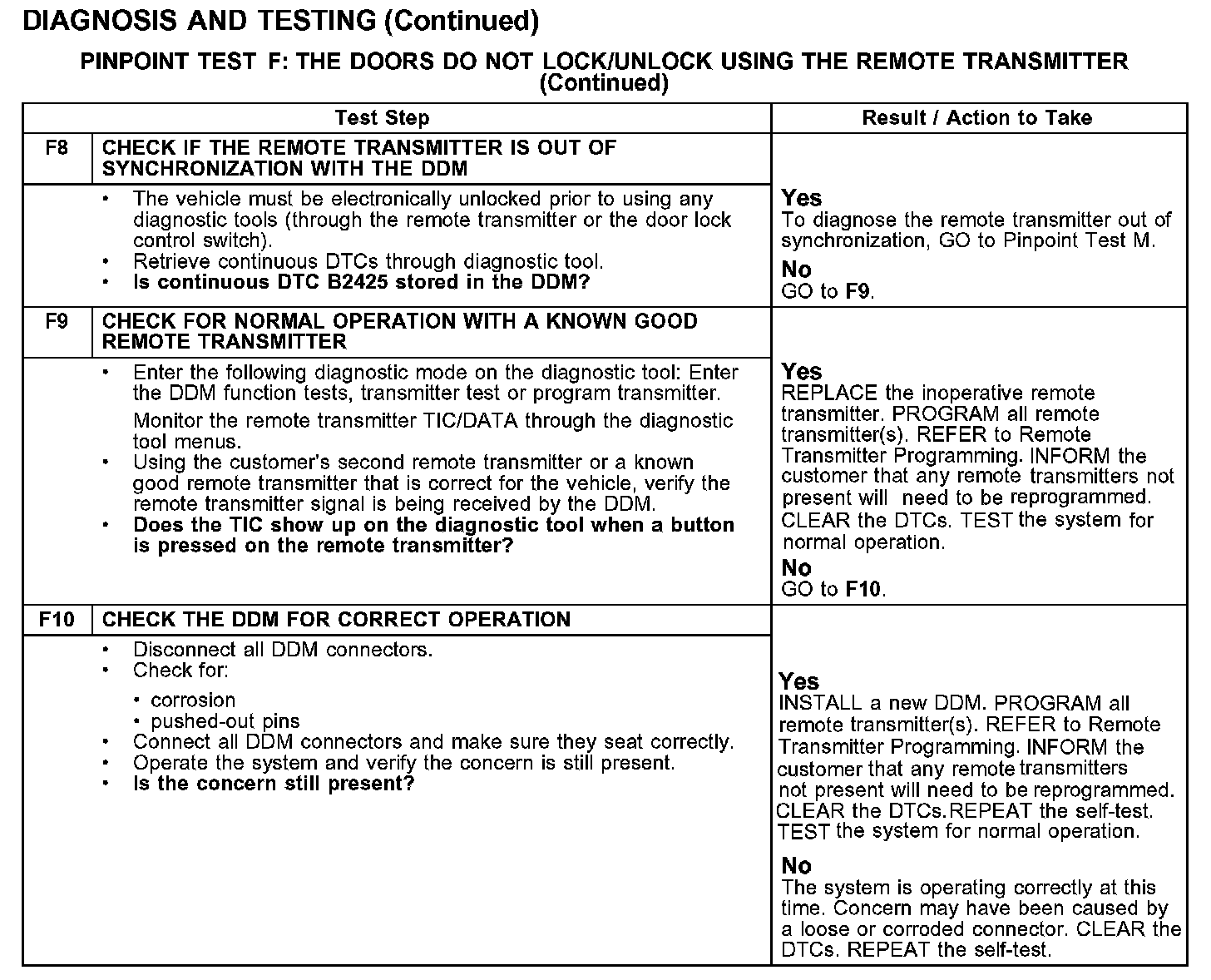

F8-F10:
