Test E: The Doors Do Not Lock/Unlock Using the Keyless Entry Keypad

PINPOINT TEST E: THE DOORS DO NOT LOCK/UNLOCK USING THE KEYLESS ENTRY KEYPAD

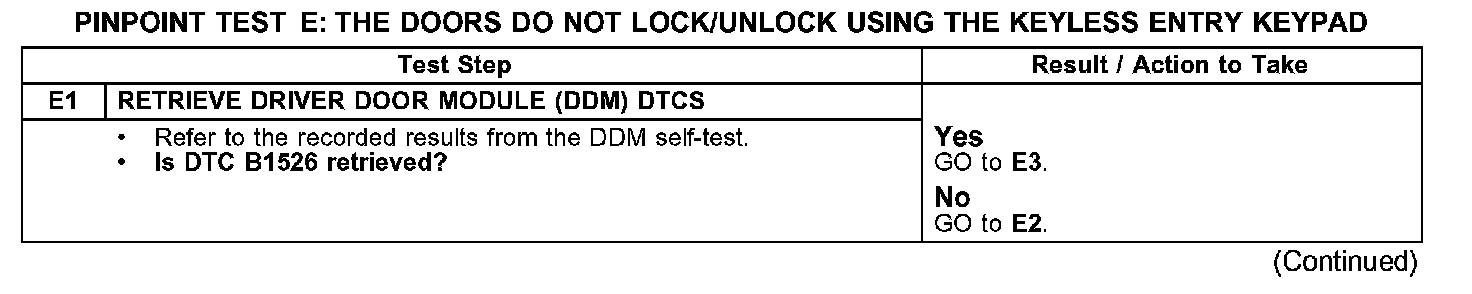

E1:






E2-E4:

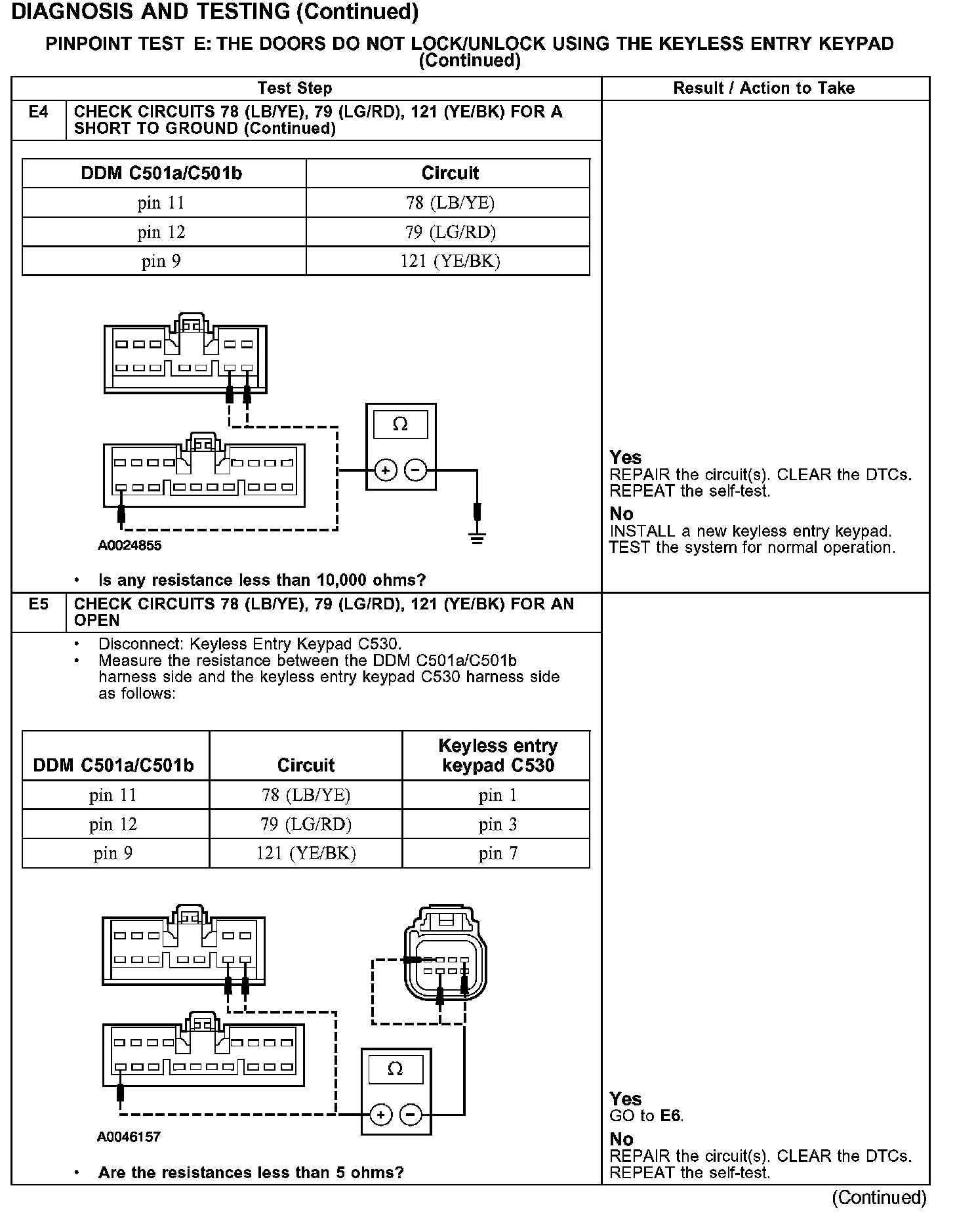

E4-E5:

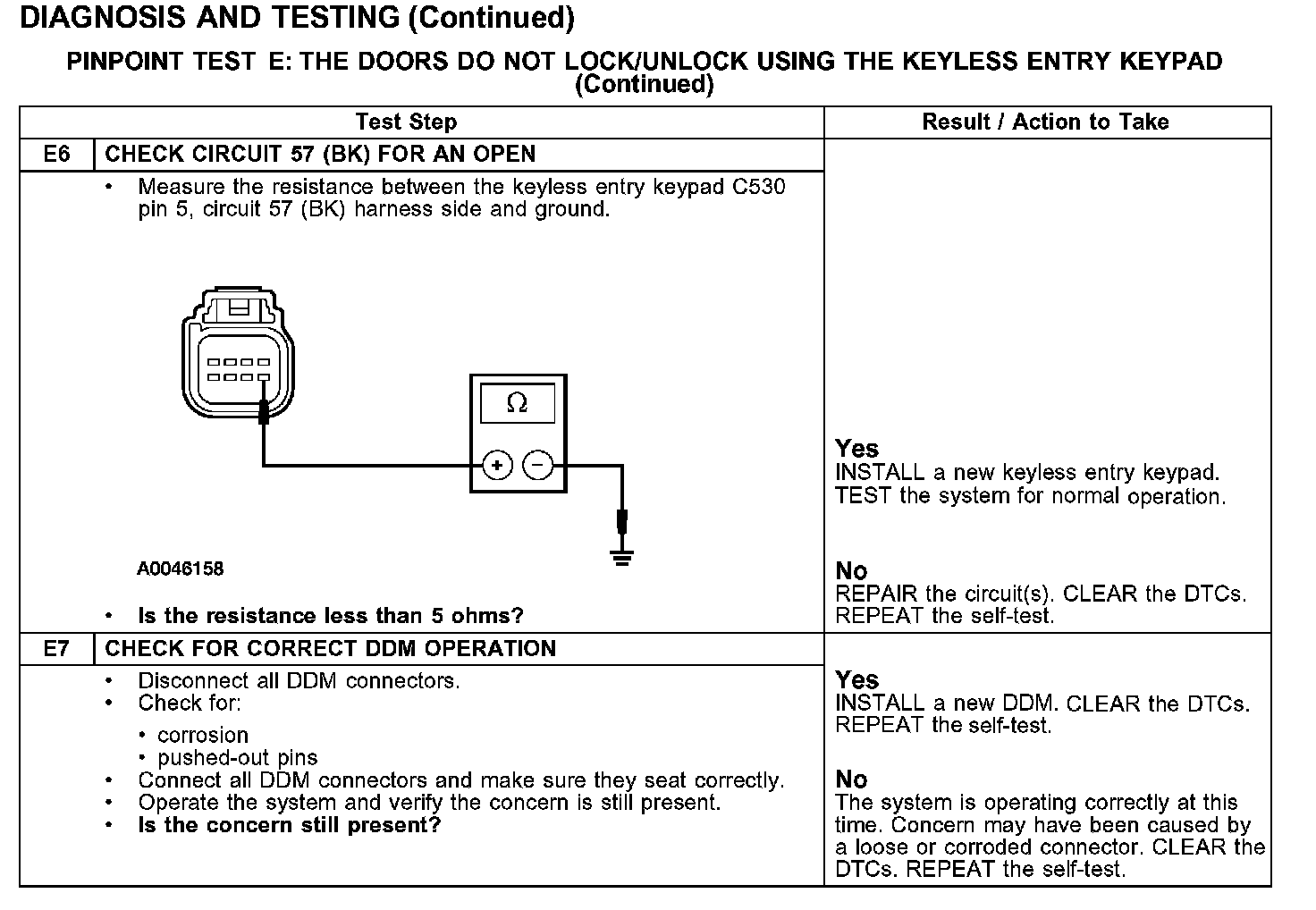

E6-E7:
