FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2005
>>
Grand Marquis V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Module Controlled
>>
Test D: A Single/More Than One Door Lock Is Inoperative
Test D: A Single/More Than One Door Lock Is Inoperative
PINPOINT TEST D: A SINGLE/MORE THAN ONE DOOR LOCK IS INOPERATIVE

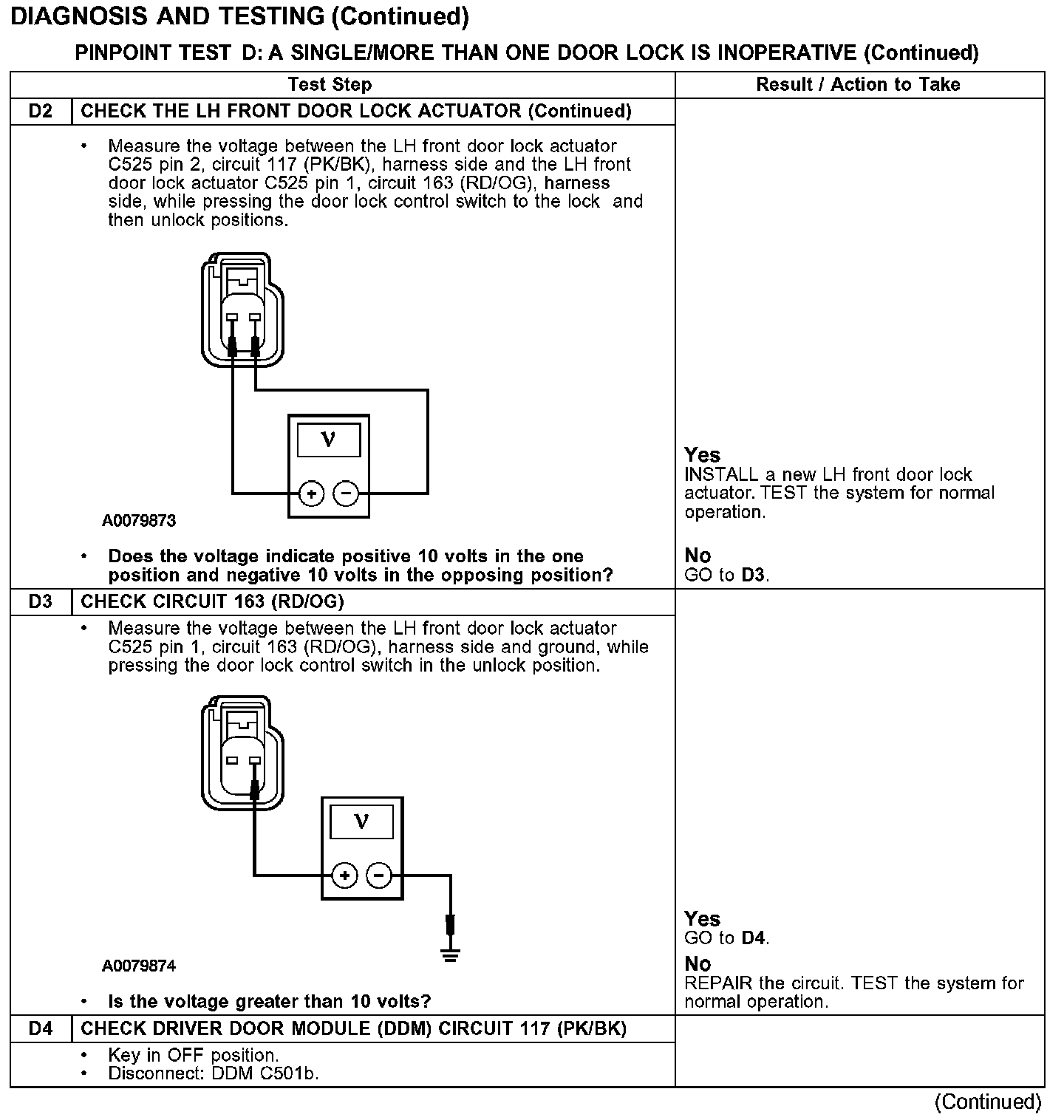

D1-D2:

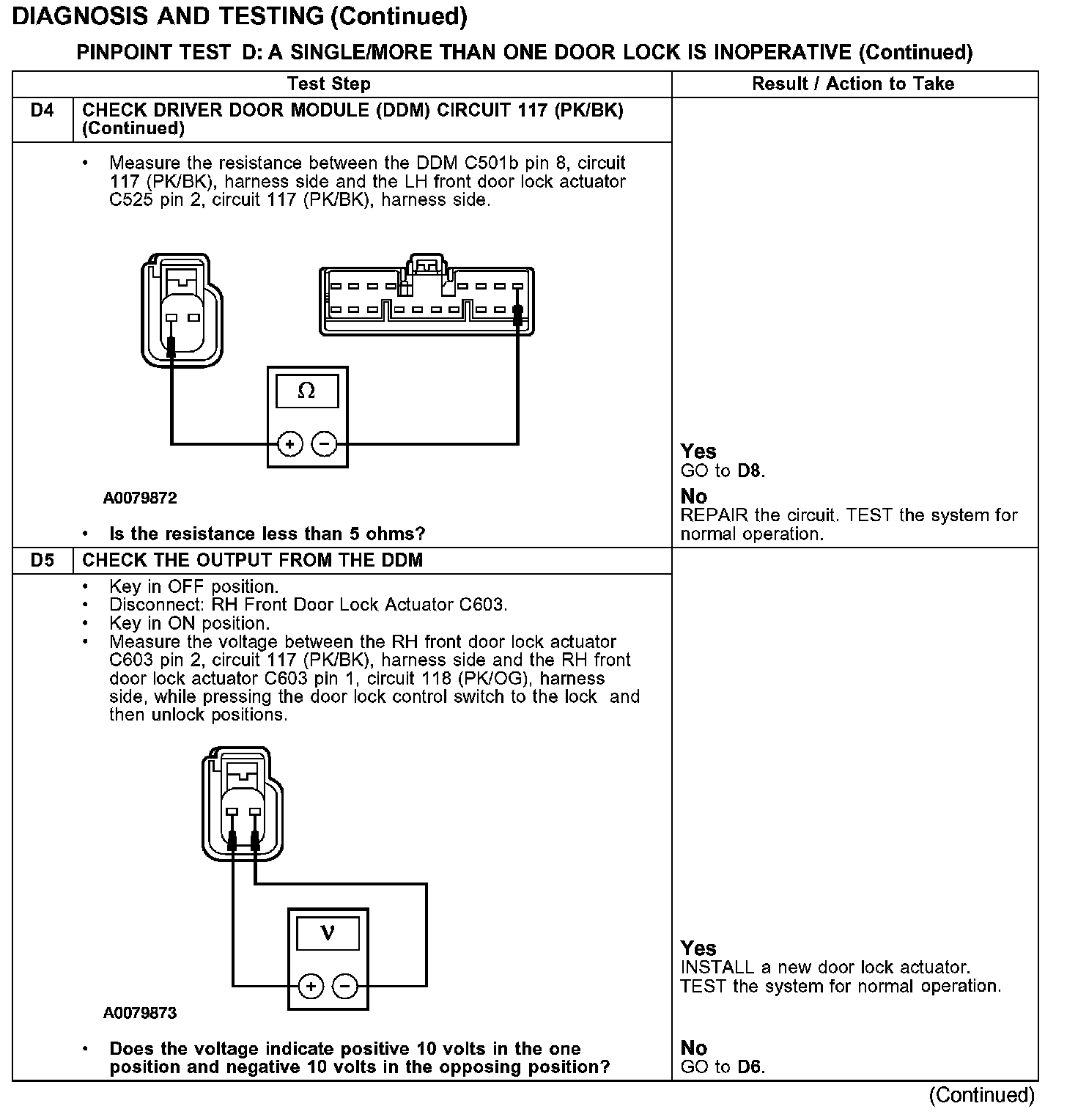

D2-D4:
D4-D5:

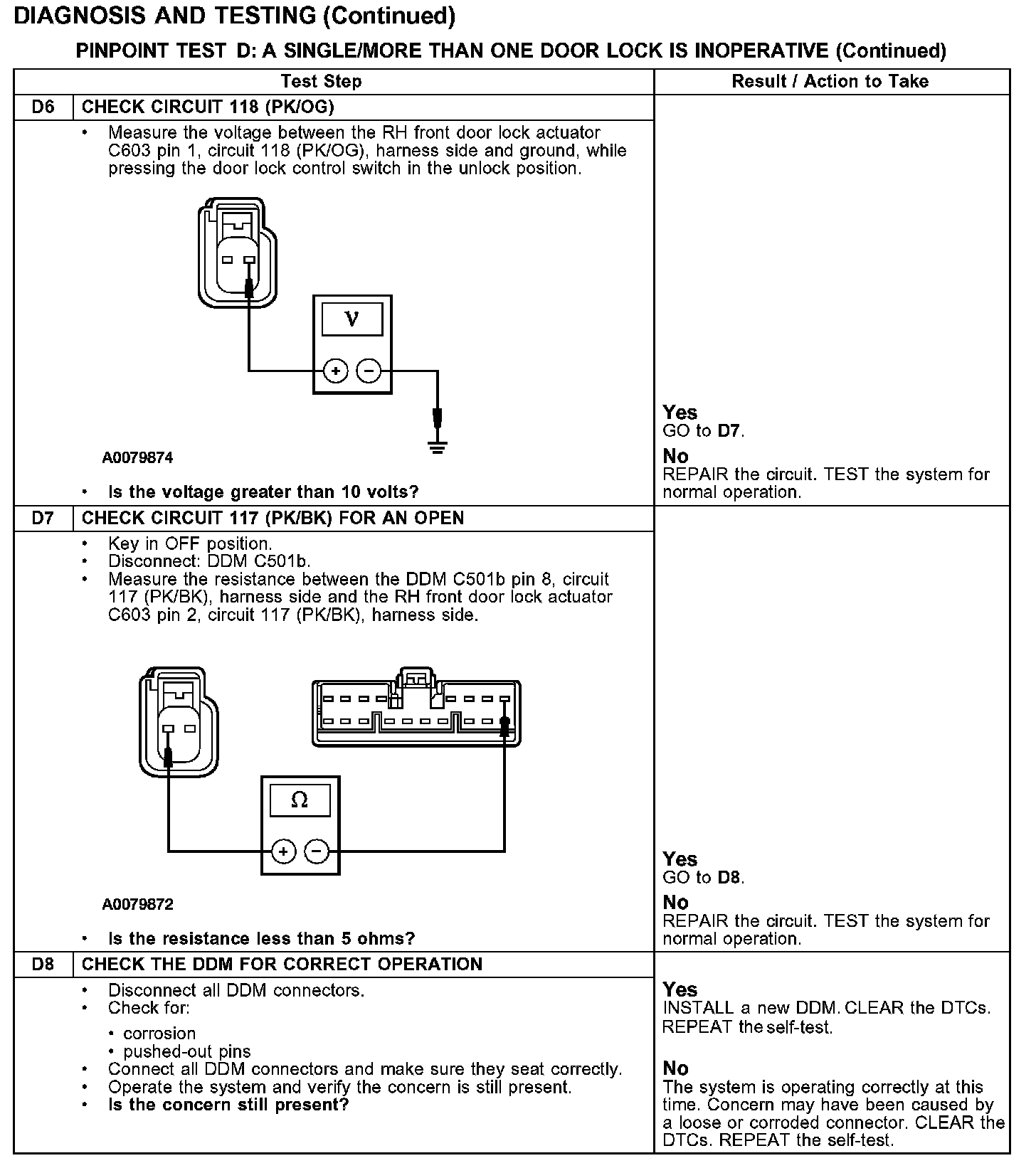

D6-D8:
