Test C: All Door Locks Are Inoperative
Test C: All Door Locks Are Inoperative
PINPOINT TEST C: ALL DOOR LOCKS ARE INOPERATIVE
C1-C3:
C3-C5:

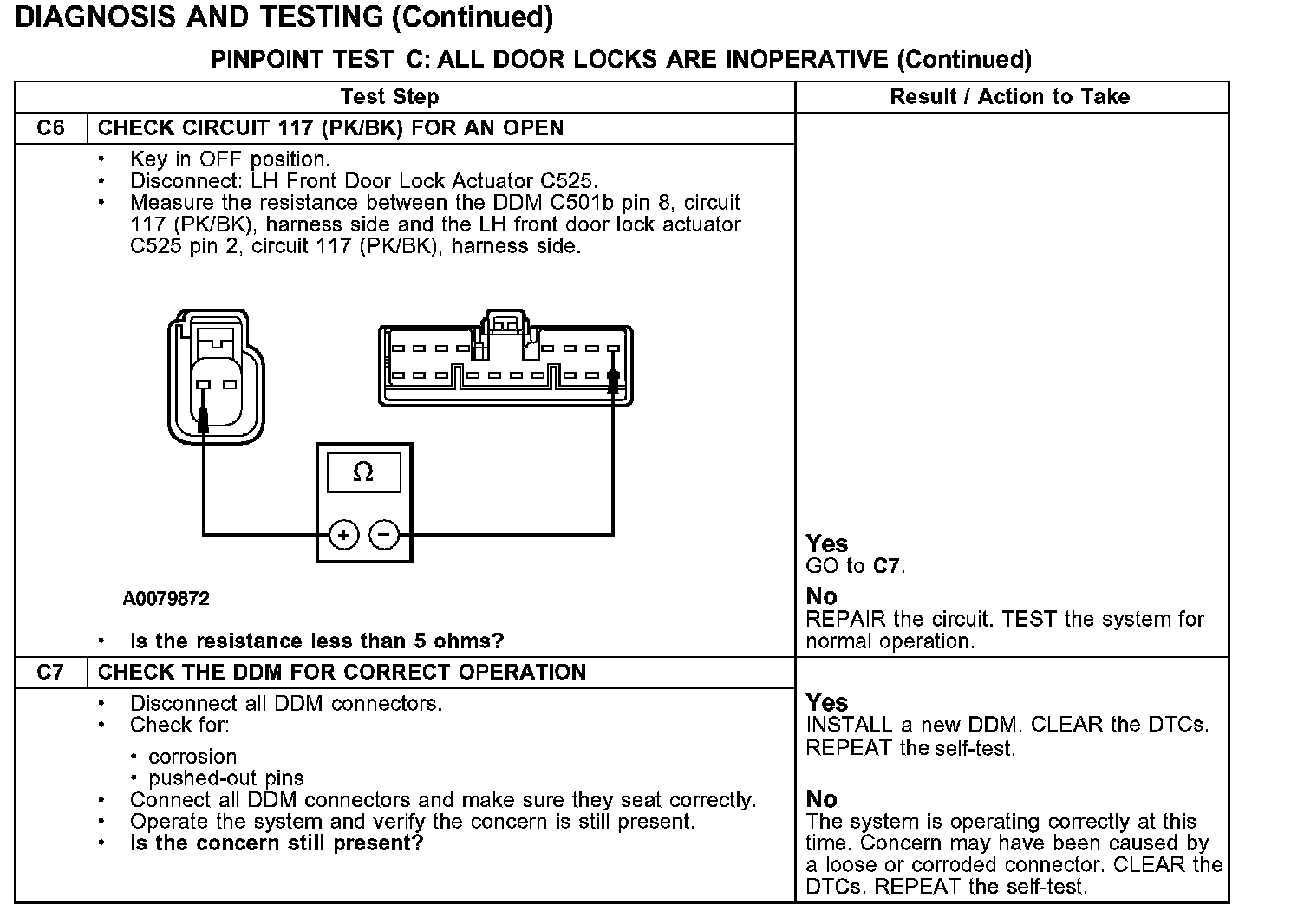

C6-C7:
