FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2005
>>
Grand Marquis V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Module Controlled
>>
Test B: The Luggage Compartment Lid Is Inoperative
Test B: The Luggage Compartment Lid Is Inoperative
PINPOINT TEST B: THE LUGGAGE COMPARTMENT LID IS INOPERATIVE

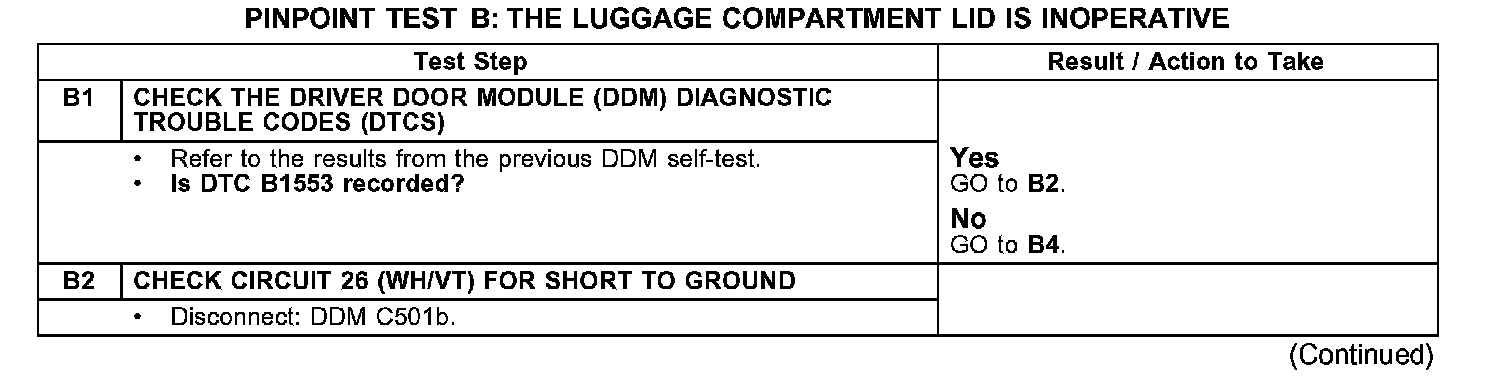

B1-B2:

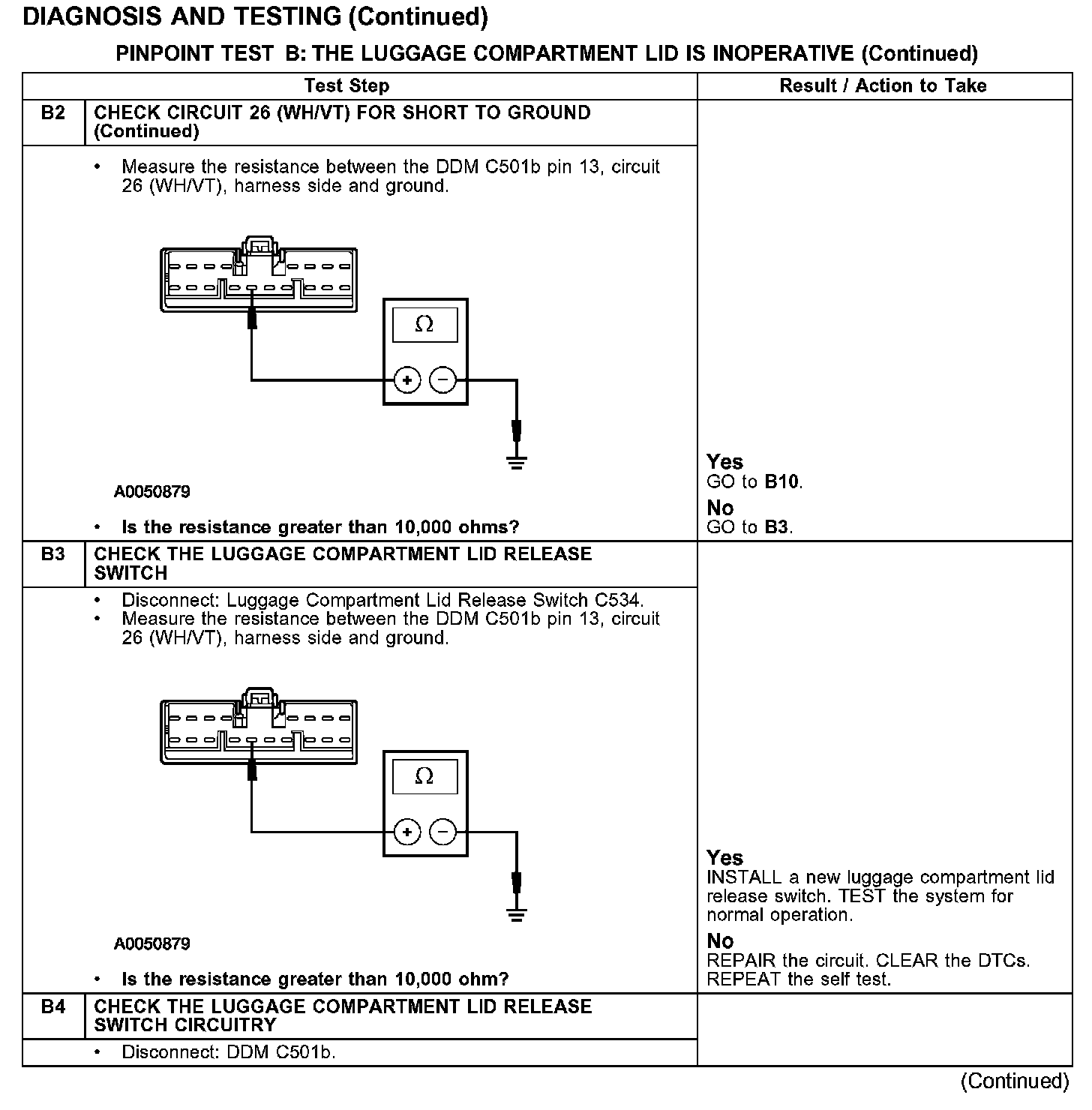

B2-B4:

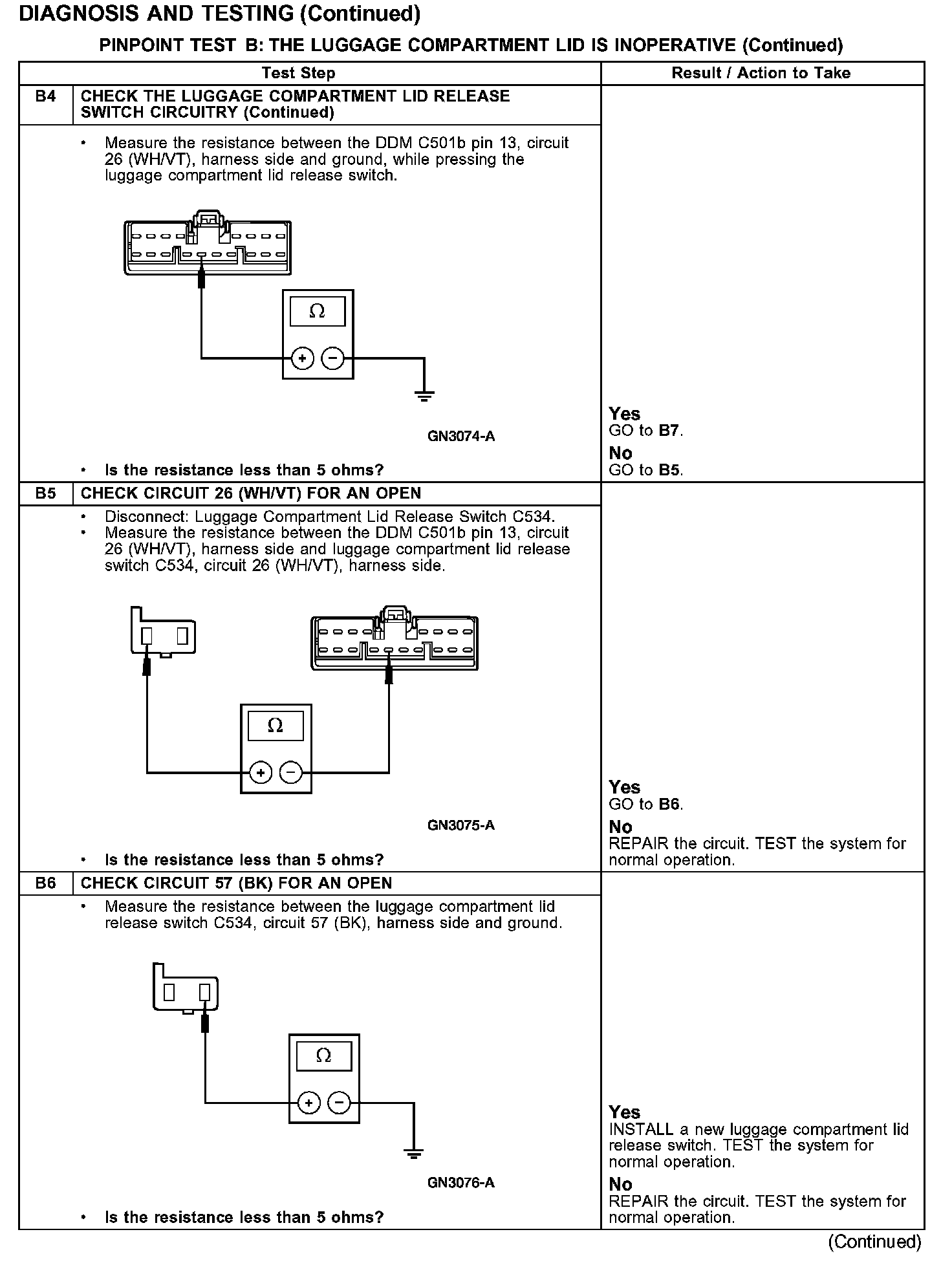

B4-B6:

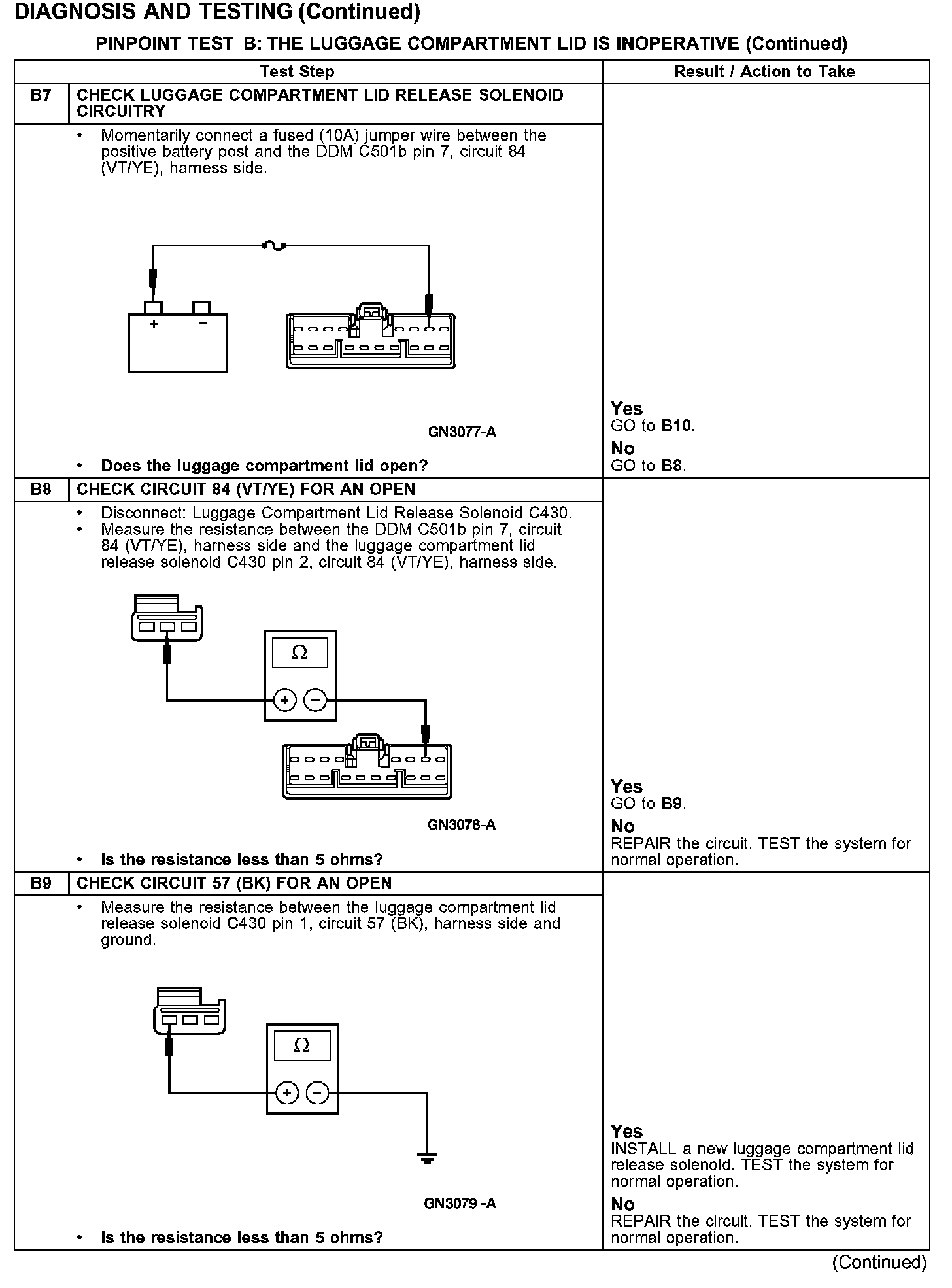

B7-B9:

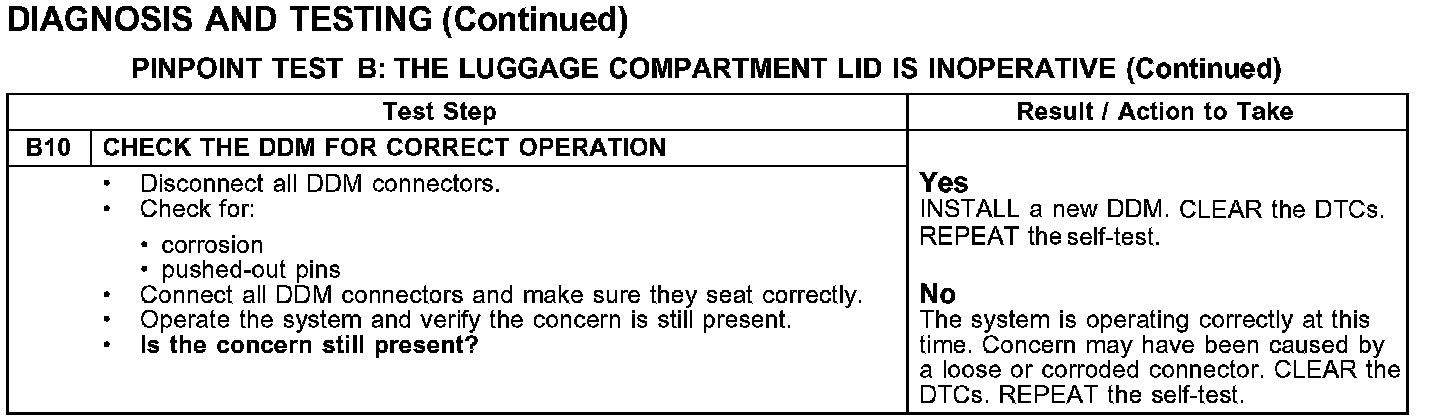

B10:
