Floor Console - Finish Panel

FLOOR CONSOLE - FINISH PANEL

Removal and Installation
1. Apply the parking brake.
2. Place the transmission range selector lever in the 1 position.

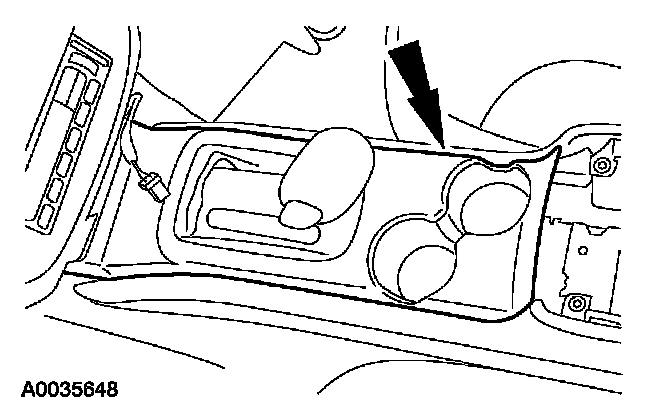

3. Remove the instrument panel center finish panel.
- Disconnect the electrical connector.

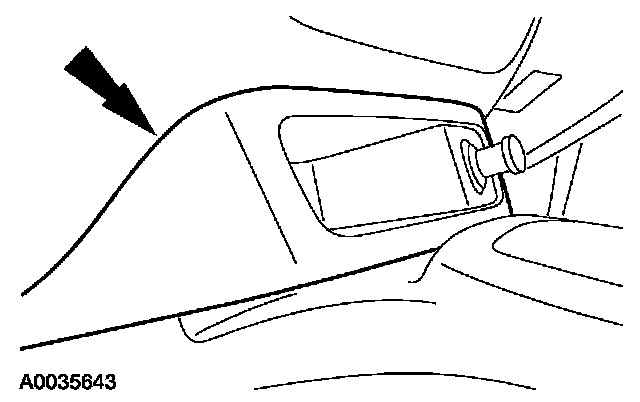

4. Release the floor console finish panel.
5. To install, reverse the removal procedure.
