Cowl Moulding / Trim: Service and Repair

COWL PANEL GRILLE

Removal and Installation
1. Remove the wiper pivot arms.

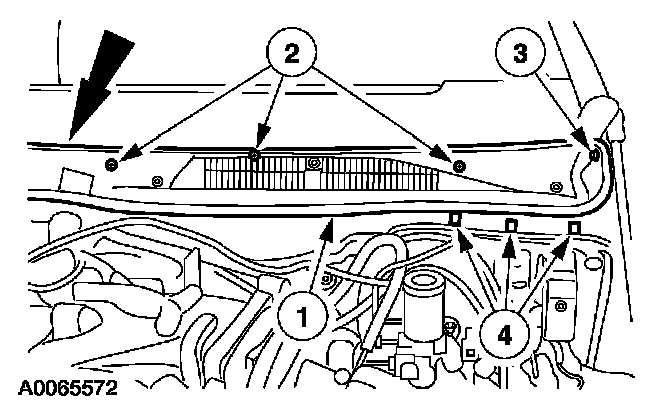

2. Position the cowl panel grille aside.
1. Remove the weather seal.
2. Remove the 6 screws.
3. Remove the 2 pin-type retainers.
4. Remove the 5 retainer clips.

3. Disconnect the washer hose union.
4. Remove the cowl panel grille.
5. To install, reverse the removal procedure.
