Test I: The Subwoofer Is Inoperative/Does Not Operate Correctly
Test I: The Subwoofer Is Inoperative/Does Not Operate Correctly
PINPOINT TEST I: THE SUBWOOFER IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

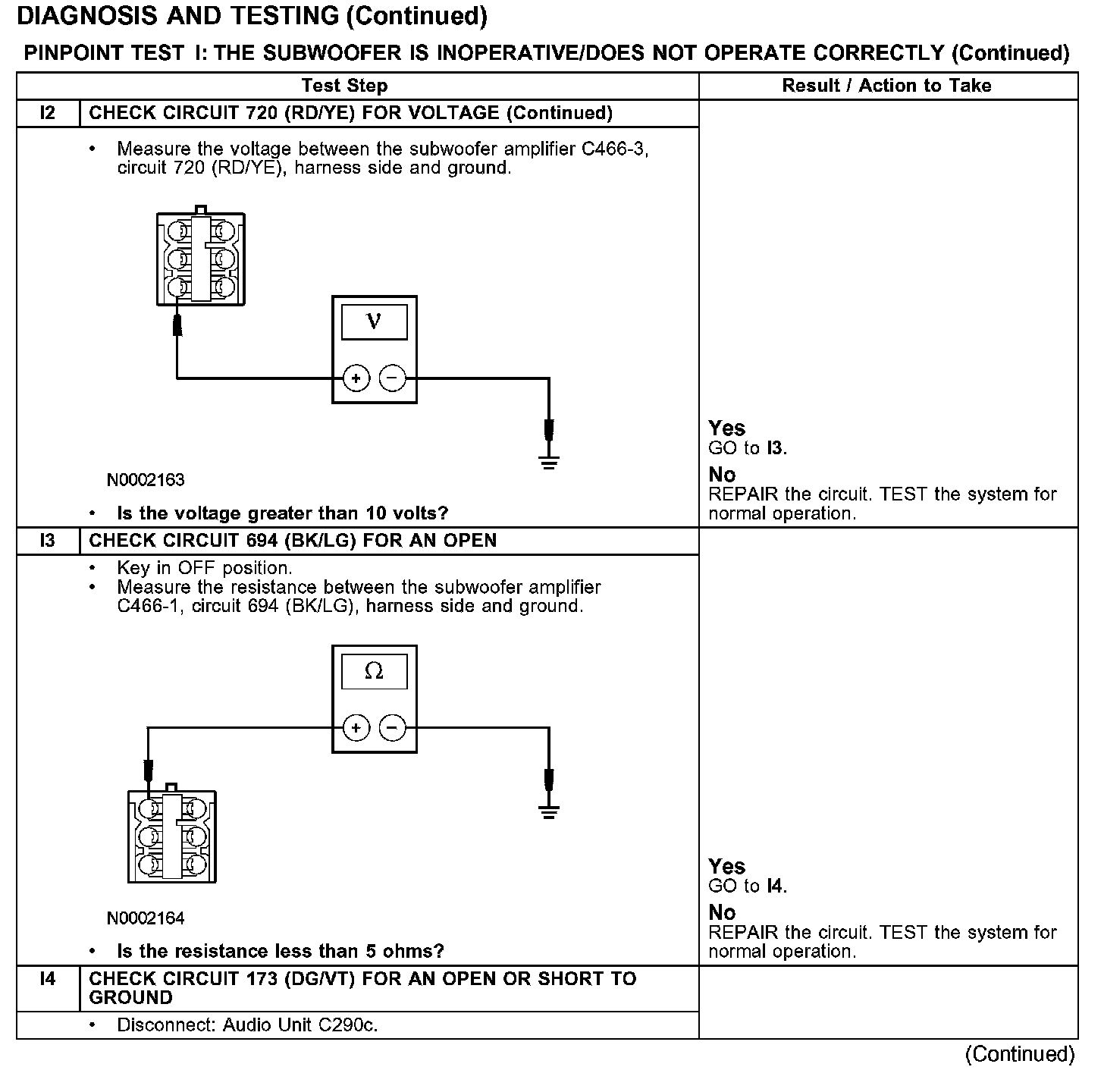

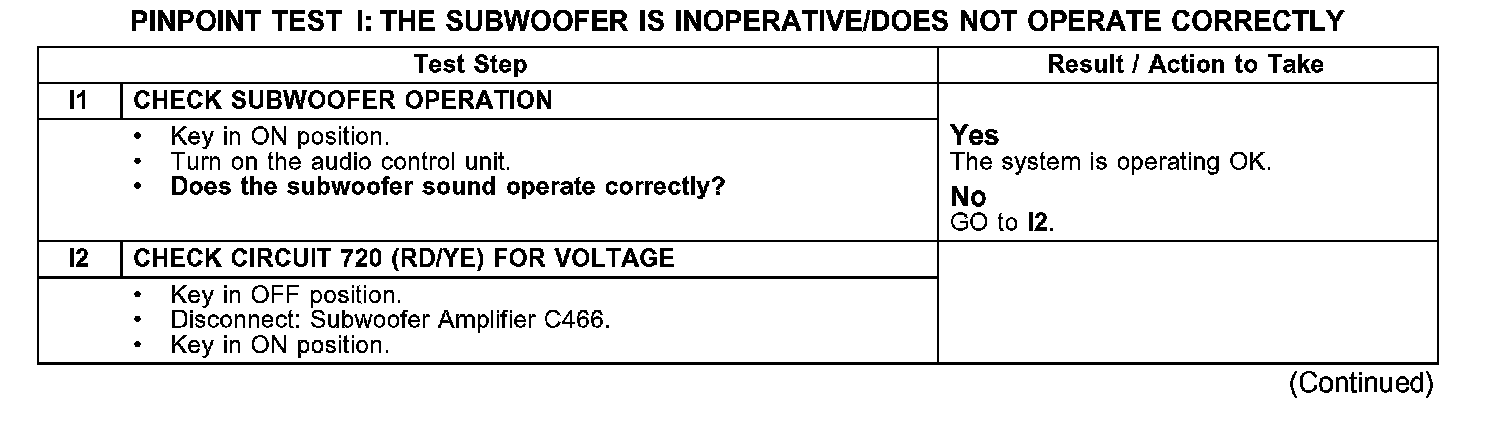

I1-I2:
I2-I4:

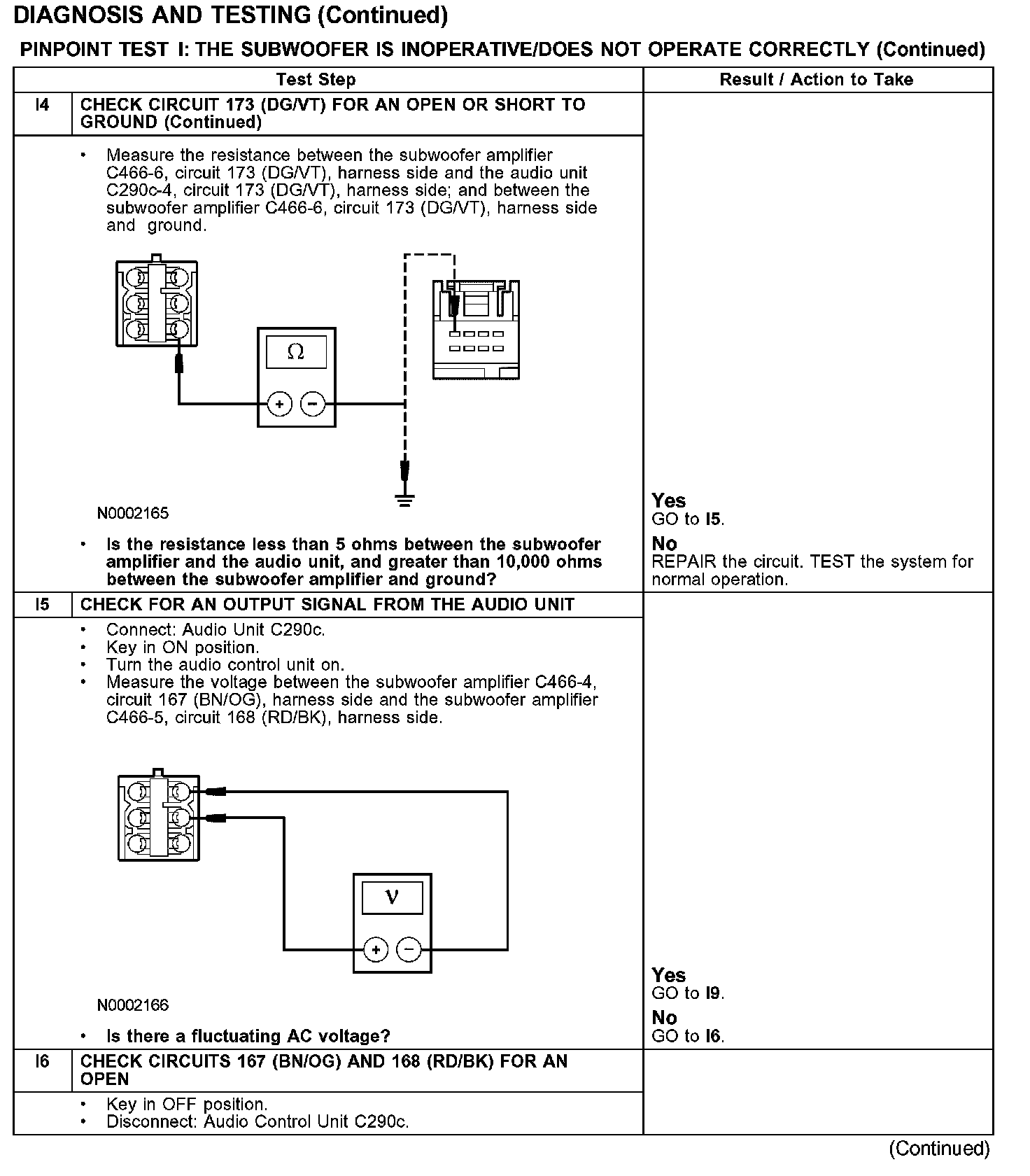

I4-I6:
I6-I8:

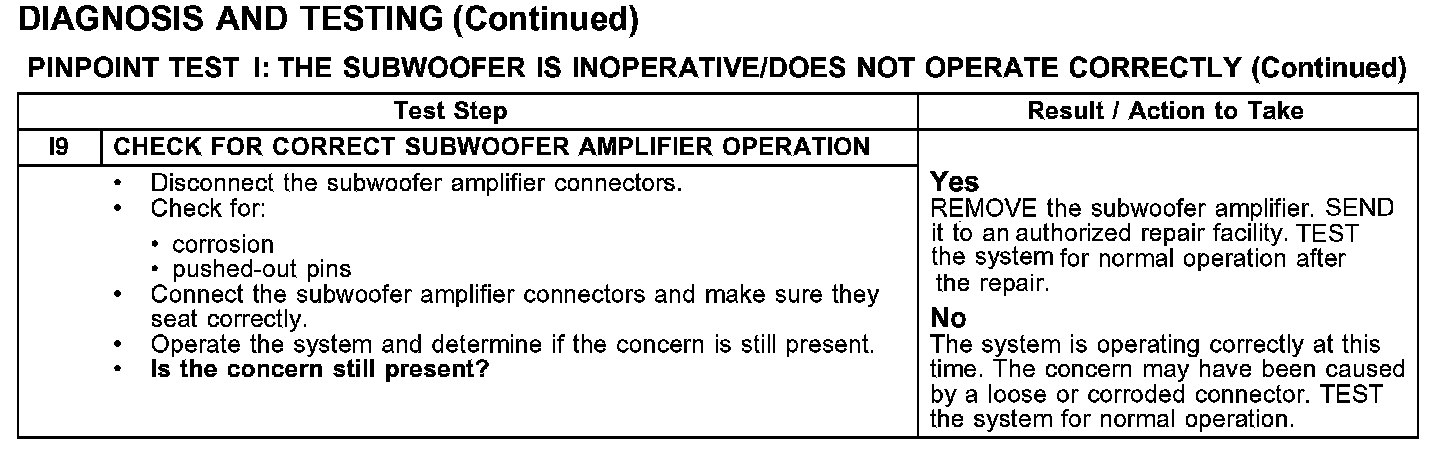

I9:
