Test A: The Audio Unit Is Inoperative/Does Not Operate Correctly
Test A: The Audio Unit Is Inoperative/Does Not Operate Correctly
PINPOINT TEST A: THE AUDIO UNIT IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

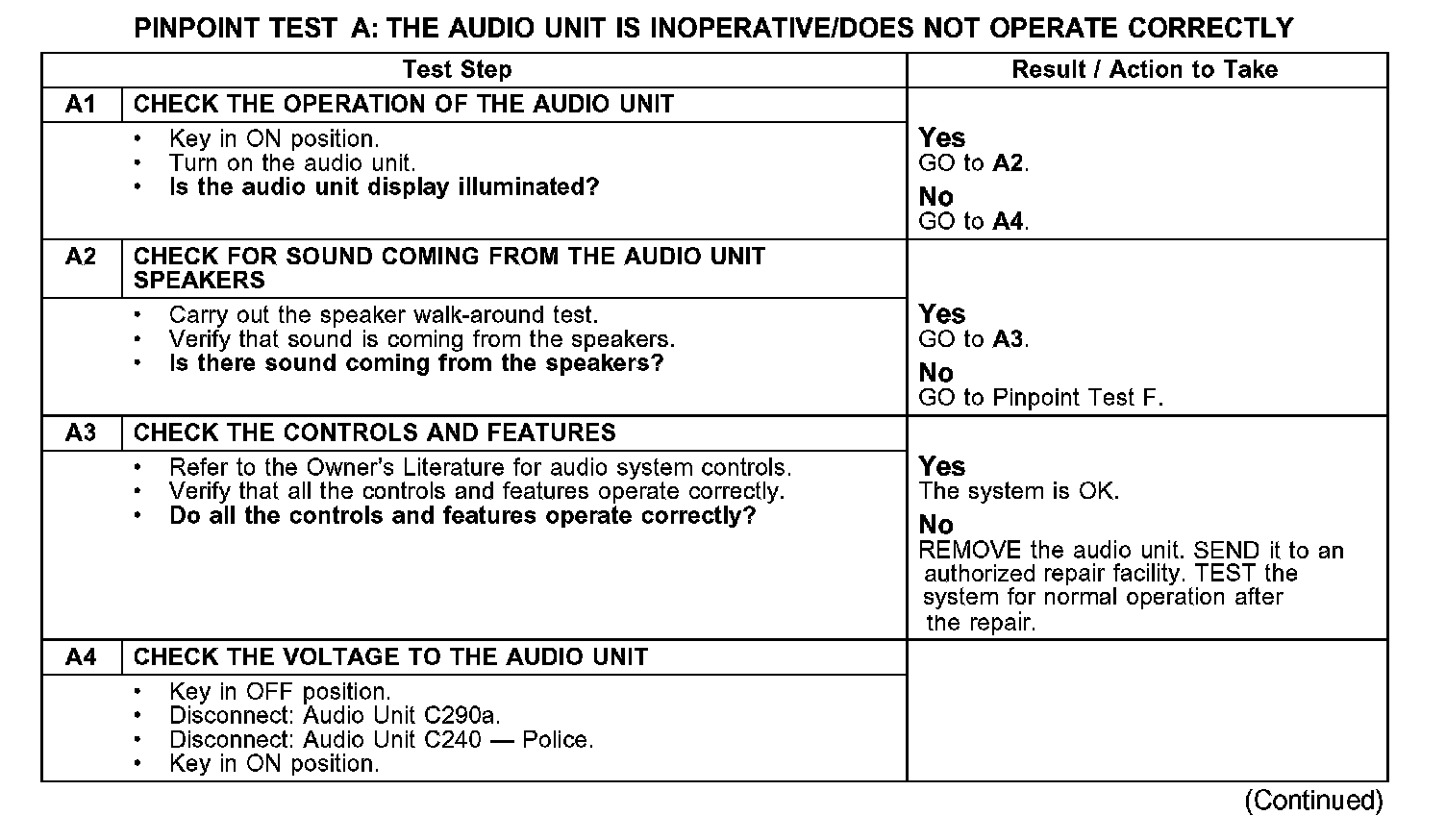

A1-A4:
A4-A5:

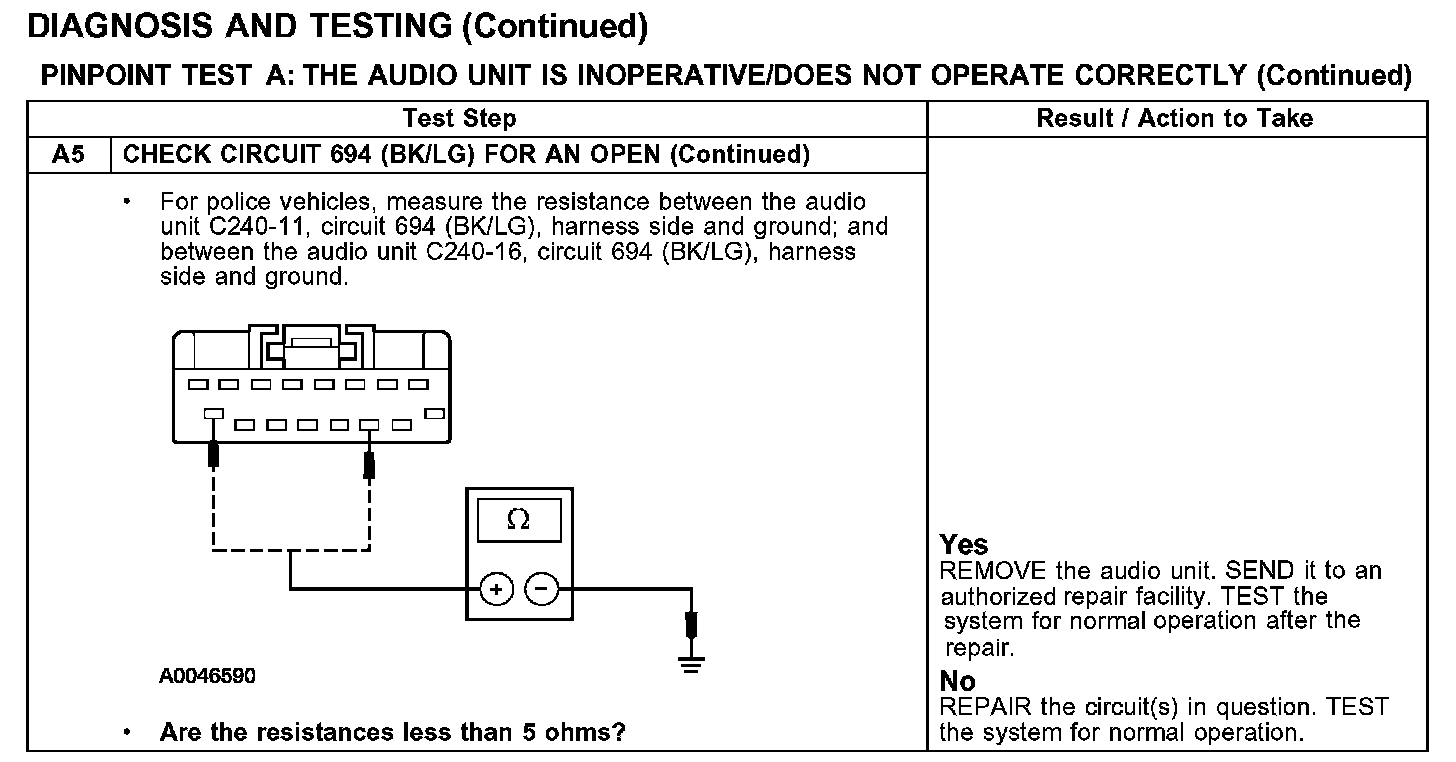

A5 Continued:
