CD Changer: Service and Repair

COMPACT DISC (CD) CHANGER

Removal and Installation
1. If equipped, position the luggage compartment cover aside.

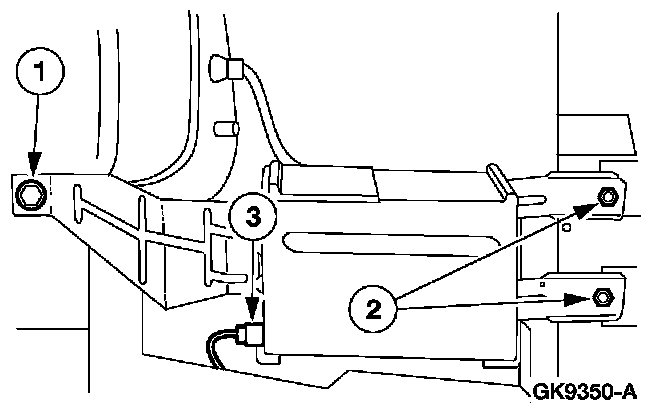

2. Remove the digital audio compact disc changer.
1 Remove the bolt.
2 Remove the nuts.
3 Disconnect the electrical connector.

3. Remove the digital audio compact disc changer brackets.
- Remove the 6 bolts and 2 brackets.

4. To install, reverse the removal procedure.
