FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2005
>>
Grand Marquis V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test B: PATS Ignition Key Transponder Signal Is Not Received
Test B: PATS Ignition Key Transponder Signal Is Not Received

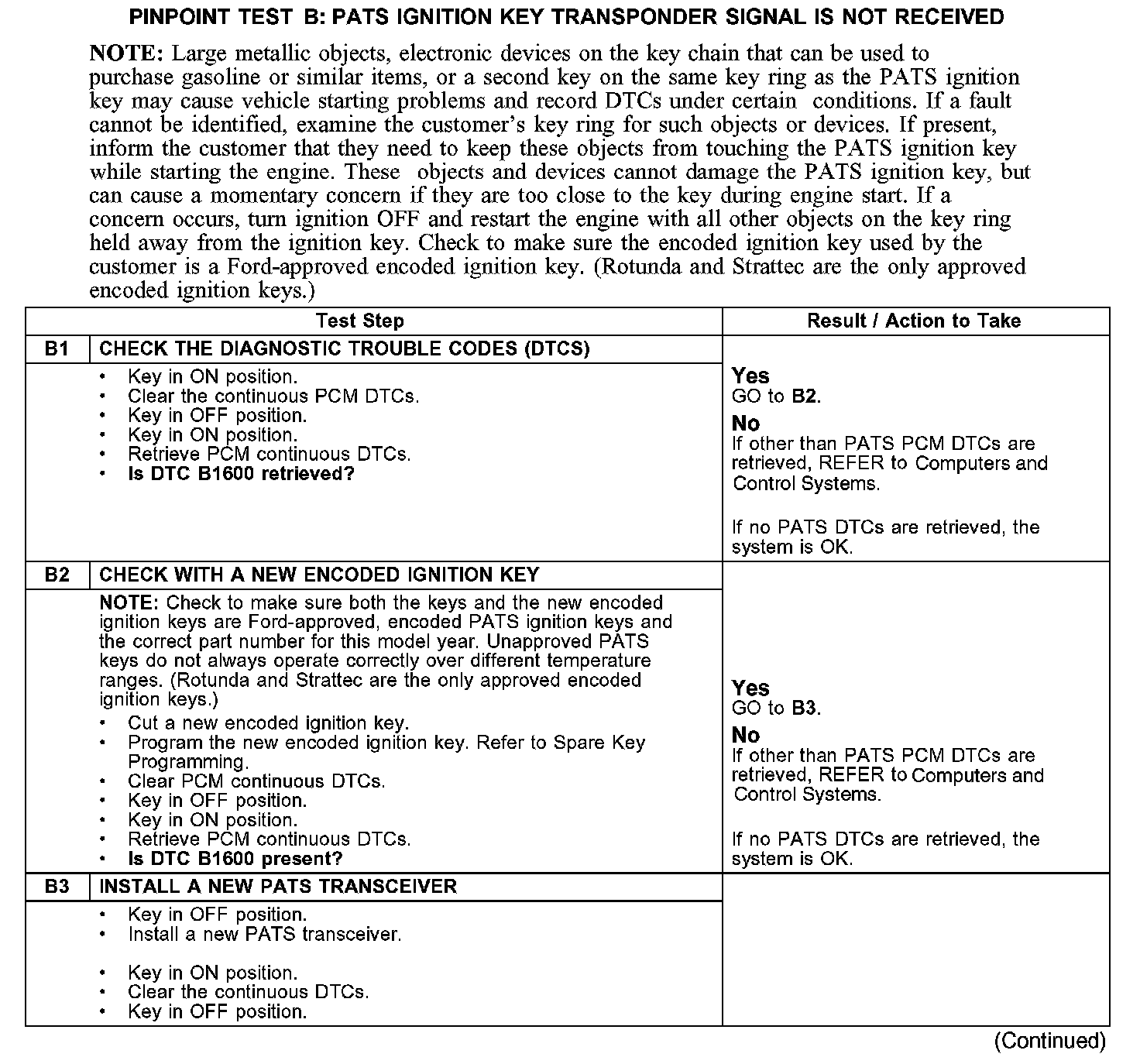

PINPOINT TEST B: PATS IGNITION KEY TRANSPONDER SIGNAL IS NOT RECEIVED
B1-B3:

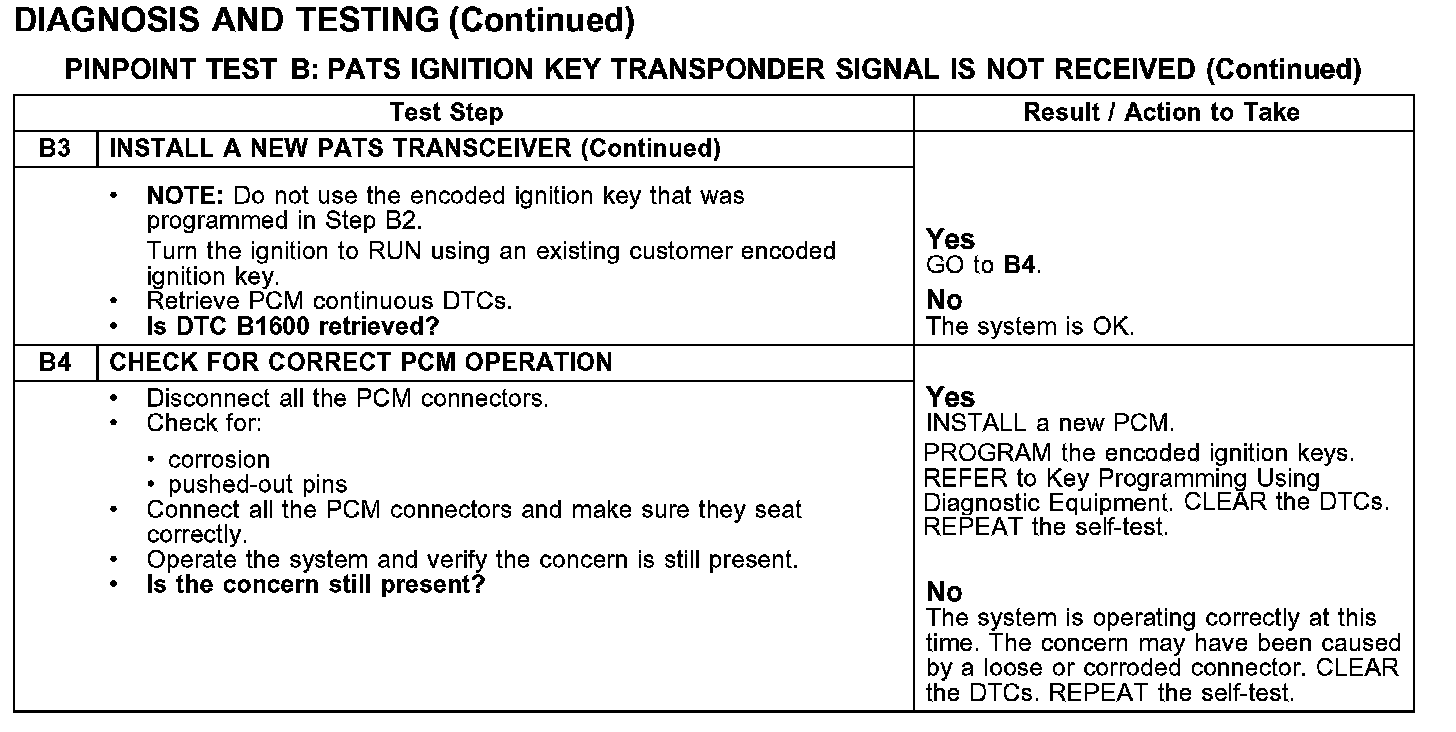

B3-B4:
