Alarm System Transponder: Service and Repair

PASSIVE ANTI-THEFT SYSTEM (PATS) TRANSCEIVER

Removal and Installation
1. Remove the ignition lock cylinder.

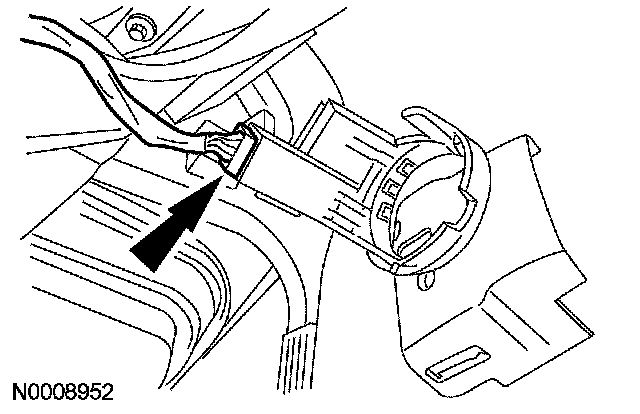

2. Disconnect the electrical connector and remove the passive anti-theft system (PATS) transceiver.

3. NOTE: No key programming needs to occur with the removal or installation of a new PATS transceiver.

To install, reverse the removal procedure.
