Run and Bracket

REAR DOOR WINDOW GLASS - RUN AND BRACKET

REMOVAL
1. Remove the rear door trim panel.
2. Remove the watershield.







3. CAUTION: Prior to removing the rivet center pins, place suitable support between the door outer panel and the glass to stabilize the glass.

NOTE: Lower the window to access the rivets.

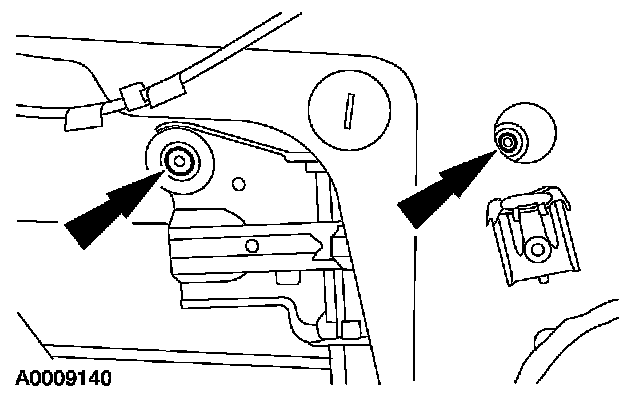

Remove the rear door window glass to the rear door window glass run and bracket rivets.

4. Raise and support the rear door window glass to its full closed position.

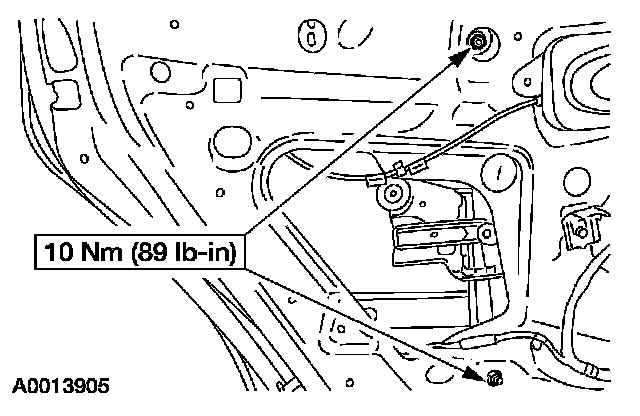

5. Remove the rear door window glass run and bracket nuts.

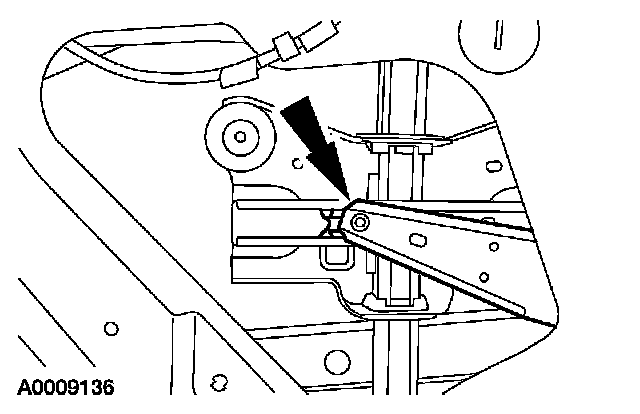

6. Slide the rear window regulator out of the rear door window glass run and bracket and position aside.
7. Remove the rear door window glass run and bracket.

INSTALLATION
1. To install, reverse the removal procedure.
