Flex Plate: Service and Repair

Flexplate
Removal and Installation
1. Remove the transaxle.

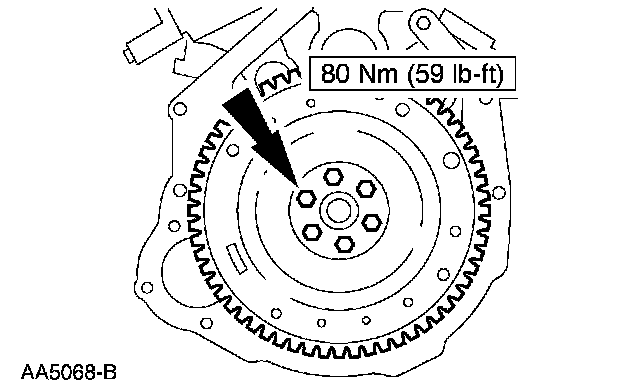

2. Remove the flexplate.
^ Remove the bolts.

3. To install, reverse the removal procedure.
