Combination Fluid Cooler

Combination Fluid Cooler

Removal and Installation
1. CAUTION: Use new clamps, position within hose marking.

With the vehicle in NEUTRAL, position it on a hoist.





2. Remove the splash shield.

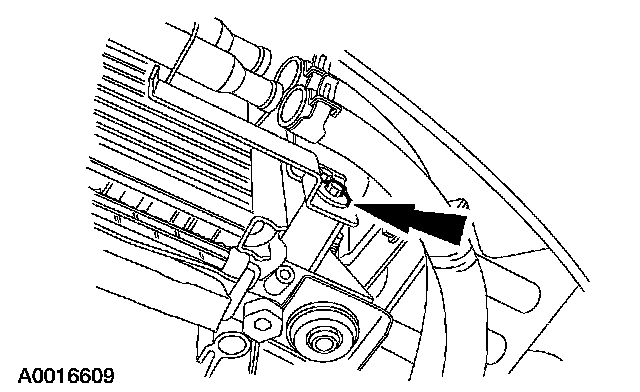

1 Remove the five screws and air deflector, if equipped.
2 Remove the remaining seven screws and the splash shield.








3. NOTE: Place a drain pan under the transaxle fluid cooler.

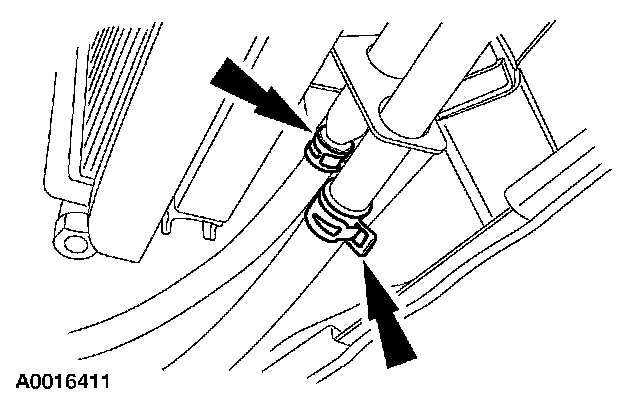

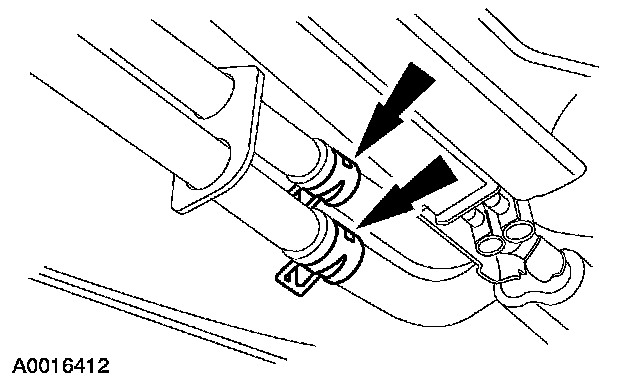

Disengage the clamps and remove the transmission fluid cooler hoses and the power steering fluid cooler hoses.








4. Remove the bolts and the combination fluid cooler.
5. To install, reverse the removal procedure.
^ Fill the transaxle to the specified level.
^ Fill and purge the power steering system of air.
