Transaxle Connector Layouts

Transaxle Connector Layouts

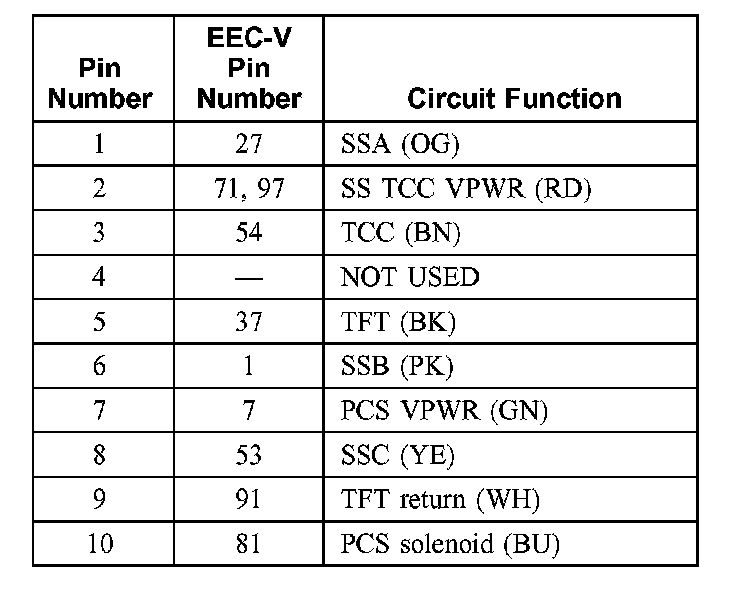

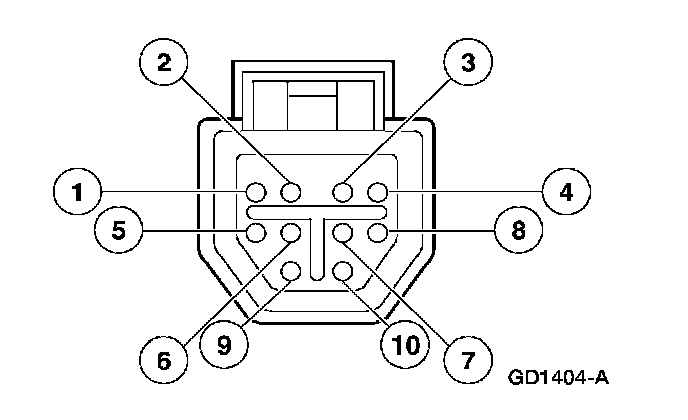

Transaxle Vehicle Harness Connector

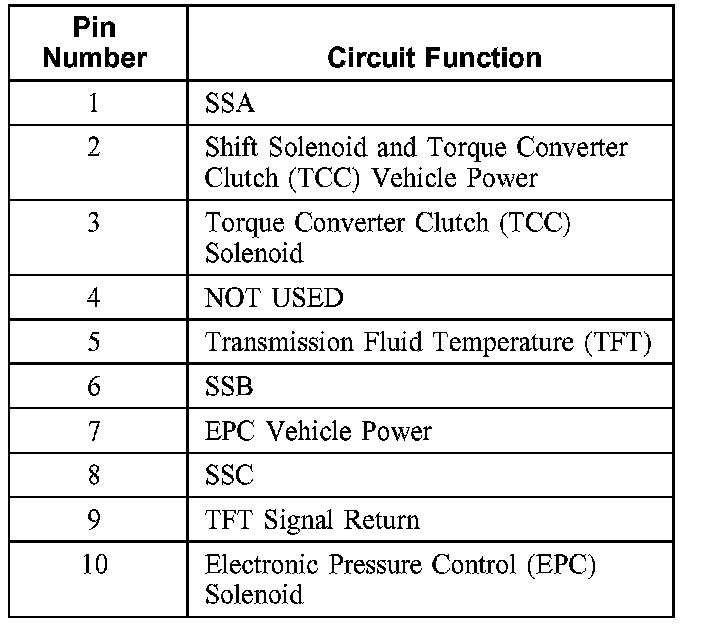

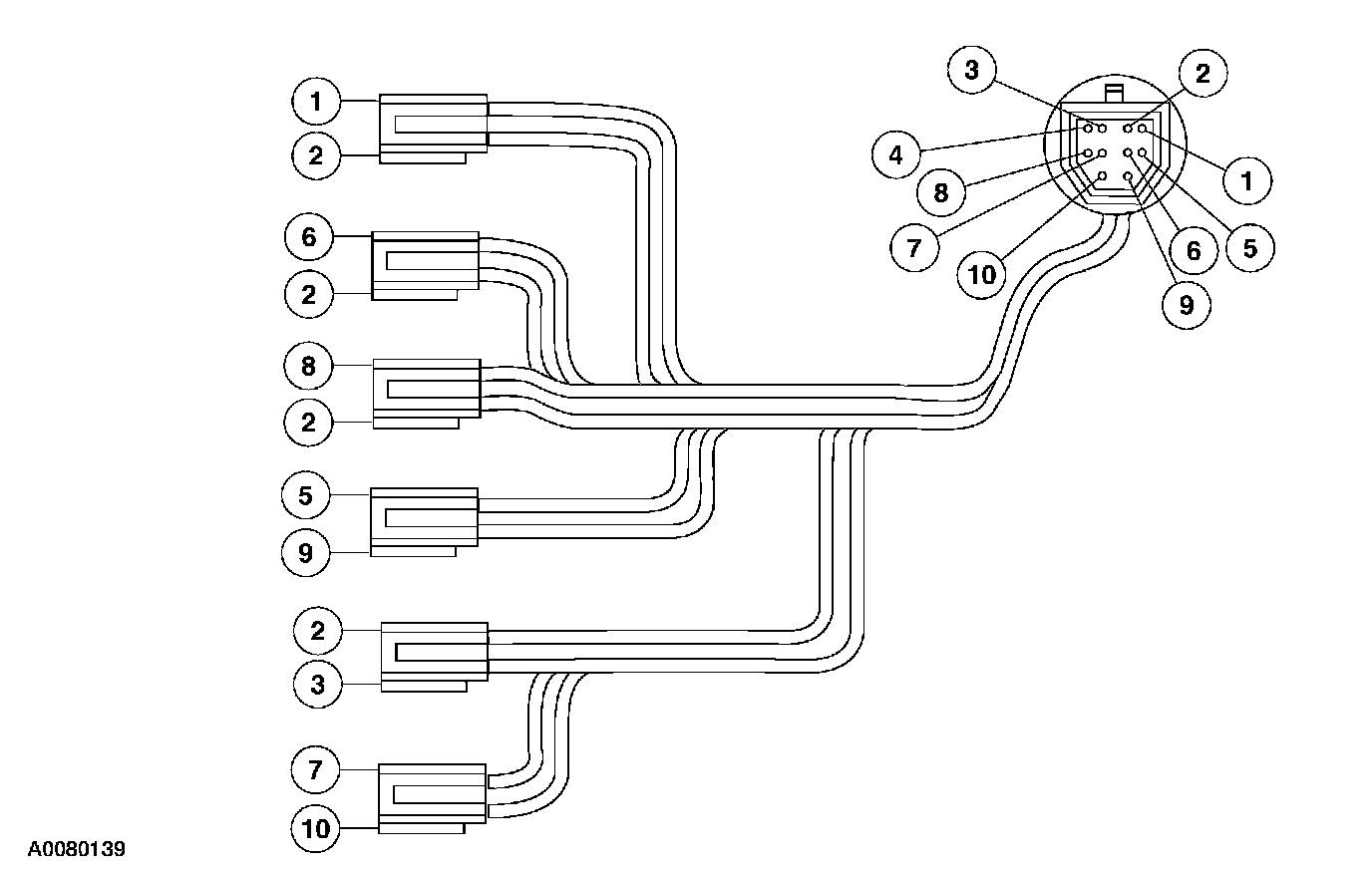

Transaxle Internal Harness Diagram

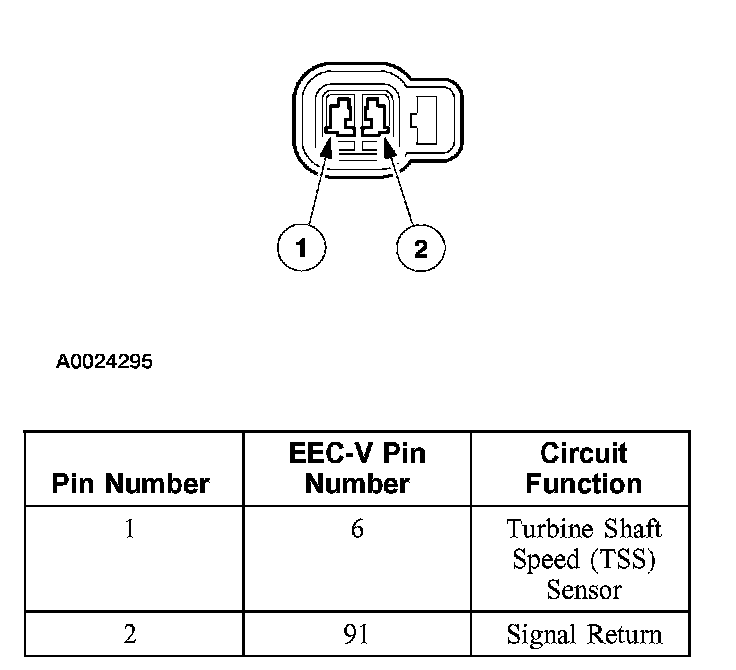

Turbine Shaft Speed (TSS) Sensor

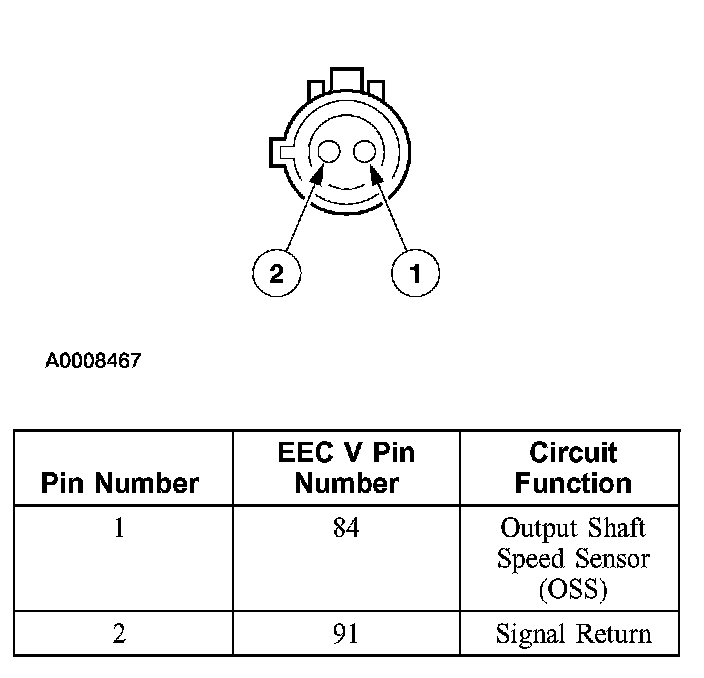

Output Shaft Speed (OSS) Sensor Connector

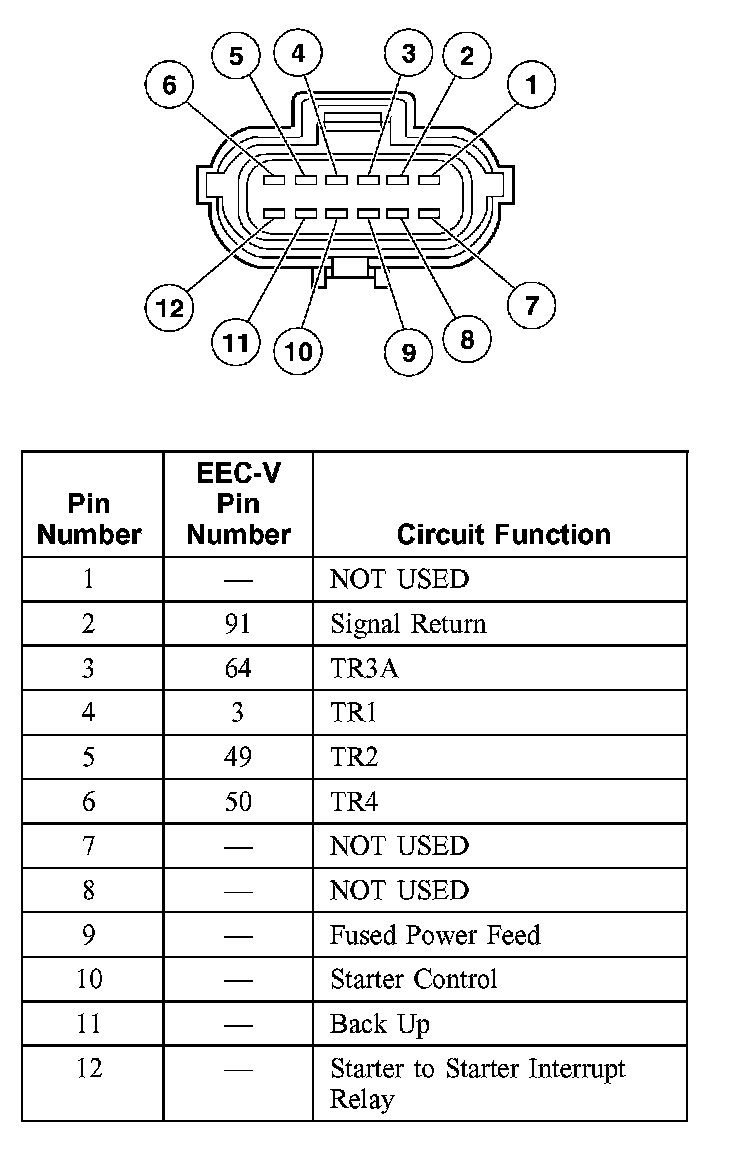

Digital Transmission Range (TR) Sensor Connector
